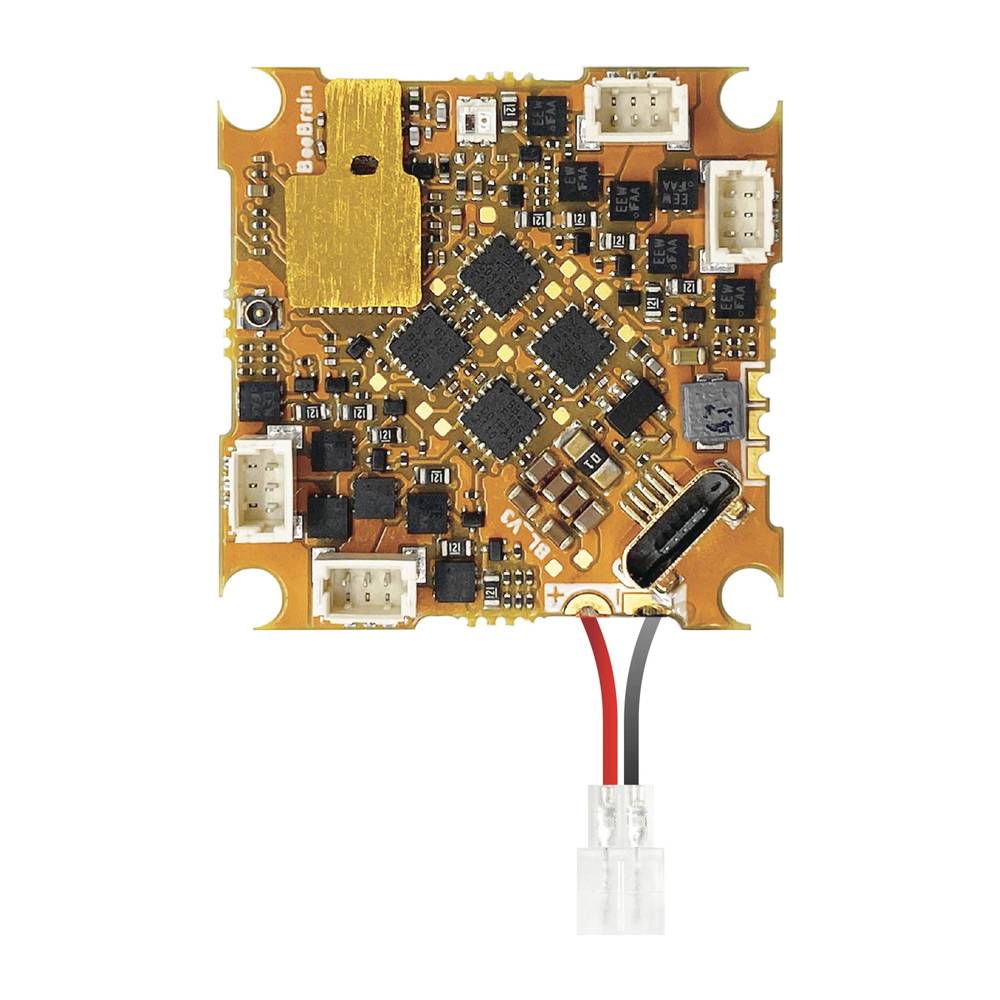

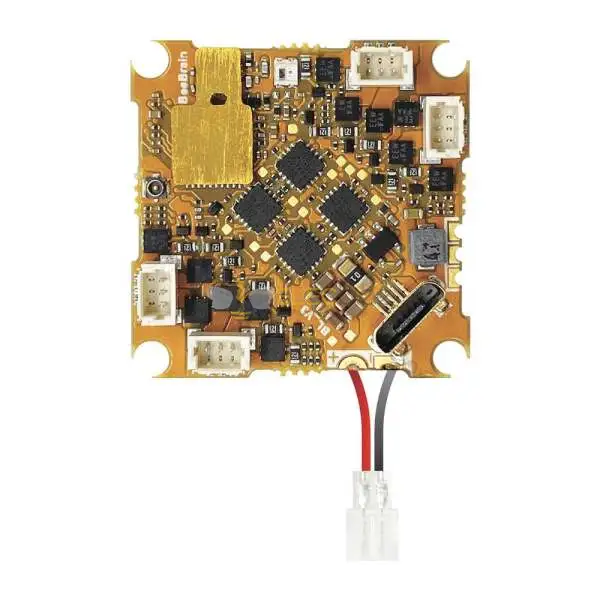

Elecbee NewBeeDrone BeeBrain BLV3 AIO F4 FC+ 12A BLHeli_S 1-2S ESC
SKU: EB-315-0090-L
Favorites
Key Features
Show More
Description
Features
Receiver Improvements - 50% More Range
An optional wiring harness is available to install an external receiver (Crossfire, Ghost, etc)
Optimized SPI Receiver hardware to improve efficiency within the receiver.
Additional low noise amplifier to increase range.
Removable antennas.
Video Transmitter Improvements - 120mW
New heatsink and layout to increase heat dispersion and efficiency.
Transmitting power increased to 120mW from 25mW (V2)
Specifications
UART2 TX and RX are free for the external receiver (un-inverted SBus signal only)
Weight: 6 grams (including antennas and battery connector)
Size: Outer dimensions 29 x 29 x 7.6 mm
Firmware: 48kHz JESC (unlicensed)
Mounting Pattern: 25.5 x 25.5 mm
MCU: STM32F411 MCU
Battery input: 1–2S
FC Processor: F411
Channels: 4
Amps: 12A
package inclusion
1x NewBeeDrone BeeBrain BL V3 Flight Controller
1x JST 0.8 Wire for External Receiver
2x Receiver Antennas (IPEX-3)
1x VTX Antenna
4x Grommet
4x Screw
