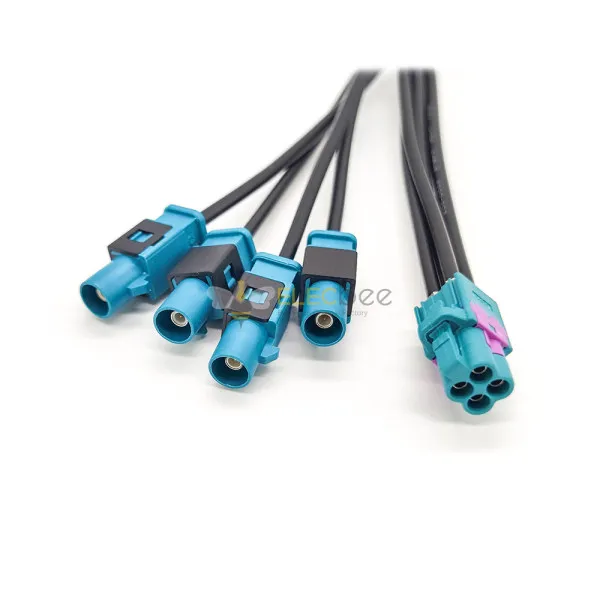

Elecbee Mini FAKRA 4-in-1 to 4-Port FAKRA Z-Type Male LVDS Cable, 360 Panoramic Camera Harness, 50cm RG316 RF Coaxial Jumper, Water Blue -with TE
SKU: EB-014-0196-C
Favorites
Key Features
High-Speed Data Transmission: Engineered as a high-performance LVDS harness for seamless 360-degree panoramic automotive camera systems.
Universal FAKRA Z-Coding: Features Water Blue Z-Type connectors, the neutral coding that fits all FAKRA housings for maximum versatility.
Space-Saving 4-in-1 Design: Consolidates four RF signals into a single Mini FAKRA R-Edition interface to reduce wiring clutter in vehicle consoles.
Premium RG316 Shielding: Constructed with 50cm of high-grade RG316 black coaxial cable to ensure minimal interference and 50 Ohm impedance stability.
Automotive Grade Durability: Built with FAKRA SMB straight male long-body connectors designed to withstand high-vibration automotive environments.
Show More
In-Stock
Qty.
1
Unit Price
$ 42.86
Ext. Price
$ 42.86
$ 42.86
Qty.
Unit Price
Ext. Price
10+
$40.72
$ 407.20
20+
$38.57
$ 771.40
100+
$34.29
$ 3429.00
Specifications
Attribute
Value
Search
Operating Temperature
-40℃~+105℃
Shielding
Shielded
Ingress Protection
IP65
1st Connector Series
Mini Fakra 4 in 1
1st Contact Type
Female Pin
2nd Contact Type
Male Pin
1st Connector Orientation
Straight
2nd Connector Orientation
Straight
Cable Assembly Type
Round - Split
Cable Length
50CM
Cable Color
Black
2nd Connector Series
Fakra Z
1st Connector Mounting Feature
Free Hanging(In-Line)
2nd Connector Mounting Feature
Free Hanging(In-Line)
Impendance
50 Ohms
Suitable Cable
RG316
Frequency Range
DC~6GHz
1st Connector Key
Z Code
2nd Connector Key
Z Code
Description
Upgrade or repair your vehicle's imaging system with the Elecbee Mini FAKRA 4-in-1 to FAKRA Male LVDS Cable. This specialized harness is the essential bridge for 360-degree panoramic camera installations, solving the complexity of routing multiple high-speed video signals through tight automotive spaces. By converting four standard FAKRA inputs into a single Mini FAKRA R-Edition plug, it streamlines your infotainment and ADAS hardware setup.
This 50cm jumper cable is built for technical precision, utilizing RG316 coaxial wire for superior signal integrity over 50 Ohm circuits. Key technical specifications include:
- Primary Interface: Mini FAKRA 4-in-1 Straight Female (R-Edition)
- Secondary Interface: 4x FAKRA Z-Type Straight Male (Long Body)
- Cable Type: RG316 Black Coaxial (50cm)
- Color Code: Water Blue (Universal Z-Coding)
Designed for the rigorous demands of modern Automotive RF environments, the FAKRA SMB long-body connectors provide a secure, click-lock fit that prevents accidental disconnection. This LVDS harness is compatible with a wide range of head units and camera modules, making it a professional-grade choice for automotive technicians and high-end car audio installers seeking reliable video signal transmission.
