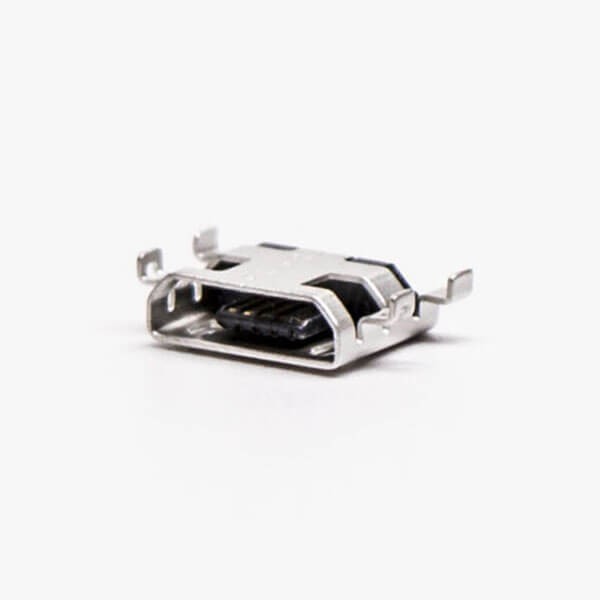

Elecbee Micro USB Jack 5 Pin Type B Straight Offset Type SMT for Phone 9.65MM
SKU: EB-500-4003
Favorites
Key Features
Features:
- Micro USB,Type B,5Pin,Straight/180°,Female/Jack,SMT,PCB Mount;
- More compact than Mini USB, meets environmental, health and safety requirements；
- Full metal shielding, Flexible application；
- Easy and Quick usage, Convenient recharging and communication；
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- Communications: Satellite Phone.
- Data: Field PC.
- Consumers: Camcorder, Smartphone, MP3 Player, Bluetooth, Headphone, Smartwatch, Tablet, Reader, GPS, Laptop Coolers.
- Industrial & Instrumentation: Industrial.
Show More
Specifications
Attribute
Value
Search
Connector Type
MICRO USB
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Female Pin
Number of Positions
5 Pin
Operating Temperature
-55℃~+85℃
Shielding
Shielded
Rated Current
1A
Rated Voltage
100V
Specifications
USB 2.0
