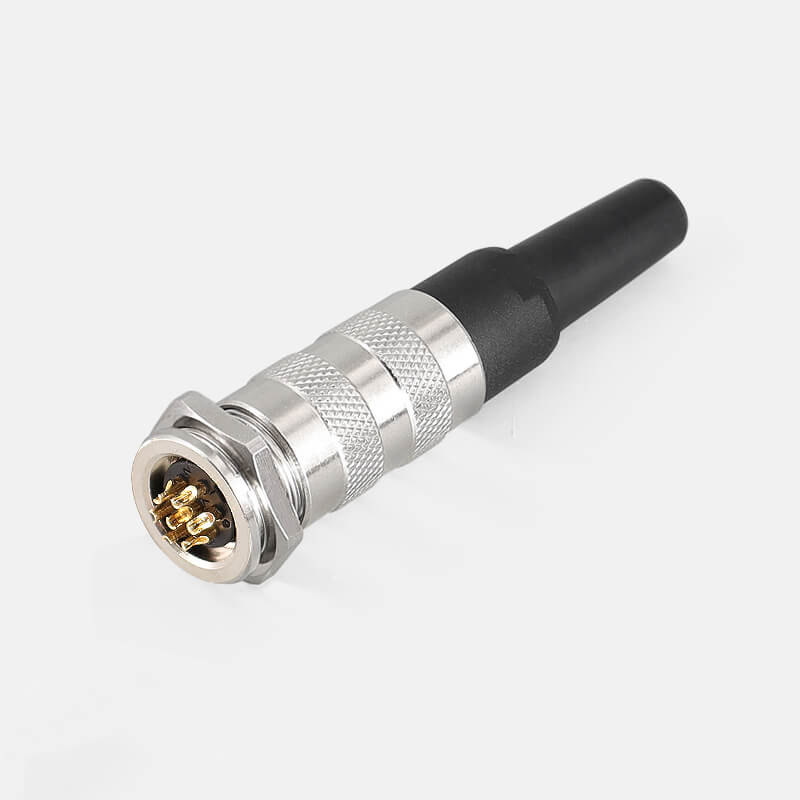

Elecbee M16 J09 Connector 7Pin female Plug and male socket Circular IP67 Waterproof Connector

SKU: EB-400-3116-H
Favorites
Key Features

Features:

  • Connector Series: M16 / J09
  • Standard: IEC 61076-2-101
  • Coding: A
  • Pins: 2 3 4 5 6 7 8 12 14 16 19 Pin
  • Gender: Male and Female
  • Connector Locking System: Fix the screw
  • Ambient Temperature: -25°C~+85°C
  • Connector Body: PA66+GF
  • Contacts: Phosphorus copper with gold plated
  • Screw/Nut: Brass with nickel plated
  • Waterproof 0-ring: FKM
  • Glue: Black epoxy resin
  • Wire Jacket: PVC/PUR

Noted: J09 series connectors. It can be compatible with the Amphenol C091D series, Binder 423 series and 680 series. It is applied to industries such as instrumentation, sensors, automation control and communication.

Show More
Attribute
Value
Connector Type
Plug, Receptacle
Contact Type
Male,Female Pin
Shell Finish
Nickel Plated
Number of Positions
7 Pin
Rated Current
5A
Rated Voltage
125V
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66
Cable Diameter
20AWG
