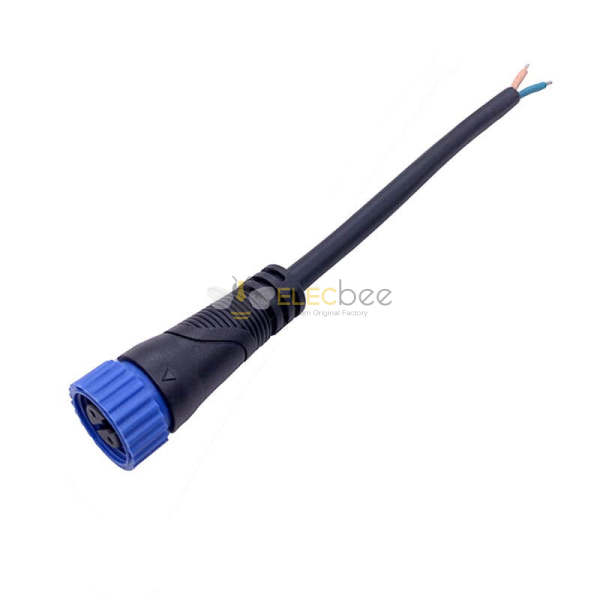

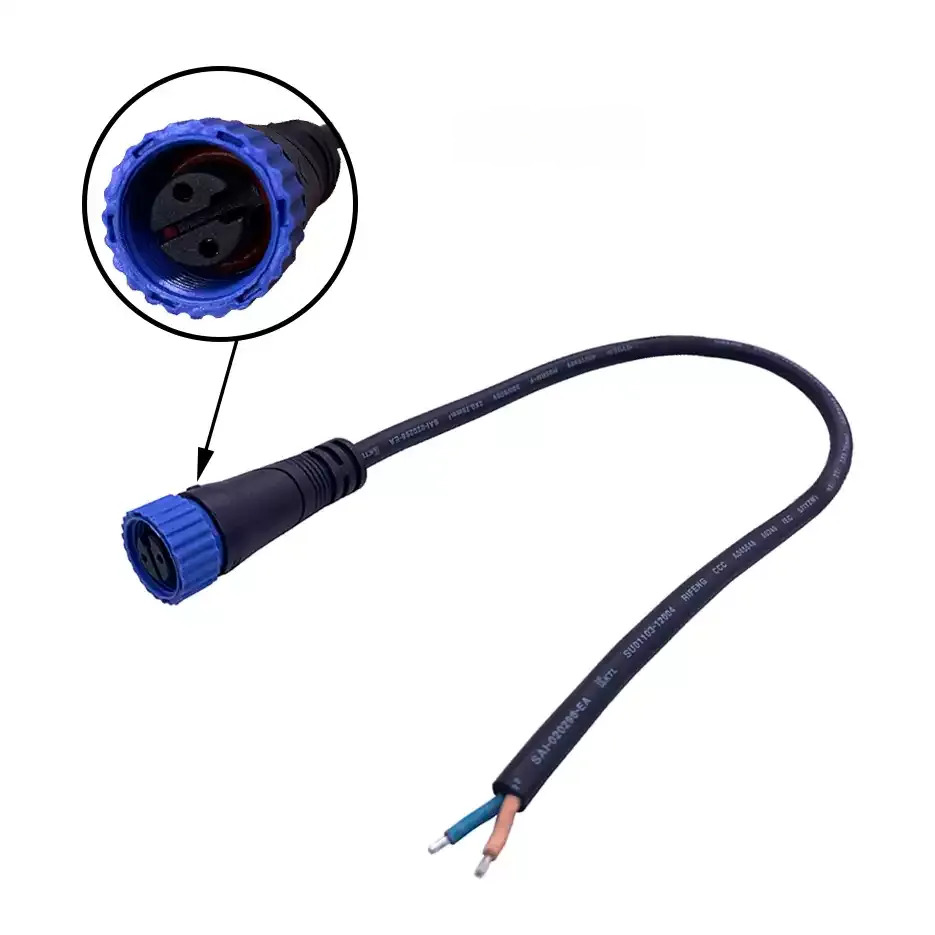

Elecbee M15 2 Pin IP67 Circular Connector Female Socket with 0.3m 1.0mm² Cable 9A for LED Lighting
SKU: EB-047-0001
Favorites
Key Features
Reliable IP67 Waterproof Protection: M15 circular connector helps protect electrical connections from moisture, dust, and outdoor environmental exposure in LED lighting and industrial power applications.
Stable AC DC Power Transmission: Gold-plated brass contacts help improve conductivity and support reliable electrical transmission for LED drivers, industrial automation systems, communication equipment, and outdoor electronics.
Durable Industrial Connector Construction: High-performance PA thermoplastic housing provides strong weather resistance, mechanical durability, and long-term operational stability in harsh outdoor environments.
Wide Compatibility for Waterproof Systems: Suitable for LED street lighting, architectural lighting systems, marine electronics, industrial monitoring devices, waterproof power supplies, and custom cable assembly projects.
Secure Thread Locking Design: Standard M15 threaded locking structure improves waterproof sealing reliability and simplifies outdoor cable installation and industrial equipment integration.
Show More
In-Stock
Qty.
1
Unit Price
$ 1.78$ 2.09
Ext. Price
$ 1.78$ 2.09
$ 1.78$ 2.09
Specifications
Attribute
Value
Search
Termination
Solder
Contact Type
Female Pin
Number of Positions
2 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67
Rated Current
20A
Rated Voltage
500V
Connector Series
M15
Color
Black, Blue
Fastening Type
Threaded
Orientation
Straight
Shell Material
PVC
Packing
Multi-pack Packaging
Contact Material
Copper
Contact Finish
Gold Plated
Insulating Materials
PA
Shell Size
15
Insulation Color
Black
Description
Elecbee M15 2 Pin IP67 Circular Connector for LED Lighting and Industrial Power Applications
The Elecbee M15 2 Pin IP67 Circular Connector Female Socket is designed for stable AC/DC power transmission in LED lighting systems, industrial automation equipment, outdoor electronic devices, waterproof power distribution systems, and industrial cable assembly applications. Featuring a threaded locking waterproof structure, gold-plated contacts, and durable PA thermoplastic housing, this connector supports reliable long-term operation in demanding outdoor and industrial environments.
Product Specifications
- Connector Series: M15 Circular Connector
- Connector Type: Female Socket
- Pin Configuration: 2 Pin
- Protection Rating: IP67
- Rated Current: 9A
- Cable Length: 0.3 Meter
- Wire Specification: 1.0mm² Cable
- Housing Material: High-Performance PA Thermoplastic
- Contact Material: Gold-Plated Brass
- Connection Method: Thread Locking
- Interface Type: AC / DC
- Application Type: Waterproof Power Connection
Industrial and Outdoor Application Scenarios
This M15 waterproof circular connector is suitable for LED street lighting, architectural lighting systems, LED drivers, industrial automation equipment, marine electrical systems, outdoor monitoring devices, communication equipment, robotics systems, industrial control equipment, and waterproof power cable integration projects.
Reliable Waterproof and Industrial Performance
The connector adopts a threaded locking waterproof structure to improve connection stability and outdoor sealing reliability. Gold-plated brass contacts help improve electrical conductivity and corrosion resistance, while the durable PA thermoplastic housing provides strong weather resistance and mechanical durability for long-term industrial operation.
Wide Compatibility for Industrial Equipment
Compatible with LED lighting systems, LED power drivers, industrial communication equipment, waterproof power supplies, outdoor electrical devices, industrial automation systems, marine electronics, and custom waterproof cable assembly projects requiring secure M15 circular connectivity.
2 cores with male head in series 2 core parallel connection
M15 F type 2 core assembly
