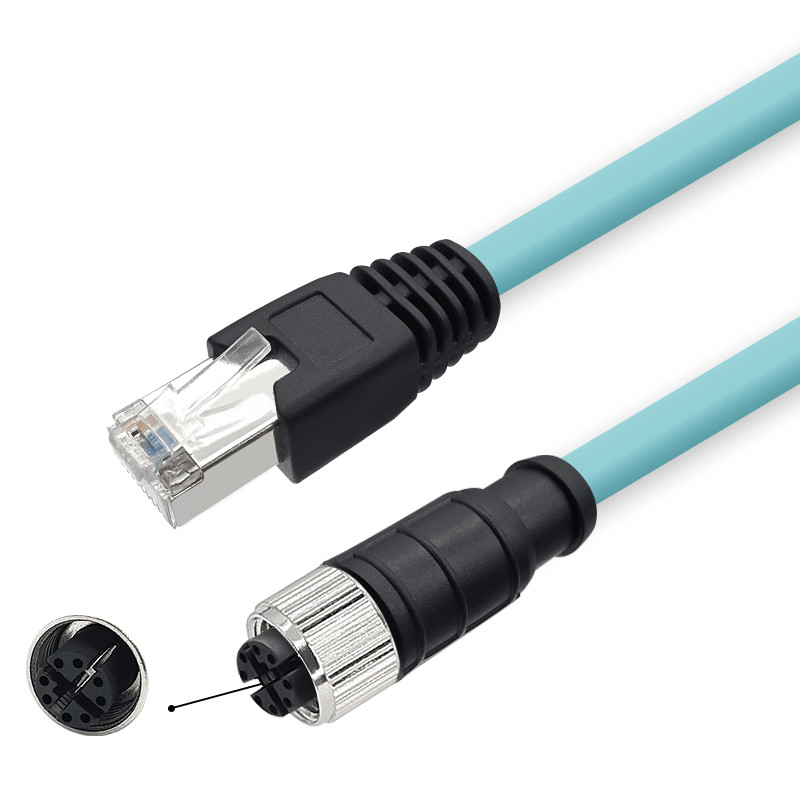

Elecbee Elecbee M12 X-Code 8-Pin to RJ45 Cat7 Industrial Ethernet Cable – 1 m High-Flex Shielded Gigabit Networking Lead
SKU: EB-400-8105
Favorites
Key Features
Industrial-Grade Connectivity: M12 X-Code 8-pin female to RJ45 male Ethernet cable for reliable data transmission in harsh environments.
Cat7 Shielded Performance: High-quality Cat7 twisted pair with full shielding for reduced crosstalk & superior signal integrity.
Gigabit Speed Support: Engineered for gigabit Ethernet (up to 1 Gbps), ideal for automation, networking & industrial systems.
High Flex PVC Jacket: Flexible PVC sheathing withstands repeated movement, installation bends & industrial wear.
1 Meter Length: Perfect mid-range cable length for control panels, machines, robotics & factory networks.
Show More
Specifications
1st Connector Number of Positions:
4 Pin8 Pin1st Connector Key:
A CodeD CodeX Code1st Contact Type:
Male PinFemale Pin2nd Contact Type:
Male PinIn-Stock
Qty.
1
Unit Price
$ 21.92
Ext. Price
$ 21.92
$ 21.92
Specifications
Attribute
Value
Search
Shielding
Shielded
1st Connector Series
M12
1st Contact Type
Female Pin
2nd Contact Type
Male Pin
1st Connector Orientation
Straight
2nd Connector Orientation
Straight
Cable Assembly Type
Round
Cable Length
100CM
Cable Color
Water Blue
2nd Connector Series
RJ45
1st Connector Mounting Feature
Free Hanging(In-Line)
2nd Connector Mounting Feature
Free Hanging(In-Line)
1st Connector Fastening Type
Threaded
1st Connector Number of Positions
8 Pin
1st Connector Key
X Code
Description
CAT7 · HIGH-FLEX SERIES
M12 High-Flex
Industrial Ethernet Cables
Pure copper twisted pairs, a flexible PVC jacket and a choice of M12 terminations for industrial network connections. Match the connector configuration to your equipment, then choose the length and routing arrangement.
Illustrated: X-coded M12 male to RJ45 male.
01
A closer look at the connection
Original RJ45 detail illustration.
Flexible PVC jacket
A flexible PVC jacket and molded connector overmolds support cable routing within equipment, between cabinets and across the installation.
Copper pairs with shielding
The cable combines pure copper conductors, twisted pairs and double shielding. Copper conductors carry the signal, while the pair arrangement and shielding form the cable’s internal construction.
Gold-plated contacts
The RJ45 detail identifies gold-plated copper contacts, a locking tab and a nickel-plated shield. Contacts, the shield and cable conductors are separate components with distinct material descriptions.
Materials, from the cable to the contact
| Component | Material / construction |
|---|---|
| Cable conductors | Pure copper · twisted pairs |
| Cable shielding | Double shielding |
| RJ45 contacts | Gold-plated copper |
| RJ45 shield | Nickel-plated shield |
| Jacket & overmold | Flexible PVC jacket; molded overmold |
02
Choose the connection at both ends
The family includes M12-to-RJ45 and M12-to-M12 assemblies, with plug and socket options across the range. Use the selected item to confirm the exact termination combination.
A-coded · 4-pin male
M12 → RJ45
D-coded · 4-pin male
M12 → RJ45
A-coded · 8-pin male
M12 → RJ45
X-coded · 8-pin male
M12 → RJ45
A-coded · 8-pin female
M12 → RJ45
X-coded · male to male
M12 → M12
Representative styles show differences in coding, connector gender and termination form; this is not a complete catalog of all 20 items. Contact-face illustrations are visual references, not wiring diagrams.
| M12 coding / pins | Termination families | Check before ordering |
|---|---|---|
| A-coded · 4-pin | M12 ↔ RJ45 / M12 ↔ M12 | Coding, pin assignment and equipment requirements |
| D-coded · 4-pin | M12 ↔ RJ45 / M12 ↔ M12 | Protocol and link speed of the selected configuration |
| A-coded · 8-pin | M12 ↔ RJ45 / M12 ↔ M12 | Pin assignment and gender at both ends |
| X-coded · 8-pin | M12 ↔ RJ45 / M12 ↔ M12 | Speed requirements of the complete cable assembly |
03
Construction & installation space
| Parameter | Reference specification |
|---|---|
| Conductors | Pure copper |
| Pair construction | Twisted pair |
| Jacket | PVC |
| Cable color | Sky blue |
| Illustrated wire gauge | 26 AWG |
| Illustrated cable diameter | 6.8 mm |
| Termination options | M12 / RJ45; model dependent |
Wire gauge, cable diameter and dimensions refer to the illustrated straight M12-to-RJ45 configuration. Check the selected model for other connector forms and dimensions.
Original reference dimensions, in mm.
Protection at the M12 connection
The M12 connection is specified as IP67 when correctly mated and locked to a suitable counterpart. This rating does not extend to a standard RJ45 connection or an unmated connector.
04
Finish the selection for your installation
Match coding, pin count, connector gender and pin assignment to the equipment, then select cable length and mating clearance. Confirm link speed for the complete assembly and equipment: the Cat7 designation or one model’s speed cannot be applied to every 4-pin and 8-pin configuration. For repeated flexing or drag-chain use, confirm bend radius, motion conditions and flex-life requirements.
For compatible industrial networks, equipment connections and cabinet links. Termination, length and performance depend on the selected item.
