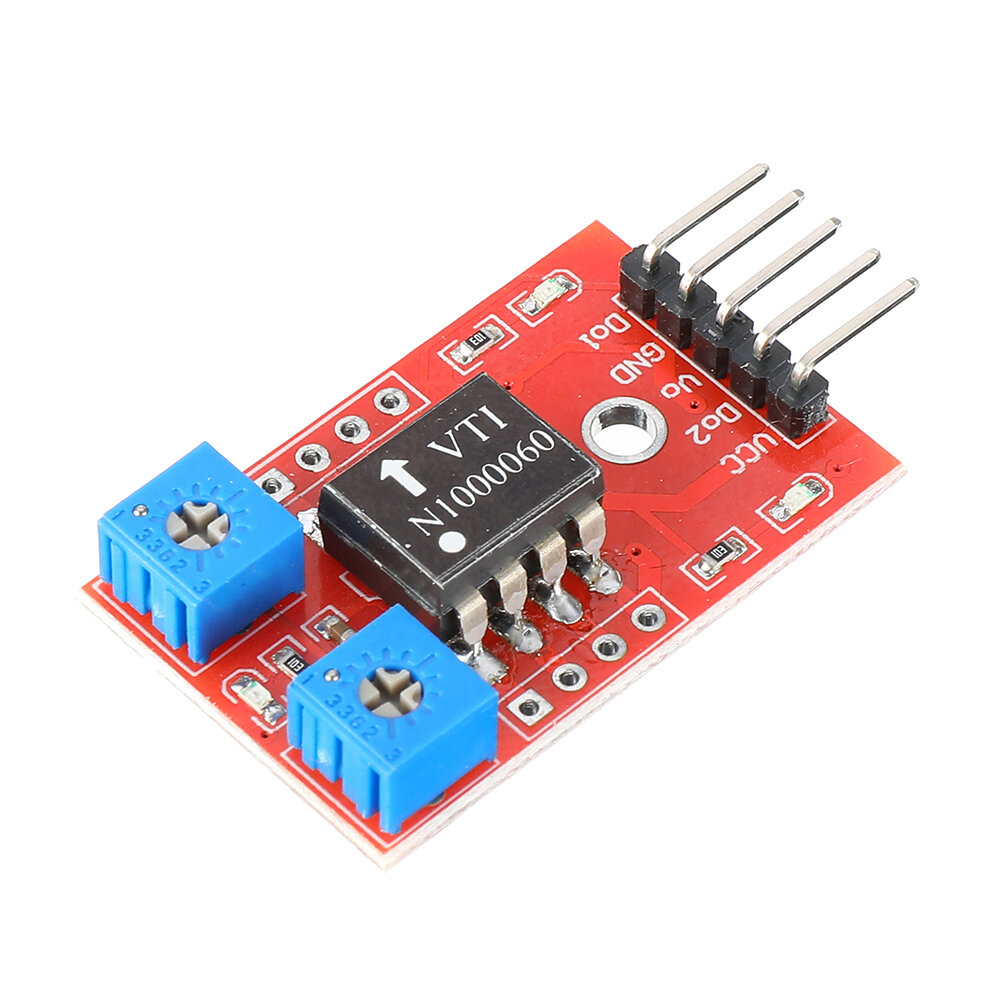

Elecbee LM393 Single Tilt Sensor Module SCA60C Tilt Detection Sensor Module DC 5V for Smart Car

SKU: EB0045666

Favorites

Key Features

Specifications

Show Similar Products >

Description

>>>Manual: Click here to open<<<

Features:

-Working voltage: DC 5V

-Main chip: LM393, tilt sensing probe

-Analog voltage output of inclination signal (0-180 ° corresponds to 0.5-4.5V), which can be collected by single-chip microcomputer AD;

-Two-way tilt signal alarm output;

-The low level indicator of the output effective signal is on;

-The alarm of left and right tilt angle is adjustable from 0-90 ° to 90-180 °, the adjustment accuracy is ± 1 °

-With mounting holes to facilitate fixed installation;

-The tilt signal of the circuit board is TTL high and low level, which can be directly connected to the IO port of the microcontroller.

-Application: Intelligent body balance detection, teaching experiment demonstration, product development, etc .;

-Dimensions: 3.1 x 2.1 x1.5 cm

Interface Description:

1 VCC external 5V voltage

2 GND External GND

3 DO1 left tilt TTL level output port, directly connected to the IO port of the single-chip microcomputer, which is the threshold signal;

4 DO1 right tilt TTL level output port, directly connected to the IO port of the single-chip microcomputer, which is the threshold signal;

5 VO is the voltage signal corresponding to the angle conversion, and the output is an analog voltage value, which can be connected to the input port of the single-chip microcomputer with AD

Package Included:

10 x LM393 Single Tilt Sensor Module

10pcs-LM393-Single-Tilt-Sensor-Module-SCA60C-Tilt-Detection-Sensor-Module-DC-5V-for-Smart-Car-1684299
