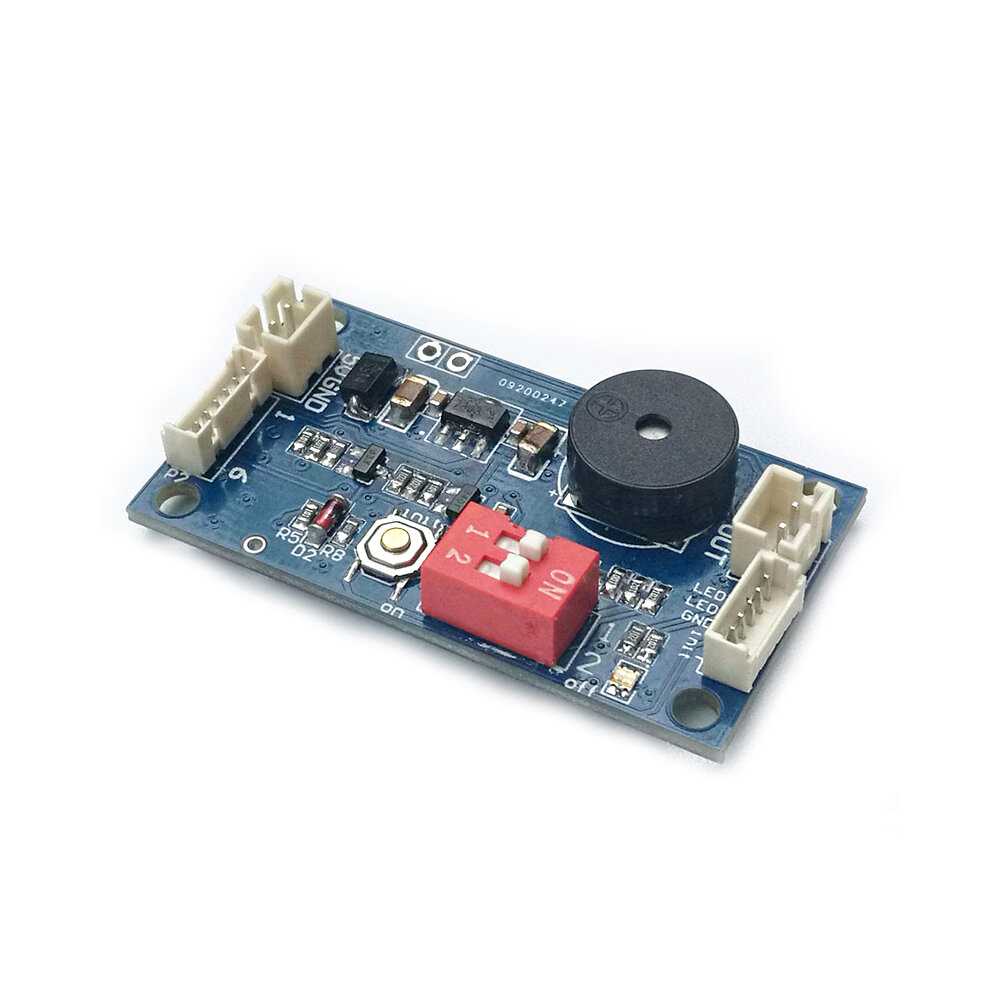

Elecbee K200 Multi-function Fingerprint Access Control Control Board Work with R300 R301T R302 R303 R303T R305 R306 R307 R501 Fingerprint Module
SKU: EB0050021
Favorites
Key Features
Show More
Datasheet
Description
K200K200-3.3 K202 K212 K215-V1.2 K216 Size 46*25.4mm 46*25.4mm 64.4*25.4mm 89*53mm 70*36.4mm 84*49*20mm Power Supply 4*AA battery or DC5V 4*AA battery or DC5V DC12V DC8-24V,8mA DC10-30V DC10-30V Capacity 120 120 120 200 200 300 Stand-by current less than 7uA less than 5uA 15uA 40mA 40mA 6mA(DC12V) Output DC5-6V,500mA DC5-6V,500mA Relay(max current 10A) Motor:±DC5V,300mA Relay：3A Relay(max current 10A) Relay(max current 10A) Connector MX 1.25mm 6Ppin MX 1.0mm 6Ppin MX 1.25mm 6Ppin/MX 1.0mm 6Ppin MX 1.25mm 4Ppin MX 1.25mm 6Ppin/MX 1.0mm 6Ppin MX 1.25mm 6Ppin/MX 1.0mm 6Ppin Connect fingerprint module R300,R301T,R302,R303,R303T,R304,R305,R306,R307,R311,R501 R502,R502-A,R503 R301T,R303,R303T,R304,R305,R306,R307,R311,R501,R502,R502-A,R503 R300,R301T,R302,R303,R303T,R304,R305,R306,R307,R311,R501 R300,R301,R302,R303,R303T,R304,R305,R306,R307,R311,R501,R502,R502-A,R503 R300,R301,R302,R303,R303T,R304,R305,R306,R307,R311,R501,R502,R502-A,R503 Features and Functions 1.Low power consumption
2.Four mode for relay output
3.can connect electronic lock body,relay 1.Low power consumption
2.Four mode for relay output
3.can connect electronic lock body,relay 1.Low power consumption
2.Relay rotation button:0.5-15s
3.can connect electronic lock body,relay 1.Two output:motor signal output /relay output(0.5-9s)
2.can connect door open key signal and access control intercom signal 1.Relay:1 second or normally open and normally close function
2.Car,motorcycle,access control 1.can control by remote control
2.relay:0.5s-20s
3.Car,elevator control,access control
2.Four mode for relay output
3.can connect electronic lock body,relay
2.Four mode for relay output
3.can connect electronic lock body,relay
2.Relay rotation button:0.5-15s
3.can connect electronic lock body,relay
2.can connect door open key signal and access control intercom signal
2.Car,motorcycle,access control
2.relay:0.5s-20s
3.Car,elevator control,access control
