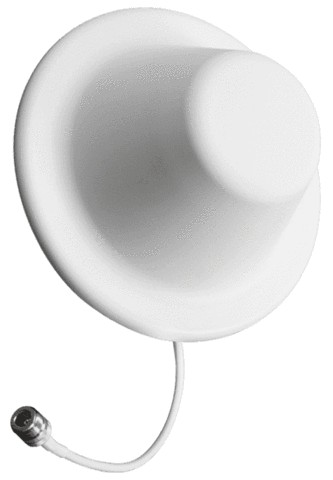

Elecbee In-Building Dome Antenna (50 Ohm)

SKU: E-201-2478

Favorites

Key Features

Description

Product Description

In-Building dome antenna working on 50 Ohm impedance is omni-directional antenna. This 50 Ohm dome antenna looks elegant and is unobtrusive in its design for blending in all types of home and office decor. It is for inside building use. It covers wireless mobile networks of all carriers in USA and Canada including AWS, Cellular, LTE and PCS frequencies spanning 698MHz to 2700MHz.

This 50 Ohms dome antenna is best mounted on the ceiling and receives / transmits within a beamwidth of 360 degrees to all cellphones. It provides a 3 dB to 4 dB Gain or depending on frequency even 2 dB to 5 dB gain in a radius of 39 feet.

Being omni-directional, it is easy to install thanks to the included mounting equipment. This home and office interior antenna offers varying Gains over a range of 5,000 to 7,500 square feet with an up to 20 feet vertical height. It has an N-Female connector type.

Besides the antenna itself, the parts include mounting equipment for either a flat horizontal surface or a wall. It should be mounted in an upright position for best results. You can expect to receive a 2 to 5db gain from the dome transmission.

Specifications.

Frequency	698-960/1700-2700
Input Impedance	50 ohm
Antenna Gain	2±0.5dBi/5±0.5dBi
Beamwidth	360 Degrees
VSWR	≤2.0
Polarization Type	Vertical
Radiation	Omni-directional
Maximum Power	50W
Connector type	N-Female
Height (inches)	3.5”
Diameter	7.25”
Weight	10.5 oz
Ground Plane	Built in ground plane
Mount	Mounts to ceiling
Color	White
