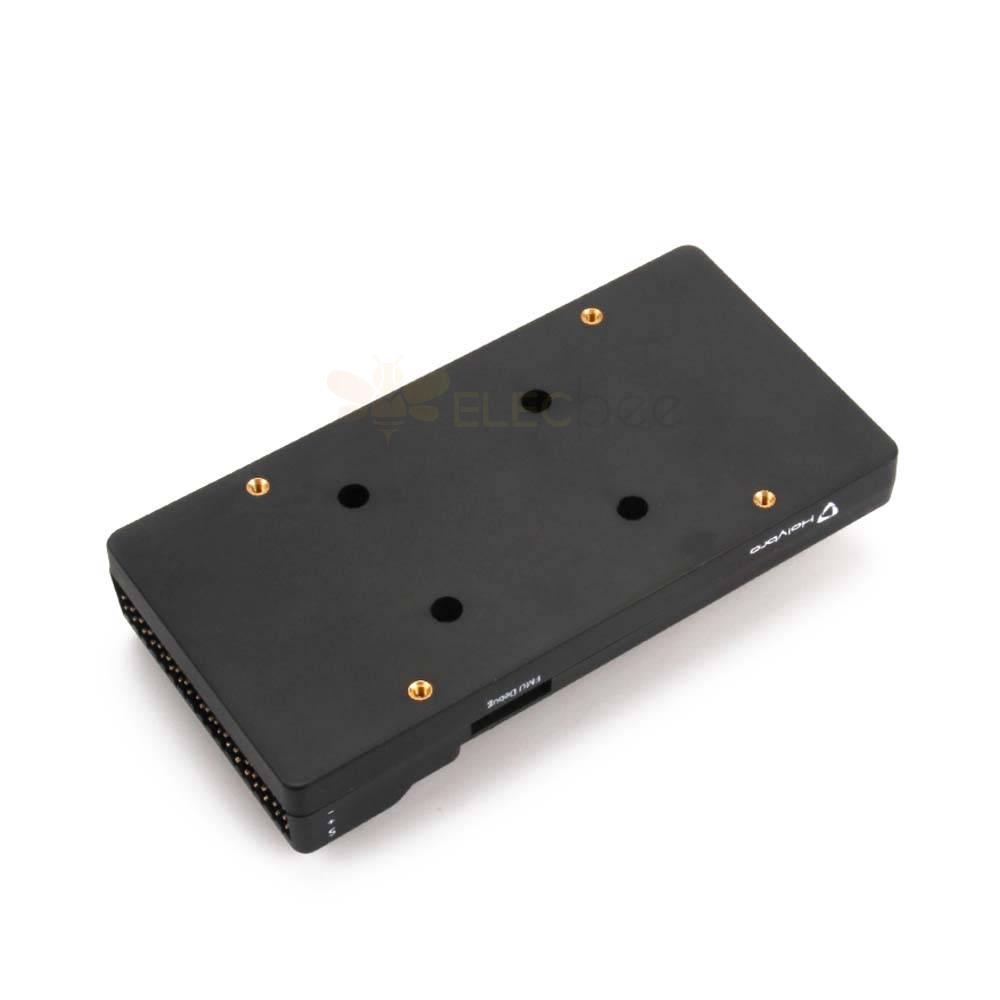

Elecbee Holybro Pixhawk Baseboard (For Pixhawk 5X and 6X)

Specifications

FMU Processor: STM32F765 32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM

IO Processor: STM32F100 32 Bit Arm® Cortex®-M3, 24MHz, 8KB SRAM

On-board sensors Accel/Gyro: ICM-20649

Accel/Gyro: ICM-42688P

Accel/Gyro: ICM-20602

Mag: BMM150

Barometer: 2x BMP388

Electrical data

Voltage Ratings: Max input voltage: 6V

USB Power Input: 4.75~5.25V

Servo Rail Input: 0~36V

Mechanical data

Dimensions Flight Controller Module: 38.8 x 31.8 x 14.6mm

Standard Baseboard: 52.4 x 103.4 x 16.7mm

Weight Flight Controller Module: 23g

Standard Baseboard: 51g

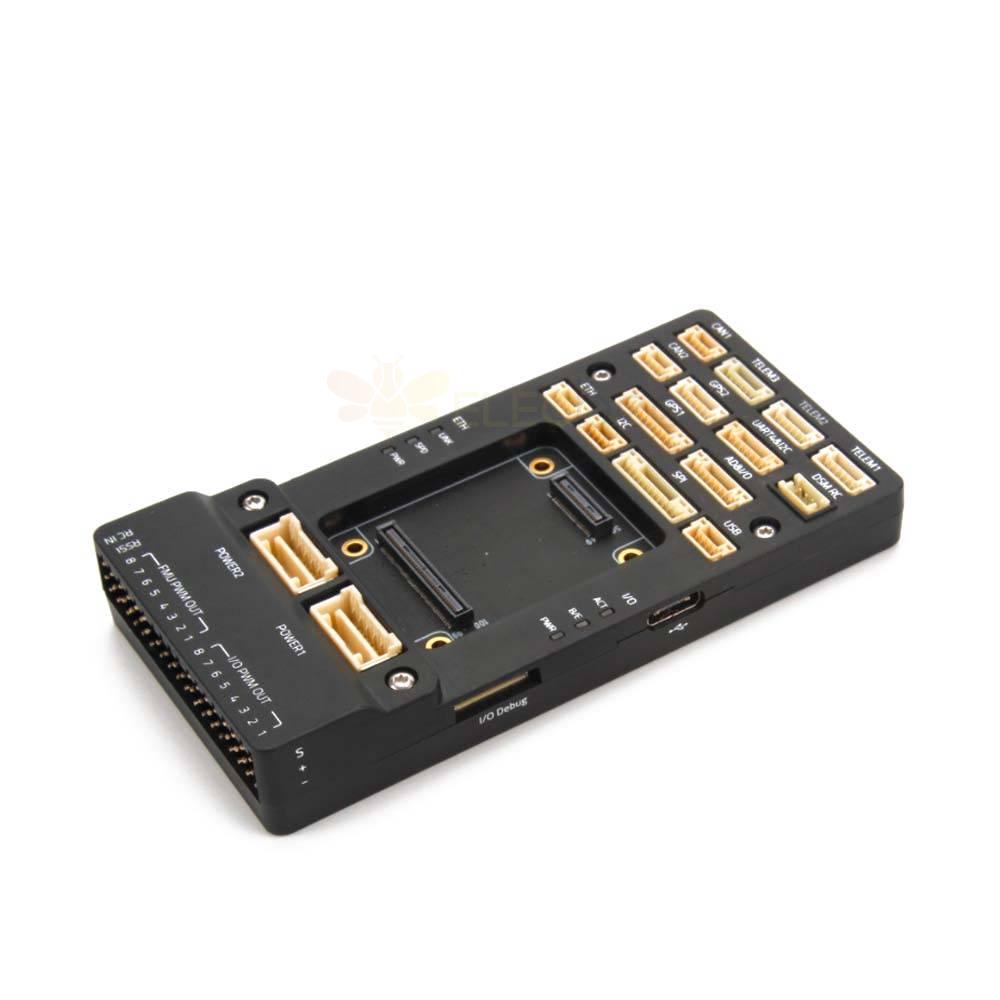

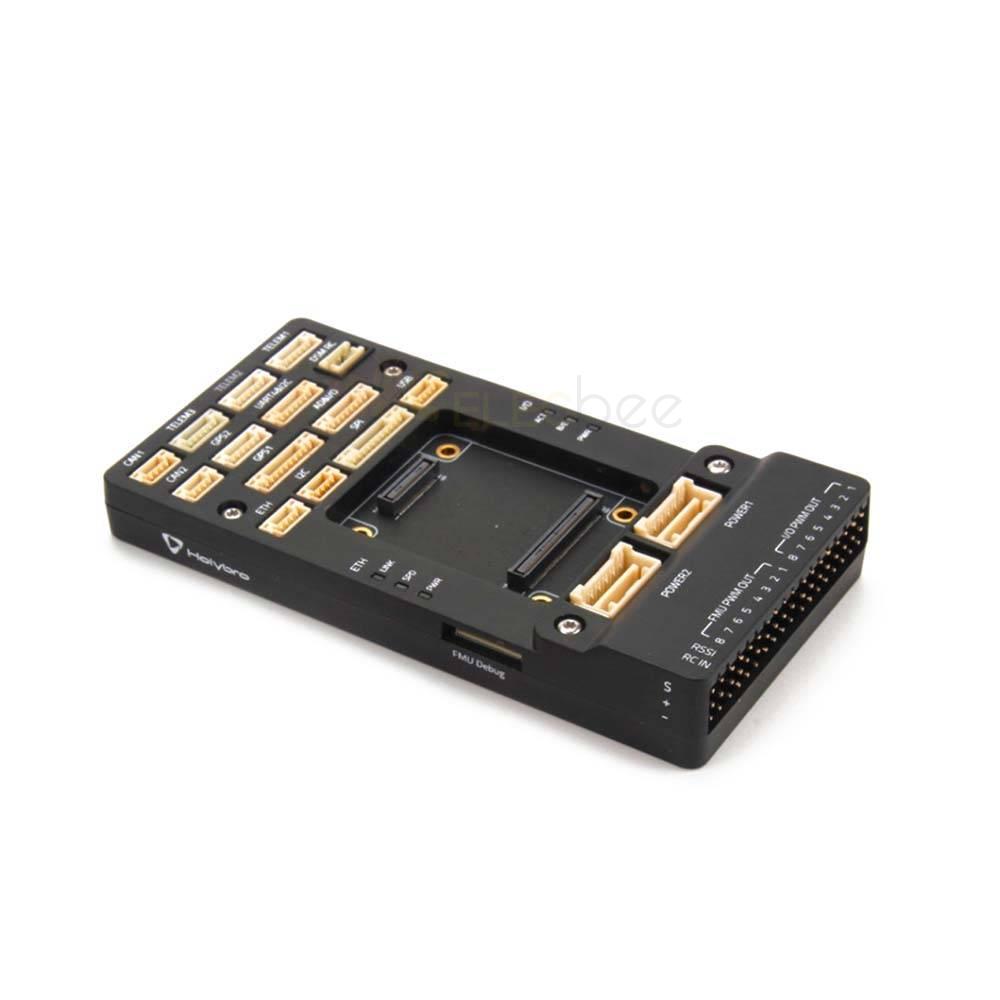

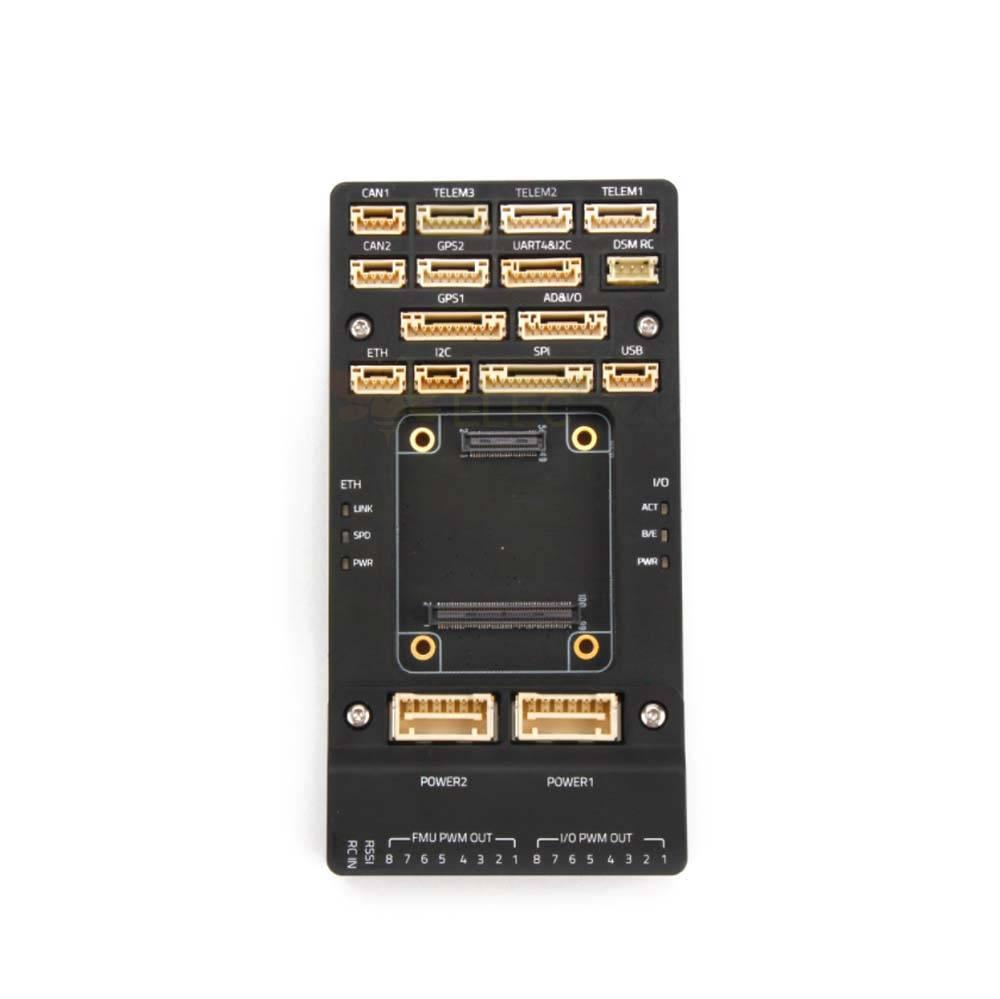

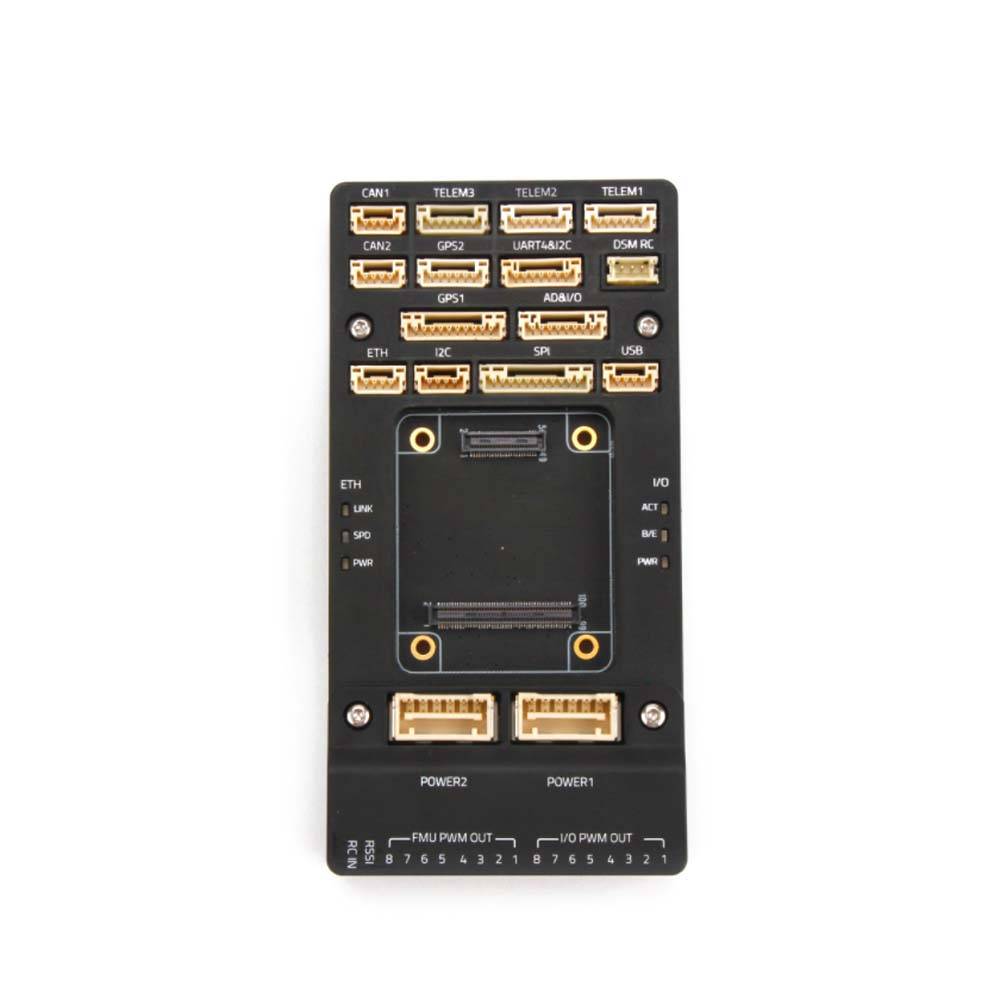

Interfaces

16- PWM servo outputs

R/C input for Spektrum / DSM

Dedicated R/C input for PPM and S.Bus input

Dedicated analog / PWM RSSI input and S.Bus output

4 general-purpose serial ports 3 with full flow control

1 with separate 1A current limit

1 with I2C and additional GPIO line for external NFC reader

2 GPS ports 1 full GPS plus Safety Switch Port

1 basic GPS port

1 I2C port

1 Ethernet port Transformerless Applications

100Mbps

1 SPI bus 2 chip select lines

2 data-ready lines

1 SPI SYNC line

1 SPI reset line

2 CAN Buses for CAN peripheral CAN Bus has individual silent controls or ESC RX-MUX control

2 Power input ports with SMBus

1 AD & IO port 2 additional analog input

1 PWM/Capture input

2 Dedicated debug and GPIO lines





package inclusion

1 x Pixhawk 5X Standard Baseboard
