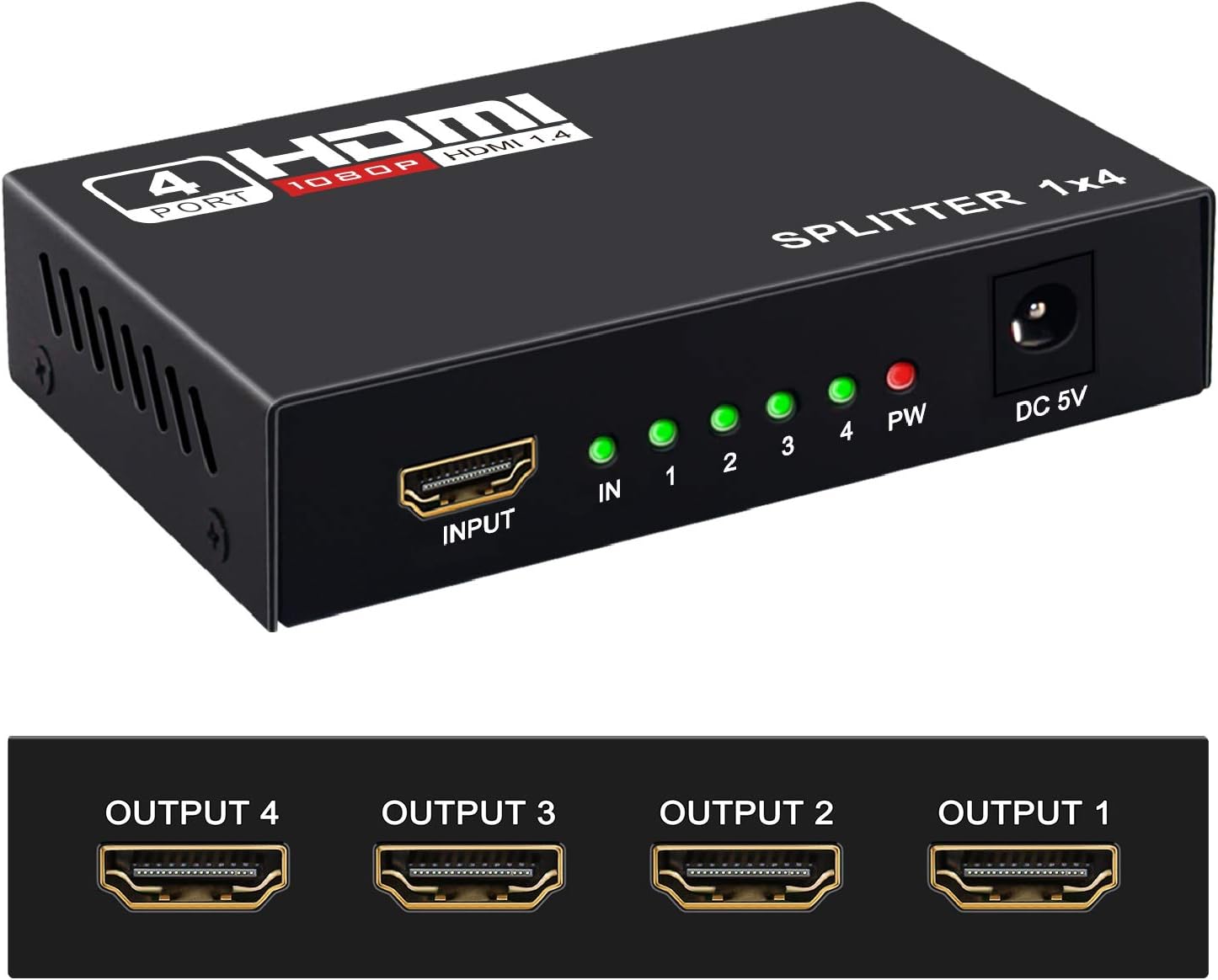

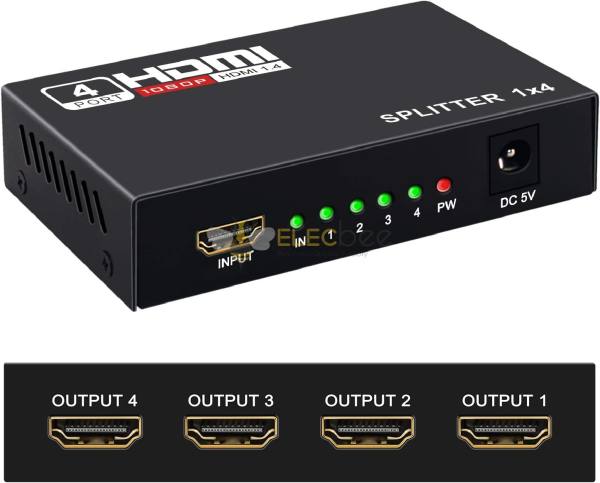

Elecbee HDMI Splitter 1 in 4 Out -4K Hdmi Splitter 1x4 Ports v1.4 Powered 4K/2K Full Ultra HD 1080p US Adapter 3D Support

SKU: EB-103-0038

Favorites

Key Features

Features:

The 1x4 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks.
The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors.
The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Support 3D ,4Kx2K @30Hz
HDMI input signal split to 4 HDMI sink devcies.
HDCP 1.4 Protocol compliant.
3D HDMI 1.4a video format support.
3D video support including frame packing for all 3D formats up to a 297MHZ TMDS clock.
Support display resolutions up to 4k*2k@30Hz
Digital audio format,as DTS-HD/Dolby-true-HD/LPCM7.1/DTS/Dolby-AC3/DSD.

Description

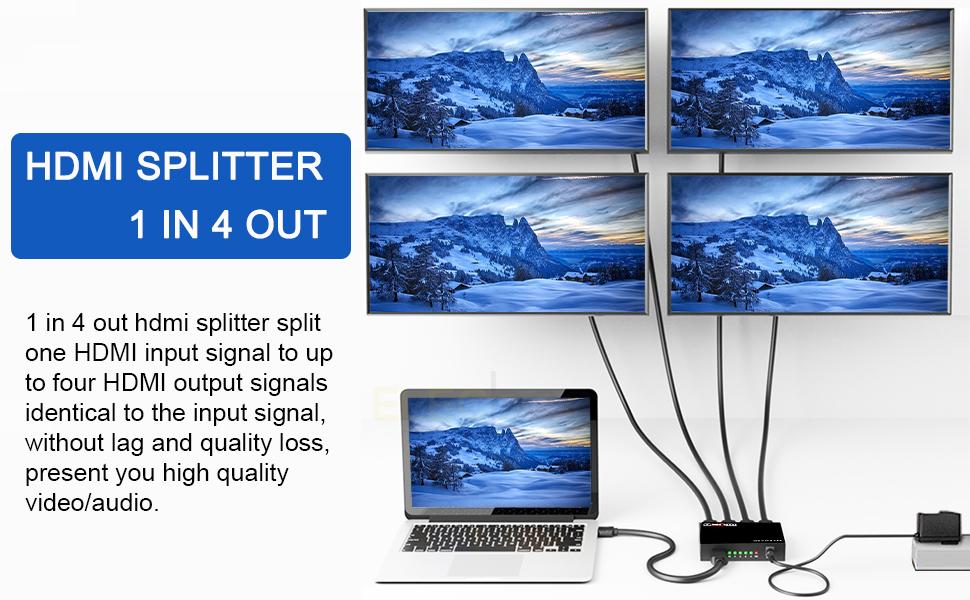

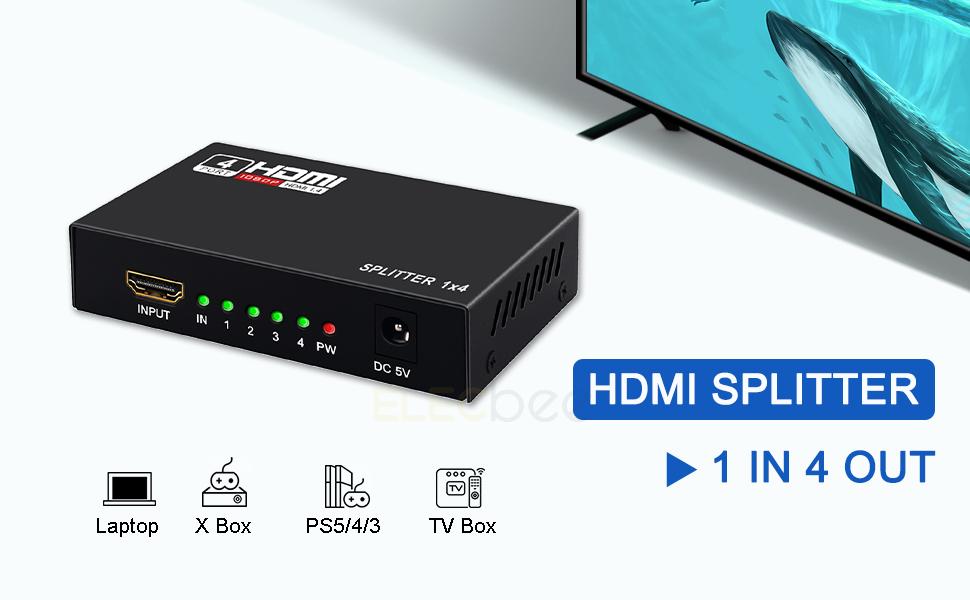

HDMI Splitter 1 in 4 out

►HDMI splitter split 1 HDMI input signal to 4 identical HDMI output signals,transmit video and audio simultaneously without any quality loss.（NOTE:This HDMI splitter just mirror the screen,not support extend, four screen will shows the same page.）

►Easy to set up and use, no external driver required.Simply connect your HDMI devices and the power adapter(included).

►It is made of tough metal material, and it is not easily deformed and has high anti-interference ability. Heat dissipation and durability can be further increased than plastic.

►Widely used for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD, PS3 and Projector factory, space and security concerns data center control, conference room presentation, school and corporate training environment.

HOW TO USE?

1. Connect the HDMI input sourse into HDMI Splitter Box. (HDMI Input cable)

2. Connect the HDMI output enquipments into HDMI Splitter Box. (HDMI Output cables )

3. Insert the DC side of 5V power supply into HDMI Splitter Box and then connect the AC side of the power supply into the wall outlet.

Please note:

1. Please check the resolution of 4 HDMI TVs

The distributor can work normally only with the same resolution of 4 TVs.

For example, if you have 1 set of 4K@30Hz TV and 3 set of 1080P@60Hz Tv, please set the resolution of the 4 TVs to the same resolution (that is to say, the 4K TV needs to be set to 1080P@60Hz first, and then the distributor can work normally). Otherwise, one of the TVs will have no sound and images ll not display pictures.

2. If you are using a laptop as the HDMI signal source

Please check whether your multi display mode is turned on. If the "multi display mode" is not started, the distributor will not work normally, and the TVs will have no sound and images.

3. For 4K resolution, the frequency can't above 30Hz

If Your HDMI input device (like PS4 Pro) supports 4K@60hz, please set the resolution to 4K@30Hz or below to make this HDMI splitter work properly. For 4K video source,please use HDMI1.4 cable.

Support up to 4K x 2K@30hz

With true 4K×2k,HD, 3D streaming it is the great deal for you especially if you wish to stream playstations3,4 and Blu-ray player with 4K supporting disc. It supports 3D streaming to bring great experiences in front of your eyes.

Specification

1.Multi-format input, Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input

2.Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio.

3.One Input ports: Supports with computer, PS3, PS4 Pro, Fire Stick, Blu-Ray DVD player,

Satellite Receiver, Route Roku, Chromecast, PC, Projectors etc.

4.4 Output ports: Supports with HD-Ready, Full HsD TVs, monitors etc

5.Output Video: HDMI+HDCP1.0/1.1/1.2/1.2a/1.3/1.4

6.Input Video Signal: 0.5 ~ 1.0 volts p-p ;Input DDC Signal: 5 volts p-p
