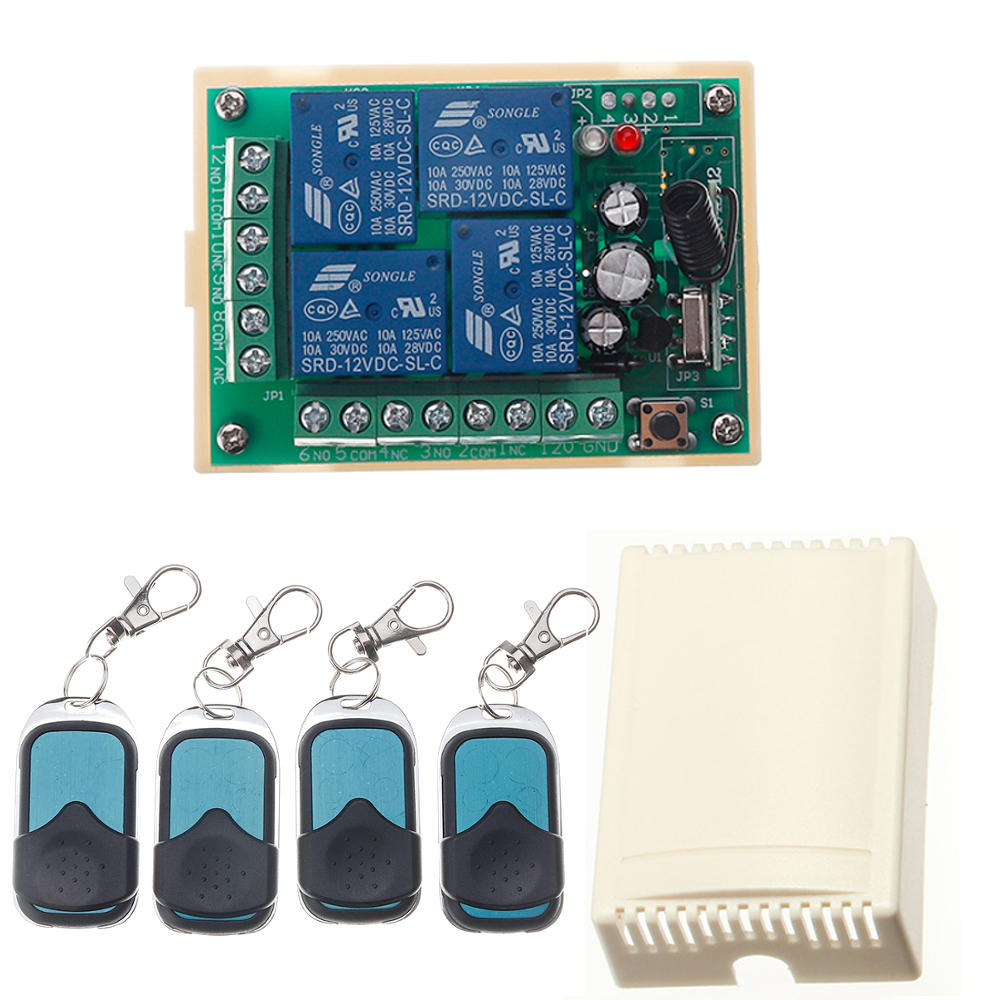

Elecbee HCS301 433MHz Rolling Code Remote Control Switch Wireless Power Supply Relay Receiver Module
SKU: EB0042163
Favorites
Key Features
1. The remote control switch for the rolling code remote control switch, confidentiality is absolutely reliable, to prevent the decoder on the market crack, such as self-locking function, the jump cap inserted row pin on the line. If you want to interlock function, the jump cap inserted into row of needle on the line. If you want to unlock the function, the jump cap is not inserted on the line. Easy to use, easy to operate.
2. With a buzzer instructions to facilitate the determination of the switch working status
3. Use learning key function, such as remote control is lost, and I can roll the remote control and then learn.

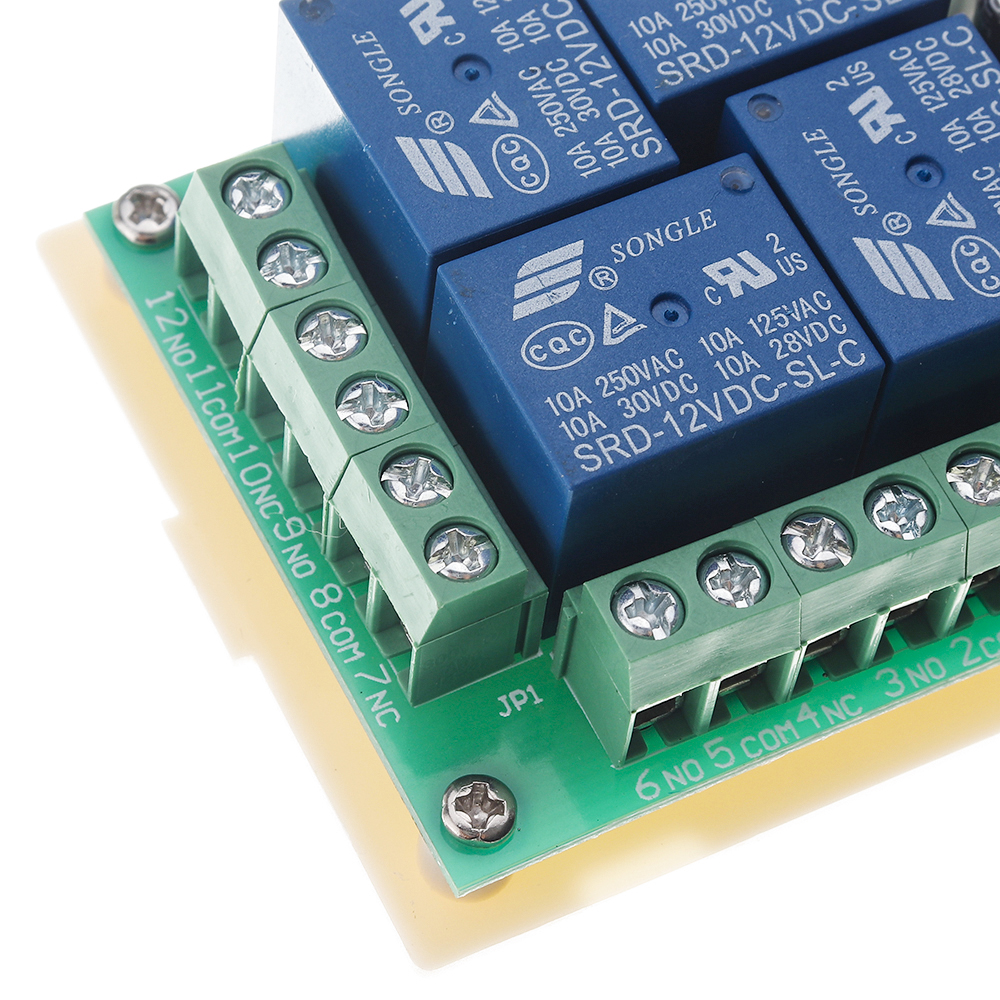

Four sets of relay output empty contacts, can be connected to 4000W load.
How to change the working mode?
The indicator flashes 1-2-3, which are three working modes. No need jumper cap to change the mode.

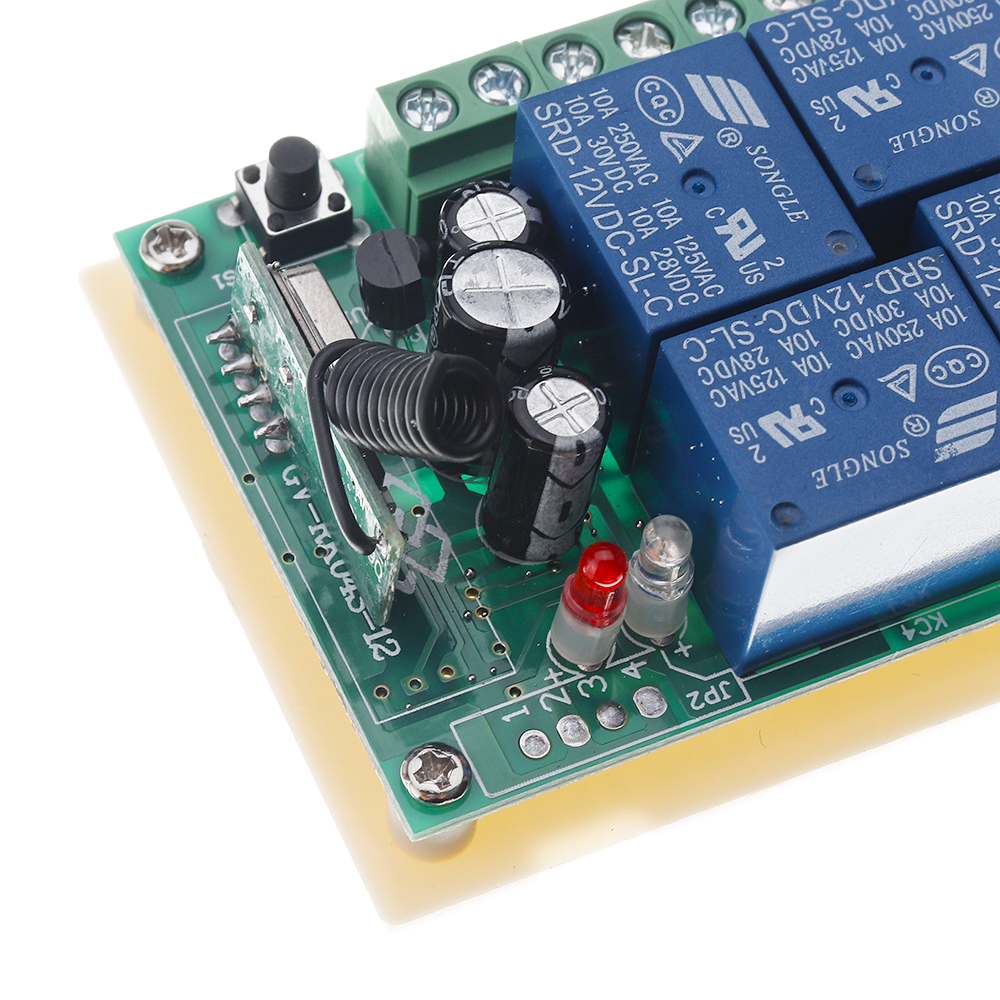

There is a learning button on the receiving board to learn.
How to set and learning code:
1) Output mode selection and learning method: Press any key of the remote control, the learning indicator should flash continuously, otherwise the controller cannot learn the remote control. First select the output mode and then learn the remote control.
2) Selection of output mode: Press and hold the learning button all the time until the learning indicator light is on. After four seconds, the learning indicator will turn off (actually, this step is call clear operation). Continue to press the Learn button. After two seconds, the indicator will flash once; after two more seconds, it will flash twice; after two more seconds, it will flash three times. After the learning indicator flashes once, released the learning button, this output mode is call jog mode; after the indicator light flashes twice, released the learning button, this output mode is call self-locking mode; after the indicator light flashes three times, released the learning button, the output mode is interlocked.
To put it simply:
One flashing >>> Jog mode
Two flashes >>> Self-lock mode
Three flashes >>> Interlock mode
3) Learning method: Press and hold the learning button. After two seconds, the indicator light will be on. Release the learning button and press any button of the remote controller to be learned. The learning indicator will flash three times, indicating that the learning is successful. This control can memorize up to 16 different coded remote controls, and 17 times will cover the first memory remote control. The same type of remote control can be used to control other remote controllers with the same code as the first one, and can be equipped with any number. For different types of remote controllers, repeat step 3 to learn.
4) Clear the learning code: Keep pressing the learning button. After two seconds, the learning indicator will light up. After another four seconds, the learning indicator will turn off and light, indicating that the clearing is successful. The remote control paired before clearing will no longer work.
Show More
Discontinued
Qty.
1
Unit Price
$ 28.99
Ext. Price
$ 28.99
$ 28.99
Qty.
Unit Price
Ext. Price
10+
$27.54
$ 275.40
20+
$26.09
$ 521.80
100+
$23.19
$ 2319.00
Description
Description:
Operating voltage: DC12V
Operating frequency: 433/315MHz
Maximum load: 10A
Receiver sensitivity: -100dB
Encoding type: Rolling Code
Work: Jog, interlock, self-locking (with hooded optional.)
Output mode: four sets of switching signals
Remote distance: 20-100 meters
Operating voltage: DC12V
Operating frequency: 433/315MHz
Maximum load: 10A
Receiver sensitivity: -100dB
Encoding type: Rolling Code
Work: Jog, interlock, self-locking (with hooded optional.)
Output mode: four sets of switching signals
Remote distance: 20-100 meters

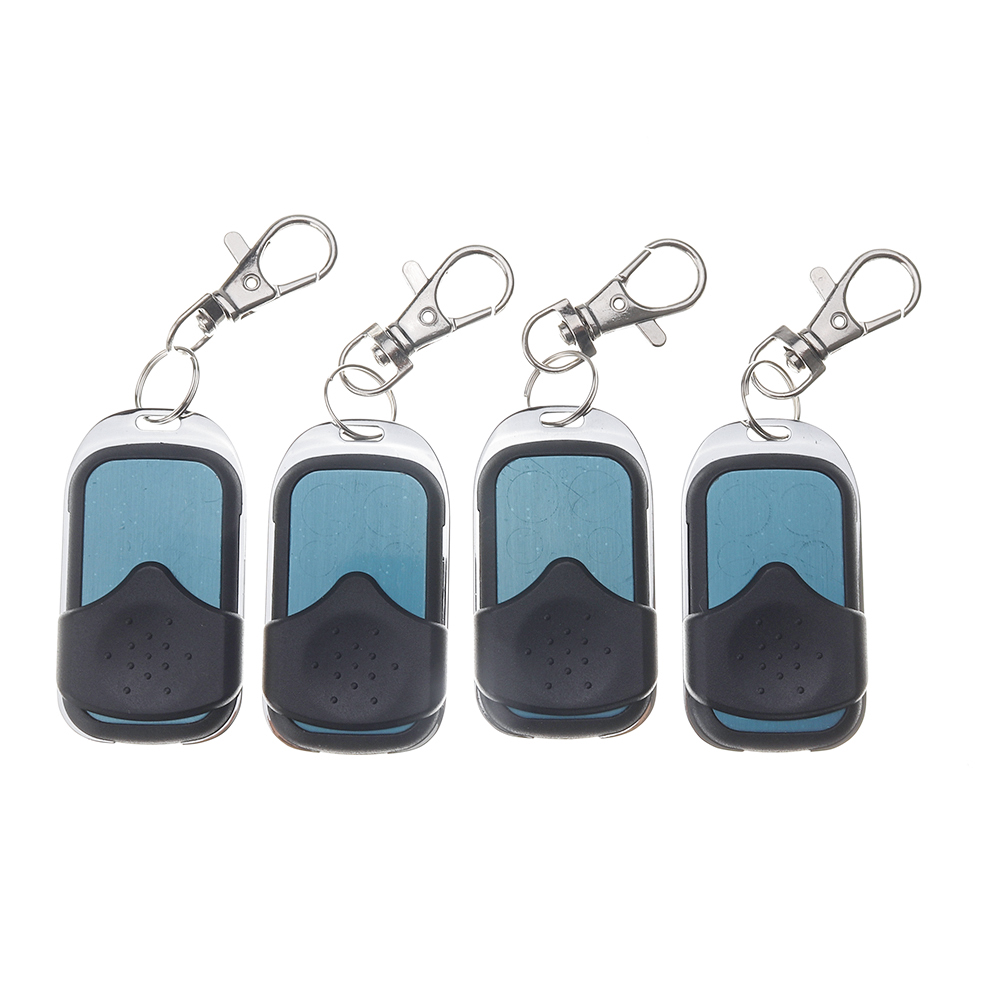

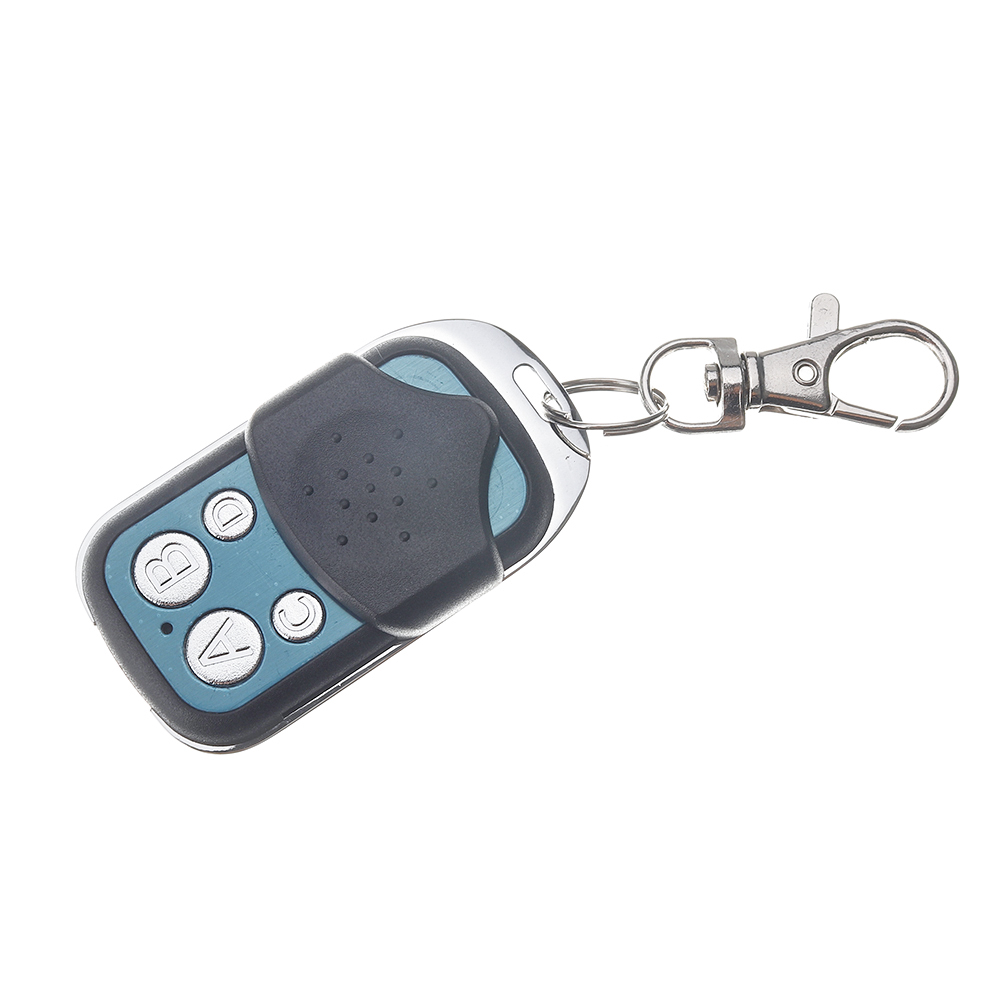

4 x HCS301 433MHz Rolling code remote control

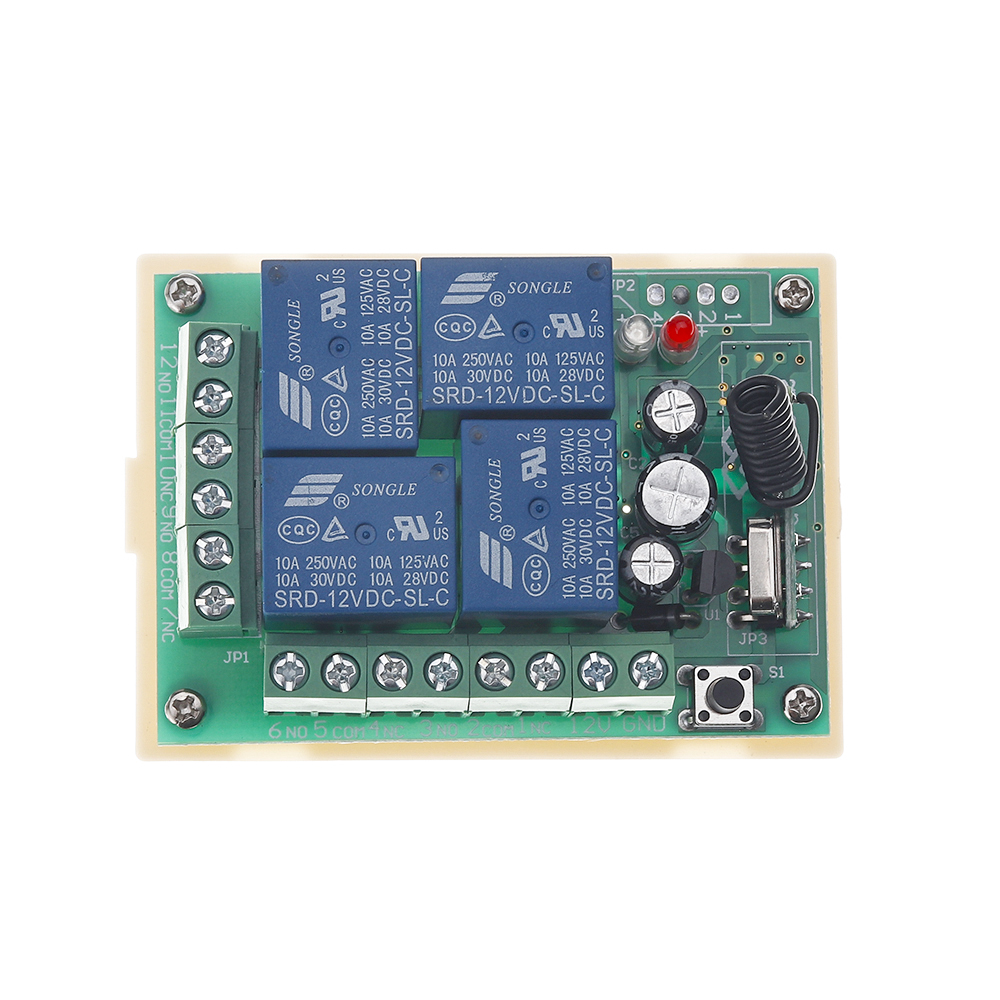

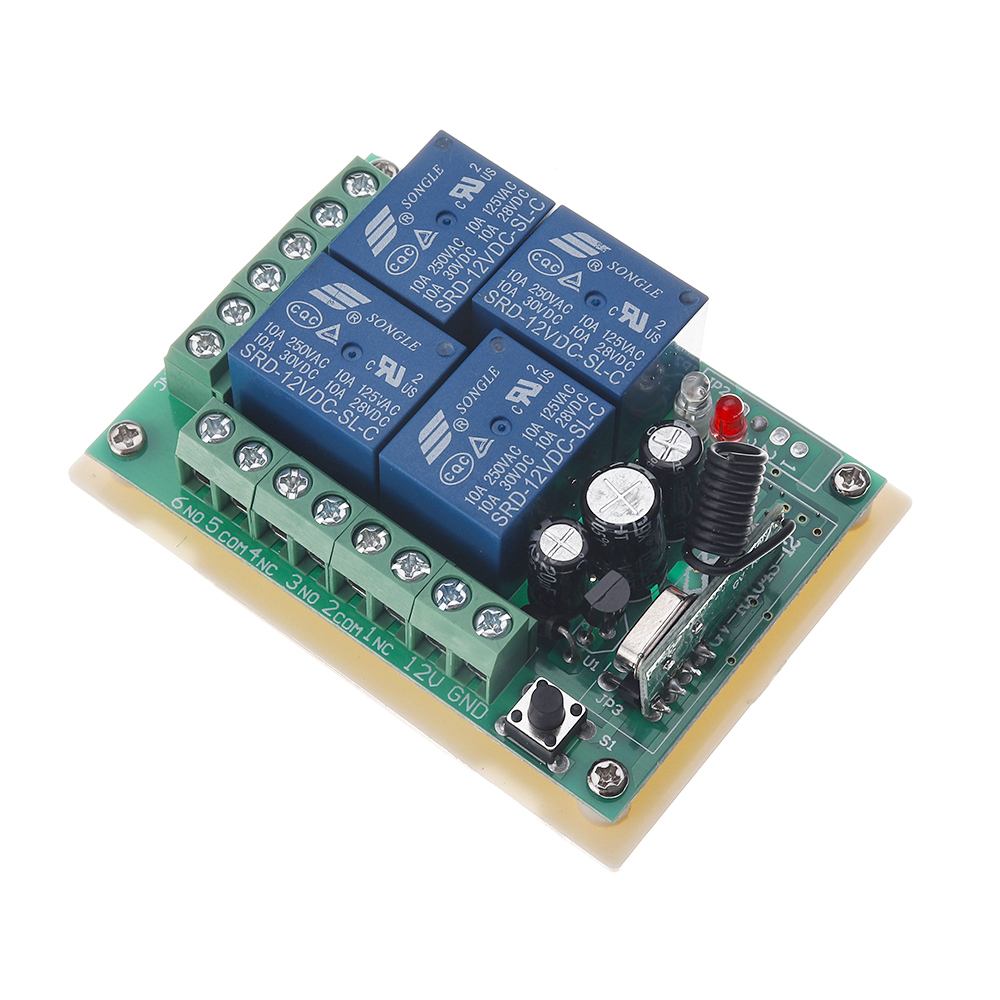

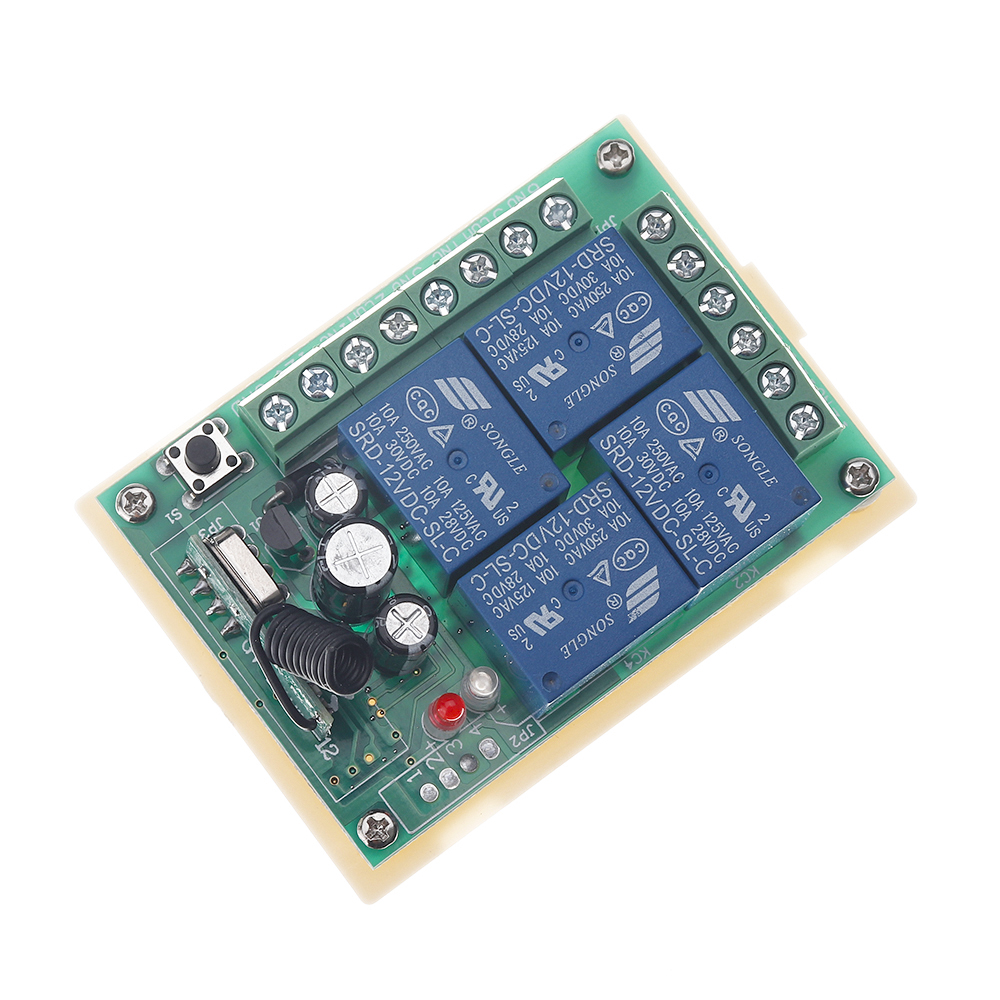

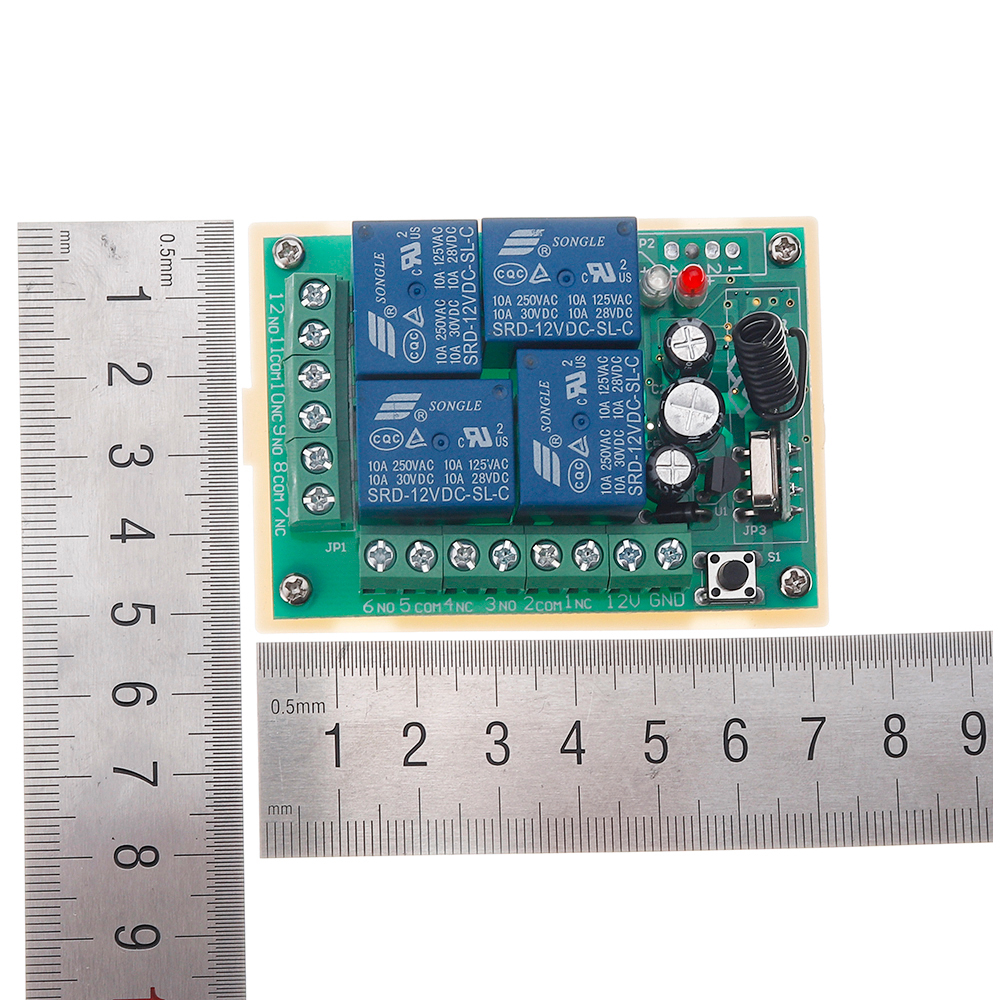

1 x Receiver
