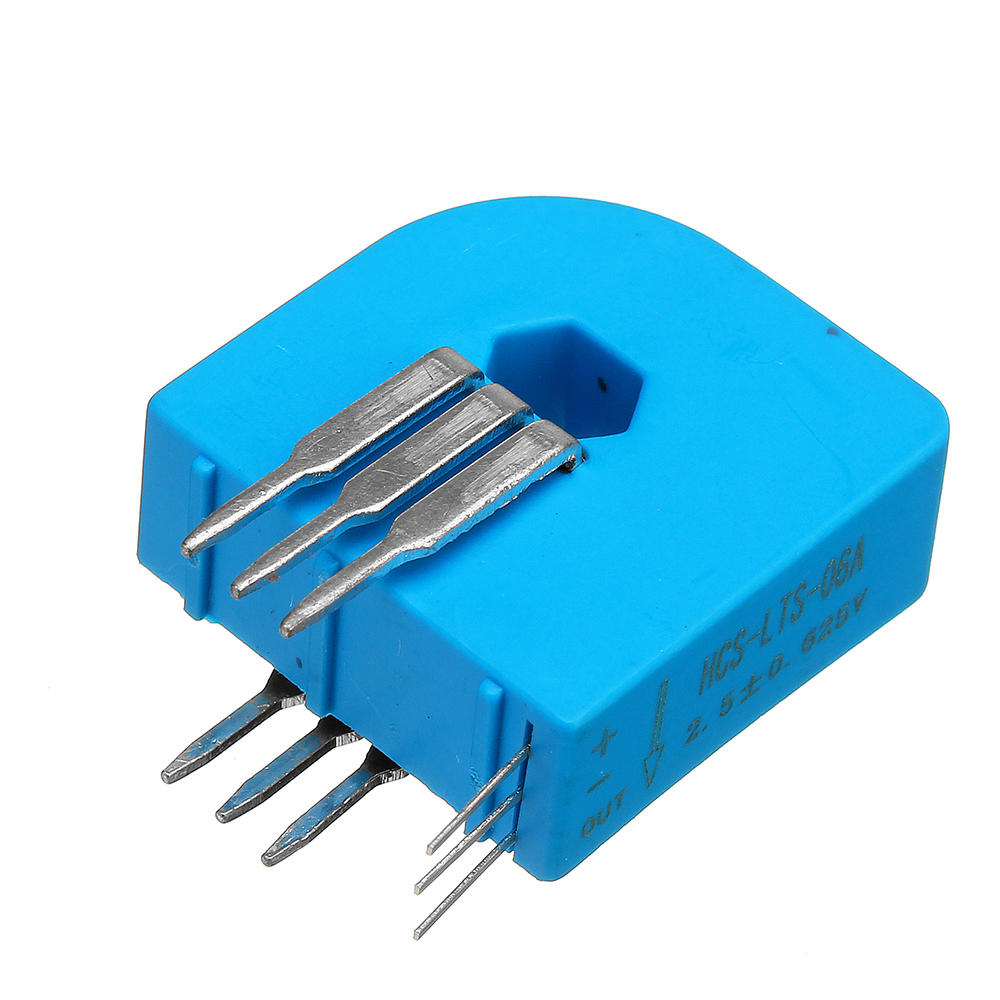

Elecbee HCS-LTS06A LTS06NP TBC06DS5 Hall Current Sensor Holzer Closed Loop Current Sensor
SKU: EB0043387
Favorites
Key Features
xa0
- High-precision
- Good linearity
- Able to install PCB
- Low power consumption
- Current overload capability
xa0
Application area:
xa0
1. Drive control of frequency conversion appliance
2. Variable speed drive applications
3. Current monitoring
4. UPS uninterruptible power management system
5. Inverter power supply and solar power supplyxa0
xa0
Instructions:
xa0
If the cable perforation is 1 turns, the rated current is 6A, if the cable is 2 or 3 turns turn perforation when the rated current is 3A or 2A, if the input mode, please do not use the PCB input mode at the same time, for the PCB input mode, the input current parameters to determine the number of turns and according to the rated input connection input PIN, input connection PIN three are 1T, 2T, 3T, corresponding to the rated input current: 6A, 3A, 2A.
xa0
Note:
Do not use punch input at the same time.
Do not use punch input at the same time.
xa0
Package Include:
xa0
1 x Hall Current Sensor
Show More
Datasheet
Description
>>>Manual: Click here to open<<<
Specifications:
Specifications:
Primary measurement ratings: 6A, 15A, 25A
Output:2.5±0.625V
Supply voltage: 5V
Frequency range: 0-200KHZ
Temperature range: -40--+85
Response time: ≤100nS
