Elecbee Hall Effect Sensor Module A3144E Logic IC 74HC08D ESP32 Development Board Door Sensor Alarm

Name: Elecbee Hall Effect Sensor Module A3144E Logic IC 74HC08D ESP32 Development Board Door Sensor Alarm
Brand: Elecbee
SKU: EB0043993
Price: 78.72 CNY
Availability: InStock

SKU: EB0043993

Favorites

Key Features

Futures:

- Unipolar Hall switch sensor

- Quickly response and high sensitivity

- Status indicator

- Low-level output

- Leigo compatible

Description

Description:

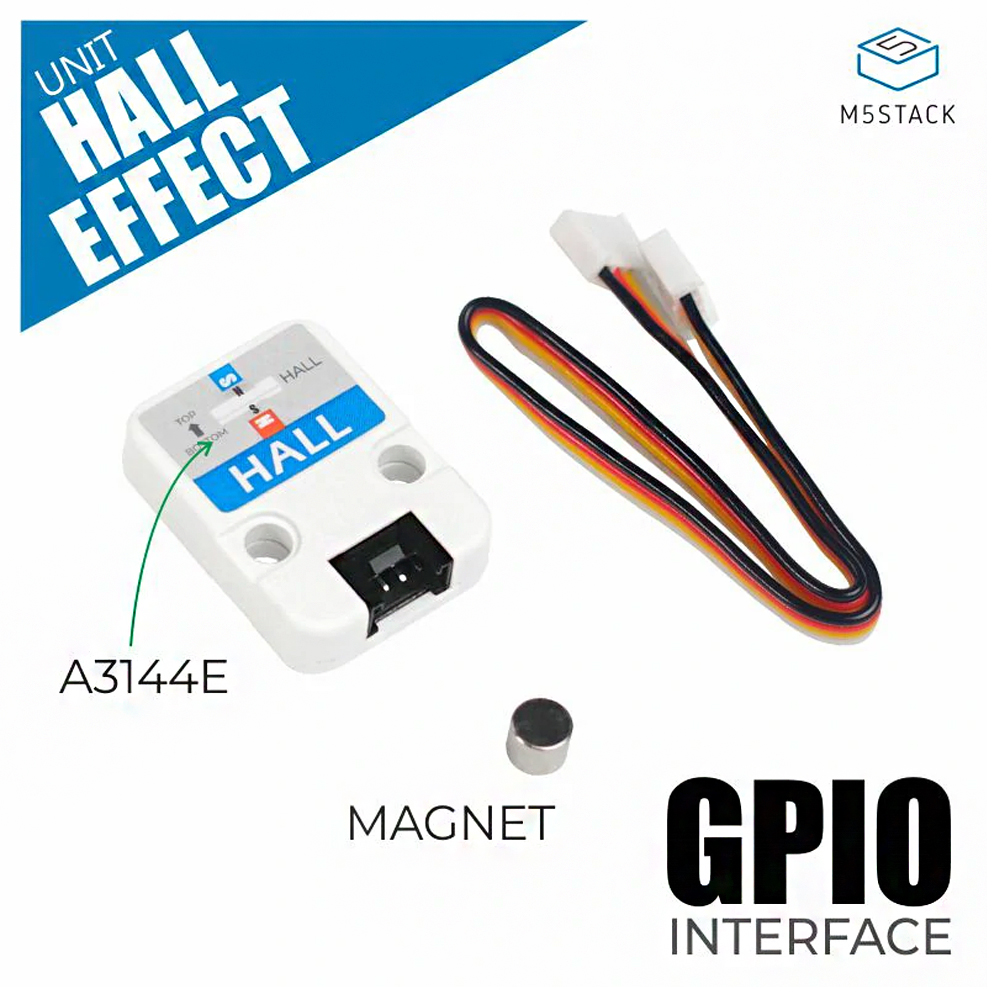

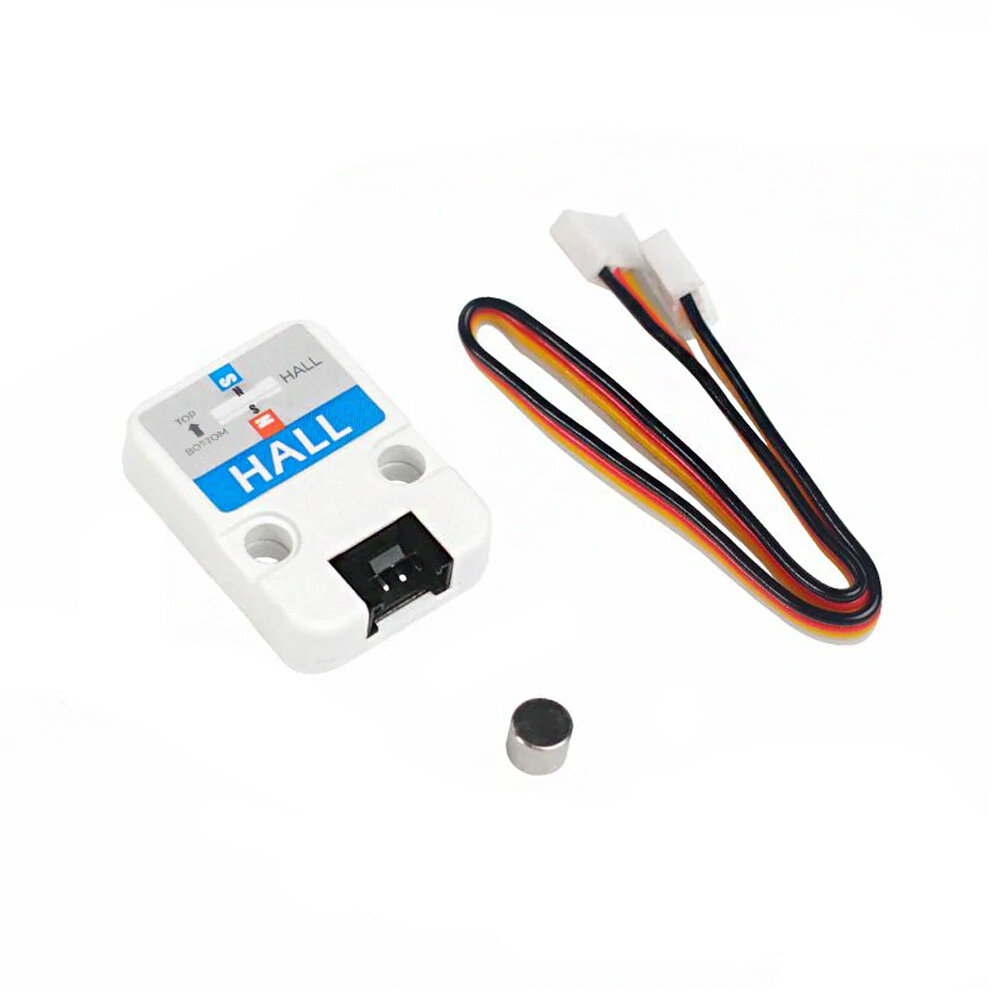

Hall effect Unit. Three A3144E Hall sensor switches are integrated internally, which are processed by 74HC series gate integrated circuits. Low-level signal can be generated when the magnet S pole is close to the top of the sensor or the N pole is close to the back, and the internal LED indicator will light up. It is widely used in applications such as door sensor alarms, proximity sensors, rotation speed measurement and so on. The front side is the North pole, and the low level is output when the south pole signal of the magnetic field is sensed.

Package Included:

- 1x Hall Effect Unit

- 1x GROVE Cable(20cm)

- 1x Magnet

Application:

- Door sensor alarm

- Magnetic field proximity sensing

- Speed measurement

EasyLoader: Click to download: contact us

EasyLoader is a concise and fast program writer, which has a built-in program related to the product. It can be burned to the main control by simple steps to perform a series of function verification. Please install the corresponding driver according to the device type. M5Core host Please click here to view the CP210X driver installation tutorial: contact us, M5StickC/V/T/ATOM series can be used without driver)

PinMap:

M5Core (PORT B)	GPIO26	GPIO36	5V	GND
Hall effect Unit		INPUT	5V	GND

Related Links:

A3144E: https://img.elecbee.com/eb/download/pdf/3141Thru3144E_HALL.PDF

Schematic: click here to open: https://cdn.elecbee.com/image/download/outerimg/Hall-Effect-Sensor-Module-A3144E-Logic-IC-74HC08D-ESP32-Development-Board-Door-Sensor-Alarm-description2.jpg

Example:

Arduin

Click here to download Arduin example.: contact us

UIFlow

Click here to download UIFlow example.: contact us
