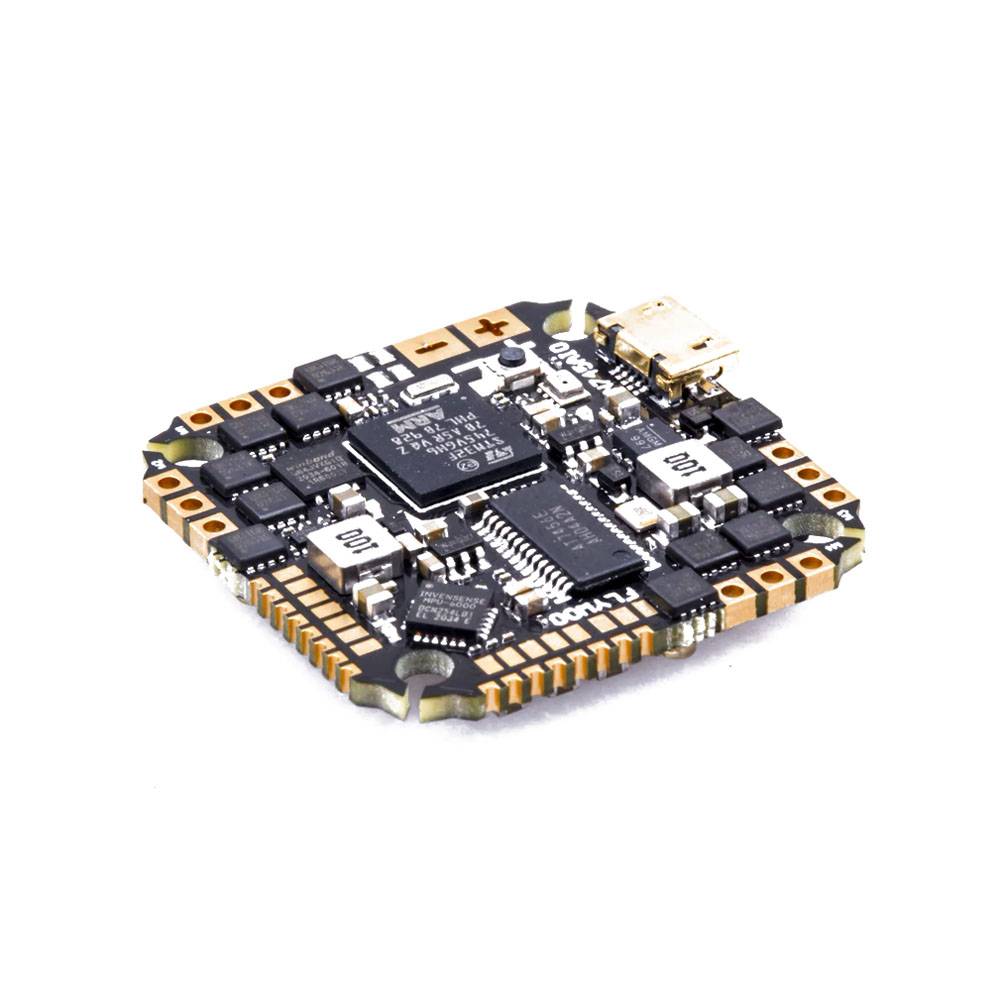

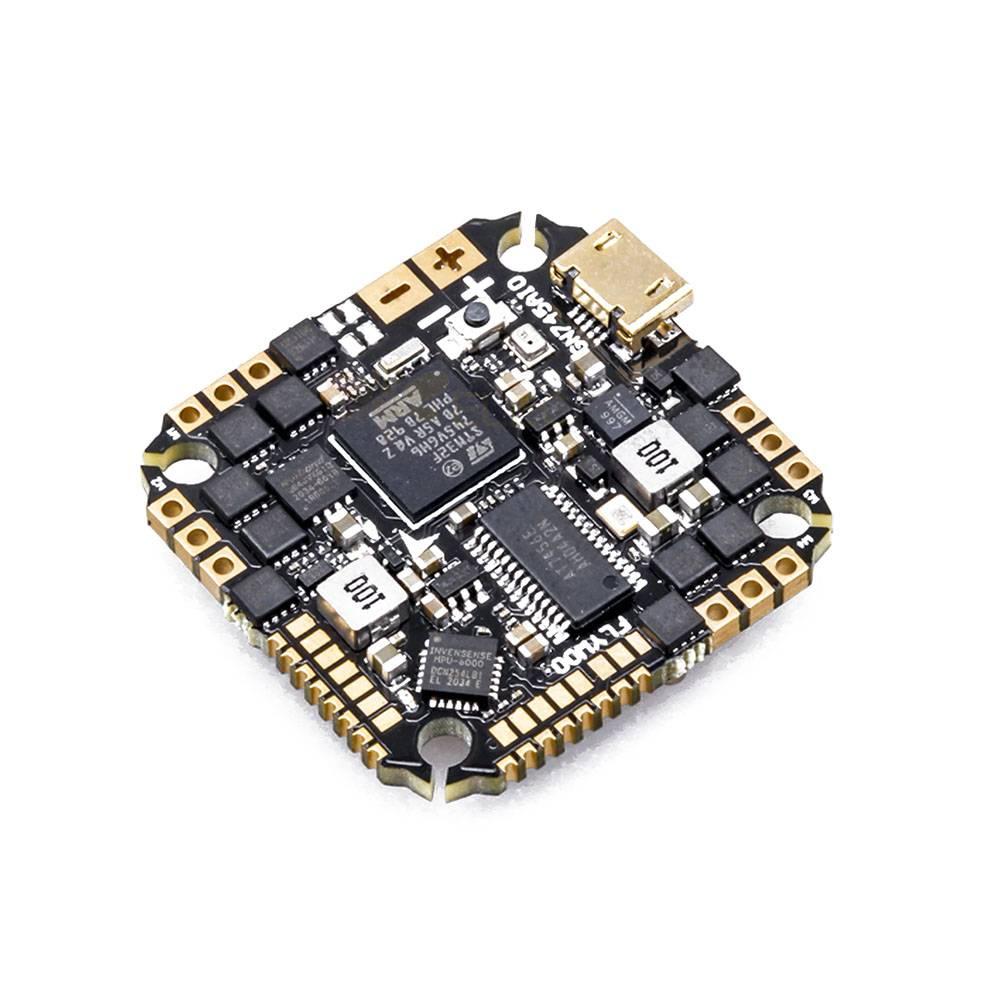

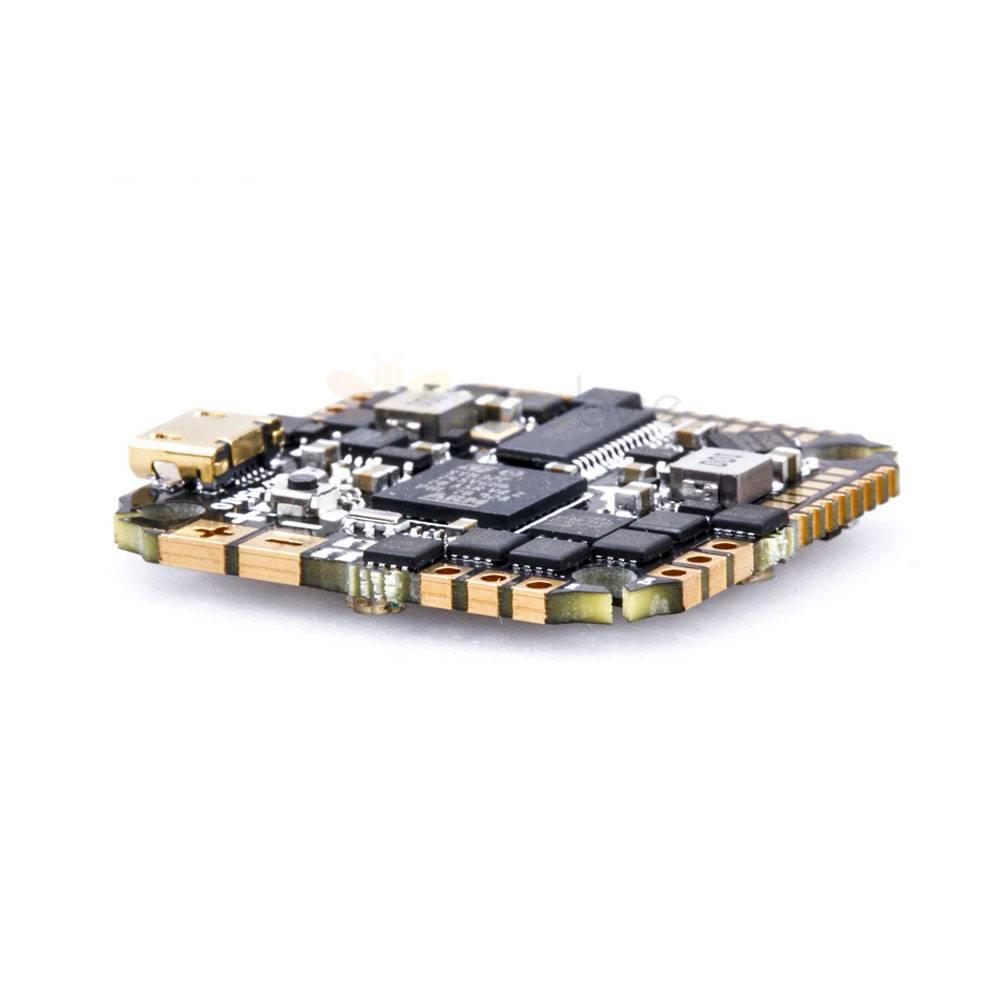

Elecbee Flywoo GOKU GN745 F7 40A 2-6S BLHeli32 AIO Flight Controller

Name: Elecbee Flywoo GOKU GN745 F7 40A 2-6S BLHeli32 AIO Flight Controller
Brand: Elecbee
SKU: EB-315-0113-L
Price: 34905 JPY
Availability: InStock

SKU: EB-315-0113-L

Favorites

Key Features

Description

Specifications

GN745AIO BLHELI32 40A

MCU: STM32F745 32-bit processor,216MHz, 512Kbytes Flash

IMU: MPU6000 (SPI)

Barometer: BMP280

Onboard LED： WS2812*4

USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)

7 hardware UARTS (UART1,2,3,4,5,6,7)

Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.

PPM and PWM receivers are not supported.

Onboard 8Mbytes for Blackbox logging

9V Power Out: 1.5A max

5V Power Out: 2.0A max

3.3V Power Out: 0.5A max

Dimensions: 33.5x33.5mm

Mounting Holes: Standard 25.5/26.5mm square to the center of holes

Built-in 40A BL_32 4in1 ESC

Support BLheli / BLHELI_32

Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200

Input Voltage: 2-6S Lipo

Continuous Current: 40A

Firmware: BLHELI_32

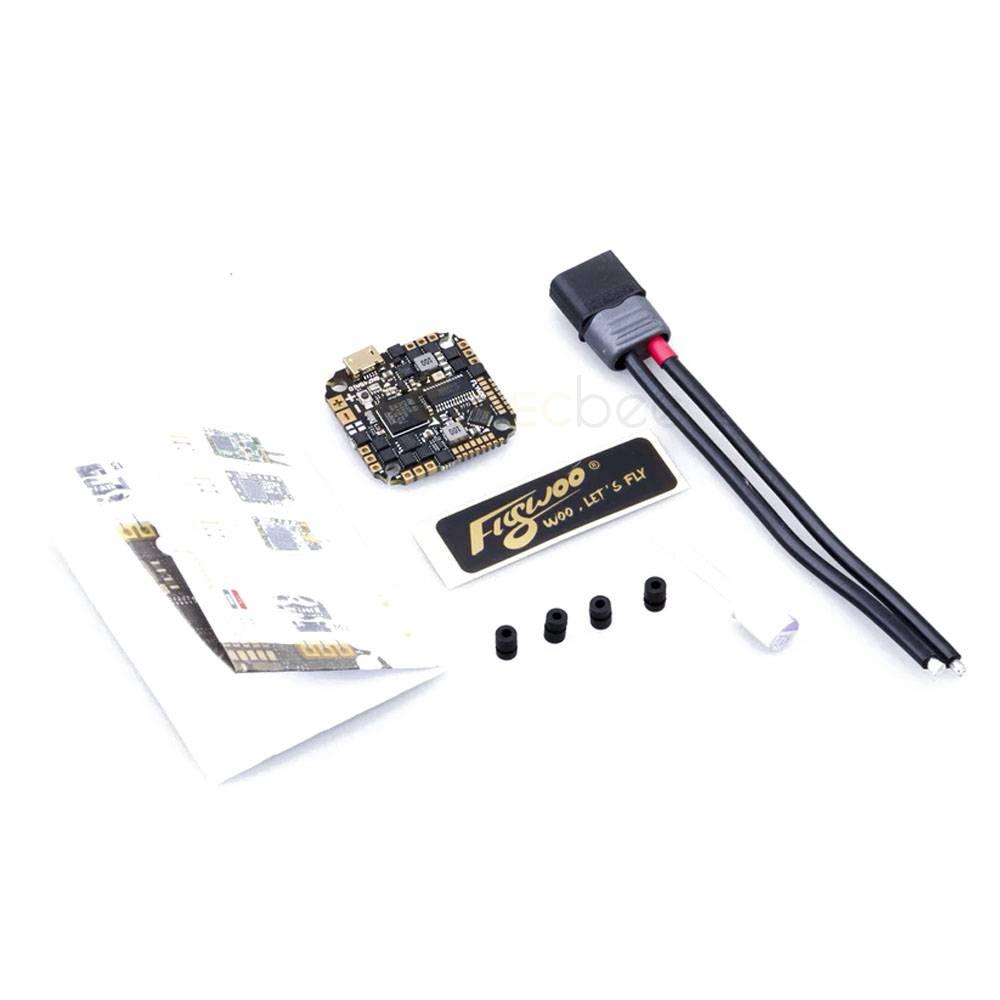

package inclusion

1 x Flywoo GN745 F7 40A 2-6S BLHeli32 AIO Flight Controller
