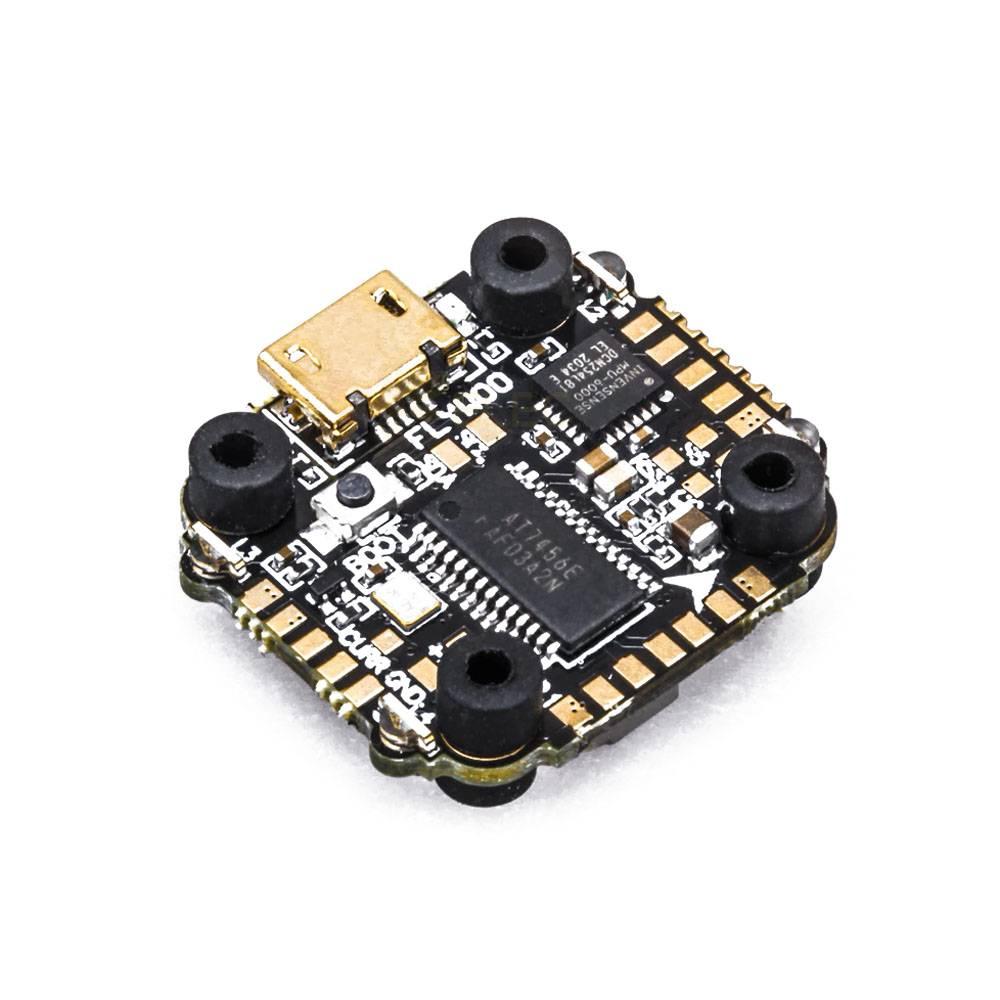

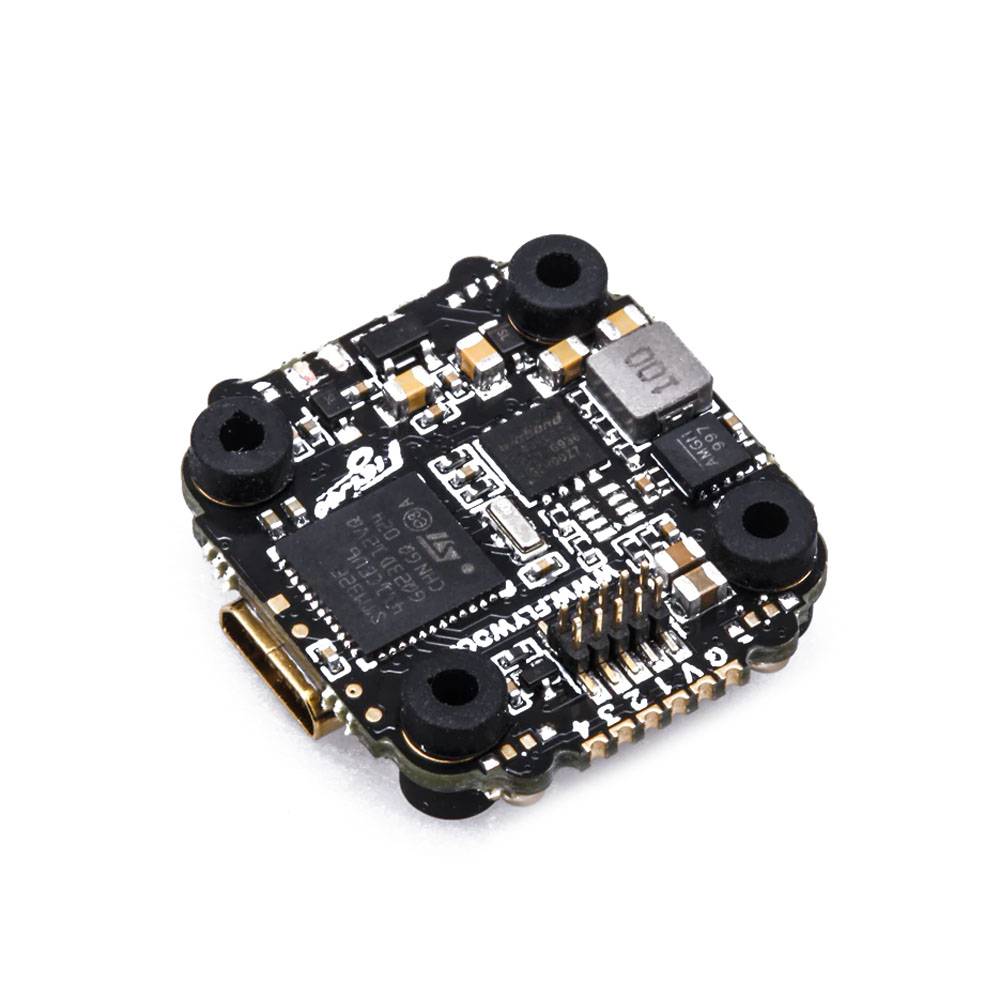

Elecbee Flywoo GOKU F411 V2.1 16x16 Flight Controller

SKU: EB-315-0114-L

Favorites

Key Features

Description

Specifications

MCU: STM32F411

IMU: MPU6000 (SPI)

USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)

2 hardware UARTS (UART1,2)

2 Software serial port

1 I2C port for compass/baro

Onboard LED：WS2812*8(FC*4/ESC*4)

Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.

PPM and PWM receivers are not supported.

Onboard 8Mbytes for Blackbox logging

5V Power Out: 2.0A max

3.3V Power Out: 0.5A max

Dimensions: 23.5x23.5mm

Mounting Holes: Standard 16mm square to the center of holes

package inclusion

1 x Flywoo GOKU F411 16x16 Flight Controller V2.1
