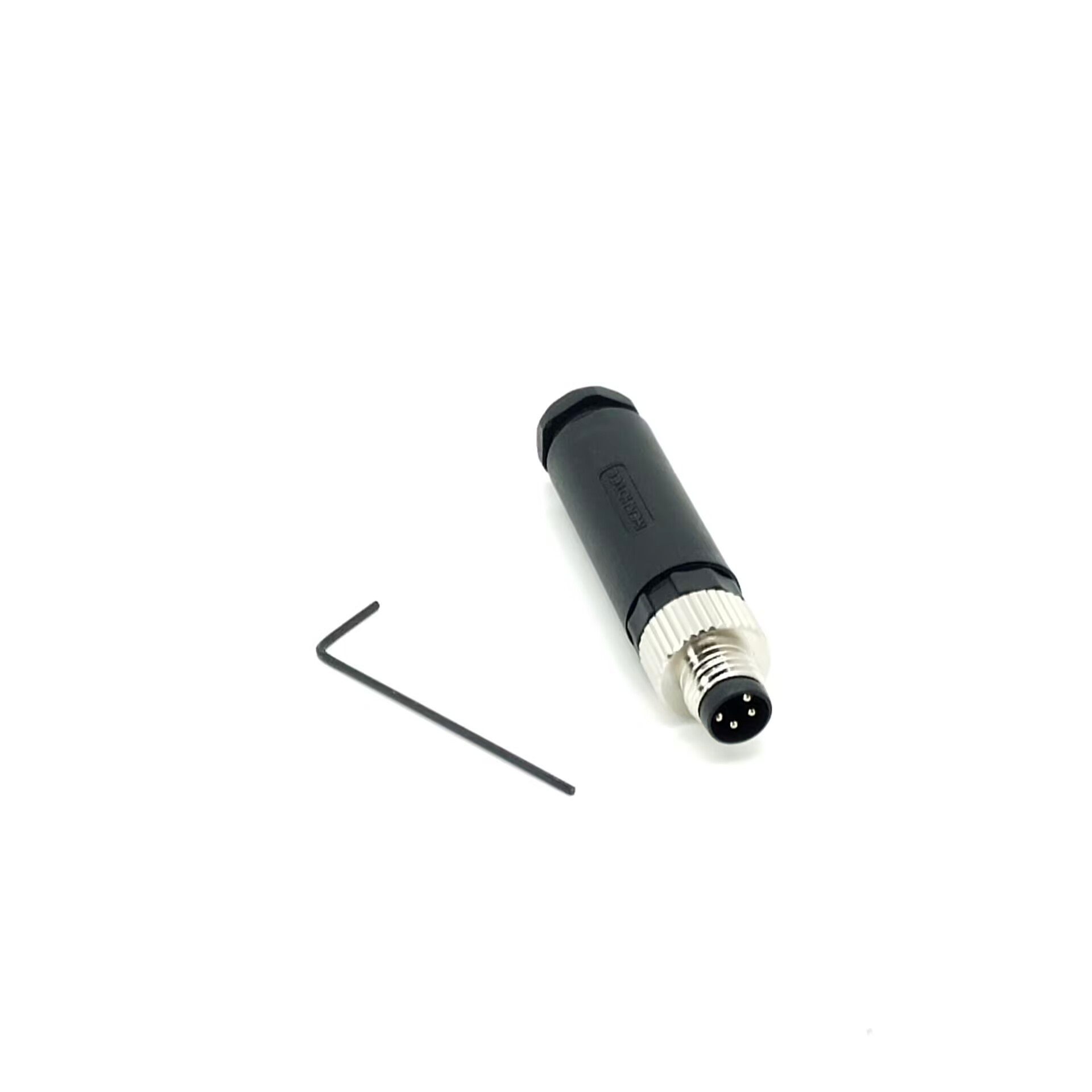

Elecbee M8 Male Field Wireable Connector, 4 Pin A-Code Straight Solder Type, IP67 Waterproof Sensor Plug, 24AWG, Gold Plated Brass, 3A/60V
SKU: EB-400-1180
Favorites
Key Features
Reliable Field Termination: Field-wireable design with solder cup terminals allows for custom cable lengths and on-site repairs without specialized crimp tools.
IP67 Waterproof Protection: Once mated, the threaded connection provides an IP67-rated seal, protecting against dust and temporary water immersion in harsh environments.
Industry Standard A-Coding: Features the standard A-Code 4-pin interface, making it compatible with most industrial sensors, actuators, and PLC inputs.
Premium Signal Transfer: Gold-plated copper alloy contacts ensure high conductivity and oxidation resistance for long-term data and power stability.
Rugged Industrial Build: Constructed with a high-strength PA66 shell and gold-plated pins to withstand temperatures from -20°C to +85°C.
Show More
In-Stock
Qty.
1
Unit Price
$ 3.01$ 3.54
Ext. Price
$ 3.01$ 3.54
$ 3.01$ 3.54
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder Cup
Contact Type
Male Pin
Number of Positions
4 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated）
Rated Current
3A
Rated Voltage
50VAC, 60VDC
Connector Series
M8
Color
Black
Fastening Type
Threaded
Orientation
Straight
Shell Material
PA66
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
24AWG
Description
Related Resources
Certificates
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4 /5
All reviews come from verified purchasers
5
60%
4
20%
3
20%
2
0%
1
0%
T****n
Perfect replacement for our industrial sensors. The M8 4-pin solder type fits well, and the thread locking mechanism keeps it secure even with constant vibration.
A****l
Good quality for the price. Soldering took a bit of time, but the unshielded design worked fine for our low-noise environment. Locking threads feel solid.
M****s
Exactly as described. The straight plug saves space in tight enclosures. Great value from an OEM factory—hard to beat this quality at this price.
M****a
Works okay, but soldering the 4 pins requires precision. The anti-vibration design helps, though I wish it was shielded for better noise protection.
O****r
Bought two for a robotics project. They’ve held up perfectly. The 8mm threaded joint secures tightly and hasn’t loosened once.
