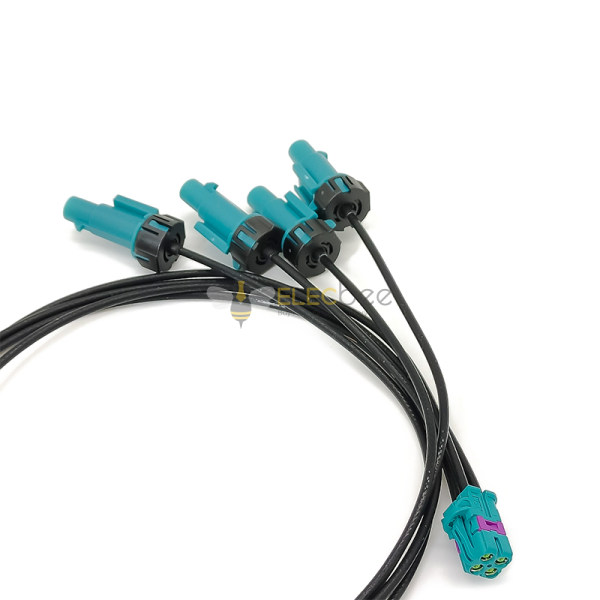

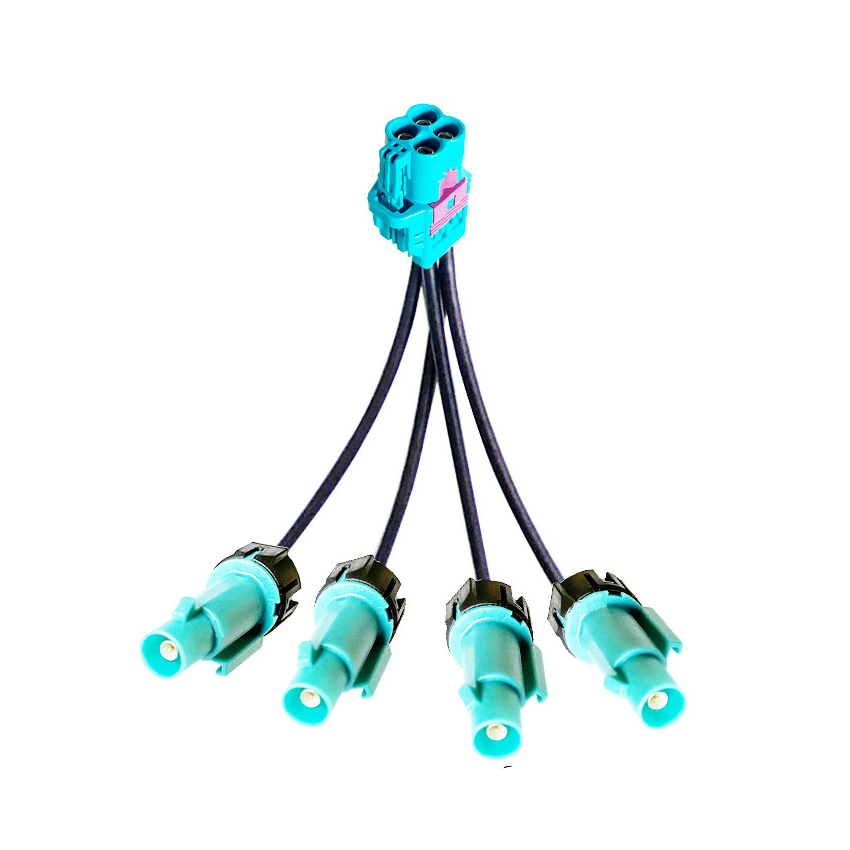

Elecbee FAKRA Z Waterproof Straight Male Plug Upgraded Four Ports to Mini 4 in 1 Vehicle LVDS Cable Adapter RF Coaxial Extension 50CM RG316 Rosenberger
SKU: EB-014-0197-C-RO
Favorites
Key Features
Consolidates Vehicle Connections: Rosenberger Mini FAKRA 4-in-1 female contacts connect to a FAKRA Z-code male contact for multi-channel automotive LVDS and RF systems.
Maintains Signal Integrity: Shielded RG316 coaxial construction provides controlled 50Ω impedance and supports frequencies from DC to 6GHz.
Supports Harsh Environments: IP65 protection and a -40°C to +105°C operating range accommodate dust, moisture and automotive temperature variation.
Simplifies Harness Integration: The 50cm round-to-split assembly uses straight, free-hanging connectors for vehicle wiring harnesses and electronic modules.
Provides Secure Mating: Locking plastic housings produce an audible connection click and support a minimum of 100 mating cycles.
Show More
Out-of-Stock
Qty.
1
Unit Price
$ 36.43$ 42.86
Ext. Price
$ 36.43$ 42.86
$ 36.43$ 42.86
Specifications
Attribute
Value
Search
Operating Temperature
-40℃~+105℃
Shielding
Shielded
Ingress Protection
IP65
1st Connector Series
Mini Fakra 4 in 1
1st Contact Type
Female Pin
2nd Contact Type
Male Pin
1st Connector Orientation
Straight
2nd Connector Orientation
Straight
Cable Assembly Type
Round - Split
Cable Length
50CM
Cable Color
Black
2nd Connector Series
Fakra Z
1st Connector Mounting Feature
Free Hanging(In-Line)
2nd Connector Mounting Feature
Free Hanging(In-Line)
Impendance
50 Ohms
Suitable Cable
RG316
Frequency Range
DC~6GHz
1st Connector Key
Z Code
2nd Connector Key
Z Code
Description
Rosenberger Mini FAKRA 4-in-1 to FAKRA Z Automotive Cable
The Elecbee Rosenberger Mini FAKRA 4-in-1 to FAKRA Z cable is a 50cm automotive LVDS and RF coaxial adapter designed to connect multi-port vehicle electronics with Z-code FAKRA systems. It combines a straight Mini FAKRA four-port interface with female contacts and a straight FAKRA Z connector with a male contact.
Technical Specifications
- Connector 1: Rosenberger Mini FAKRA 4-in-1 with female contacts
- Connector 2: FAKRA Z code with male contact
- Connector orientation: Straight to straight
- Cable construction: Shielded RG316 coaxial cable
- Cable configuration: Round-to-split assembly
- Cable length: 50cm
- Characteristic impedance: 50Ω
- Frequency range: DC to 6GHz
- Ingress protection: IP65
- Operating temperature: -40°C to +105°C
- Mounting configuration: Free-hanging, in-line
- Cable color: Black
- Mating durability: Minimum 100 cycles
Automotive LVDS and RF Applications
This Mini FAKRA cable adapter is suitable for automotive GPS navigation, satellite radio, Bluetooth, remote vehicle diagnostics, infotainment, wireless LAN and other in-vehicle communication systems. The four-port Mini FAKRA interface helps organize multiple coaxial connections in space-constrained vehicle electronics.
Signal Transmission and Environmental Protection
The shielded RG316 cable and controlled 50Ω impedance support RF and high-speed LVDS signal transmission across the specified DC–6GHz frequency range. IP65 protection and an operating range of -40°C to +105°C support installation in demanding automotive environments.
Connector Integration
Straight, free-hanging connectors support integration into vehicle wiring harnesses, control modules and infotainment equipment. The locking plastic housings produce an audible click when mated, helping installers confirm secure engagement during assembly, servicing and replacement.
