Elecbee External LTE 4G Omni Building Antenna (50 Ohm) | weBoost 304424

SKU: E-201-2481

Favorites

Key Features

Description

Product Description

Omni Antenna (50 Ohm) | weBoost 304424 by Wilson Electronics / WilsonPro.

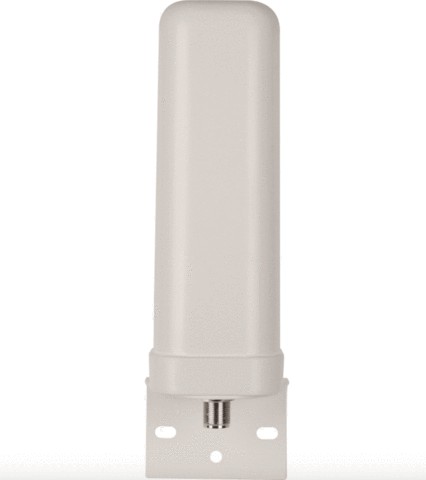

External LTE 4G Omni Building Antenna (50 Ohm, N-Female) by Wilson Electronics' weBoost (304424) is a wide-band omni-directional antenna. Purchase includes mounting hardware. It covers 698-960 MHz and 1710-2700 MHz frequencies. UPC: 811815026730.

High gain signal output.
Boost 698 thru 960 and 1710 thru 2700 MHz mobile frequencies.
Boosts voice and data.
Multi-mount bracket for mast or wall.
Compact, low visual impact.
Outdoor rated waterproof.
Easy install at home or office.
Connects to building cell phone signal boosters and modems.
2 year Wilson Electronics manufacturer warranty.

Electrical Specifications:

Frequency range (MHz)	698-960 \| 1710-2700.
Polarization	Vertical.
Gain (dBi)	2 \| 4.
Horizontal Beamwidth (Degrees)	360.
Vertical Beamwidth (Degrees)	60.
Impedance (Ohm)	50 Ohm.
VSWR	< 1.8.
Maximum input power (Watts)	100.
Lightning Protection	DC Ground.

Mechanical Specifications:

Connector	N-female.
Dimensions (inches)	7.5 x 2.6 x 2.6.
Weight (lb)	0.77.
Rated wind velocity (mph)	130.
Radome material	UV resistant ABS.
Color	White.
Operating temperature (Degrees Fahrenheit)	-40 to +65.
Mounting pole or wall mount (inches)	1.5 to 2.0.
RoHS	Compliant.
