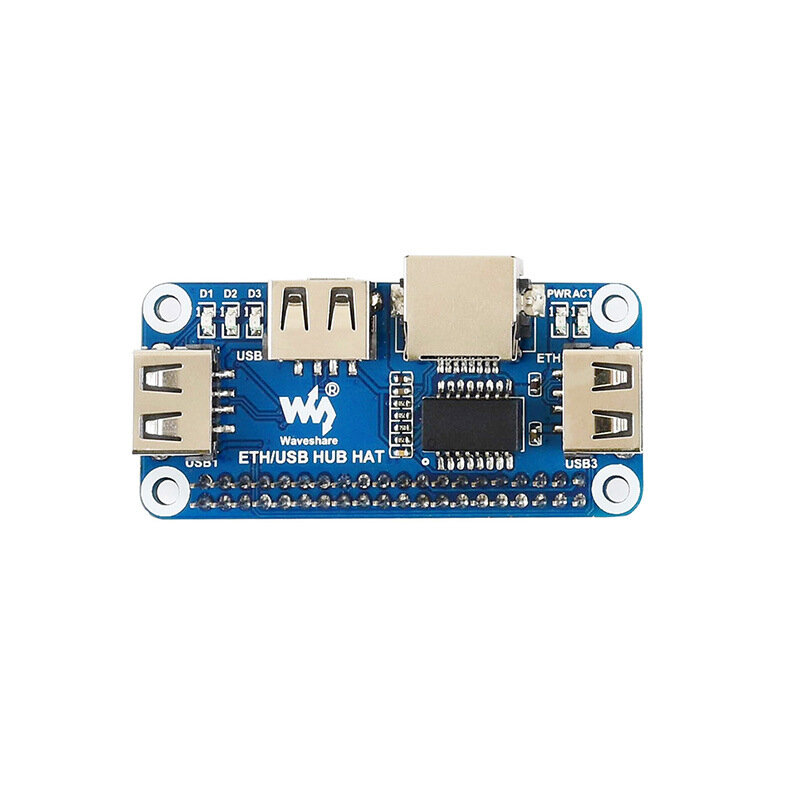

Elecbee Ethernet/USB HUB HAT for Raspberry Pi 4/Zero W USB to Ethernet 1x RJ45 Ethernet Port 3x USB Ports
SKU: EB0048298
Favorites
Key Features
u200a
3x USB ports, compatible with USB2.0/1.1
1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port
Specifications:
u200a
Operating voltage: 5V

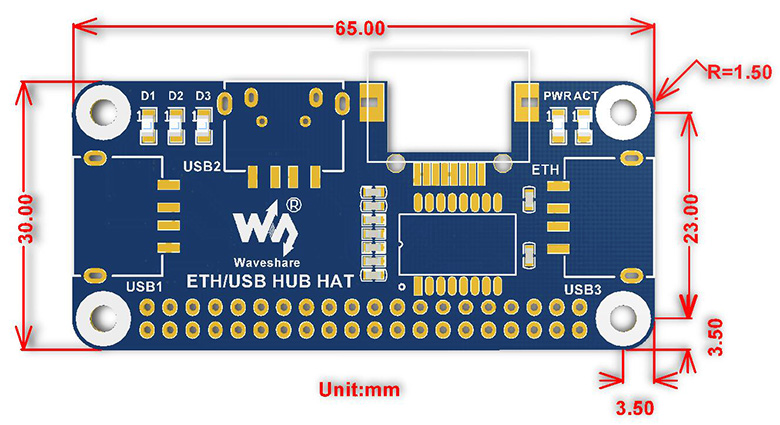

Dimension: 65mm × 30mm
Mounting hole size: 3.0mm
u200a
u200aSchematic of ETH/USB HUB HAT
u200aManual(only Chinese now)
u200a
u200aHow to use it
● Insert the ETH/USB HUB HAT to Raspberry Pi. Connect USB interface of Raspberry Pi to micro USB interface of ETH/USB HUB HAT
● Connect Network cable to RJ45 interface of ETH/USB HUB HAT
● Power on Raspberry Pi. PWR indicator lights on and ACT indicator is flashing. Now you can check the network and USB ports
● When USB devices are connected to USB1~USB3 ports, related LED D1-D3 light on
u200a

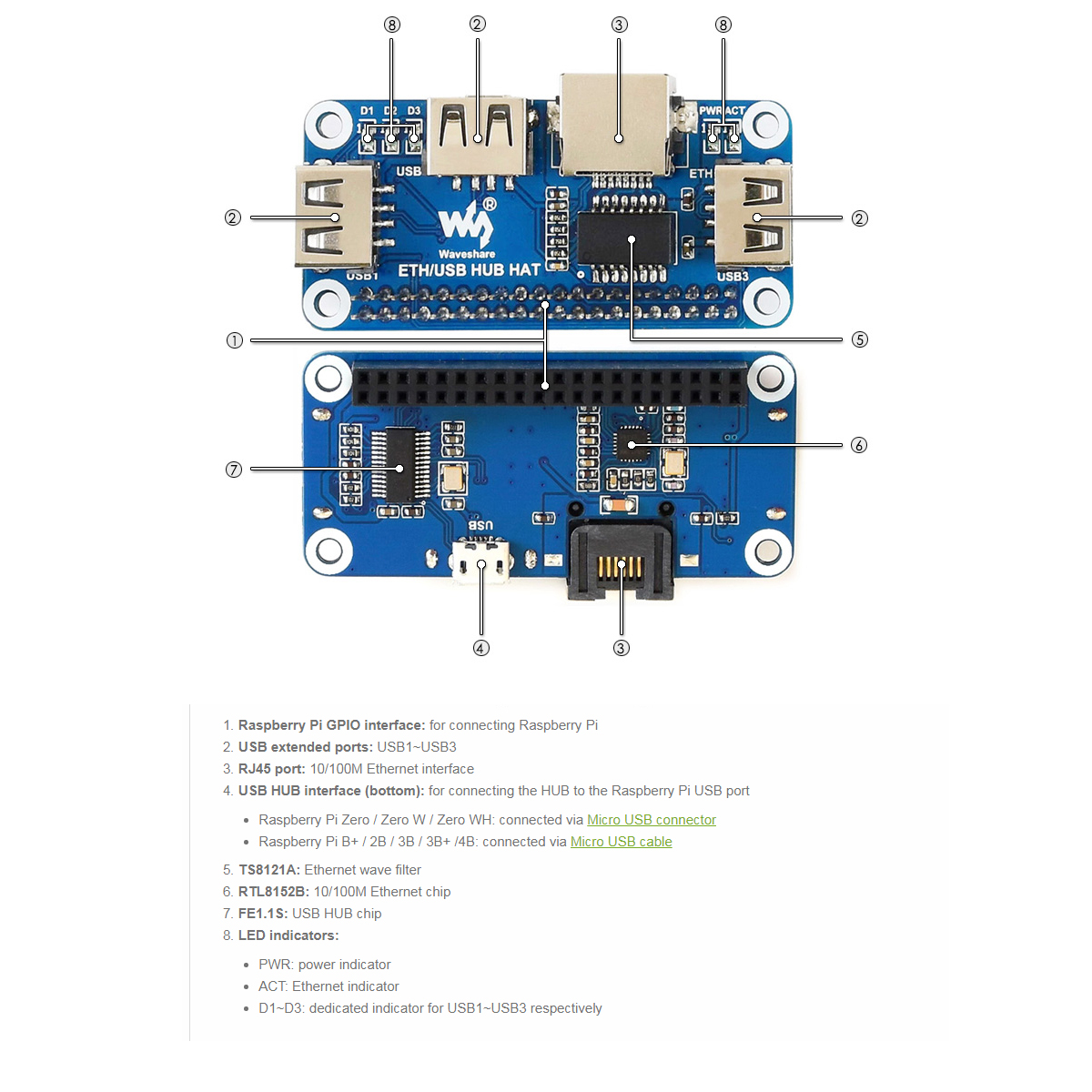

u200aInterfaces:
| SYMBOL | Description |
|---|---|
| USB | USB interface, should be connected to USB port of Raspberry Pi |
| USB1~USB3 | Extended USB ports, can be connected to external USB devices |
| ETH | RJ45 port, can be connect to wired network |
Note: This product does not include the Raspberry Pi motherboard in the schematic diagram, if necessary, please purchase separately
u200a
u200a
u200a
Show More
Datasheet
Description
ETH / USB HUB HAT × 1
Micro USB connector × 1
USB cable type A male port to micro male port × 1
RPi Copper Pillar Pack (2PCS Set) × 1
Overview:

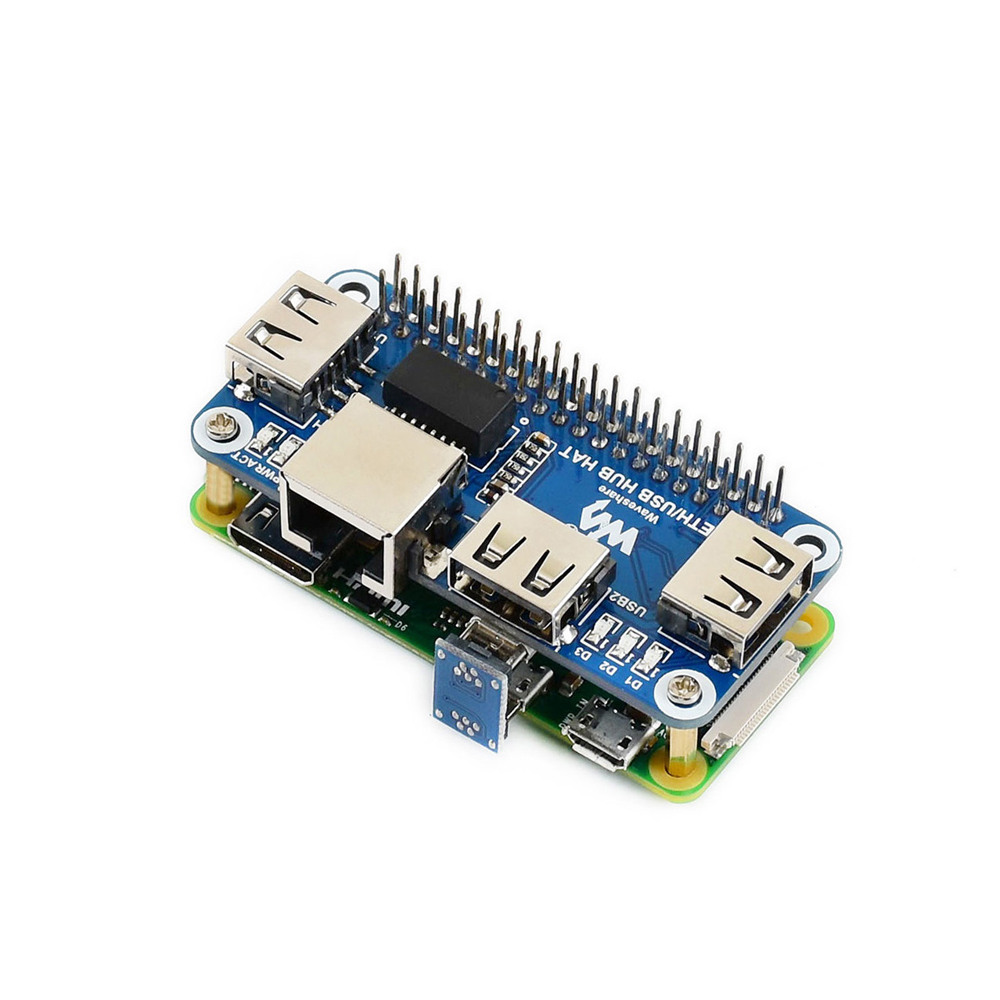

This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.
It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.
ETH / USB HUB HAT × 1
Micro USB connector × 1
USB cable type A male port to micro male port × 1
RPi Copper Pillar Pack (2PCS Set) × 1
