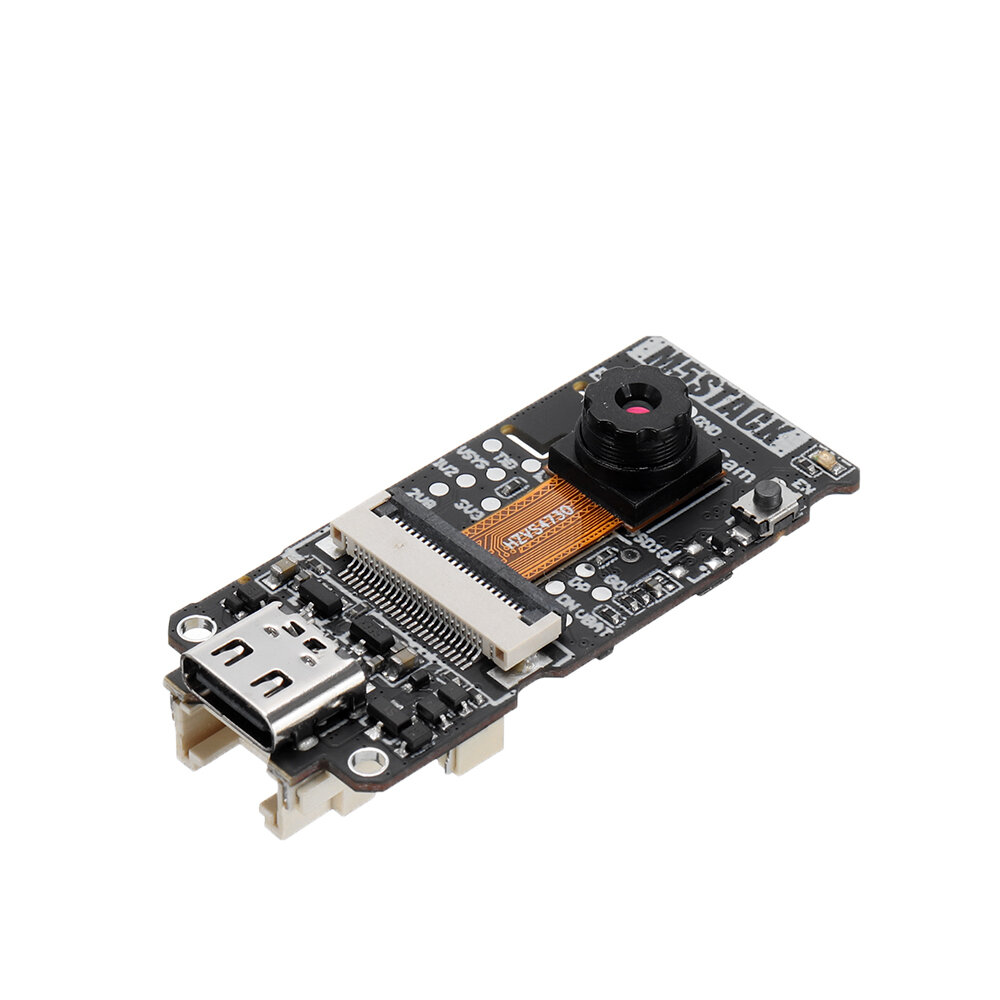

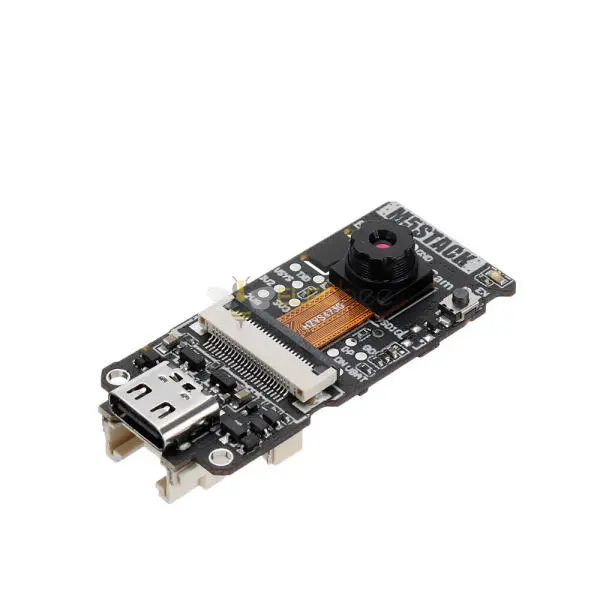

Elecbee ESP32 PSRAM Timer Camera Module WiFi + Bluetooth OV3660 Module Camera Module with PSRAM
SKU: EB0049547
Favorites
Key Features
Design based on esp32
WiFi image/video transmission
Timed sleep wake up
Status indicator
Ultra low power design
Programming platform：ESP-IDF/Arduino/UIFlow
Show More
Datasheet
Description
1x Timer Camera
Applications:
Take pictures regularly
Remote video monitoring
Specification:
| Resources | Parameter |
| PSRAM | 8MB |
| Flash | 4M |
| Image Sensor | OV3660 |
| Maximum resolution | 3M pixels |
| Output format | YUV(422/420)/YCbCr422,RGB565/555,8-bit compressed data,8-/10-bit Raw RGB data |
| Maximum image transmission rate | UXGA/SXGA: 15fps, SVGA: 30fps, CIF: 60fps |
| FOV | 66.5° |
| Net Weight | 6g |
| Gross Weight | 17g |
| Product Size | 45*20*12mm |
| Package Size | 60*60*15mm |
PinMap:
Camera Interface PinMap
| Interface | Camera Pin | TimerCamera |
| SCCB Clock | SIOC | IO23 |
| SCCB Data | SIOD | IO25 |
| System Clock | XCLK | IO27 |
| Vertical Sync | VSYNC | IO22 |
| Horizontal Reference | HREF | IO26 |
| Pixel Clock | PCLK | IO21 |
| Pixel Data Bit 0 | D0 | IO32 |
| Pixel Data Bit 1 | D1 | IO35 |
| Pixel Data Bit 2 | D2 | IO34 |
| Pixel Data Bit 3 | D3 | IO5 |
| Pixel Data Bit 4 | D4 | IO39 |
| Pixel Data Bit 5 | D5 | IO18 |
| Pixel Data Bit 6 | D6 | IO36 |
| Pixel Data Bit 7 | D7 | IO19 |
| Camera Reset | RESET | IO15 |
| Camera Power Down | PWDN | -1 |
| Power Supply 3.3V | 3V3 | 3V3 |
| Ground | GND | GND |
GROVE Interface
| Grove | TimerCamera |
| SCL | IO13 |
| SDA | IO4 |
| 5V | 5V |
| GND | GND |
LED Interface
| LED | TimerCamera |
| LED_Pin | IO2 |
BAT Interface
| BAT | TimerCamera |
| BAT_ADC_Pin | IO33 |
Datasheet:
ESP32
OV3660
Example:
TimerCamera-Arduin
SourceCode:
TimerCamera
Firmware:
You can download and burn firmware with M5Burner
Description:

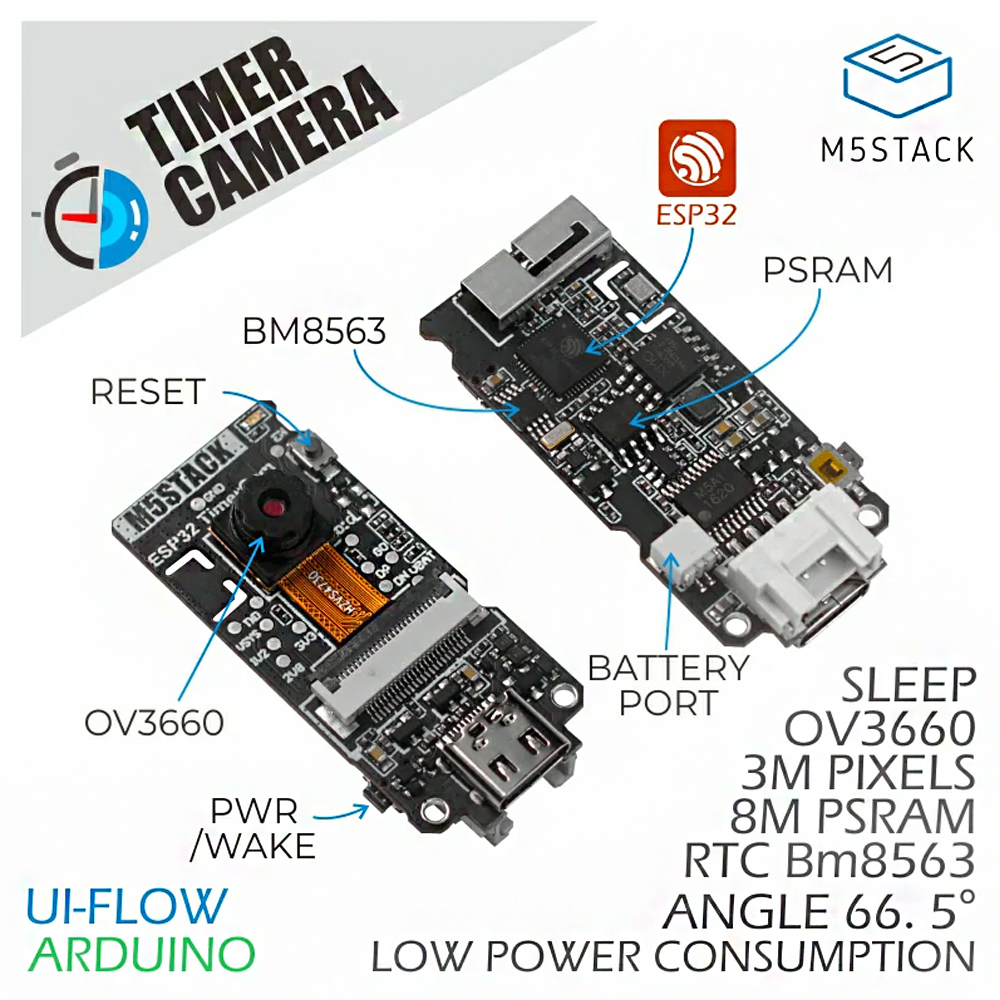

Timer Camera is a camera module based on the ESP32 with 8MB of integrated with PSRAM. The 3 million pixel camera (ov3660) has a field of view of 66.5 ° and can shoot a maximum of 1600 x 1200 resolution photos. There is a LED status indicator and reset button on the board. Timer Camera is designed to have ultra-low power consumption. Through the use of the RTC (BM8563), timing, sleep and wake-up functions can be utilized. In sleep mode, the current consumption of the whole machine is only 2μA. After the scheduled photo taking function(one photo per hour) is turned on, the battery can work continuously for more than one month. The module supports WiFi image transmission and USB port debugging. The bottom HY2.0-4P port output can be connected to other peripherals. In order to facilitate DIY, the battery interface is reserved on the board. Using the M5Burner firmware burning tool, timecam can be set directly with the Camera-Tool, and TimerCamera data can be processed in UIFlow.
1x Timer Camera
Applications:
Take pictures regularly
Remote video monitoring
Specification:
| Resources | Parameter |
| PSRAM | 8MB |
| Flash | 4M |
| Image Sensor | OV3660 |
| Maximum resolution | 3M pixels |
| Output format | YUV(422/420)/YCbCr422,RGB565/555,8-bit compressed data,8-/10-bit Raw RGB data |
| Maximum image transmission rate | UXGA/SXGA: 15fps, SVGA: 30fps, CIF: 60fps |
| FOV | 66.5° |
| Net Weight | 6g |
| Gross Weight | 17g |
| Product Size | 45*20*12mm |
| Package Size | 60*60*15mm |
PinMap:
Camera Interface PinMap
| Interface | Camera Pin | TimerCamera |
| SCCB Clock | SIOC | IO23 |
| SCCB Data | SIOD | IO25 |
| System Clock | XCLK | IO27 |
| Vertical Sync | VSYNC | IO22 |
| Horizontal Reference | HREF | IO26 |
| Pixel Clock | PCLK | IO21 |
| Pixel Data Bit 0 | D0 | IO32 |
| Pixel Data Bit 1 | D1 | IO35 |
| Pixel Data Bit 2 | D2 | IO34 |
| Pixel Data Bit 3 | D3 | IO5 |
| Pixel Data Bit 4 | D4 | IO39 |
| Pixel Data Bit 5 | D5 | IO18 |
| Pixel Data Bit 6 | D6 | IO36 |
| Pixel Data Bit 7 | D7 | IO19 |
| Camera Reset | RESET | IO15 |
| Camera Power Down | PWDN | -1 |
| Power Supply 3.3V | 3V3 | 3V3 |
| Ground | GND | GND |
GROVE Interface
| Grove | TimerCamera |
| SCL | IO13 |
| SDA | IO4 |
| 5V | 5V |
| GND | GND |
LED Interface
| LED | TimerCamera |
| LED_Pin | IO2 |
BAT Interface
| BAT | TimerCamera |
| BAT_ADC_Pin | IO33 |
Datasheet:
Example:
TimerCamera-Arduin: https://github.com/m5stack/TimerCam-arduino
SourceCode:
TimerCamera: https://github.com/m5stack/TimerCam-idf
Firmware:
You can download and burn firmware with M5Burner: https://m5stack.com/pages/download
