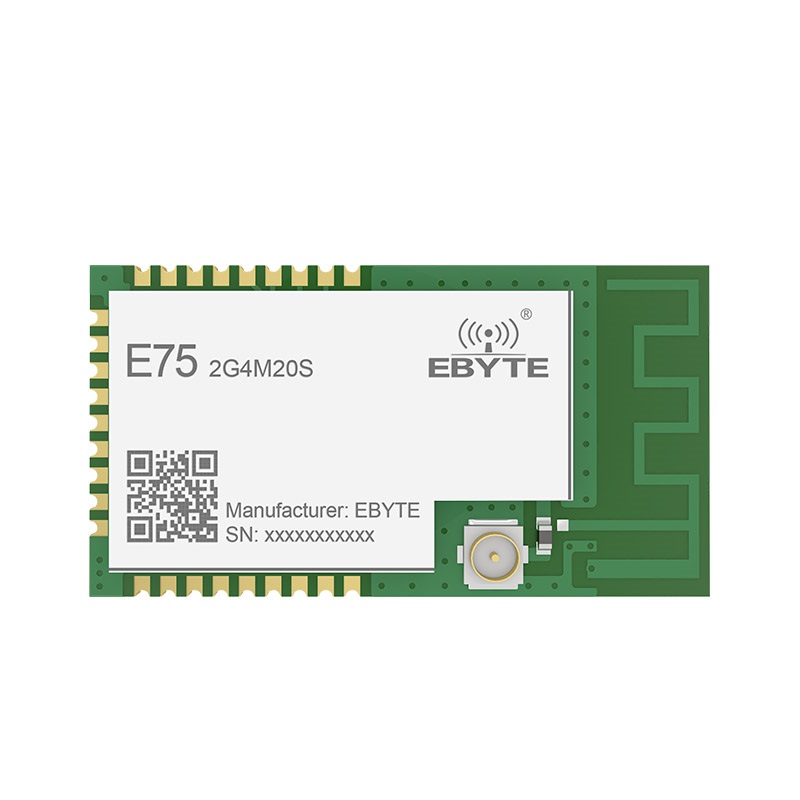

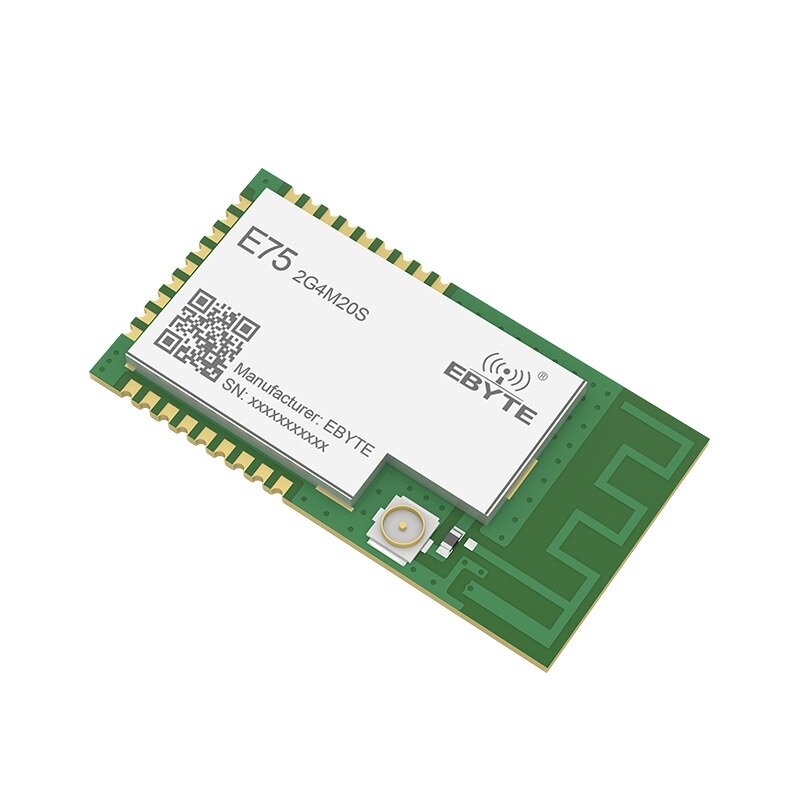

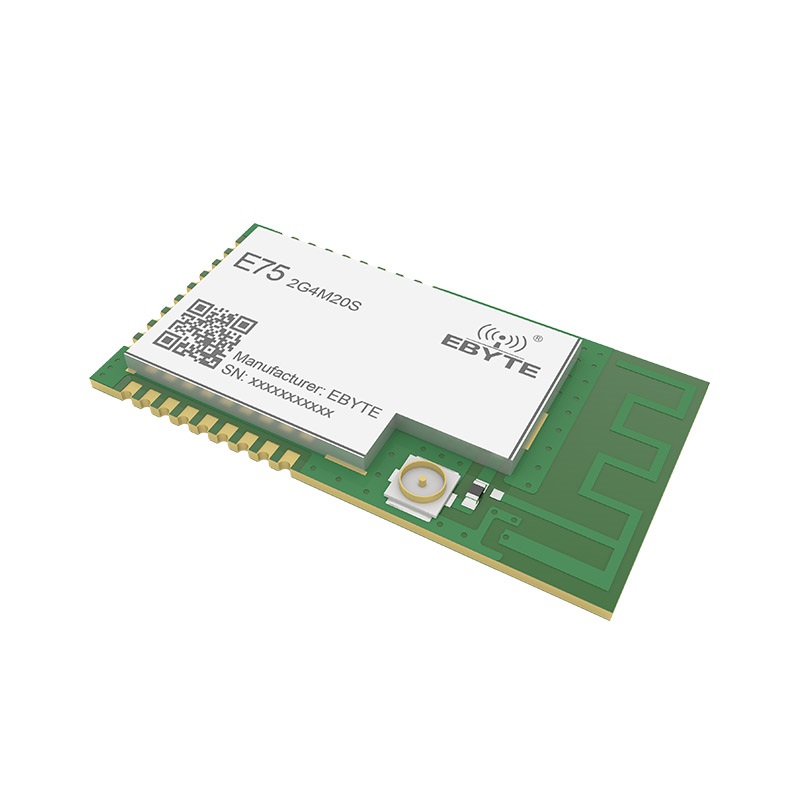

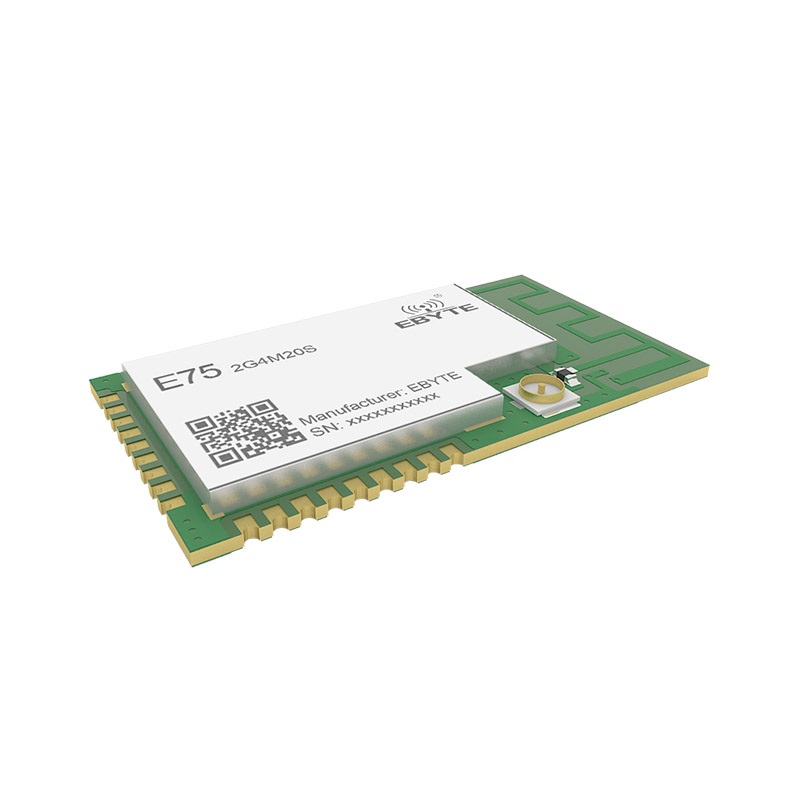

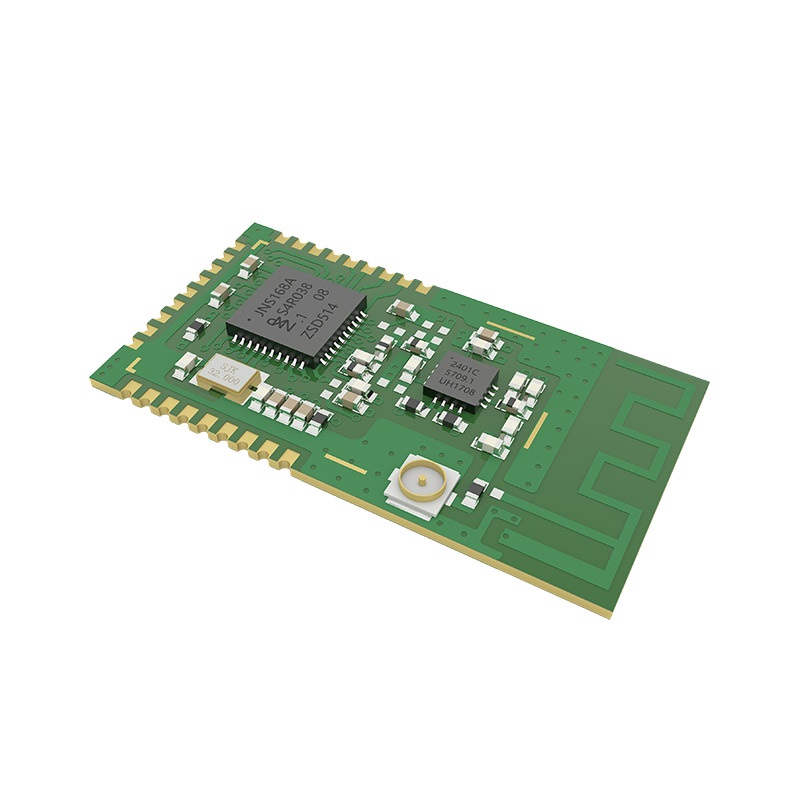

Elecbee E75-2G4M20S JN5168 IEEE802.15.4 ISM 2.4GHz 1000m Long Range 20dBm Wireless IOT Module for ZigBee
SKU: EB0047442
Favorites
Key Features
Show More
Description
Specification:
RF Parameter
| Value | Remark |
Working frequency
| 2405~2480MHz | Default: 2.4GHz (32MHz oscillator) |
Transmitting power
| 20dBm | About 100mW |
Receiving sensitivity
| -100dBm | Air data rate: 250kbps |
Air data rate | 250kbps | |
Test distance | 1000m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
Hardware Parameter | Value | Remark |
IC | JN5168ASGU482/QFN40 | / |
FLASH | 256KB | / |
RAM | 32 KB | / |
CORE | 32bit RISC CPU | / |

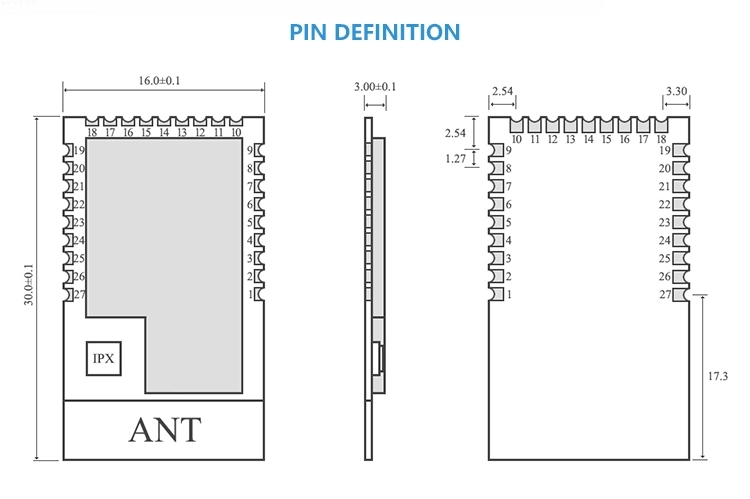

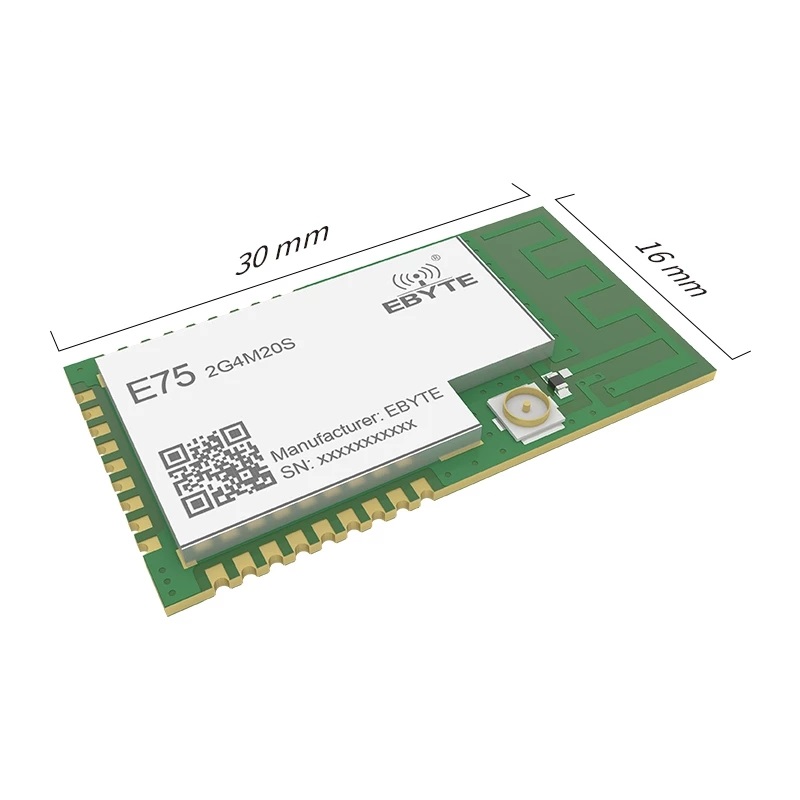

Size | 16* 30mm | / |

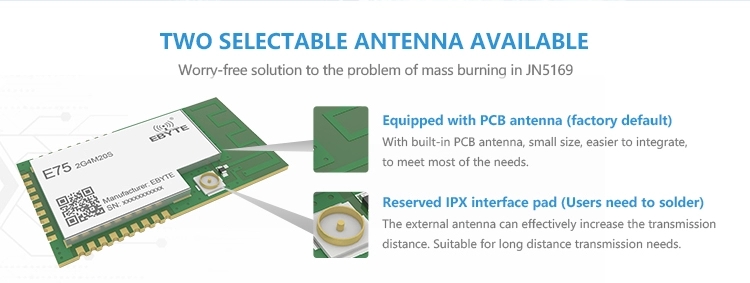

Antenna type | PCB / Stamp hole | / |
Interface | SPI | / |
Package | SMD | / |
Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
Power supply | 2.0 | 3.3 | 3.6 | V | |
Communication level | 2.0 | 3.3 | 3.6 | V | |
Transmitting current | 136 | 145 | 160 | mA | 20dBm (100mW) |
Receiving current | 24 | 26 | 29 | mA | |
Sleep current | 1 | 2 | 3 | μA | |
Operating temperature | -40 | 20 | +85 | ℃ | |
Operating humidity | 10 | 60 | 90 | % | |
Storage temperature | -40 | 20 | +125 | ℃ |
|
Package included:
1 x RF Transceiver Module
