Elecbee DC 12V RS232 Serial Port Delay Relay Switch Module PC COM DB9 MCU UART Remote Control Board
SKU: EB0046819
Favorites
Key Features
Show More
Description
Description:

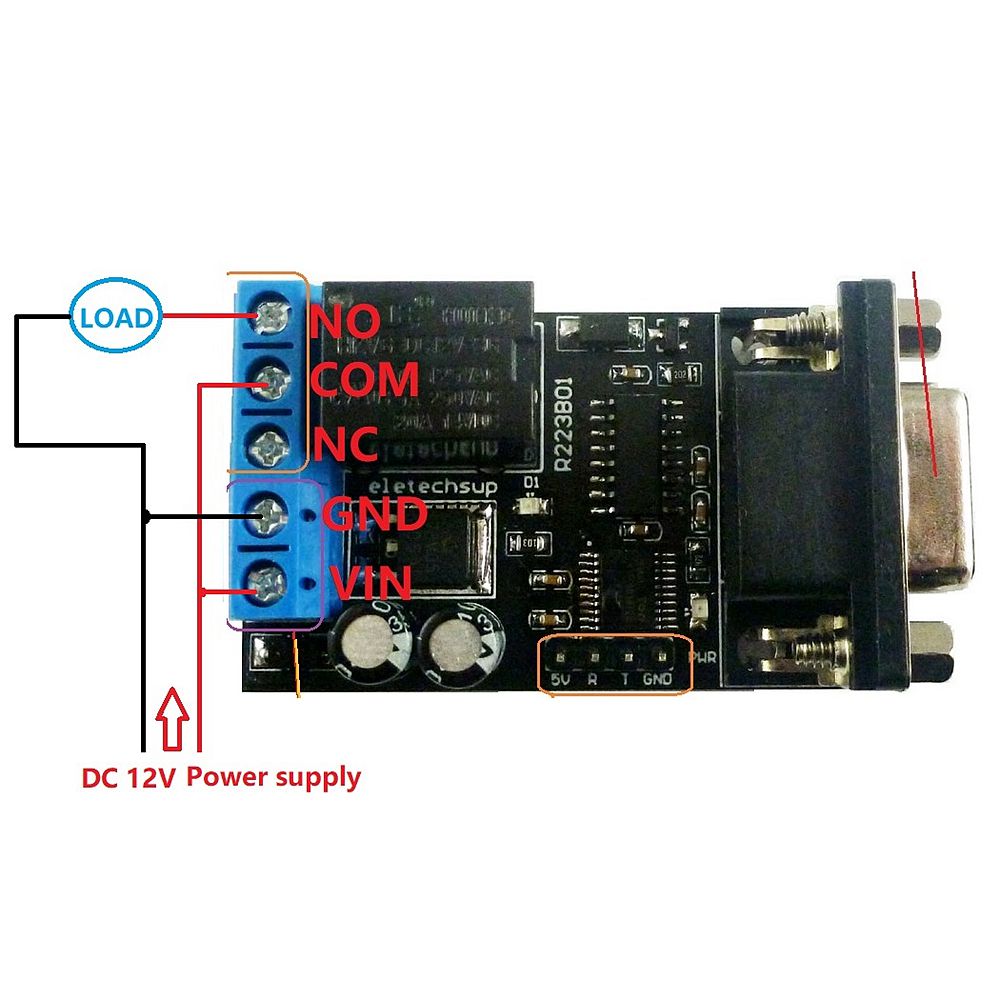

- Working voltage: 12V
- (DC12V)Standby current (all relays closed) 16MA, relay open 47MA,

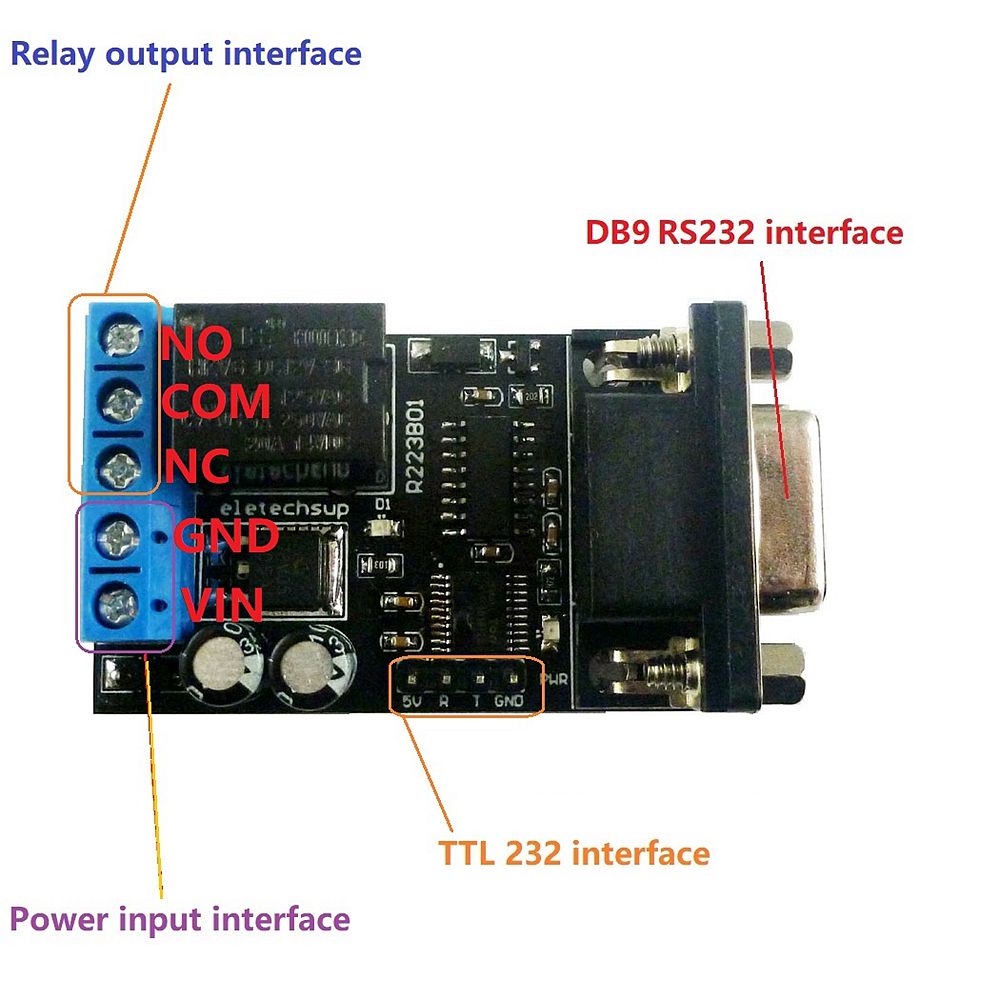

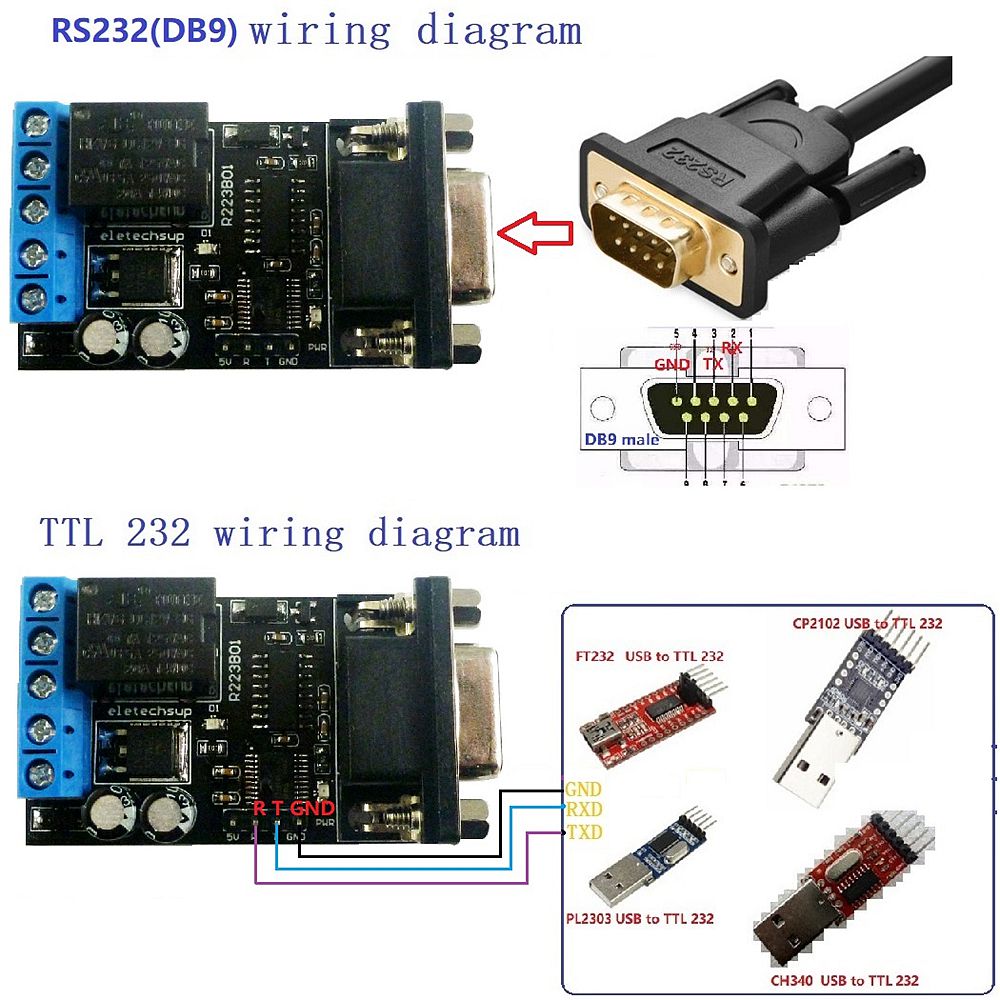

- Two serial ports: RS232 DB9 interface, TTL 232 interface
- ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay''(Only AT command) 6 Commands
- Two kinds of commands: AT command and 8-byte command, the two commands are automatically recognized, no need to switch.
- Under the ''Delay'' command ,the maximum delay is 9999 seconds(Only AT command)
- Size: 56.5 *31.5 * 17.5mm

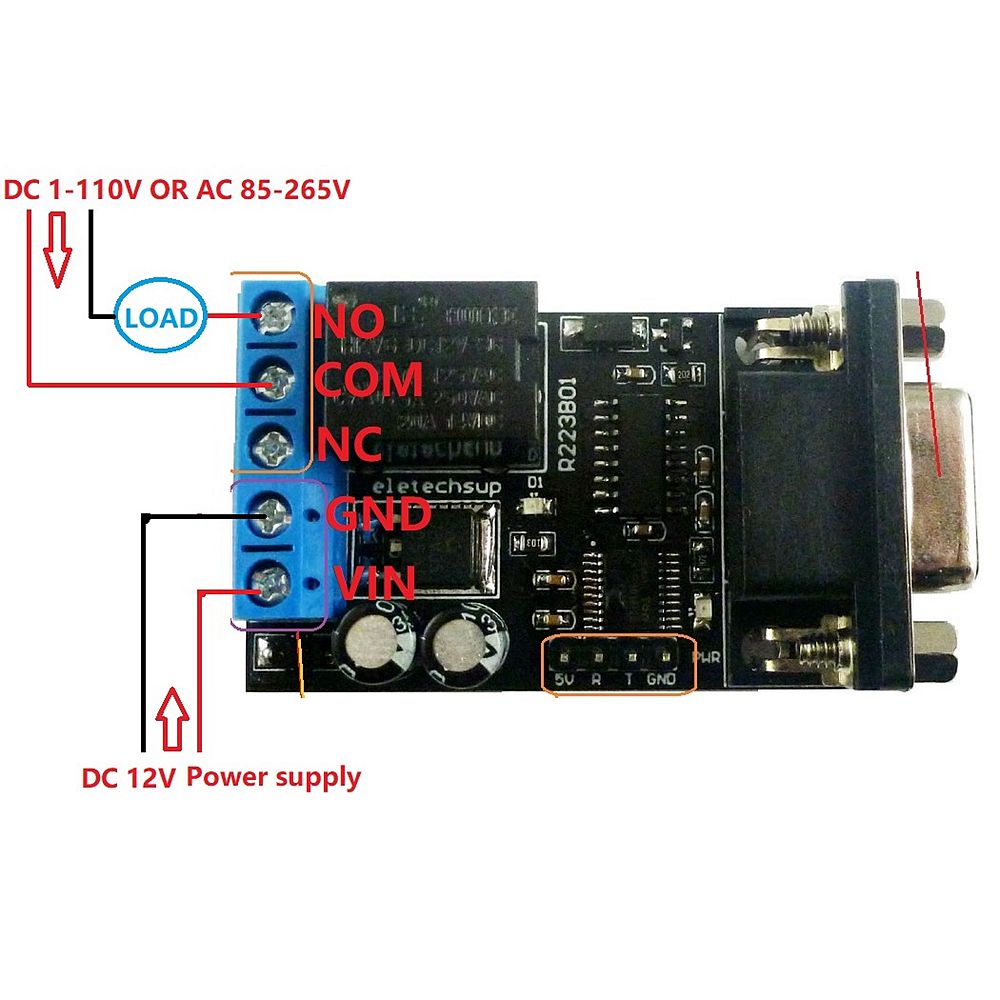

- Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
Glossary:
NO: Relay normally open contact
COM: Relay common contact
NC: Relay normally closed contact
Open: NO connection COM, NC disconnect COM
Close: NO disconnect COM, NC connection COM
Momentary : Enter the Momentary command, the Rreceiver Relay is Open, delay of 0.5 seconds after, Relay is Close;
Toggle : Enter the Toggle command, the Rreceiver Relay is Open, Enter the Toggle command again, Relay is Close;
Latched : Enter the Channel 1 Latched command, the receiver Channel 1 is Open, the Channel 2 is Close.
Enter the Channel 2 Latched command the receiver Channel 2 is Open, the Channel 1 is Close.
Delay : Enter the Delay command, the Rreceiver Relay is Open, delay of 0-9999 seconds(MODBUS command is 0-255 seconds )after, Relay is Close;
During the delay, Eter the Close command, immediately close the relay
Application:
Remote control, remote measurement system;
Wireless meter ;
Smart Home,Home Automation ,Wiser Home;
Access control ;
Identification system ;
Data collection;
IT household appliance ;
Intelligence household appliance;
Baby monitoring system;
PLC Industrial control;
LED Lighting control.
Package Incldued:
1 x DC 12V RS232 Serial Port Delay Relay Switch Module
