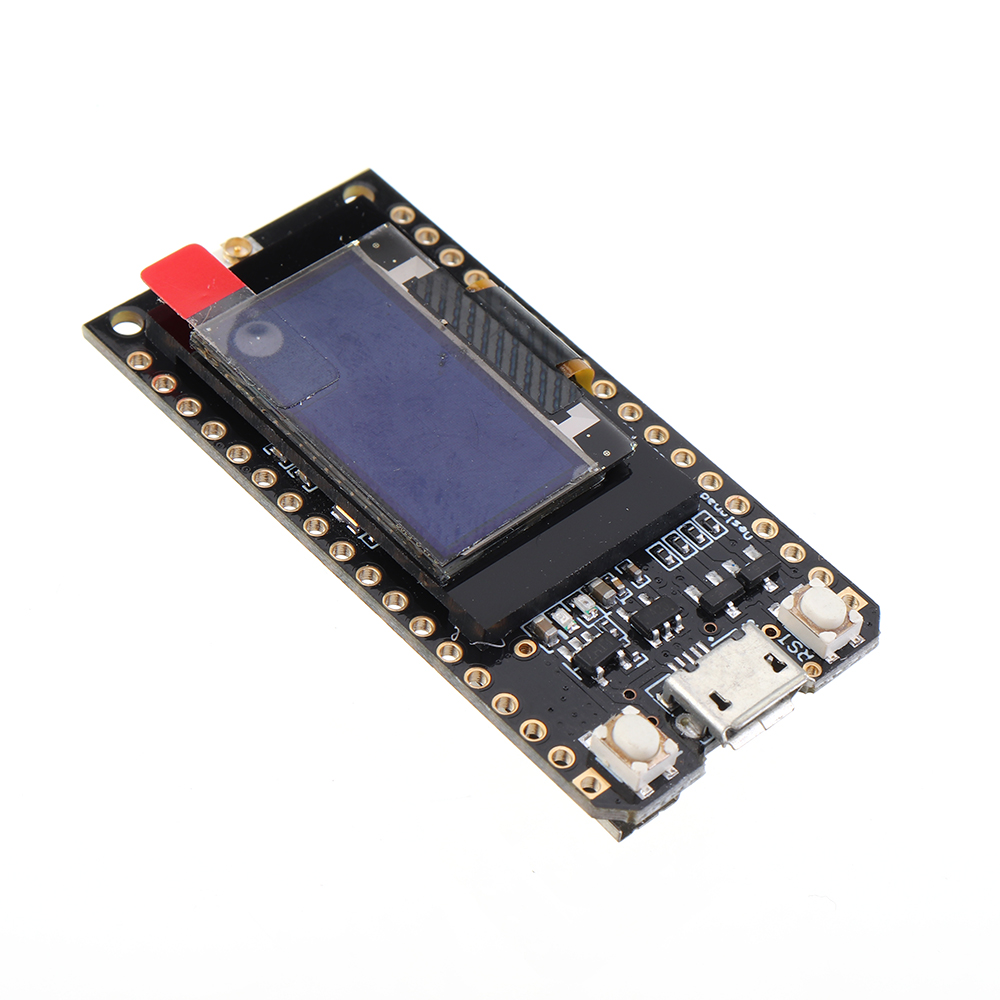

Elecbee 915Mhz SX1276 ESP32 OLED Display bluetooth WIFI Development Module Board
SKU: EB0042687
Favorites
Key Features
Show More
Description
- Antenna: YES
Precise details>>
Precise details:
If you need the 868mhz version, please buy Product ID: 1248652Description:
The 915MHz antenna needs to be in connection with the IPEX interface (if the antenna is not connected, it may damage the LoRa chip)
Lithium battery charge and discharge circuit, when the battery is full, the blue LED will stop working. When using, pay attention to the positive and negative of the battery, otherwise it will be damaged!With IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor to this pin!
Example:
This product is a SX1276 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 915MHz frequency, high sensitivity is over-148dBm, + 20dBm output power, high reliability, long transmission distance.

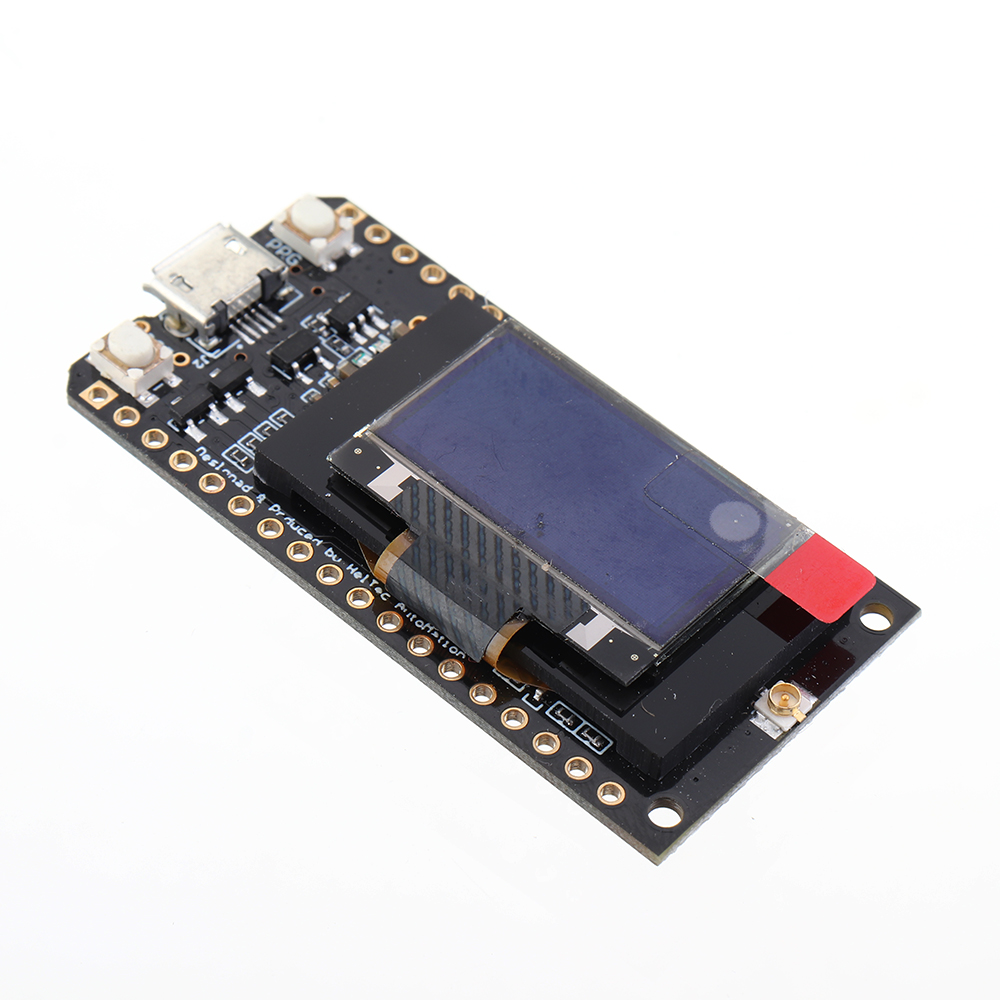

the onboard 32MB Flash wi-fi antenna, 0.96 inch blue oled display, lithium battery charging circuit, interface and USB serial chip, the perfect support for development environment, can be used for program checking and product development is very easy and fast.
Operating voltage: 3.3V to 7V
Operating temperature range: -40 ° C to + 90 ° C
Support for Sniffer software protocol analysis, Station, SoftAP, and Wi-Fi Direct modes
Data rates: 150 Mbps @ 11n HT40., 72 Mbps @ 11n HT20, 54 Mbps @ 11g, 11 Mbps @ 11b
transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
receiver sensitivity up to -98 dBm
UDP sustained throughput of 135 Mbps

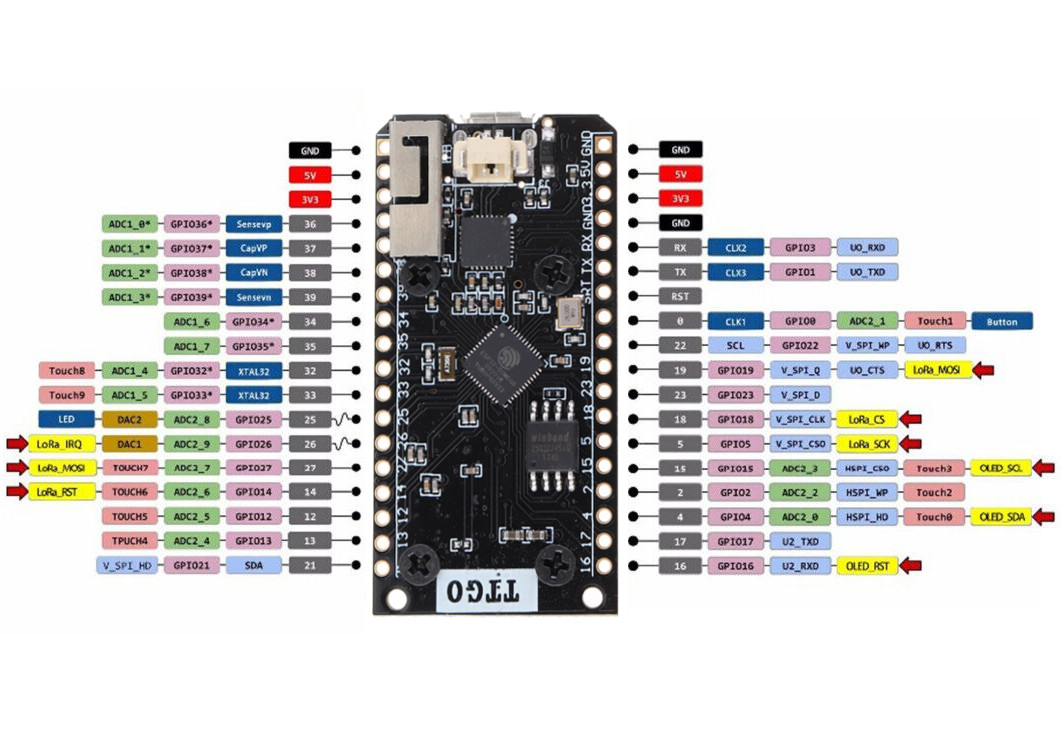

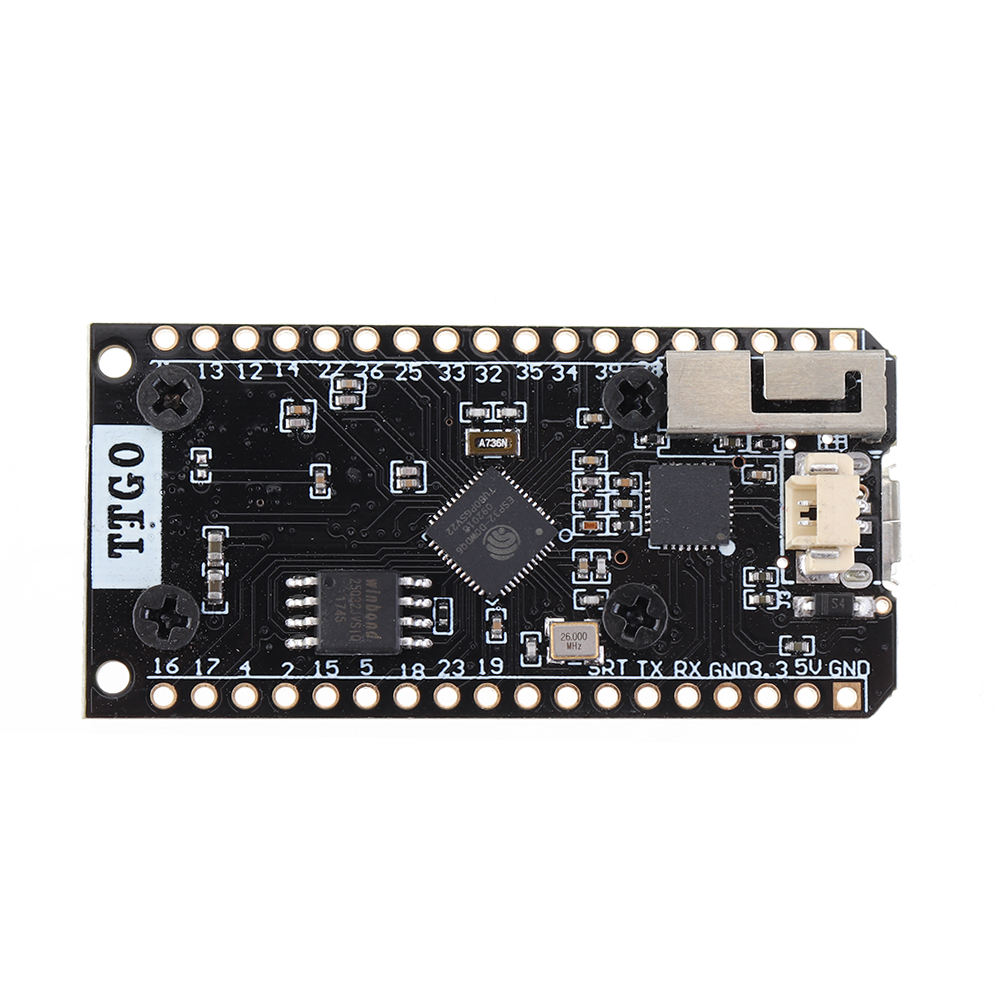

Pin diagram:

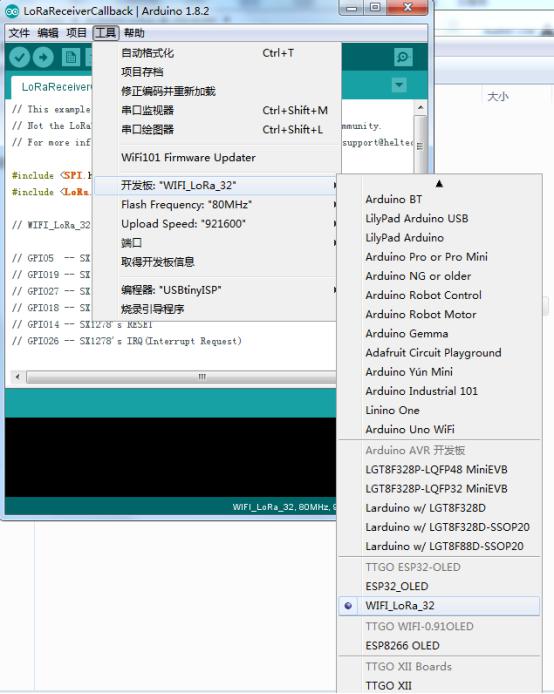

Test details:

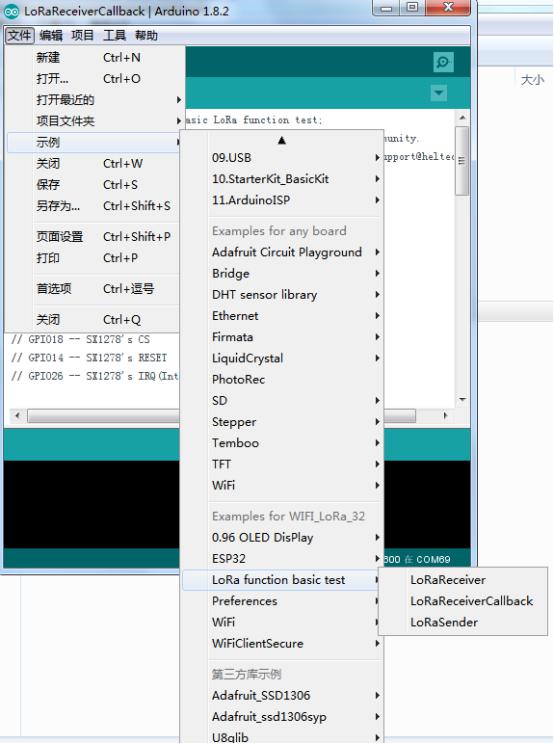

Use legend:

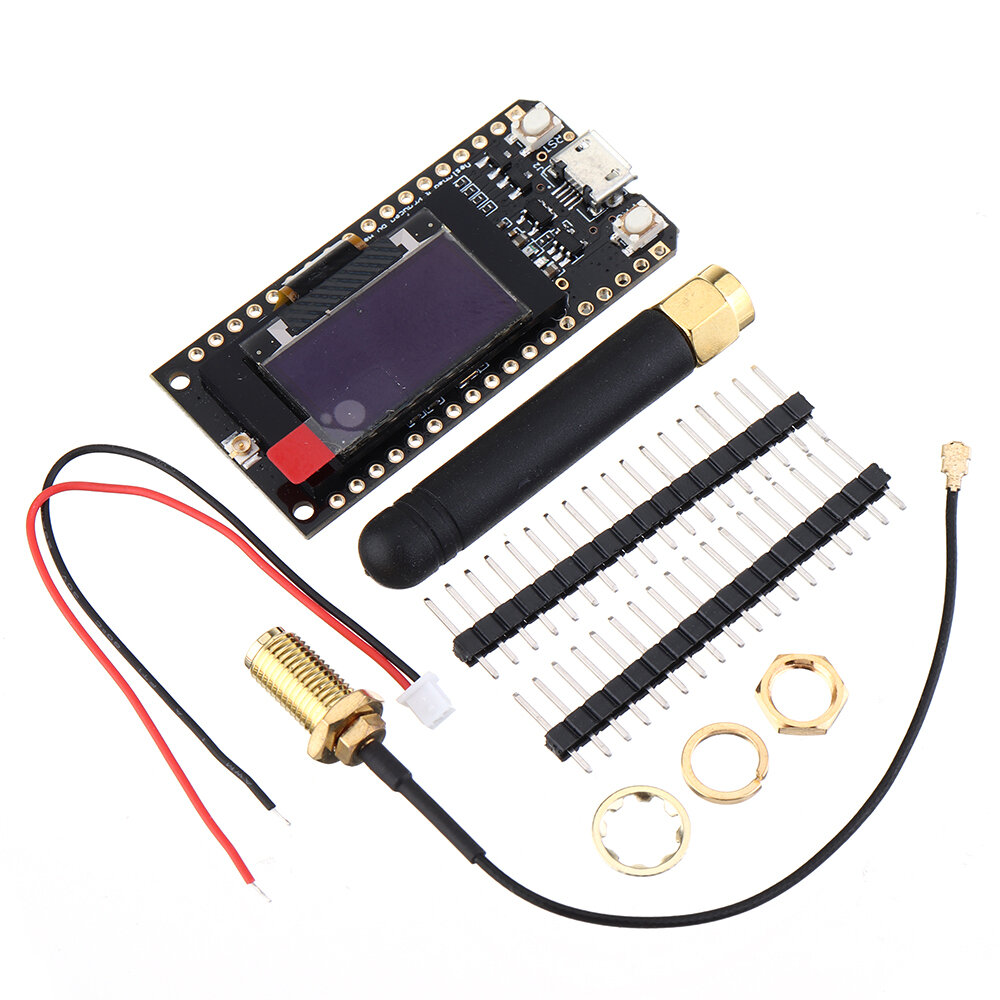

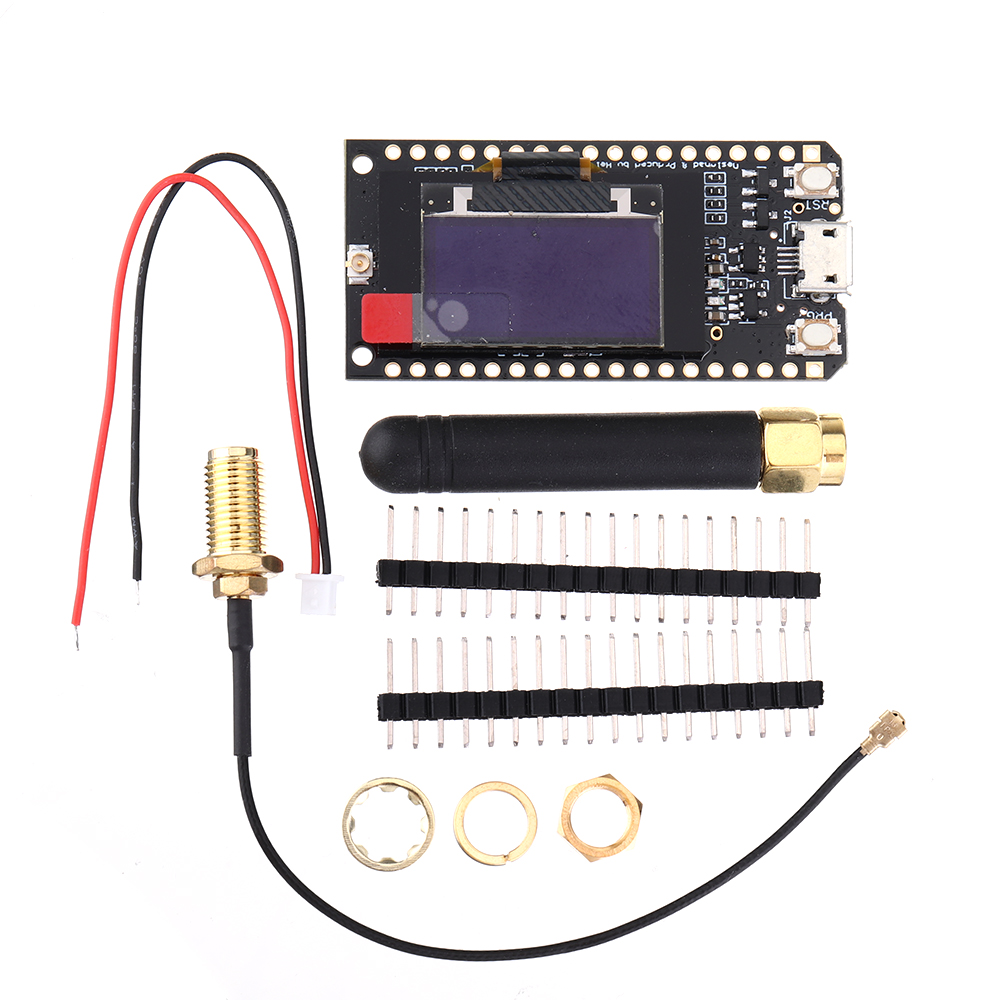

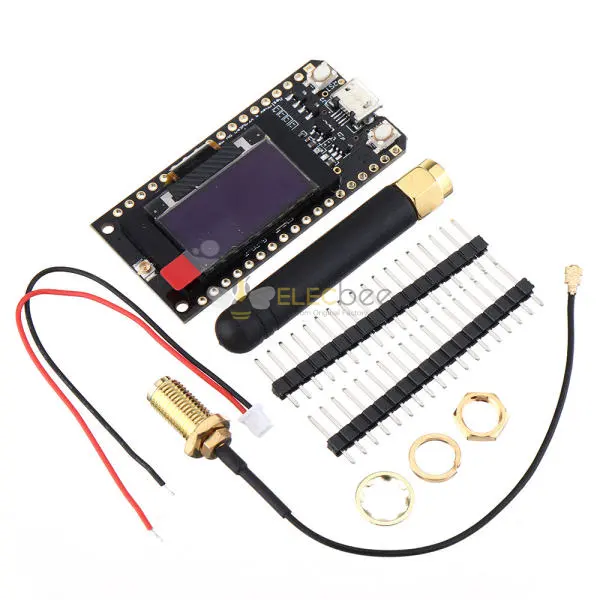

1 x Wemos® TTGO LORA32 915Mhz SX1276 ESP32

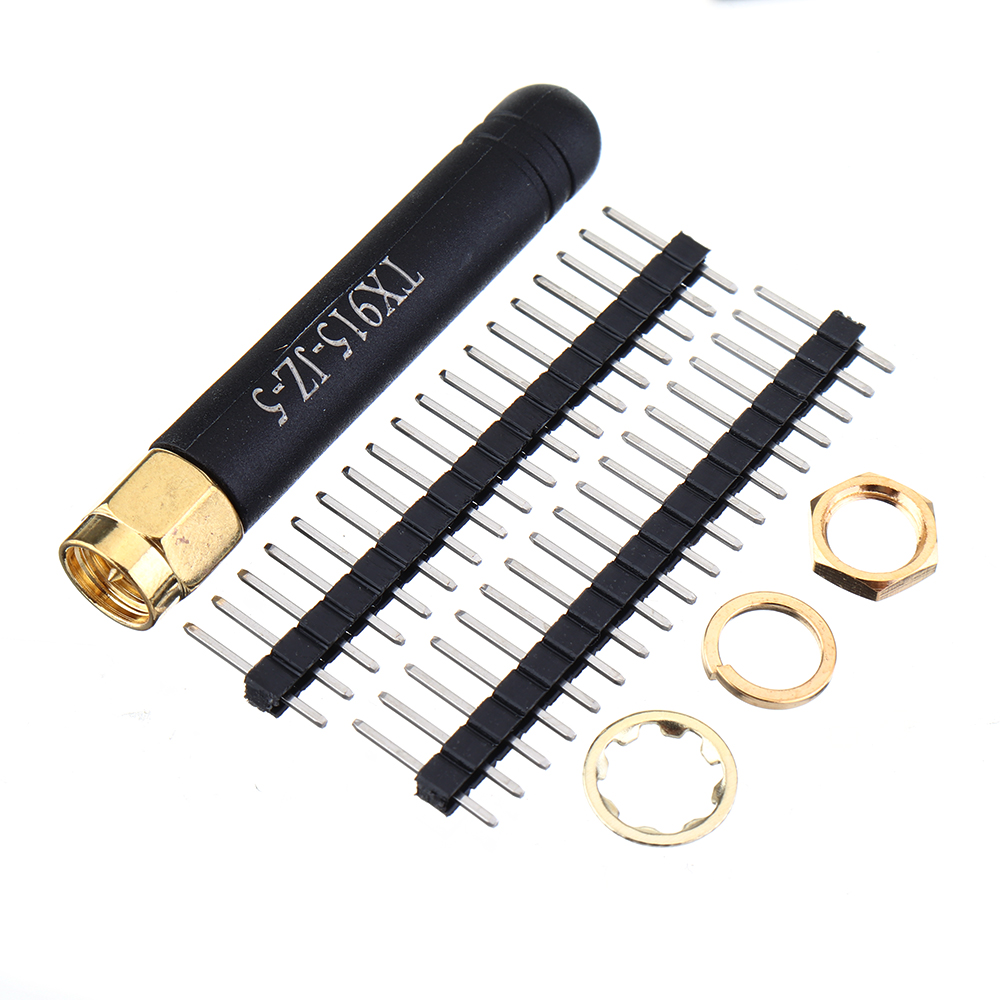

1 x 915nhz Spring Antenna

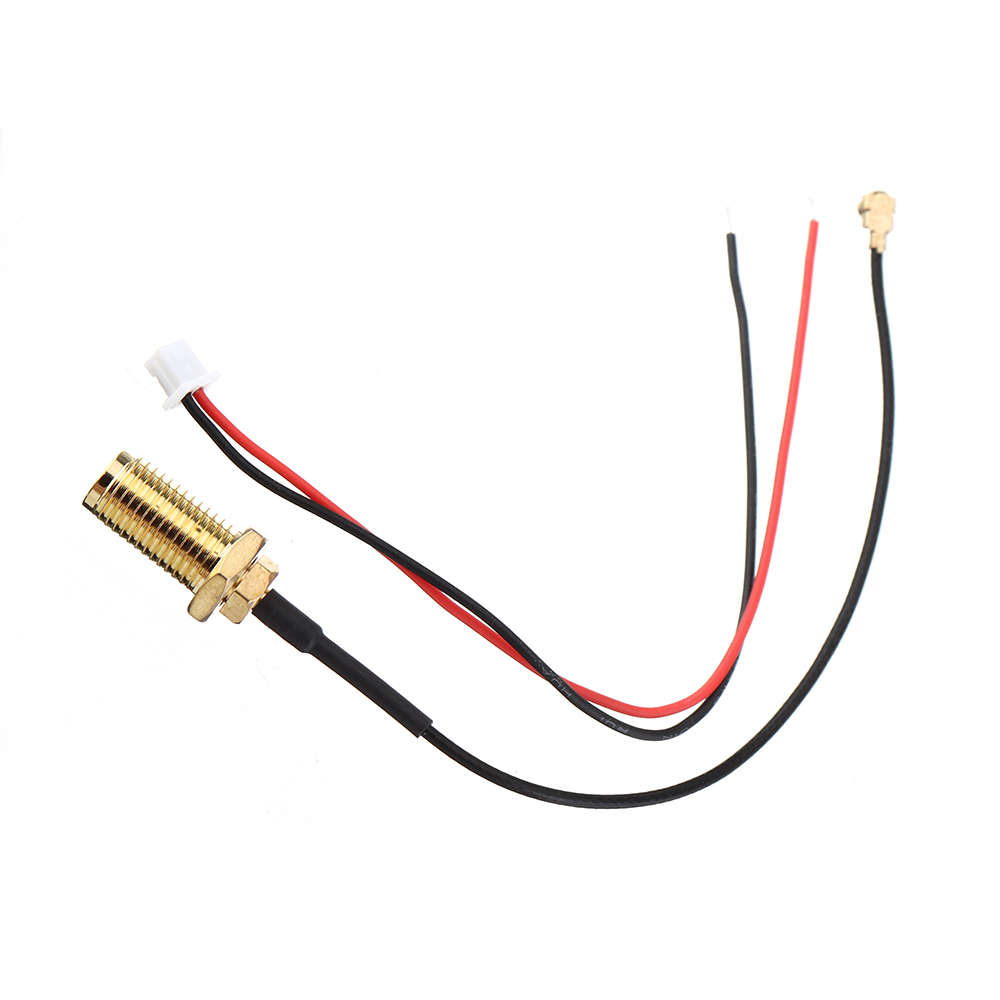

1 x Line
2 x Pin
For example One: https://img.elecbee.com/ic/download/docx/20210720212137example.docx
If you need the 868mhz version, please buy Product ID: 1248652
Description:
The 915MHz antenna needs to be in connection with the IPEX interface (if the antenna is not connected, it may damage the LoRa chip)
Lithium battery charge and discharge circuit, when the battery is full, the blue LED will stop working. When using, pay attention to the positive and negative of the battery, otherwise it will be damaged!With IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor to this pin!
Example:
This product is a SX1276 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 915MHz frequency, high sensitivity is over-148dBm, + 20dBm output power, high reliability, long transmission distance.
the onboard 32MB Flash wi-fi antenna, 0.96 inch blue oled display, lithium battery charging circuit, interface and USB serial chip, the perfect support for development environment, can be used for program checking and product development is very easy and fast.
Operating voltage: 3.3V to 7V
Operating temperature range: -40 ° C to + 90 ° C
Support for Sniffer software protocol analysis, Station, SoftAP, and Wi-Fi Direct modes
Data rates: 150 Mbps @ 11n HT40., 72 Mbps @ 11n HT20, 54 Mbps @ 11g, 11 Mbps @ 11b
transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
receiver sensitivity up to -98 dBm
UDP sustained throughput of 135 Mbps
Pin diagram:
Test details:
Use legend:
1 x Wemos® TTGO LORA32 915Mhz SX1276 ESP32
1 x 915nhz Spring Antenna
1 x Line
2 x Pin
For example One: https://img.elecbee.com/ic/download/docx/20210720212137example.docx
