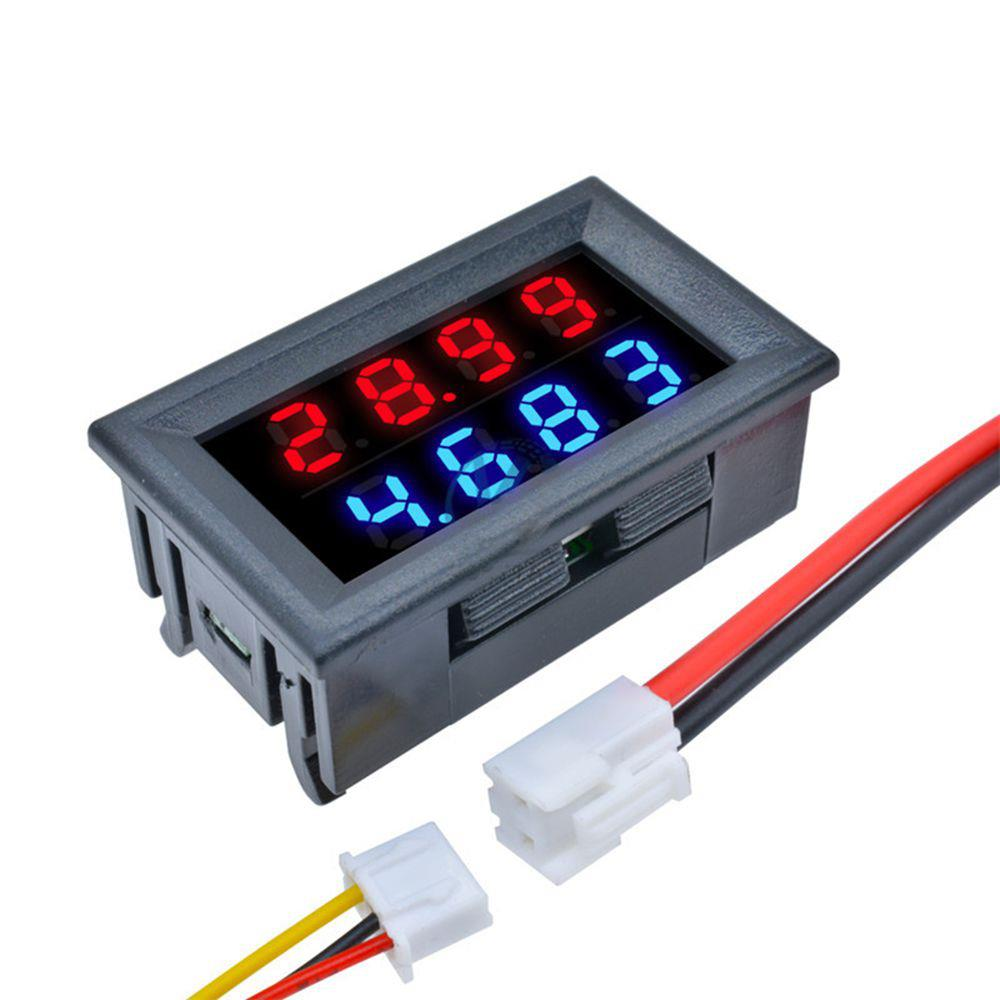

Elecbee 5pcs Mini DC Voltmeter Ammeter | 200V 10A 4-Bit | Dual LED Display 0.28 Inch
SKU: EB0046049
Favorites
Key Features
Product Features:
High precision: 4-digit
Working voltage: DC 4V-28V
Working current: <20mA
Display: 0.28" Red + Blue Dual LED Display
Voltage Measuring Range: DC 0.000V-200.0V
Current Measuring Range: 0-9.999A
Refresh rate: about 1S / 3times
Operating temperature: -10°C - 65°C
Working pressure: 80 to 106 kPa
Size : 48x29x20 mm
Mounting hole: 46 x 27 mm
Current: Range x 0.08%+Two decimal point
Voltage: Range x 0.08%+Two decimal point
Wiring:
Red line thin: power supply +
Red line (thick): IN+, current input
Yellow line (thick): PW+, measuring terminal voltage input positiv
Black line thick: COM, common measuring
Note:
Please follow the wiring diagram, special attention, the load can only be connected to the positive, not negative! Otherwise burn the table!
Show More
In-Stock
Qty.
1
Unit Price
$ 15.16$ 17.83
Ext. Price
$ 15.16$ 17.83
$ 15.16$ 17.83
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth
Model
X29X20
Description
Product Features:
High precision: 4-digit
Working voltage: DC 4V-28V
Working current: <20mA
Display: 0.28" Red + Blue Dual LED Display
Voltage Measuring Range: DC 0.000V-200.0V
Current Measuring Range: 0-9.999A
Refresh rate: about 1S / 3times
Operating temperature: -10°C - 65°C
Working pressure: 80 to 106 kPa
Size : 48x29x20 mm
Mounting hole: 46 x 27 mm
Current: Range x 0.08%+Two decimal point
Voltage: Range x 0.08%+Two decimal point
Wiring:
Red line thin: power supply +
Red line (thick): IN+, current input
Yellow line (thick): PW+, measuring terminal voltage input positiv
Black line thick: COM, common measuring
Note:
Please follow the wiring diagram, special attention, the load can only be connected to the positive, not negative! Otherwise burn the table!
Package includes:
5 x DC 200V 10A 0.28 Inch Mini Digital Voltmeter Ammeter
