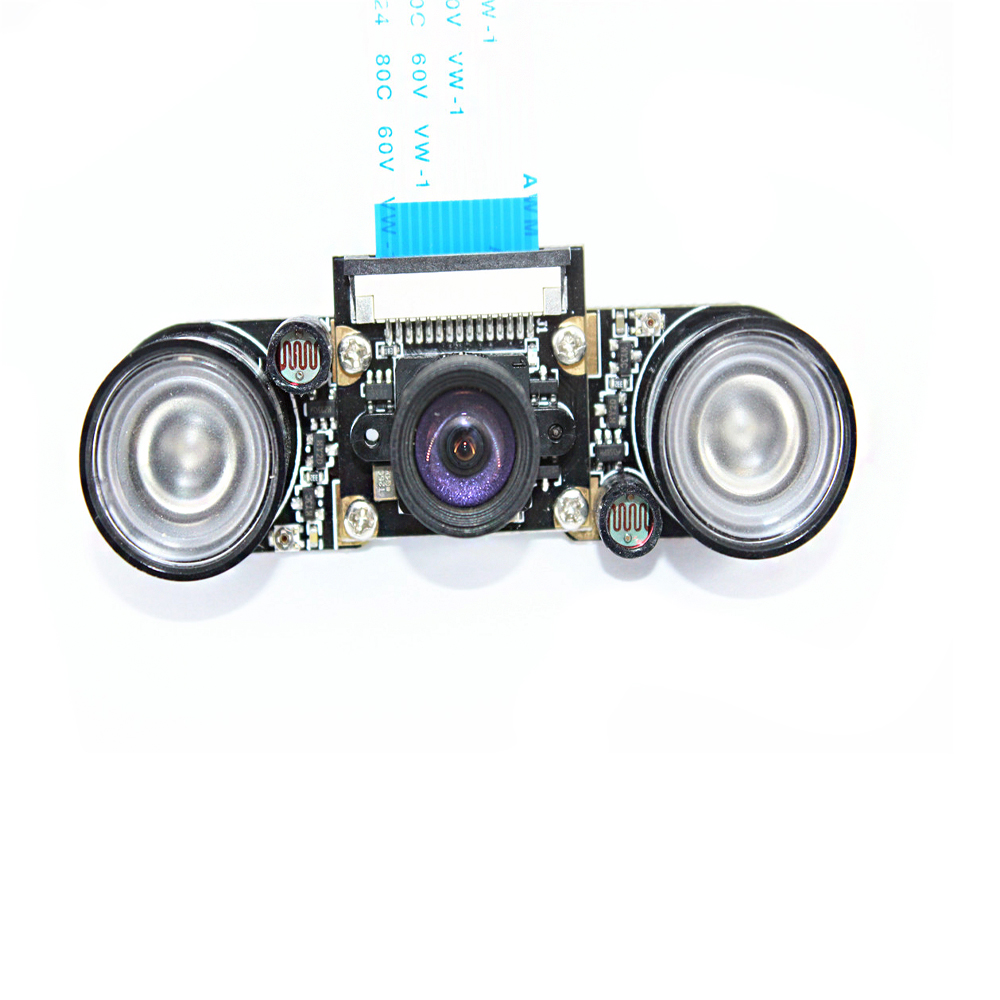

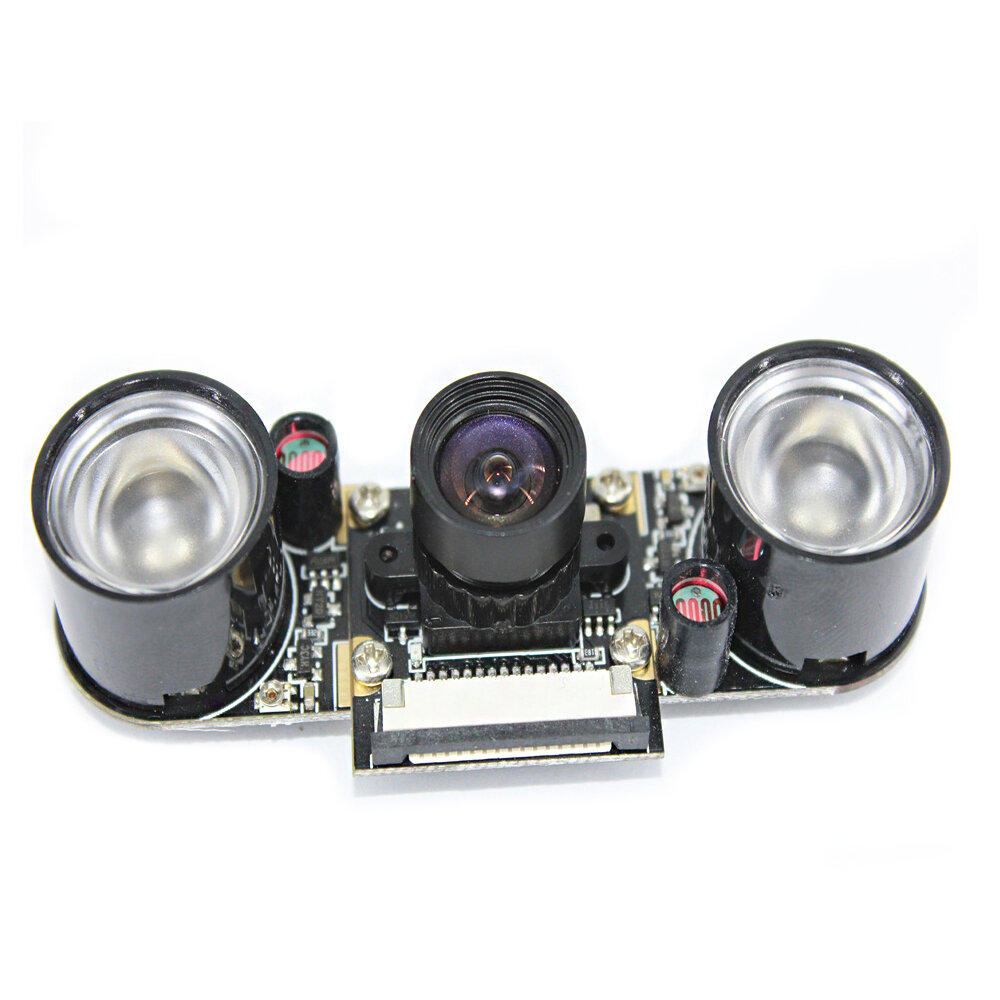

Elecbee 5MP Night Vision Fisheye Camera Module OV5647 5 Megapixels 100° Focal Adjustable Camera Board

This is a raspberry pi camera kit , include night vision focal adjustable camera , IR sensor lights , camera cable for both Raspberry Pi 3 Model B+ / 3 / 2 .





1. Supports all revisions of the Raspberry Pi

2. Night vision camera. If you want the night vision function , must install the 2 infrared led lights .

3. Can access sensitive lights . Four screw holes can be installed sensitive infrared light or other fill light , you can switch freely , no longer worried about the light is too weak, underexposed sensitive infrared light

4. Focal adjustable (manually)

5. Use for both Raspberry Pi 3 Model B+ / 3 / 2 and Raspberry Pi Zero W

6. When use in daylight , to get a better effect , you can use the camera without IR light .





1. OV5647 sensor

2. Pixel 5 megapixel

3. Lens : 1/4 5M

4. CCD size: 1 / 4inch

5. Aperture (F): 1.8

6. Focal Length: 3.6mm adjustable

7. Diagonal angle: 100 degree

8. Sensor best resolution: 2592*1944

9. 4 screw holes : used for attachment and connect power ( 3.3V output )

10. Dimension: 25mm x 24mm

11. Metal frame

12. 3.3V power supply interface can be accessed sensitive infrared lamp or other device

13. Transparent lights for 1W high power infrared light photoreceptor 850

14. Photoresistor : detecting ambient light intensity

1 x Night Vision Camera

2 x IR Lights

1 x 15cm Raspberry Pi 3 Camera Cable
