Elecbee 5A DC Adjustable CNC Step Down Power Supply Constant Voltage Current LCD Screen Module
SKU: EB0044624
Favorites
Key Features
Input voltage: 6V-32V
Output voltage: 0-32V continuously adjustable (can only be used as step-down module, the input must be greater than the output 1V or more)
Output current: Adjustable, the maximum 5A (if temperature over 60 degrees, please strengthen the cooling, there are reserved fan installation location and terminal blocks!)
Output power: Up to 160W (recommended in the use of 120W, large pressure difference, please reduce the power)
Operating temperature: -10 to +75 degrees (Note the use of power tube temperature, exceed the temperature please strengthen the cooling, there are reserved fan installation location and terminal)
Resolution accuracy: Voltage 0.01V, Current 0.01A
Conversion efficiency: up to 95%
Short circuit protection: Yes, constant current the current setting of constant current value
Input Anti-Reversed: Yes
Output reverse flow: None, for charging please add a diode!

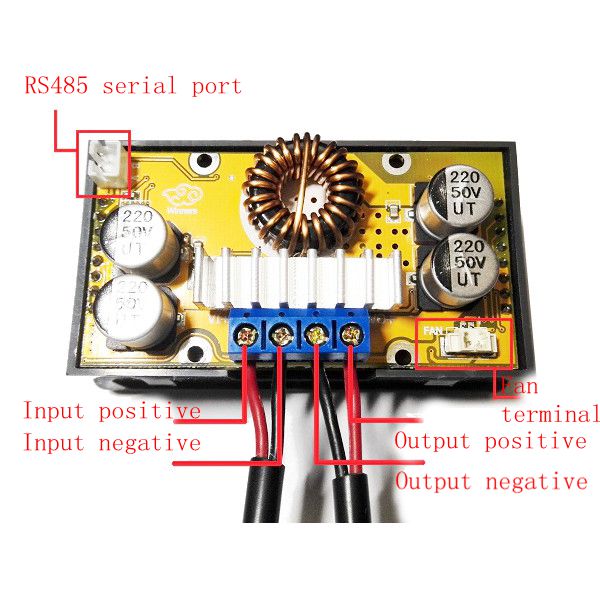

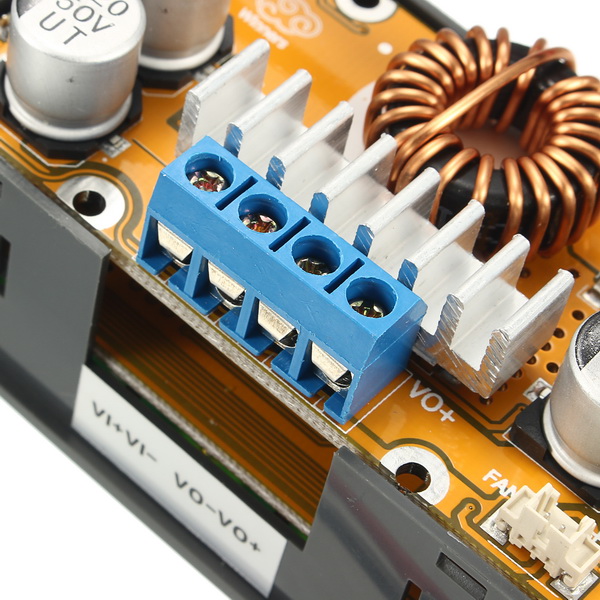

Wiring method: Terminal VI + for the input positive, VO + for the output positive
Module size: 79mm x 43mm x 46mm (L*W*H)
Hole size: 76mm x 39mm (L*W)
Weight: 75g
Show More
Description
Optional:
Type 1: CNC power supply version
Type 2: CNC power supply Modbus version
Package includes:
1 x Adjustable CNC Step-down Power Supply

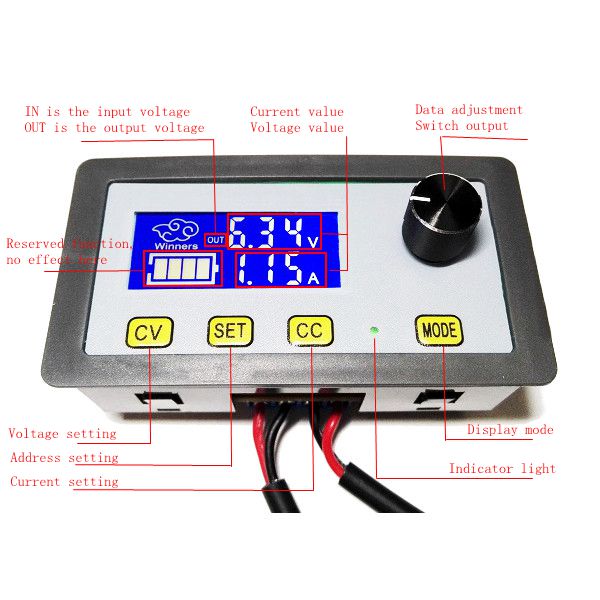

Setting description:

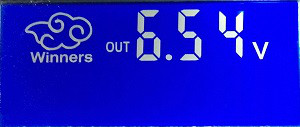

Output voltage setting: short press "CV" key, enter the voltage setting mode, turn the potentiometer to adjust the current voltage, press the potentiometer can switch to adjust voltage value, after adjust short press CV "key to save and exit.
Output current setting:

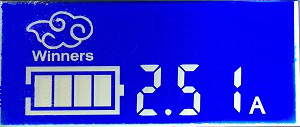

short press "CV" key, enter the current setting mode, turn the potentiometer to adjust the current value, press the potentiometer can switch to adjust voltage value, after adjust short press CV "key to save and exit. (note that when constant current, indicator will be turned to red, constant current adjustable current, the actual load output current must be greater than the set current to the constant current mode, otherwise is working as constant voltage state.)
Display mode setting:

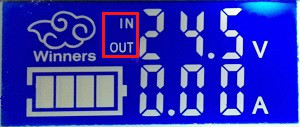

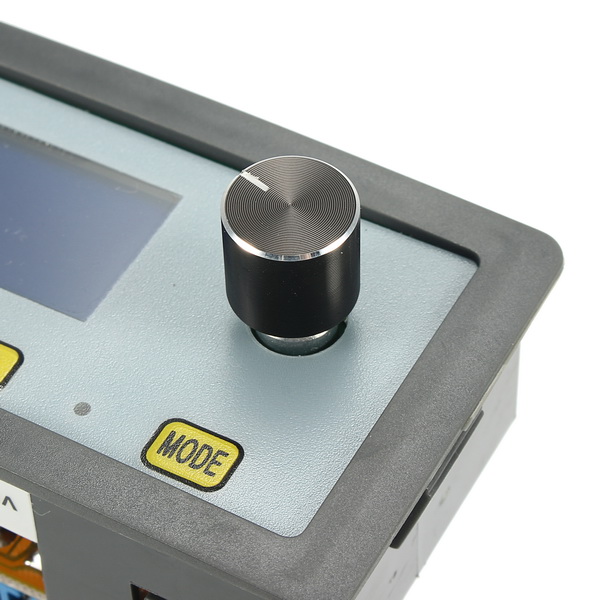

short press "MODE" to switch the display mode, IN is the input voltage, OUT is the output voltage
Switch output setting:

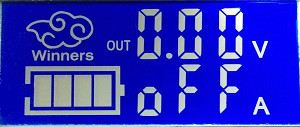

directly short press the potentiometer key, can open or close the output voltage, turn off the current position display OFF words
Modbus address setting (Type 2):

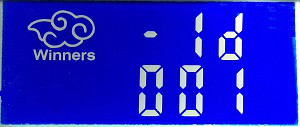

short press "SET" key, enter the address setting mode -Id, the default is 1, turn the potentiometer to adjust the current address, range is 1-255, after adjustment and then press the "SET" key to save and exit, you can also set the address through the host computer software.
Type 1: CNC power supply version
Type 2: CNC power supply Modbus version
Package includes:
1 x Adjustable CNC Step-down Power Supply
Setting description:
Output voltage setting: short press "CV" key, enter the voltage setting mode, turn the potentiometer to adjust the current voltage, press the potentiometer can switch to adjust voltage value, after adjust short press CV "key to save and exit.
Output current setting:
short press "CV" key, enter the current setting mode, turn the potentiometer to adjust the current value, press the potentiometer can switch to adjust voltage value, after adjust short press CV "key to save and exit. (note that when constant current, indicator will be turned to red, constant current adjustable current, the actual load output current must be greater than the set current to the constant current mode, otherwise is working as constant voltage state.)
Display mode setting:
short press "MODE" to switch the display mode, IN is the input voltage, OUT is the output voltage
Switch output setting:
directly short press the potentiometer key, can open or close the output voltage, turn off the current position display OFF words
Modbus address setting (Type 2):
short press "SET" key, enter the address setting mode -Id, the default is 1, turn the potentiometer to adjust the current address, range is 1-255, after adjustment and then press the "SET" key to save and exit, you can also set the address through the host computer software.
