Elecbee 433MHz 8W Power Amplifier Board RF HF High Frequency Amplifiers Digital Power Amplificador
SKU: 1726827
Favorites
Key Features
Show More
Description
- Power: 5W - 15W
- Voltage: DC5V
Precise details>>
Precise details:
Description:
This power amplifier can output 39.2dBm (8.31W) @ 433MHz maximum at 8V, current 1.56A, efficiency 66.5%, which is very suitable for two lithium-ion batteries and can burst such a large power.
Specifications:
Working frequency: 400-460MHz
Maximum output power (P1dB):

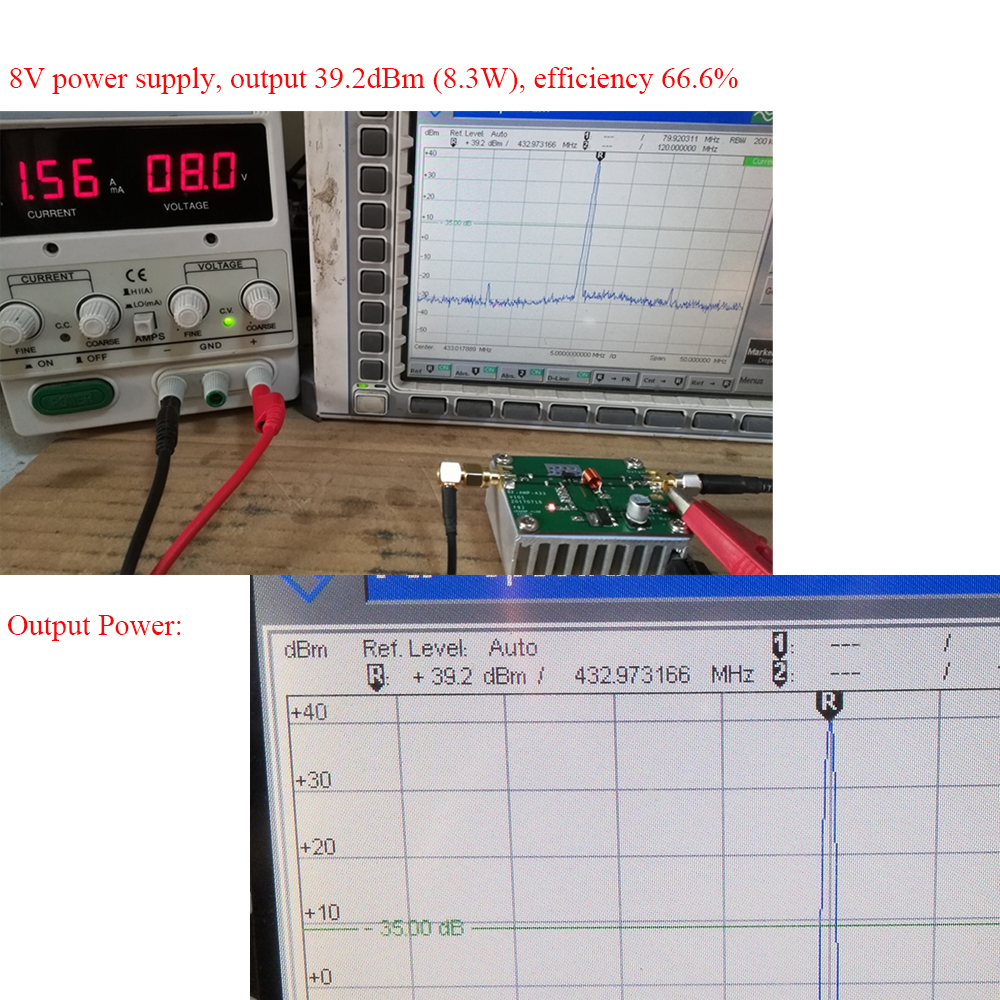

8.32W (39.2dBm) @ 8V 1.56A Efficiency 66.6%
6.76W (38.3dBm) @ 7V 1.43A Efficiency 67.5%
5.12W (37.1dBm) @ 6V 1.26A Efficiency 67.7%
Input power: 20 ~ 23dBm (0.1 ~ 0.2W), less than 0.1W can work, the output power will increase as the input power increases, and finally reach the maximum power poin.
Working voltage: 5-8.4V (lithium battery supply)
Working current: 1.6A (Max)
Input impedance: 50 ohm
Output impedance: 50 ohm
Input and output terminals: SMA-k female (male threaded bore)

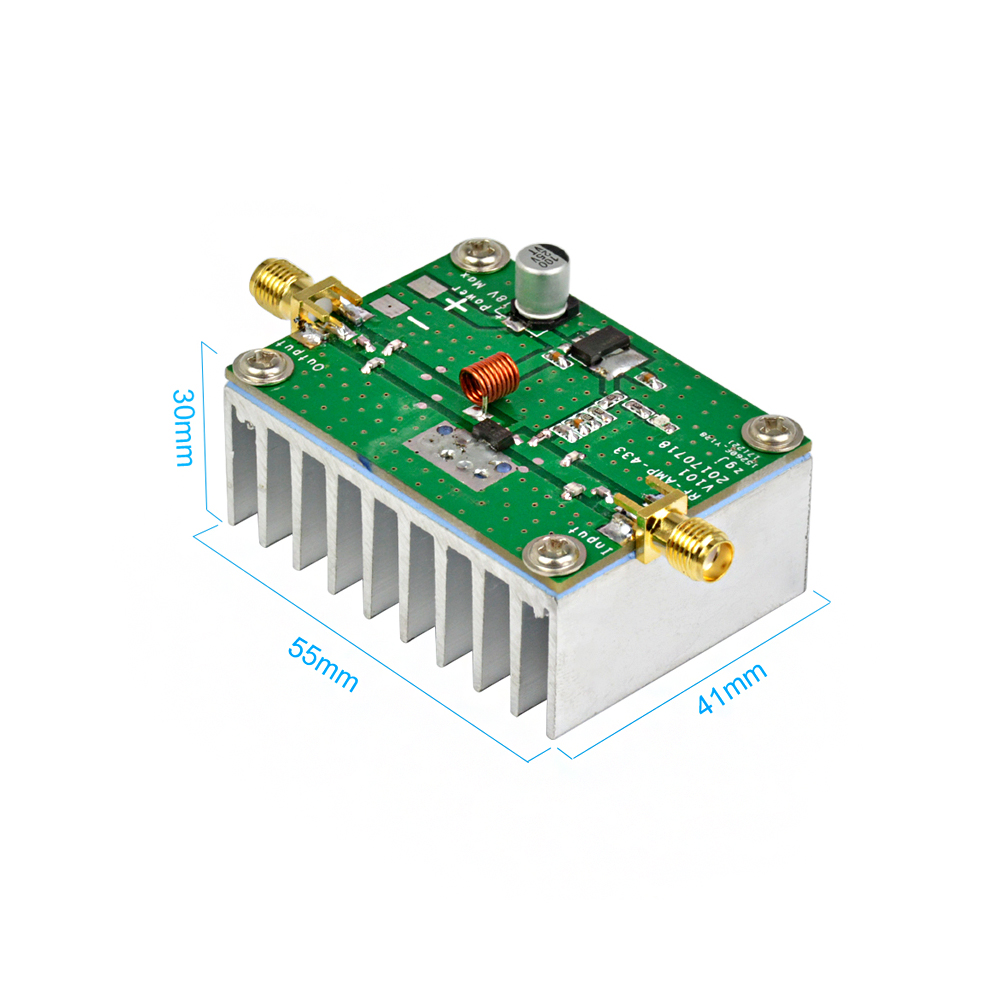

Module Size: 4x5.5cm (without protrusions)
Module weight: 60g
Application: Digital transmission extended range, remote control, interphone even power amplification.

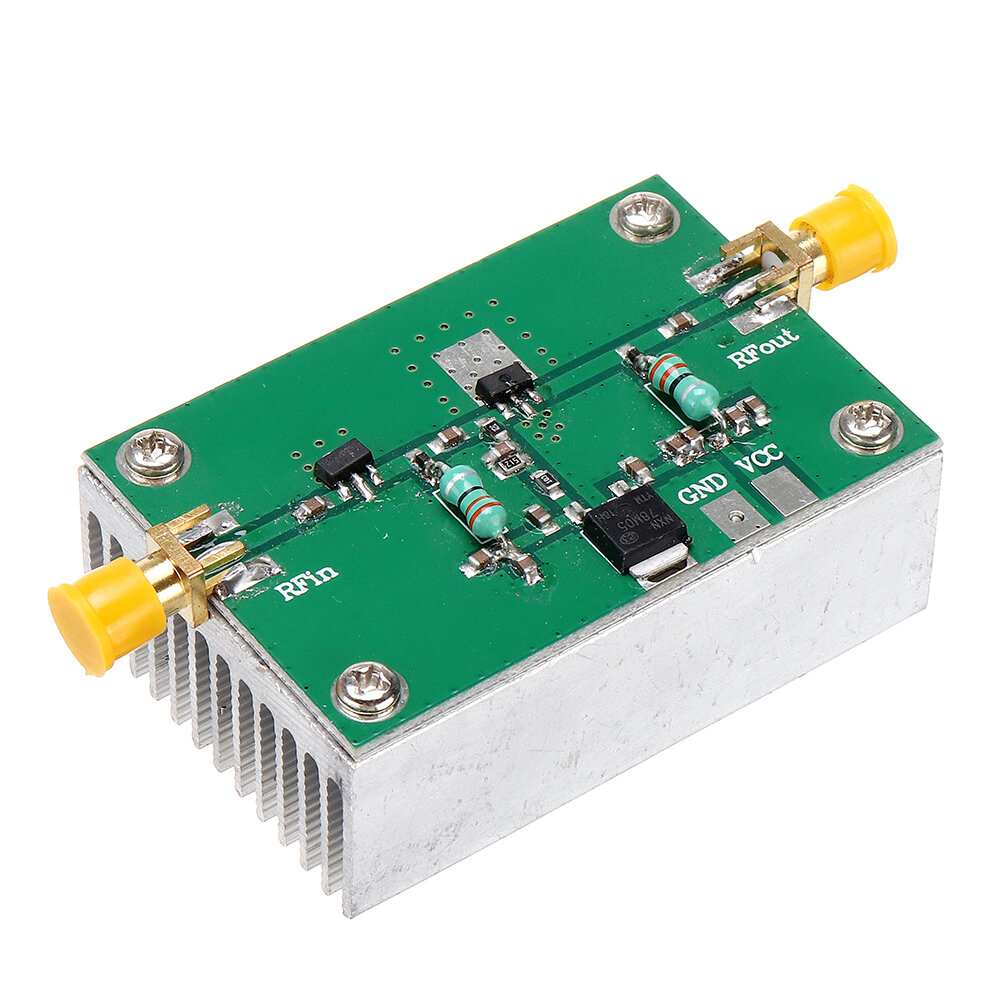

1 x 433MHz 8W Power Amplifier Board
Description:
This power amplifier can output 39.2dBm (8.31W) @ 433MHz maximum at 8V, current 1.56A, efficiency 66.5%, which is very suitable for two lithium-ion batteries and can burst such a large power.
Specifications:
Working frequency: 400-460MHz
Maximum output power (P1dB):
8.32W (39.2dBm) @ 8V 1.56A Efficiency 66.6%
6.76W (38.3dBm) @ 7V 1.43A Efficiency 67.5%
5.12W (37.1dBm) @ 6V 1.26A Efficiency 67.7%
Input power: 20 ~ 23dBm (0.1 ~ 0.2W), less than 0.1W can work, the output power will increase as the input power increases, and finally reach the maximum power poin.
Working voltage: 5-8.4V (lithium battery supply)
Working current: 1.6A (Max)
Input impedance: 50 ohm
Output impedance: 50 ohm
Input and output terminals: SMA-k female (male threaded bore)
Module Size: 4x5.5cm (without protrusions)
Module weight: 60g
Application: Digital transmission extended range, remote control, interphone even power amplification.
1 x 433MHz 8W Power Amplifier Board
