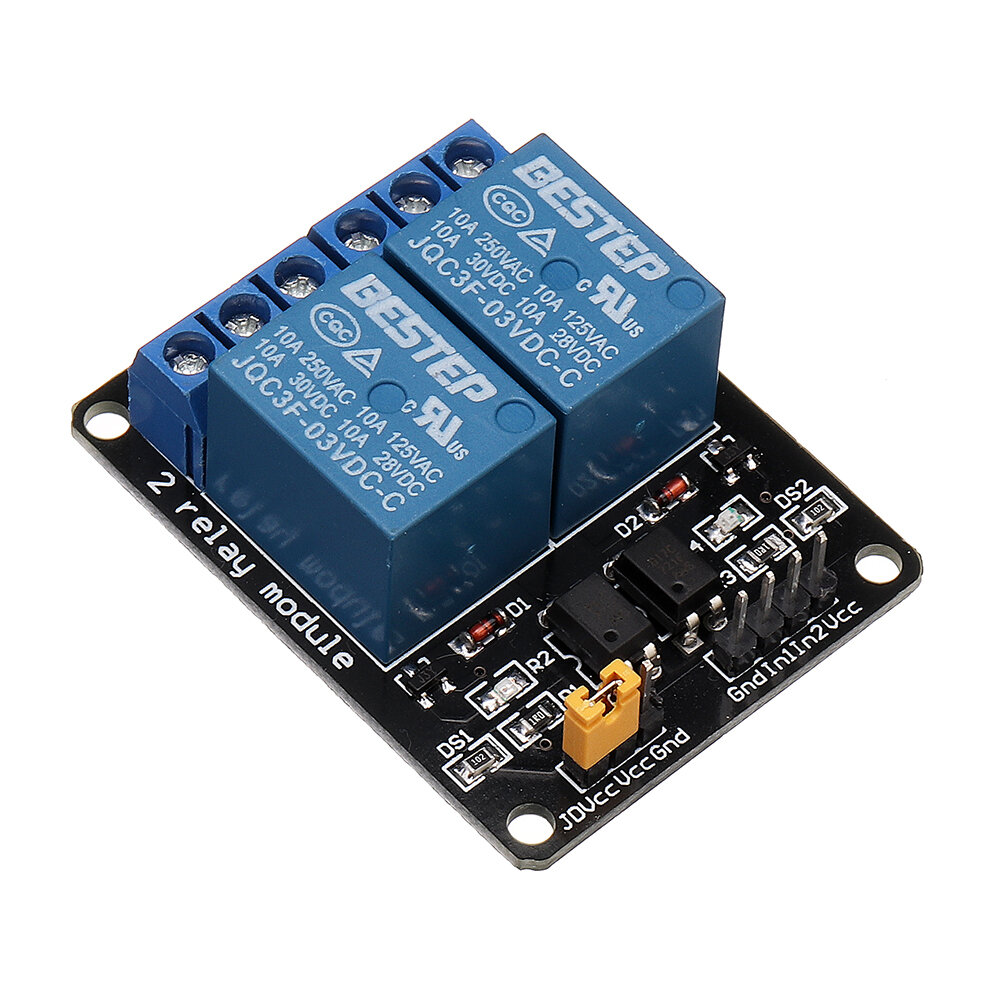

Elecbee 2 Channel 3V Relay Module Low Level Trigger Optocoupler Isolation For Auduino
SKU: EB0046030
Favorites
Key Features
Show More
Description
- Control Channels: 2 Channels
Precise details>>
Precise details:
Module parameters:

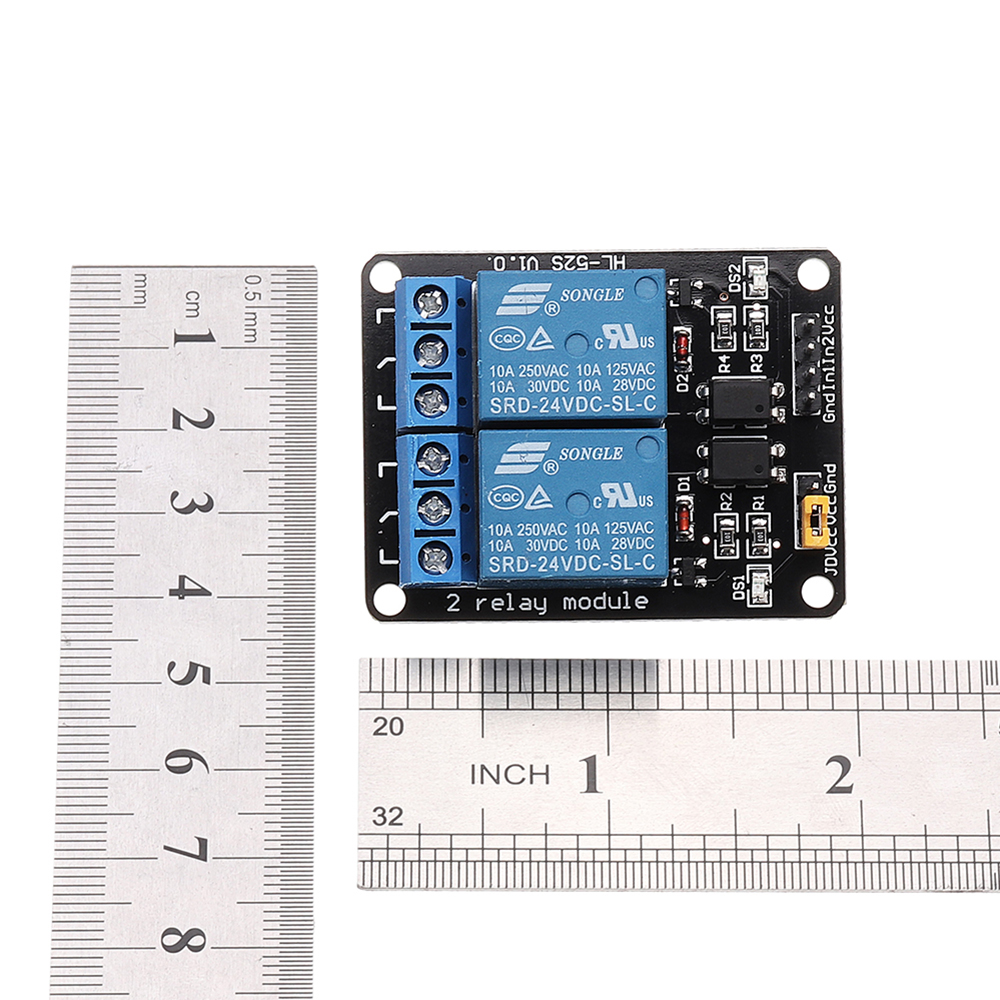

1. Size: 50.5 x 38.5 x 18.5mm (length x width x height)
2. Weight: 31g
3. PCB color: Black

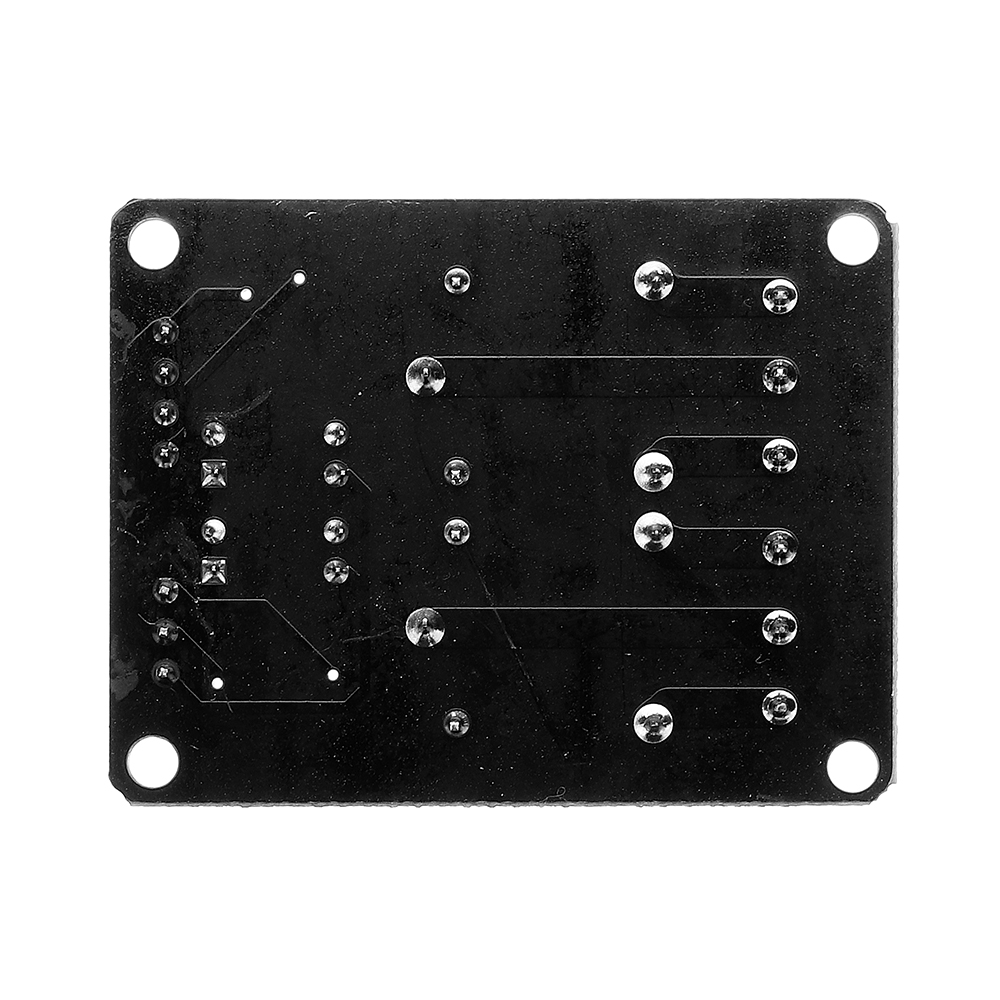

4. There are 4 fixing screw holes around the board, the hole diameter is 3.1mm, which is convenient for installation and fixing.

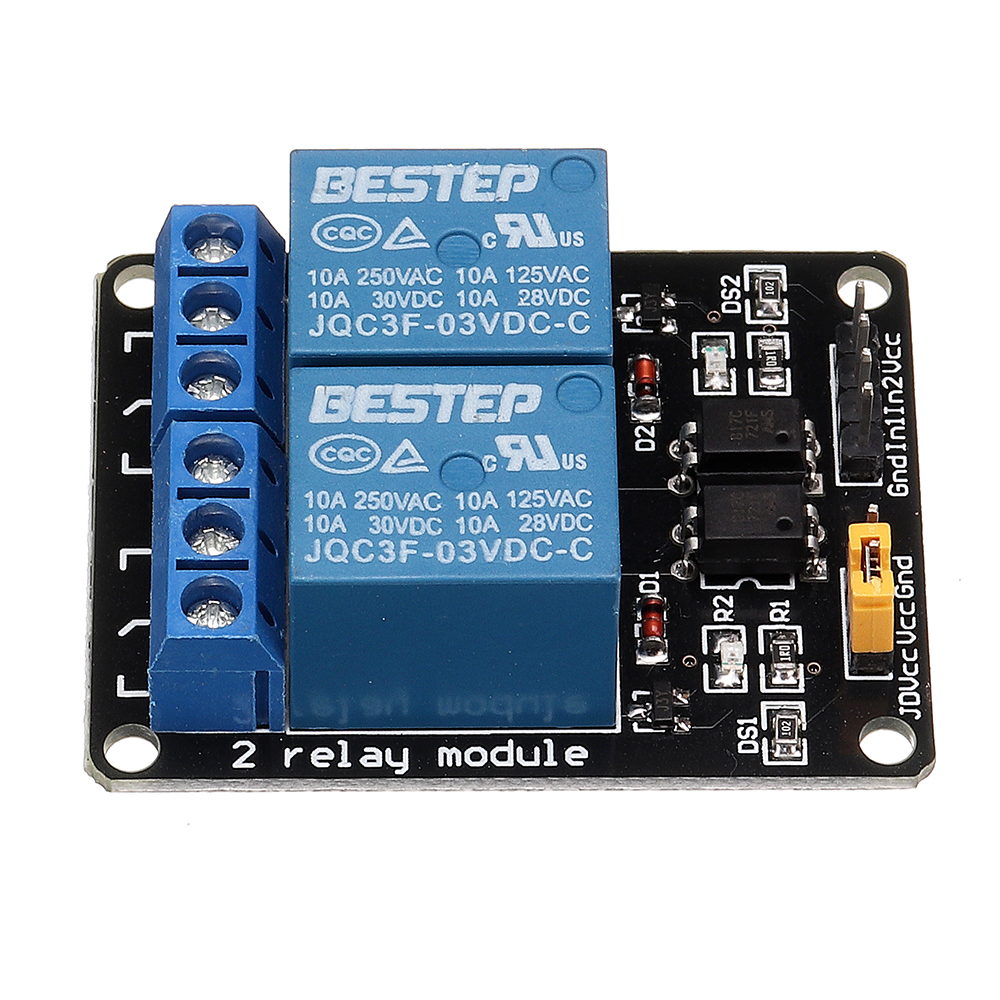

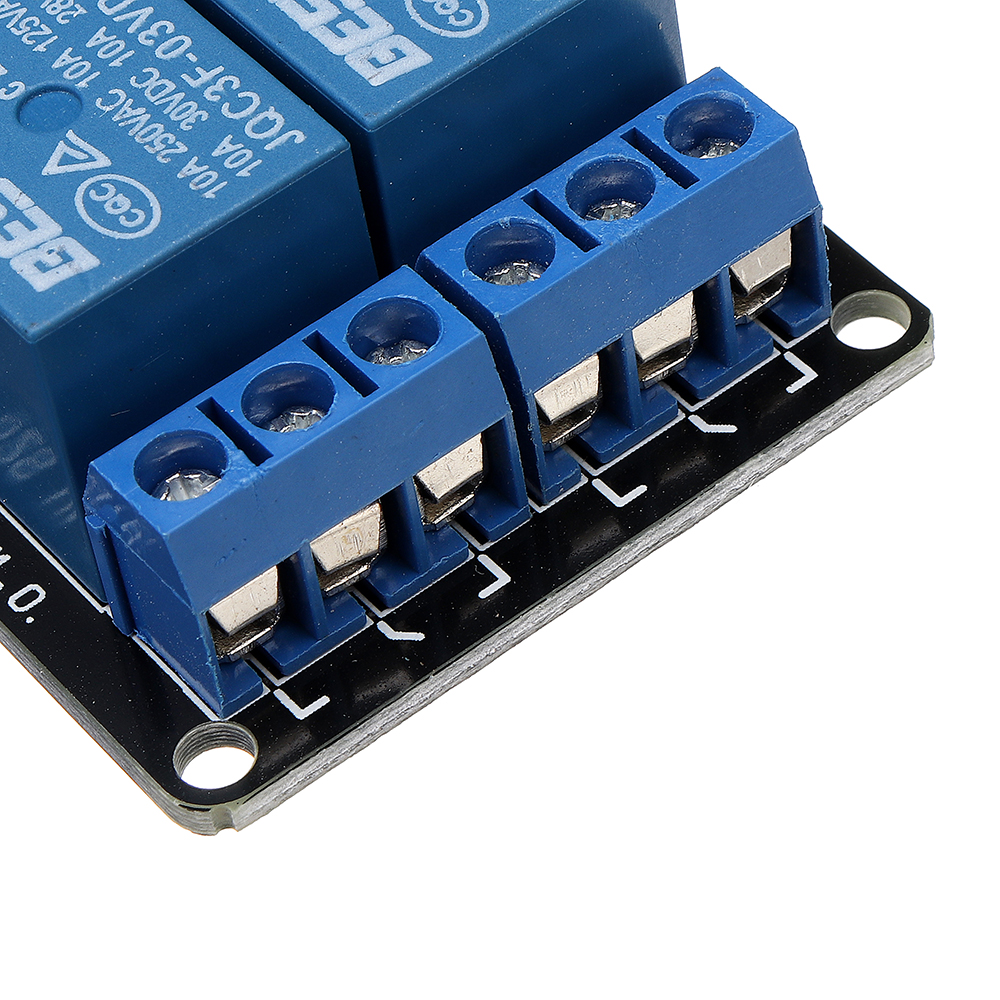

5. Relay with a common end, a normally open end, and a normally closed end
6. Optocoupler isolation, good anti-interference
7. Low level pull-in, high level release. The status indicator is on when the inverter is closed, and the status indicator is off when released.

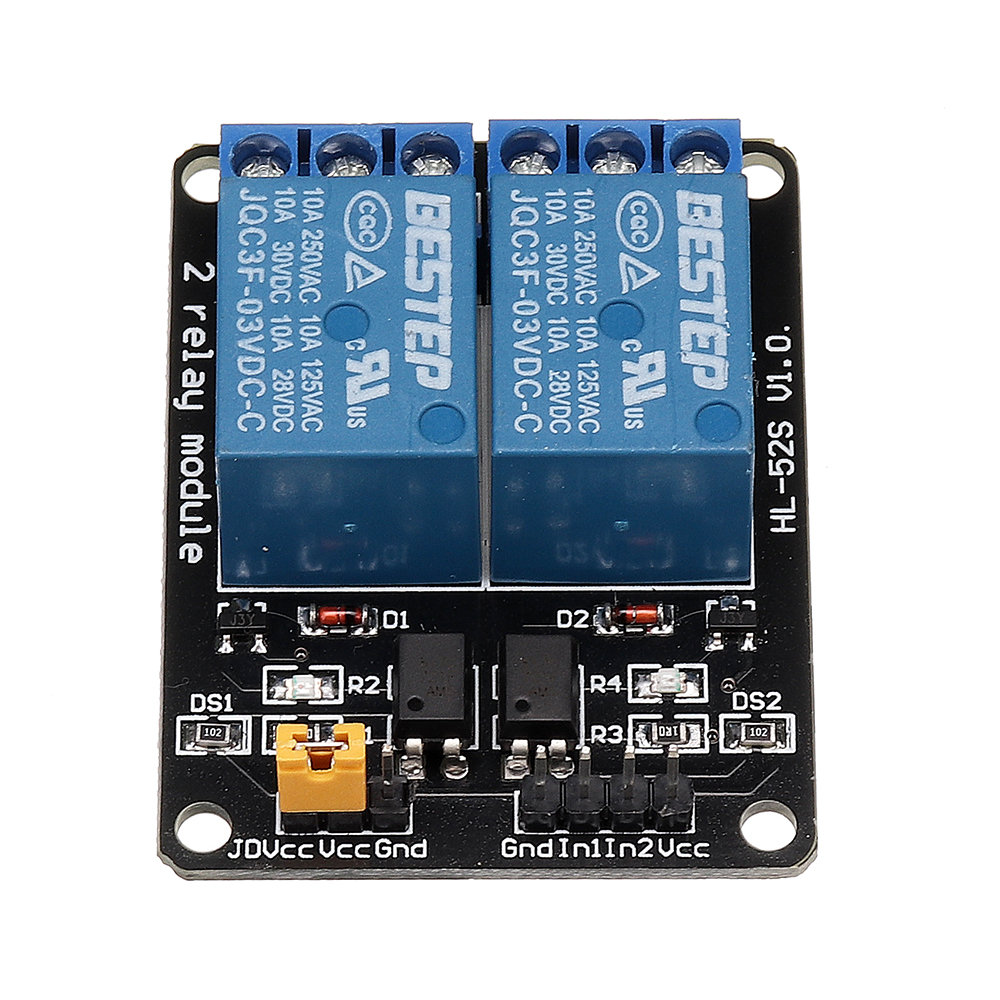

8. VCC is the system power supply and JD_VCC is the relay power supply, use with the jumper cap
Electrical parameters:
Supply voltage: 3V
Current: greater than 100mA
Load: 250V 10A AC or 30V 10A DC

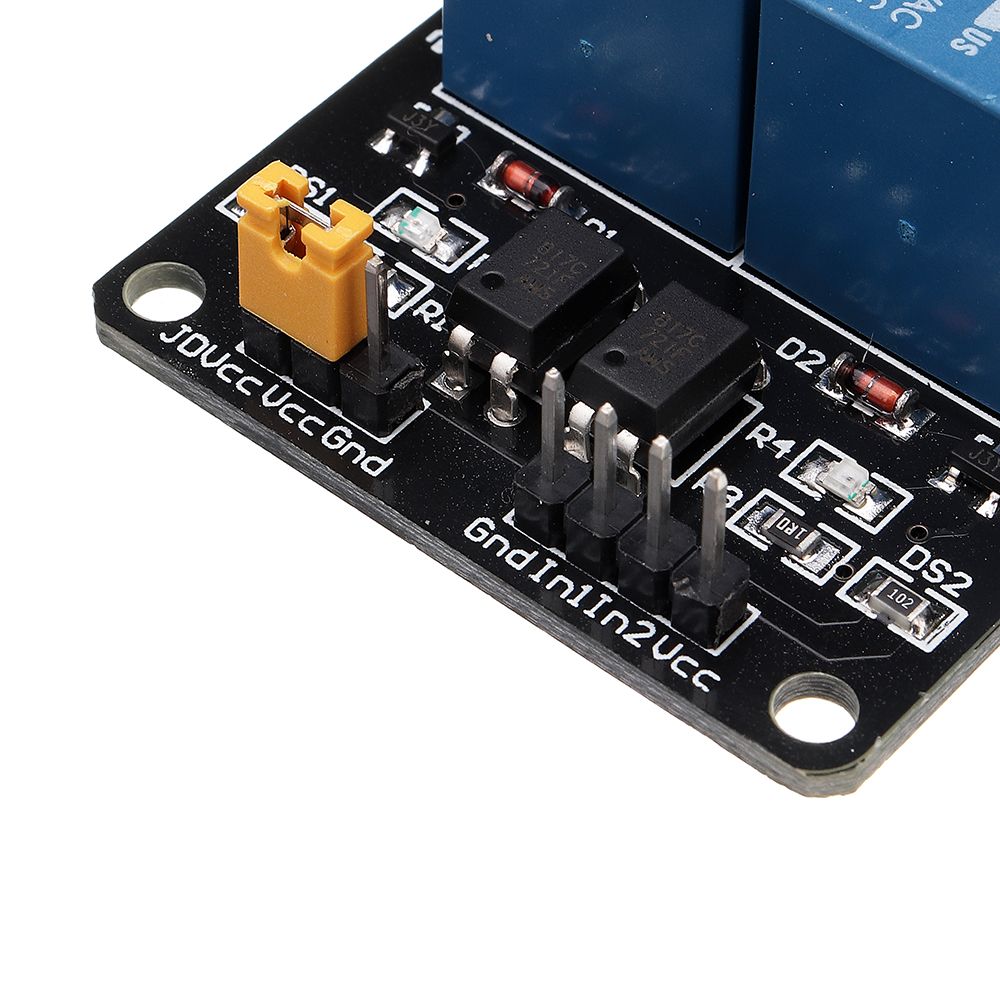

Wiring instructions:
VCC: System power supply positive
GND: System power supply negative
IN1--IN2: Relay Control Port
(Do not reverse the connection, the reverse connection will cause the module to burn out.)
1 x Relay Module
Module parameters:
1. Size: 50.5 x 38.5 x 18.5mm (length x width x height)
2. Weight: 31g
3. PCB color: Black
4. There are 4 fixing screw holes around the board, the hole diameter is 3.1mm, which is convenient for installation and fixing.
5. Relay with a common end, a normally open end, and a normally closed end
6. Optocoupler isolation, good anti-interference
7. Low level pull-in, high level release. The status indicator is on when the inverter is closed, and the status indicator is off when released.
8. VCC is the system power supply and JD_VCC is the relay power supply, use with the jumper cap
Electrical parameters:
Supply voltage: 3V
Current: greater than 100mA
Load: 250V 10A AC or 30V 10A DC
Wiring instructions:
VCC: System power supply positive
GND: System power supply negative
IN1--IN2: Relay Control Port
(Do not reverse the connection, the reverse connection will cause the module to burn out.)
1 x Relay Module
