Elecbee 2.8 Inch/3.5 Inch TFT Colorful HD LCD Display Module with Sensor Touch 320x240 480x320
SKU: EB0050317
Favorites
Key Features
xa0
- 320x240 / 480x320 resolution.
- 16-bit color (65000 colors) display support.
- High brightness backlight with good backlight brightness and low power consumption.
- High quality touch, high sensitivity and high linearity.
- Made of custom yellow copper-plated pins. 'Beautiful and durable.
- Universal interface for the full range of ALIENTEK development boards.
xa0
Specifications:
xa0
LCD size: 2.8 / 3.5 inches
Display area: 57.6*47.2mm /xa0 48.96*73.44 mm
Driver IC:ILI9341(2.8inch)/ ILI9486(3.5 inch)
Resolution: 320*240 (RGB)
Color depth: 16 bitsxa0
Operating voltage: 3.3V or 5V
Backlight voltage: 3.3V
Pin: 34
Interface mode: 16 bits (default >/8 bits configurable
Module size:51* 82.55 mm / 56.34*98.25mm
xa0
Show More
Description

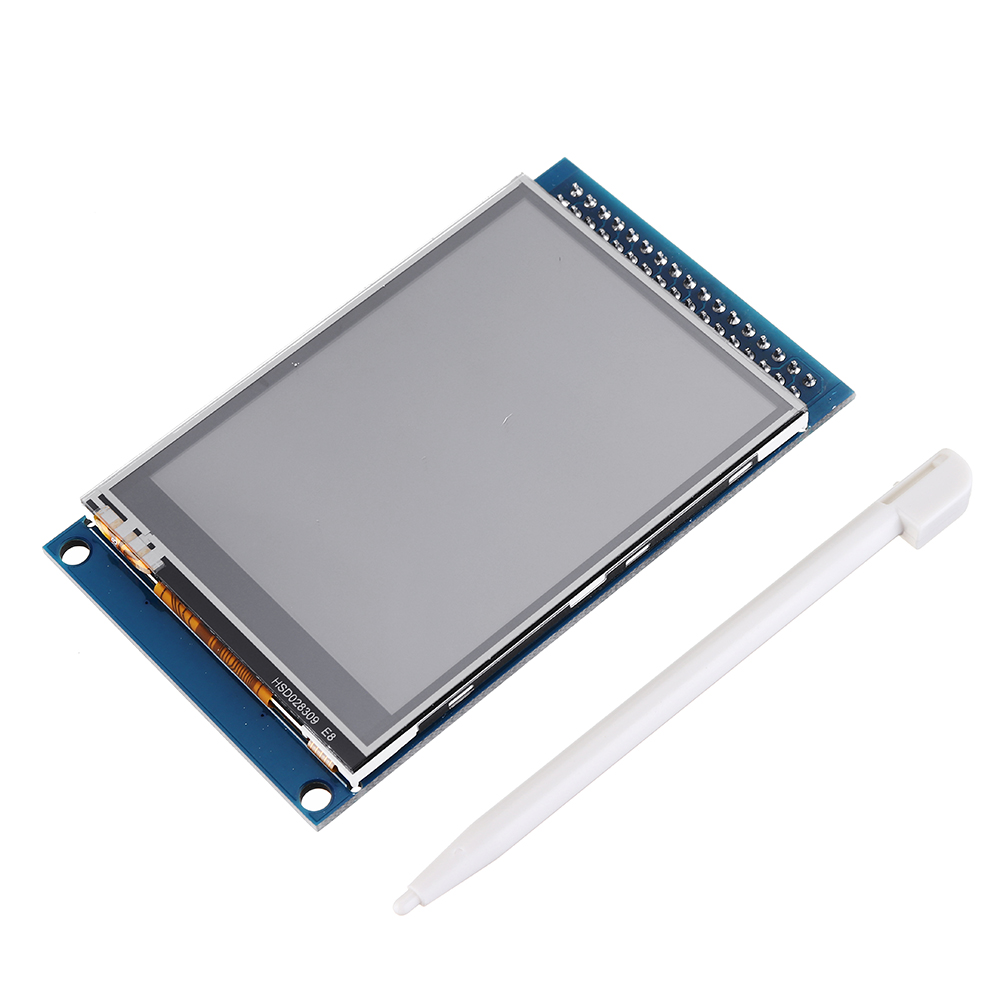

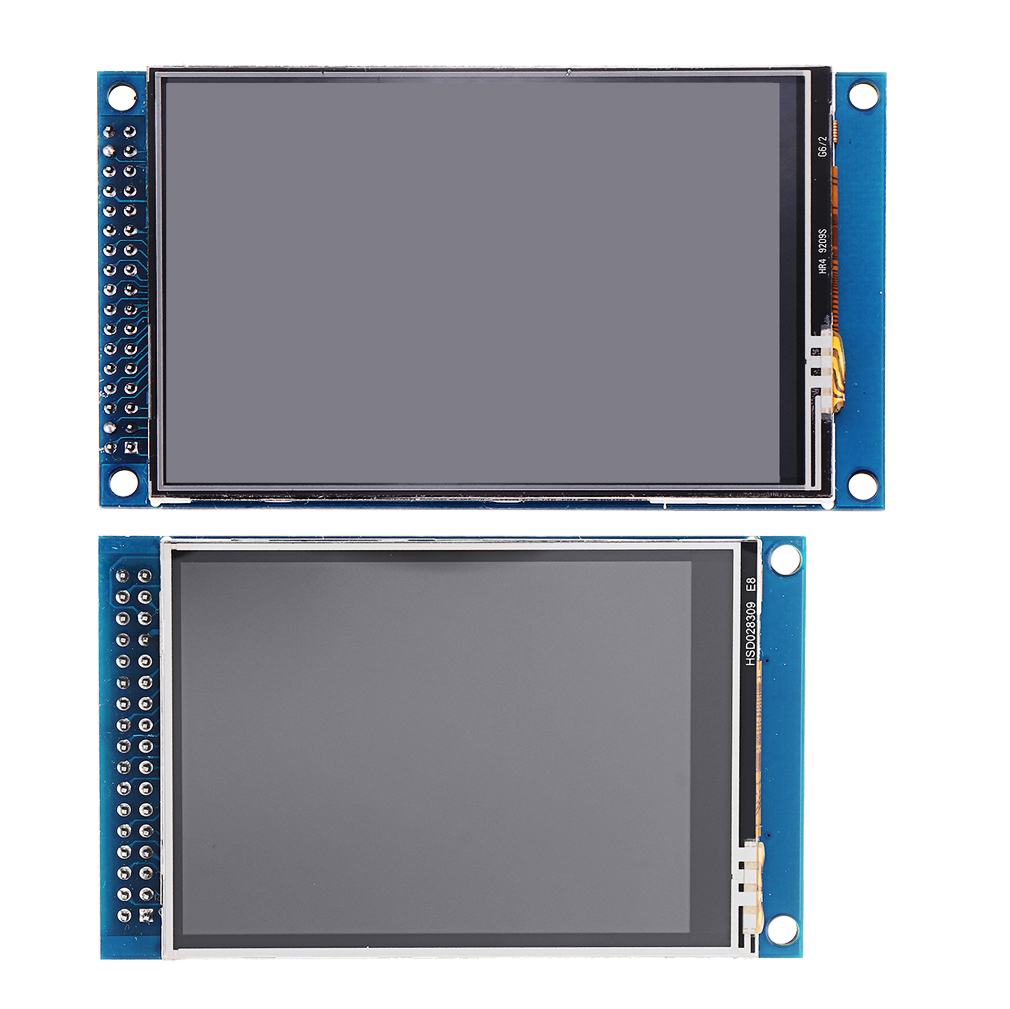

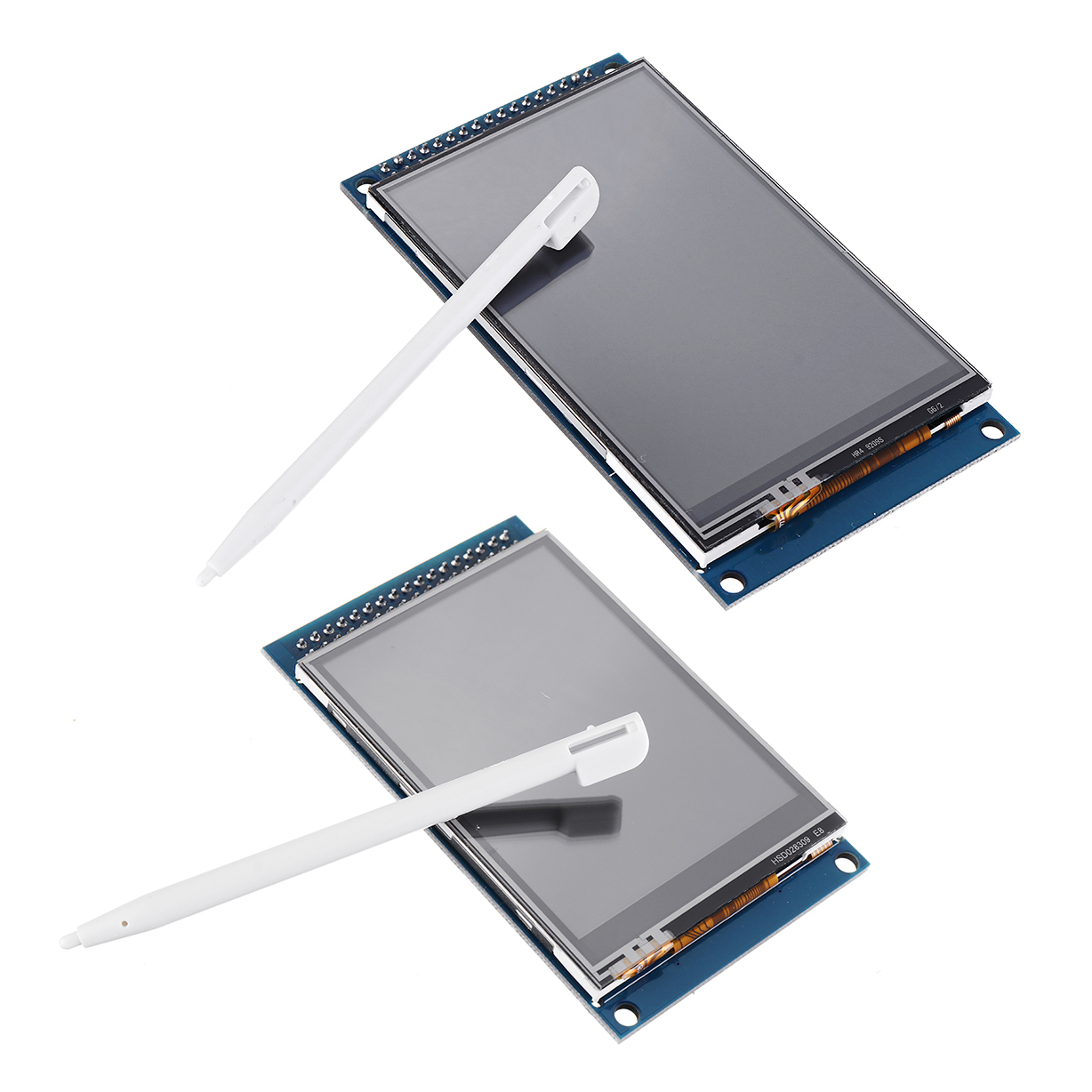

1 x 2.8 / 3.5 Inch TFT Colorful HD LCD Display Module
