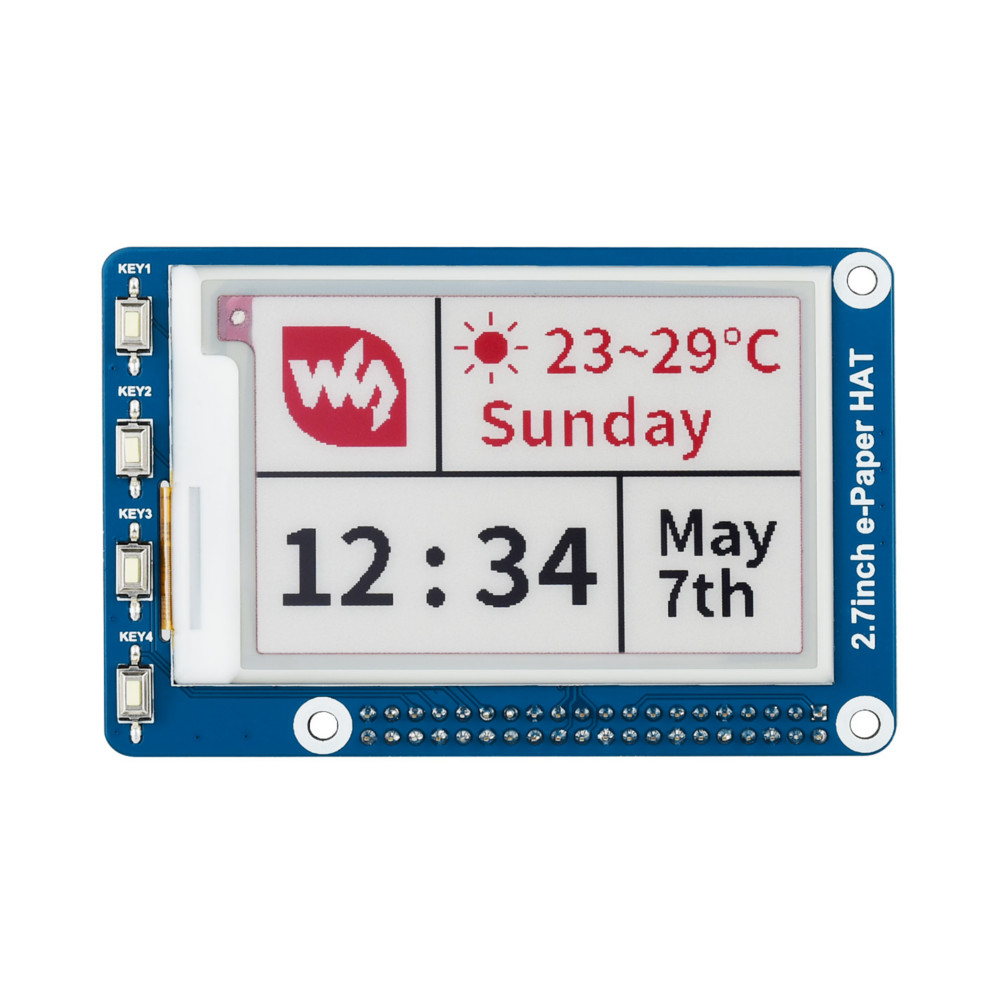

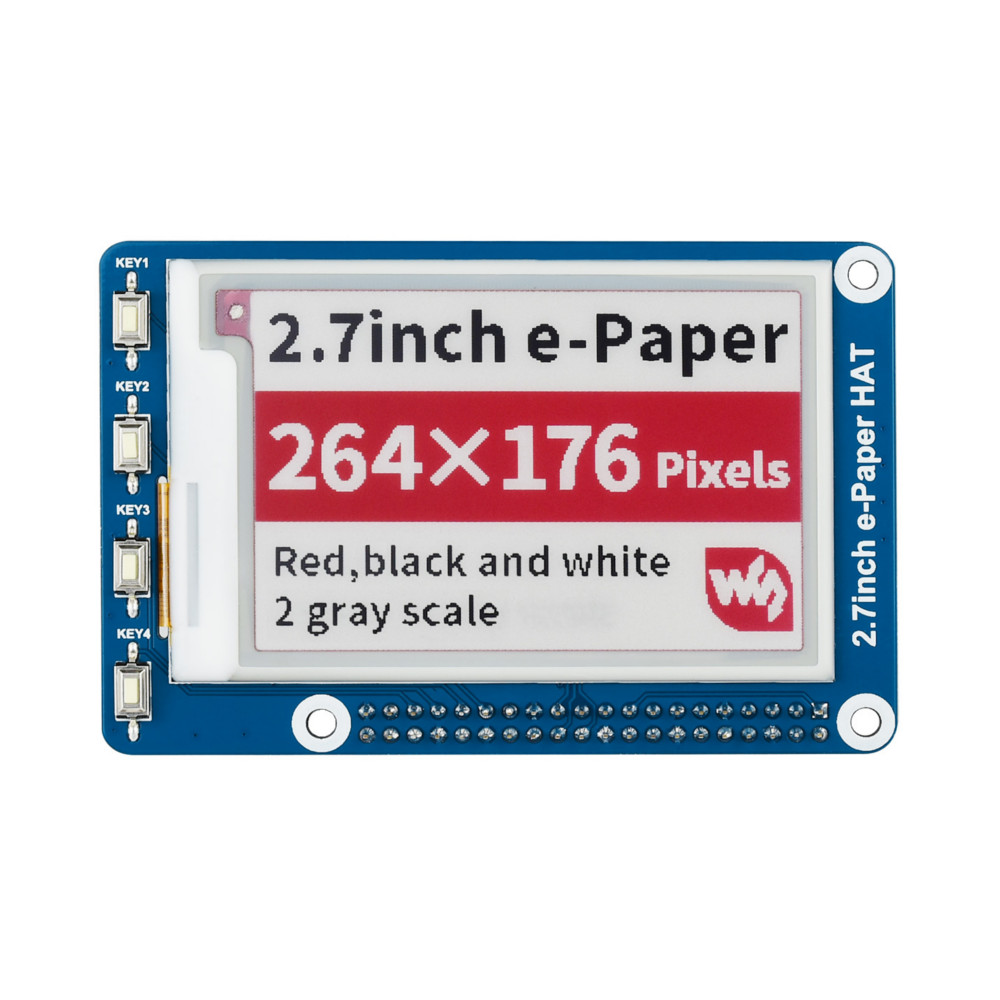

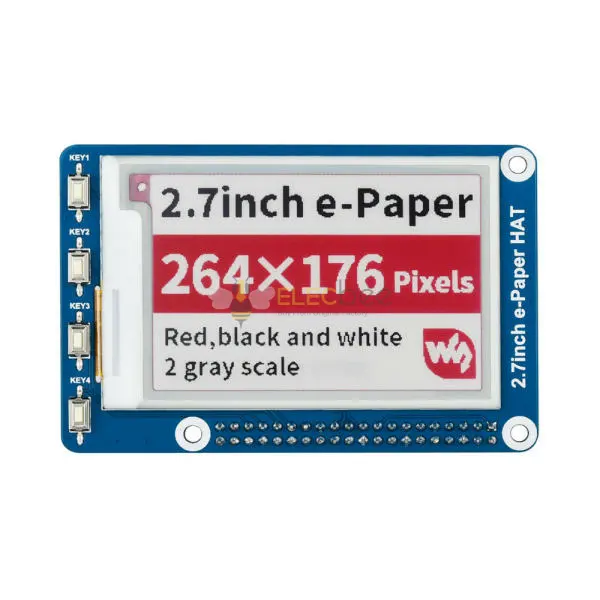

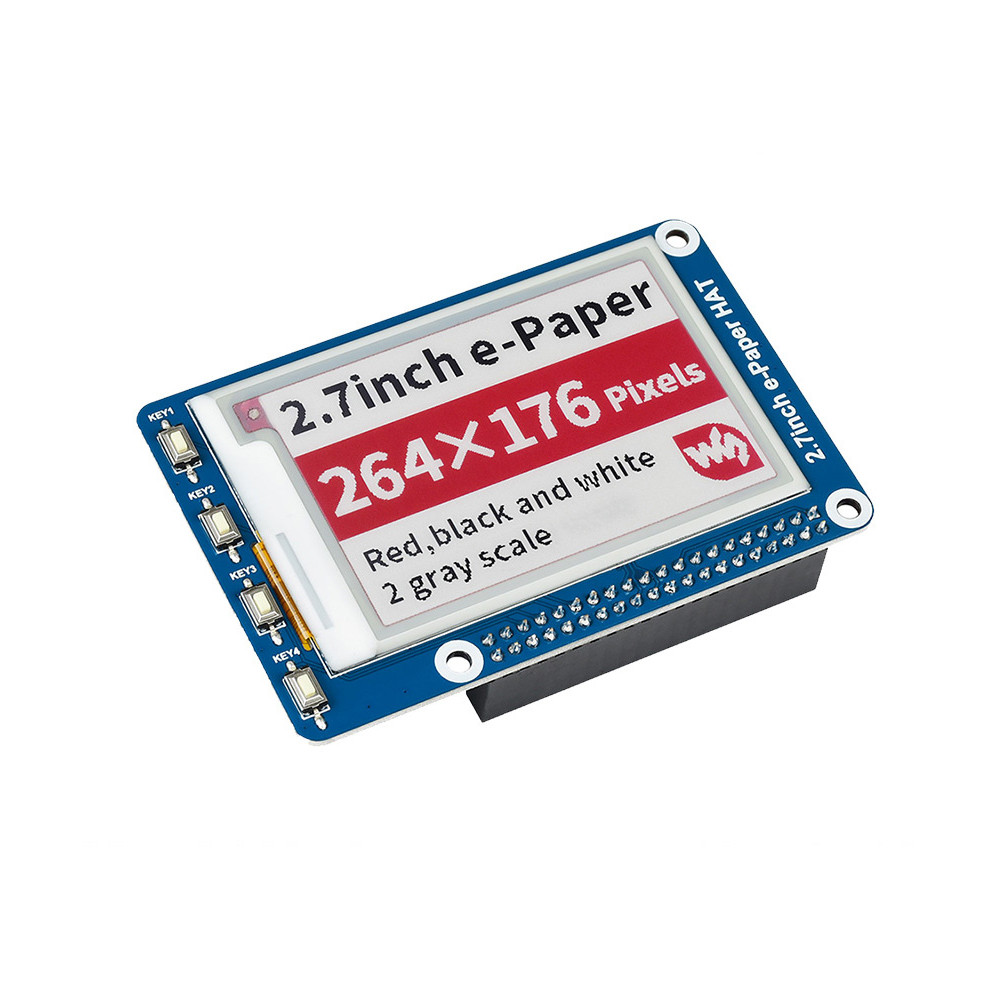

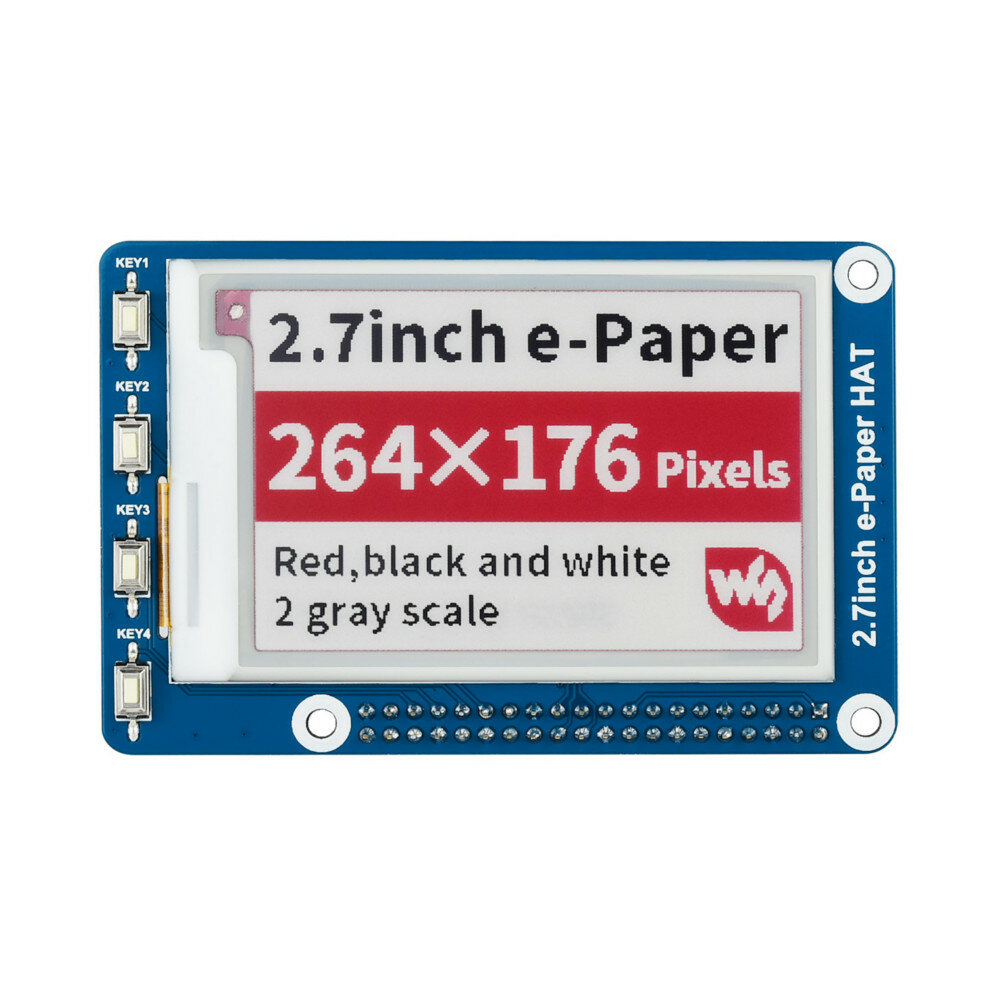

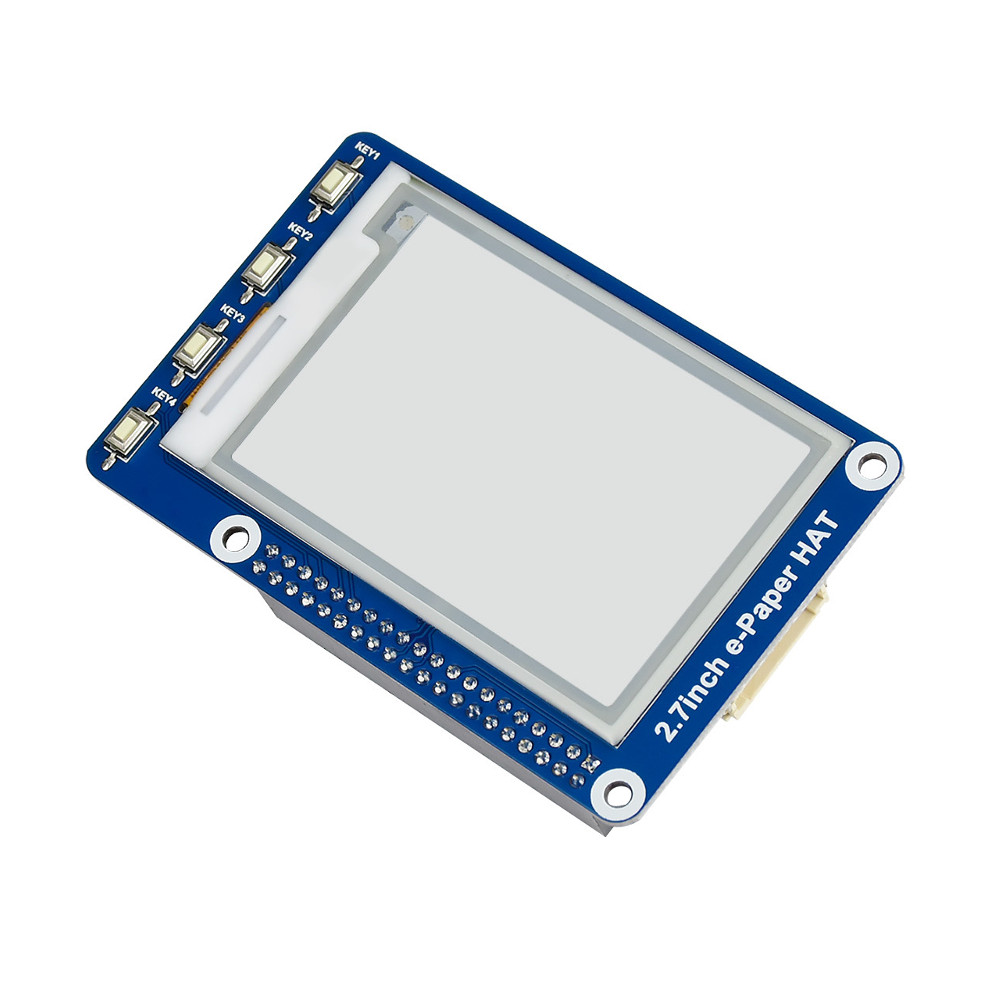

Elecbee 2.7 Inch ink Screen 264x176 Electronic Paper Display Module Red Black and White E-paper
SKU: EB0050261
Favorites
Key Features
Show More
Datasheet
Description
Documents:
Sample tutorial: Click here to open: https://img.elecbee.com/ic/download/Zip/E-Paper_code.7z
Github: Click here to open: https://github.com/waveshare/e-Paper
Features:
No backlight is needed, and the display content of the last screen can be kept for a long time after power off
Very low power consumption, basically only consumes power when refreshing
Comes with 4 buttons for easy expansion
Suitable for Raspberry Pi 2nd Generation B/3rd Generation B/Zero/Zero W
SPI control interface, can be connected to Raspberry/Arduino/Nucleo and other main control boards
Provide complete supporting information manual (Raspberry/Arduino/STM32 and other sample programs)
Parameter:
Working voltage: 3.3V
Communication interface: 3-wire SPI, 4-wire SPI
Dimensions: 85mm × 56mm
Display size: 57.288mm × 38.192mm
Point pitch: 0.217 × 0.217
Resolution: 264 × 176
Display color: red, black, white
Gray level: 2
Global refresh: 15s
Refresh power consumption: 26.4mW(typ.)
Standby power consumption: <0.017mW
Viewing angle: >170°

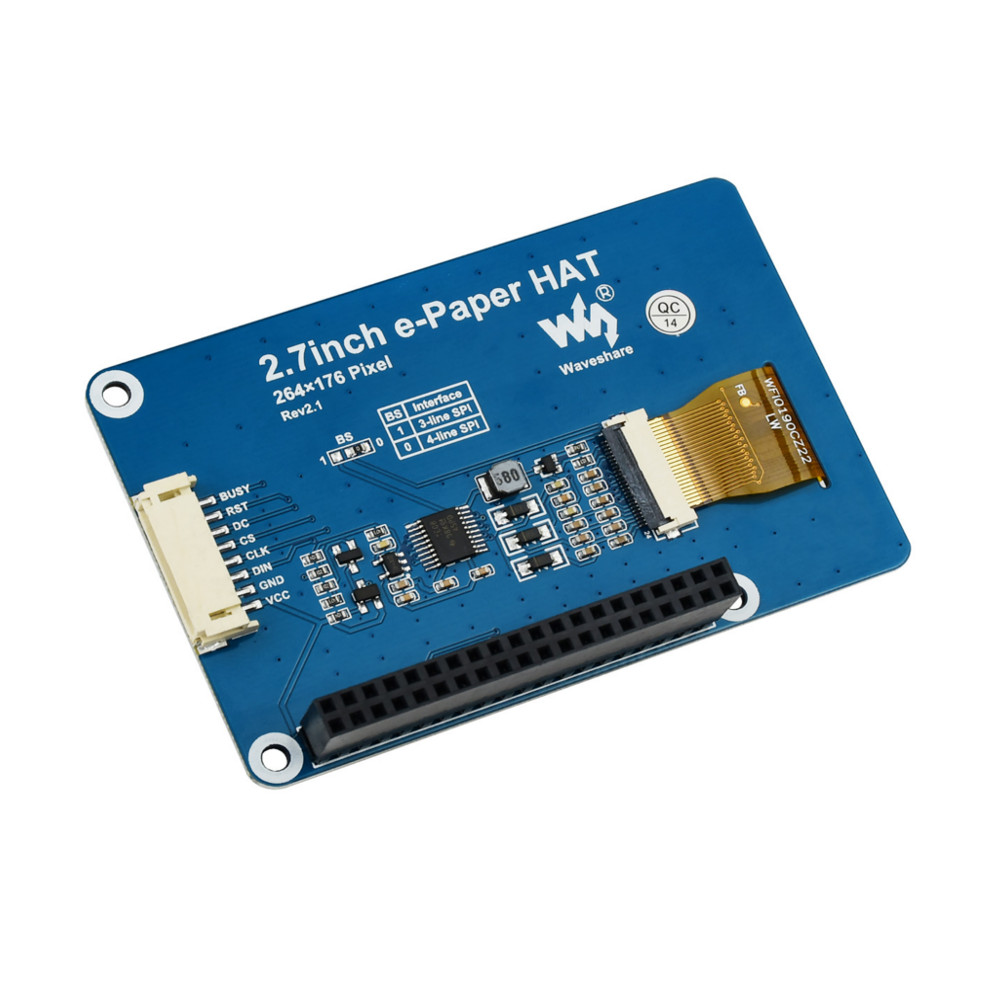

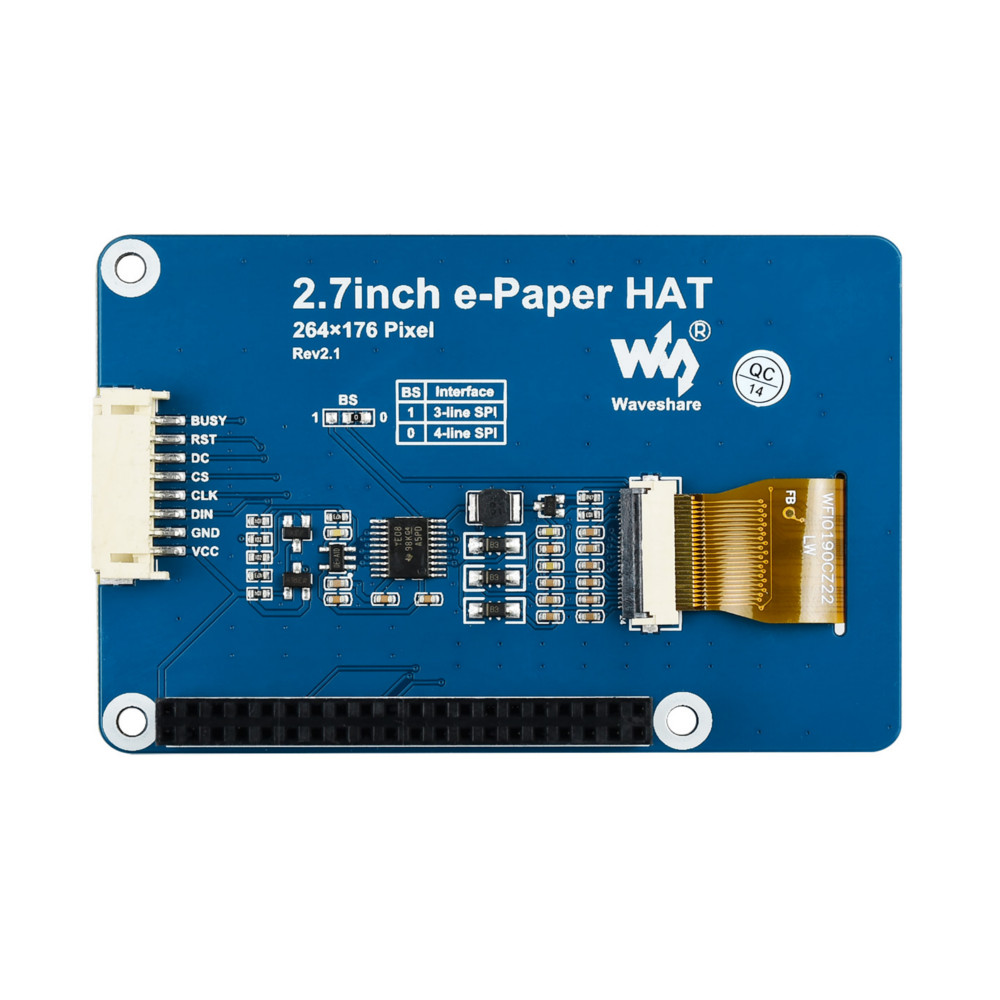

Interface Description:
VCC: 3.3V
GND: GND
DIN: SPI communication MOSI pin
CLK: SPI communication SCK pin
CS: SPI chip select pin (active low)
DC: data/command control pin (high level means data, low level means command)
RST: External reset pin (low level reset)
BUSY: busy status output pin (low level means busy)
Package includes:
1 x Display board
