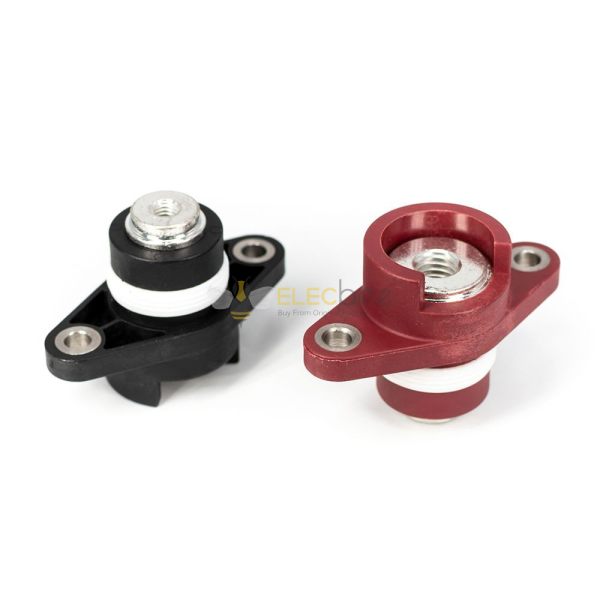

Elecbee Single Stud Type Junction Blocks, 150A, Internal Screw (M8), Internal Screw (M8), Flange Mounting, Red and Black 2pcs Set
SKU: EB-IF-FM8M5-5225-35-150A
Favorites
Key Features
- Elecbee EB-IF-FM8M5-5225-35-150A is a 150A high-current copper terminal for power-distribution wiring.
- The product features straight 2-hole flange panel-mount configuration, black and red color 2pcs sets, supporting installation and identification in panel-mounted electrical assemblies.
- The terminal uses copper construction, and its listed product weight is 76 g.
- This high-current copper terminal is intended for electrical panels, battery banks, and related power-distribution equipment that matches the stated 150A requirements.
Show More
In-Stock
Qty.
1
Unit Price
$ 11.90$ 14.00
Ext. Price
$ 11.90$ 14.00
$ 11.90$ 14.00
Specifications
Attribute
Value
Search
Mounting Type
Panel Mount
Mounting Feature
Bulkhead
Termination
Screw Terminal
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+125℃
Rated Current
150A
Rated Voltage
600V
Color
Black, Red
Contact Material
Brass
Contact Finish
Tin Plated
Insulating Materials
PA66
Body Style
Studded
Termination Thread
M8, M5
Description
The High Current Copper Terminal refers to the posts used to connect wires on ammeters, voltmeters, and resistance meters. The terminal blocks are made of environmentally friendly materials, which can reduce impact and avoid falling over time. Professional manufacturing, stable performance and high reliability.
The product adopts a PA66 flame-retardant material shell. It is insulating and flame retardant. The conductive parts are made of brass, which has strong conductivity and is not easy to overheat. The terminal connectors are made of copper, a high-quality material that can ensure the durability and stability of the product so that it can be used for a long time.

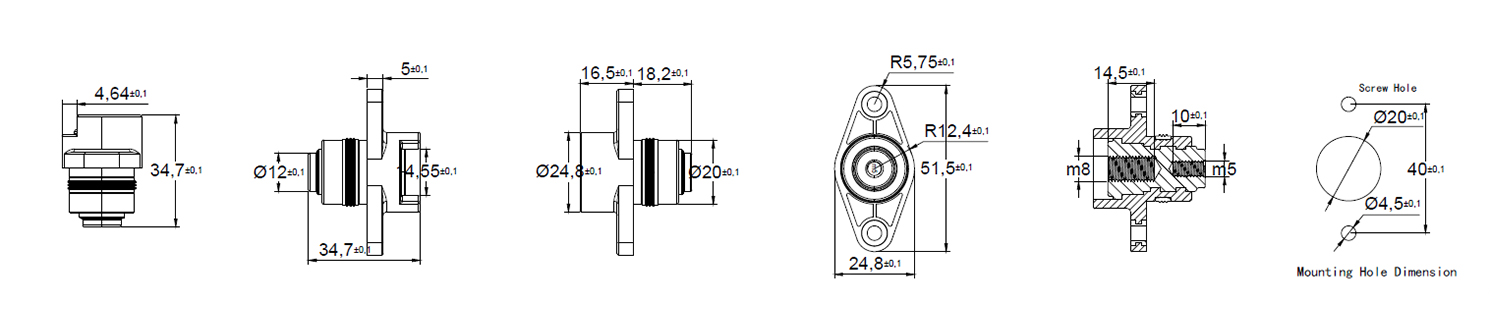

Through Wall Power Terminal Drawing
