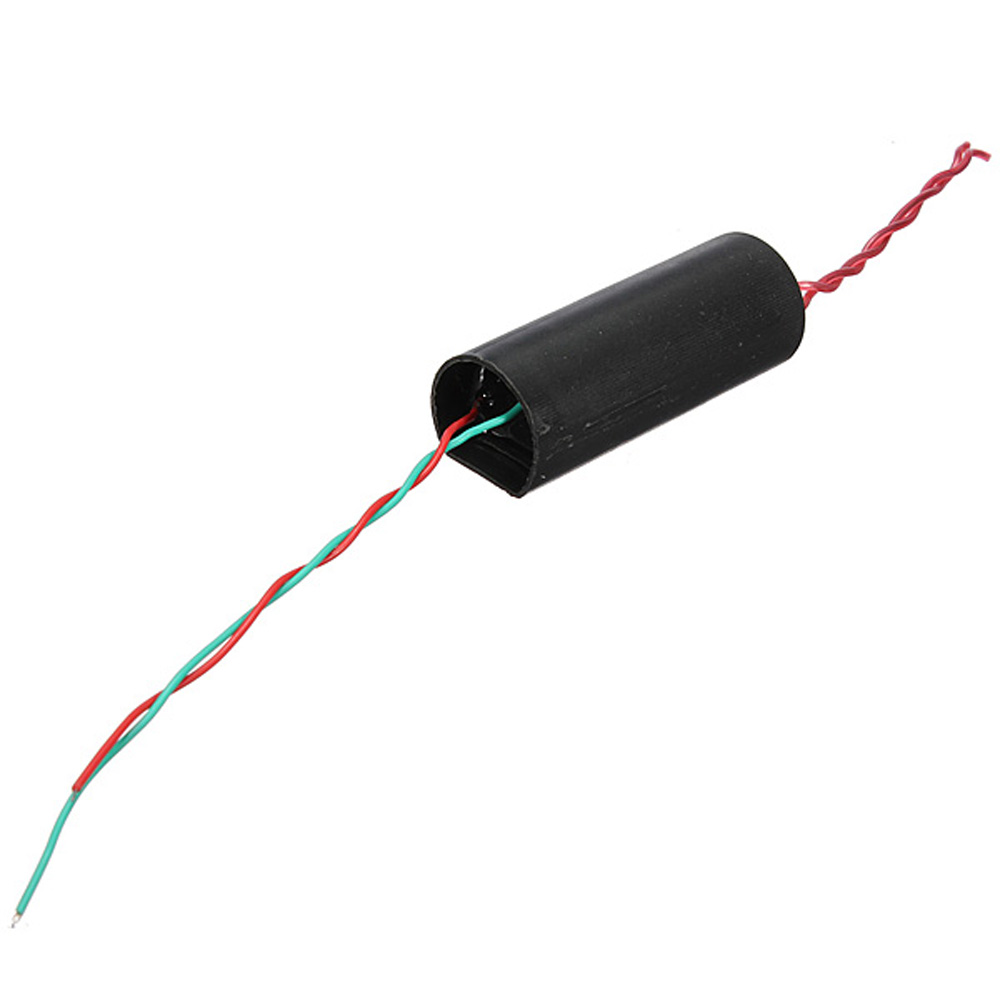

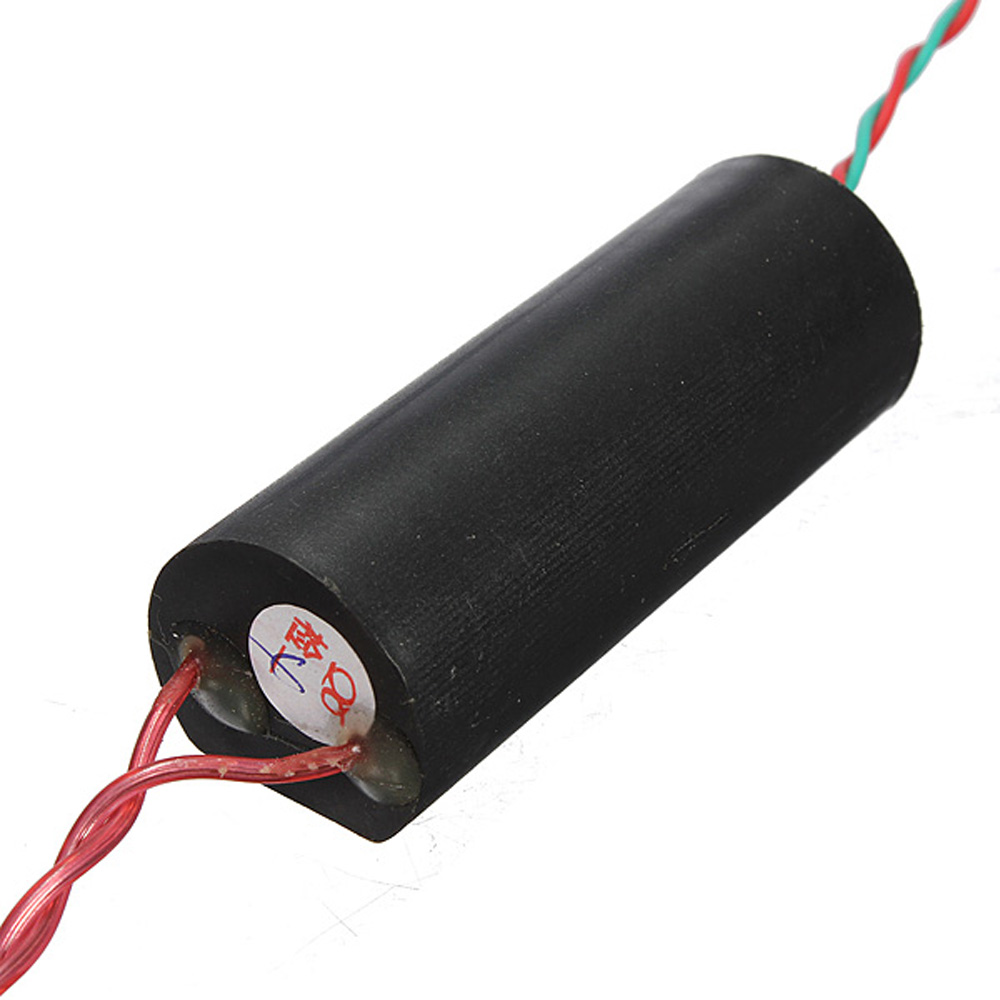

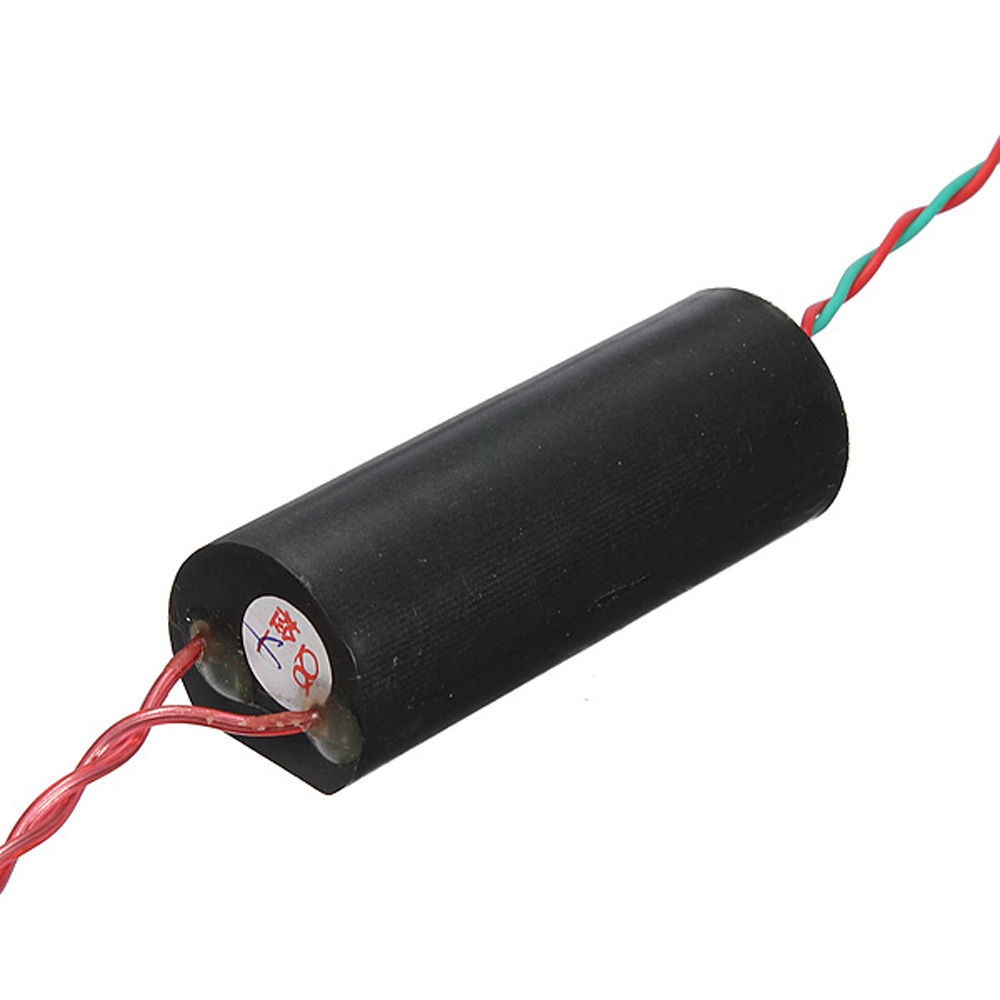

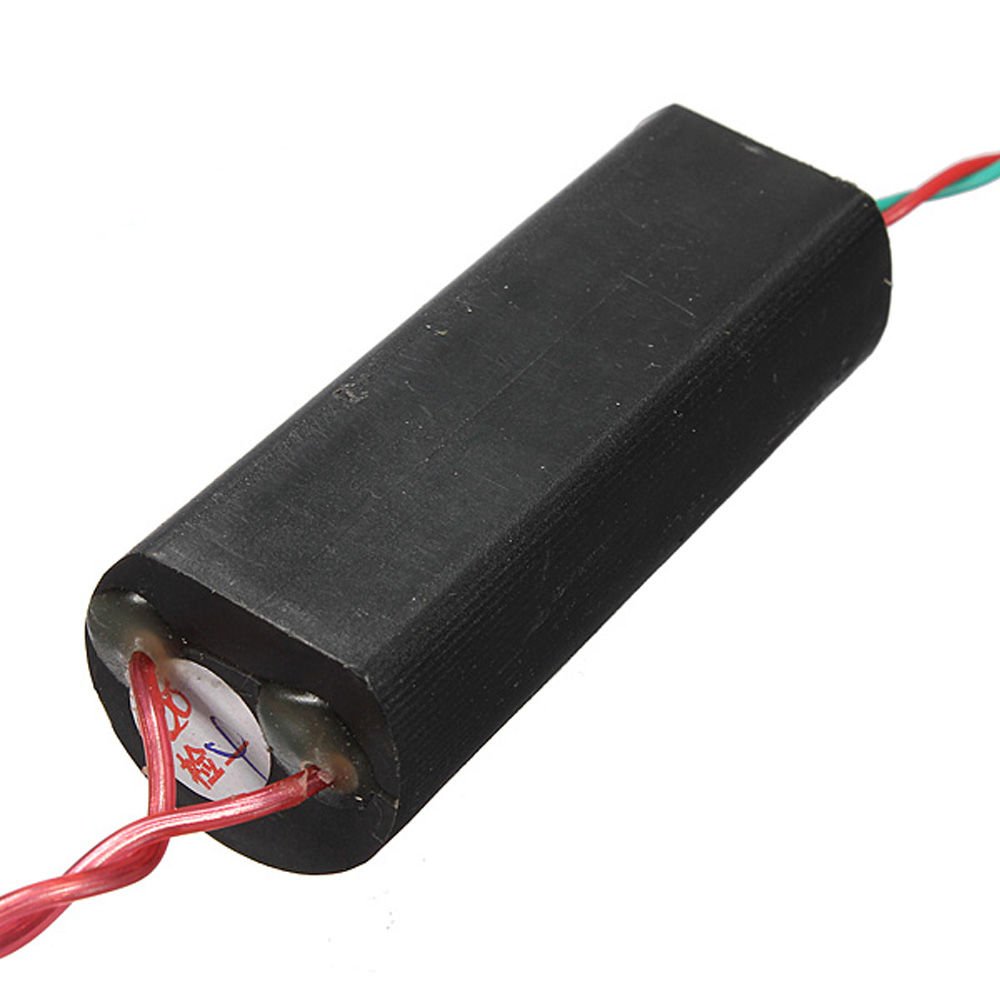

Elecbee 10pcs DC 3.7-6V To 20KV Boost Step Up Power Module High Voltage Generator

The high-voltage module uses the principle Tesla coil is made of high-voltage pulse output voltage current, small size, high efficiency, simple external circuit(just plug in the switch, the battery can be) discharge intensity violent.

Specification:

Model: MC-105
Volume: Length 65mm Diameter 24mm, Diameter of cut surface 22mm
Voltage: Input DC3.7-6V, output DC20KV (test)
Current: Input 4A, output 0.5A
Length: Input 10 cm or so, the output is about 8 cm
Structure: Shell-in-one
Polar discharge distance: 1.5 cm or so (beyond easy to damage)

Power:

3.7V Li-ion battery can be used single or two series, such as 18650, idle cell phone batteries ( to remove the protection board , the proposed capacity of 2000mAh or more ) or NiCd / NiMH battery pack, 4V or 6V lead acid batteries.

This module is a small production with high-pressure science inverter transformer / booster finished module, the input terminal DC 3V - 7.2V can get 20KV DC high voltage (about 1-2 cm arc) at the output can be used as high school science experiments , electronic equipment, negative ion generator, high voltage source to use when making small science.
