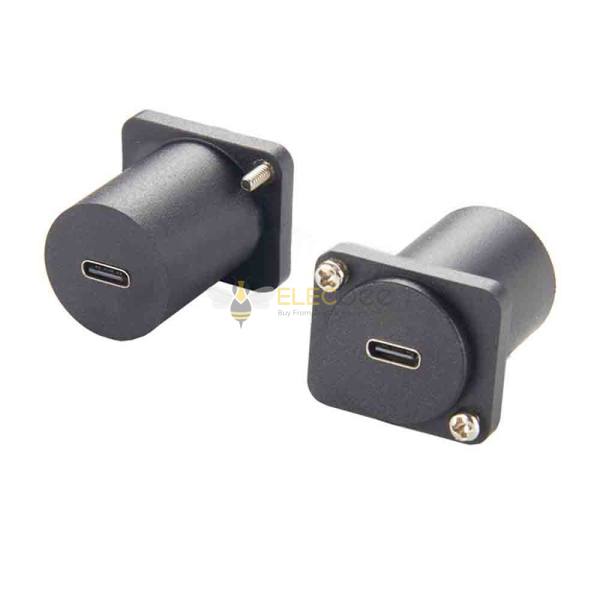

Elecbee USB Type-C Female to Female Panel Mount Adapter USB 3.1 Industrial Bulkhead Connector with Flange Screw Lock
SKU: EB-501-9017-C
Favorites
Key Features
Convenient Panel Integration: Square flange mounting design simplifies adding USB Type-C connectivity to industrial enclosures, equipment panels, and embedded system projects.
Reliable USB-C Connectivity: Female-to-female USB 3.1 pass-through structure supports stable data transfer and power connection between internal and external devices.
Flexible Installation Design: Compatible with panel thicknesses up to 16mm, supporting installation in metal, plastic, and custom chassis applications.
Secure Mechanical Mounting: Screw lock flange structure helps maintain stable connector positioning in industrial control systems and equipment interfaces.
Wide Embedded Compatibility: Suitable for industrial automation equipment, custom electronics enclosures, development systems, laboratory instruments, and communication devices.
Show More
In-Stock
Qty.
1
Unit Price
¥ 58.26
Ext. Price
¥ 58.26
¥ 58.26
Qty.
Unit Price
Ext. Price
10+
¥55.33
¥ 553.30
20+
¥52.41
¥ 1048.20
100+
¥46.64
¥ 4664.00
Specifications
Attribute
Value
Search
Mounting Type
Panel Mount
1st Contact Type
Female Pin
2nd Contact Type
Female Pin
Conversion Series
Same Series
Convert From(Adapter 1)
USB-C
Convert To(Adapter 2)
USB-C
1st Connector Number of Positions
9 Pin
2nd Connector Number of Positions
9 Pin
Description
The Elecbee USB Type-C Female to Female Panel Mount Adapter is an industrial USB 3.1 bulkhead connector designed for panel-mounted data and power extension applications in embedded systems, industrial equipment, custom enclosures, and electronic integration projects. Featuring a USB Type-C female to female pass-through design, this adapter enables convenient external USB-C access through chassis or panel installations.
The square flange panel mount structure includes mounting screws and threaded locking hardware for secure installation on metal, plastic, or wooden panels. The connector design simplifies panel integration without requiring custom oval or rectangular cutouts, allowing installation using standard drill bits or hole saws.
This USB-C panel mount connector supports data transmission and power connectivity for embedded devices, industrial controllers, development systems, external interfaces, and USB-C enabled equipment. The pass-through architecture allows internal and external USB Type-C connections for flexible device integration.
The adapter is designed for panel thicknesses from several millimeters up to 16mm, making it suitable for industrial enclosures, custom control panels, laboratory equipment, machine interfaces, and electronic cabinet installations.
Technical Specifications:
- Product Type: USB Type-C Panel Mount Adapter
- Connector Type: USB Type-C Female to Female
- Interface Standard: USB 3.1
- Mounting Type: Square Flange Panel Mount
- Installation Method: Screw Lock Mounting
- Panel Compatibility: Up to 16mm Thickness
- Function: Data and Power Pass-Through
- Application Type: Industrial and Embedded Integration
- Connector Style: Bulkhead Feedthrough Adapter
This industrial USB-C panel mount connector is suitable for embedded electronics, industrial automation systems, custom PC enclosures, development equipment, laboratory devices, communication systems, and USB-C interface expansion projects.
