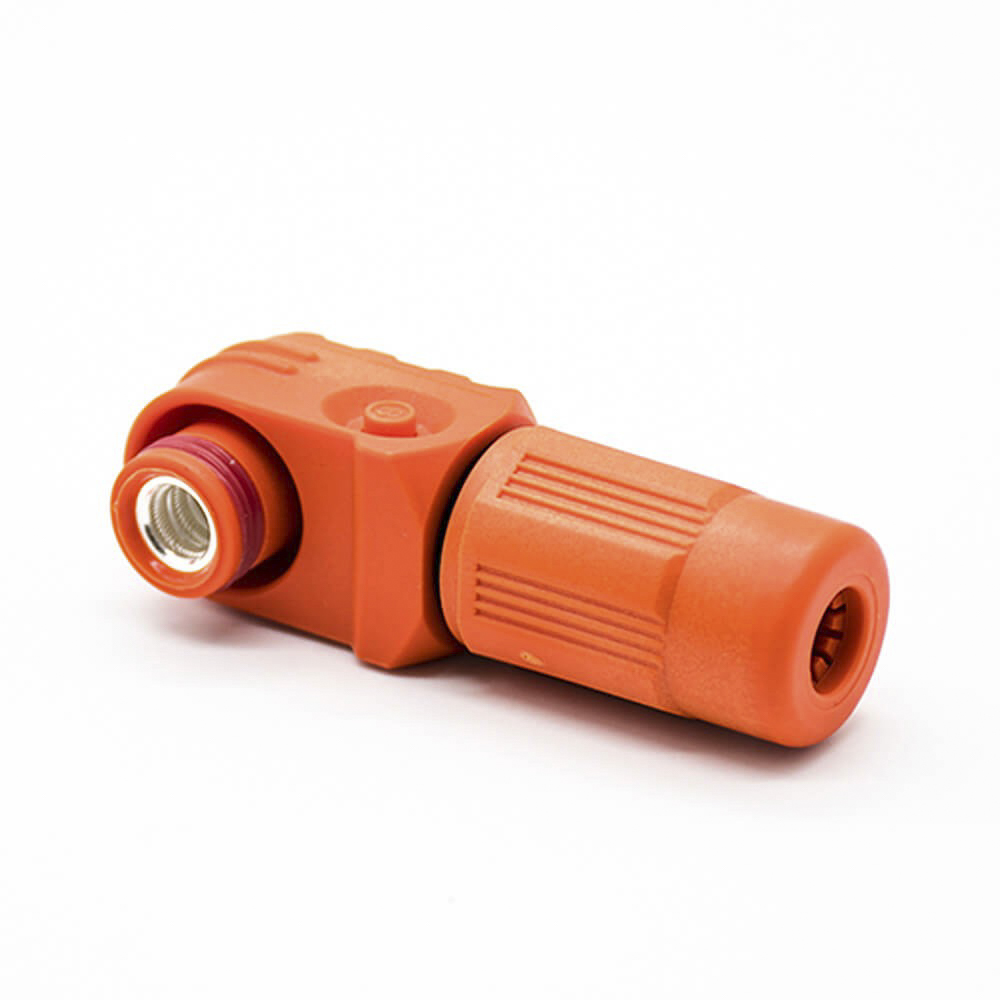

Elecbee IP67 6mm 10mm² Orange 120A 1500V MAX High Current Waterproof Energy Battery Storage Connector Flange Plug, Receptacle Busbar
SKU: RHT-1P-6O-C25-R
Favorites
Key Features
High Current Power Connection: The Elecbee IP67 6mm 10mm² Orange 120A 1500V MAX High Current Waterproof Energy Battery Storage Connector Flange Plug, Receptacle Busbar is designed for reliable power connection in energy storage systems, battery packs and BESS equipment.
Electrical Performance: It supports 120A rated current, 1500V MAX rated voltage, 1 Pin position configuration for demanding battery applications.
Installation and Compatibility: Plug, Receptacle connector, cable type mounting, busbar termination, 25mm² cable compatibility, 6mm contact size. The four flange feature supports secure installation.
Durable Construction: Nylon housing, Brass contacts, Silver Plated contact finish, IP65, IP67 protection, -40℃~+125℃ operating temperature, Orange color, right angled orientation, UL94 flammability rating.
Show More
In-Stock
Qty.
1
Unit Price
$ 12.45
Ext. Price
$ 12.45
$ 12.45
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Mounting Feature
Four Flange
Termination
Busbar
Number of Positions
1 Pin
Material Flammability Rating
UL94
Operating Temperature
-40℃~+125℃
Shielding
Shielded
Ingress Protection
IP65, IP67
Rated Current
120A
Rated Voltage
1500V MAX
Color
Orange
Orientation
Right Angled
Shell Material
Nylon
Contact Material
Brass
Contact Finish
Silver Plated
Cable Diameter
25mm²
Contact Size
6mm
