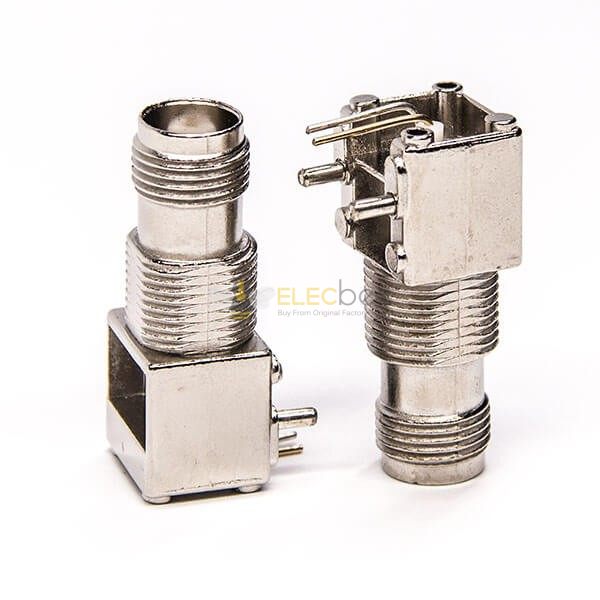

Elecbee 20pcs TNC Panel Connector Female Right Angled Through Hole for PCB Mount
SKU: 20XEB-002-0064
Favorites
Key Features
Features:
- TNC Connector,Jack/Female,Right Angled/90°,Through Hole,PCB Mount;
- Thread Version of BNC used in Vibration-Intense application with high durability;
- Higher Performance than BNC with 0-11 GHz Microwave frequencies and 50 ohm impedance;
- High Quality with 30 days 100% Money back， made according to MIL-C-39012 standard;;
- From the OEM Original Factory, same quality with much better price.
Main Application of TNC Connectors:
- Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS,xa0Wireless Base Station, Microwave Comonents, Radar, Networks,Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation.
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Female Pin
Shell Finish
Nickel Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Connector Series
TNC
Color
Silver
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Zinc Alloy
