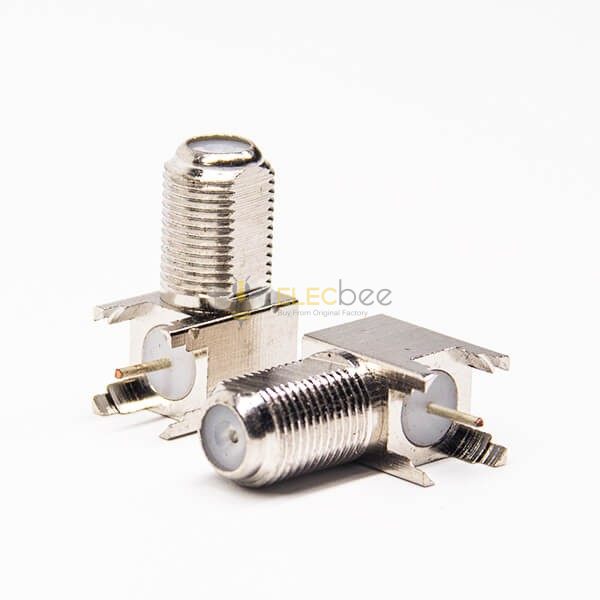

Elecbee 20pcs F Type Connector 90 Degree Female Through Hole for PCB Mount
SKU: 20XEB-003-0089
Favorites
Key Features
Product features:
- F Connector,Jack/female,Angled/90°,Through Hole,PCB Mount;
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- Consumer Electronic: Statellite Boxes, set top boxes
- Telecommunications: CATV, CATV Networks.
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Contact Type
Female Pin
Shell Finish
Nickel Plated
Impendance
75 Ohms
Frequency Max
3 GHz
Connector Series
F Type
Color
Silver
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
