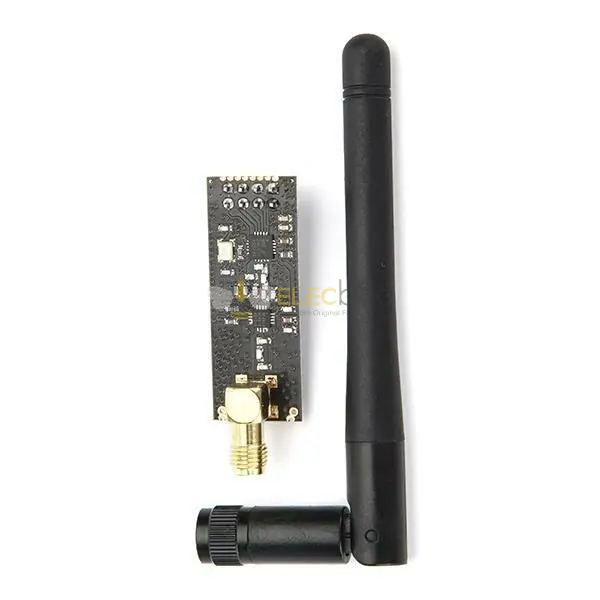

Elecbee 1100 Meter Long Distance NRF24L01+PA+LNA Wireless Module With Antenna Module

Features:

NRF24L01P + PA + LNA Division for the ultra-long-distance data transmission, specially developed high-power and high sensitivity wireless module 2.4G ISM band NRF24L01P + PA + LNA wireless module to work in the license-free that can be point-to-point applications or be composed of a star network.

Digital transmission chip NRF24L01+ with the Division of Professional Design professional full two-way RF power amplifier high power PA and LNA chip, RF switches and band pass filters, makes effective communication distance greatly expand.

RF part, it has been done a lot of optimization matching debugging. The emission efficiency to achieve the highest harmonic minimum and make NRF24L01P + PA + LNA wireless module of RF interference to the external equipment reaches minimum, while not susceptible to interference from other devices.

NRF24L01P + PA + LNA wireless module integration is extremely high, the size is 41mm x 15.5mm to make conveniently embedded.

Description:

Voltage: 3-3.6V

Max output power: +20 dBm

Working current in transmit mode: 115mA

Working current in receiver mode: 45mA

Current inxa0 xa0 mode: 4.2uA

Operating temperature: -20-70 degree

Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode

PA growth: 20dB

LAN growth: 10dB

LAN noise figure: 2.6dB

Antenna growth: 2dBI

2M rate: 520m
