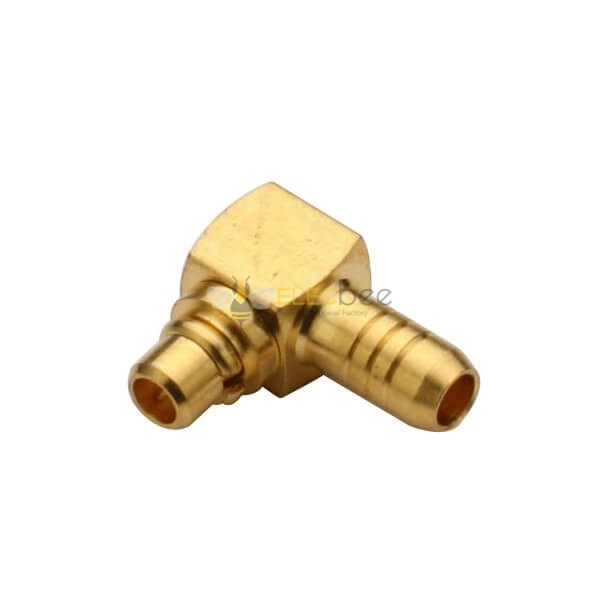

Elecbee RP-MMCX Connector Right Angled Crimp Type for Cable RG316
SKU: EB-005-0019
Favorites
Key Features
Product Features:
- Cable Connector, plug/male, Angled/90°, 50Ω, Crimp Type,RG316,RP;
- Micro-miniature version of MCX with all features of MCX series conenctor.;
- Snap-on Interface ideal for quick Installation and discount;
- High cost-effective with excellent boardband performance and low reflections.
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of MMCX Connectors:
Consumer Electronic: Smart phones GPS and wireless antennas,
Aerospace and Defense: GPS
Technology: Technology Devices
Telecommunications: GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Computer connections-LAN/WAN
Show More
Specifications
Attribute
Value
Search
Connector Type
Male
Number of Ports
1
Mounting Type
Cable Type
Termination
Crimp
Contact Type
Male Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Suitable Cable
RG316
Connector Series
MMCX
Color
Gold
Fastening Type
Push-on
Orientation
Right Angled
Shell Material
Copper Alloy
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
C****n
Perfect right-angled MMCX connector for my compact GPS module. The crimp design works flawlessly with RG316, and the gold-plated brass body ensures solid signal up to 6 GHz.
J****r
Good value for money. Snap-on coupling makes installation quick, though you need steady hands when crimping. Works great in my wireless-LAN setup.
L****h
Exactly as described. The 90° angle saved space on my PCB, and the PTFE insulator handles temperature swings without issue. Reliable connection every time.
M****e
Solid build and good performance, but the crimp requires a specific tool. Not beginner-friendly, though it holds up well once properly installed.
J****o
Used in a defense comms project—performed under vibration and extreme temps. Meets MIL-STD specs. Great for rugged applications needing 50Ω impedance.
