Elecbee UWB Ultra-wideband Antenna Working Frequency 2.4-10.5GHz

SKU: EB0048450

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Cellular

Model

LIST2

Show Similar Products >

Description

Voltage: DC5V

Precise details>>

Description:

This is an improved volcanic ultra-wideband antenna, which is mainly used for ultra-wideband positioning and communication. The antenna coverage frequency is 2.0GHz--10.5GHz, and the typical standing wave value is below 2.0. The antenna has the characteristics of small size and high efficiency.

Antenna parameters:

Working frequency: 2.4-10.5G

Polarization method: vertical linear polarization

Input impedance: 50 ohm

Standing wave ratio: <2.0 (typical value)</2>

Maximum power: <10W (40dBm)</10W>

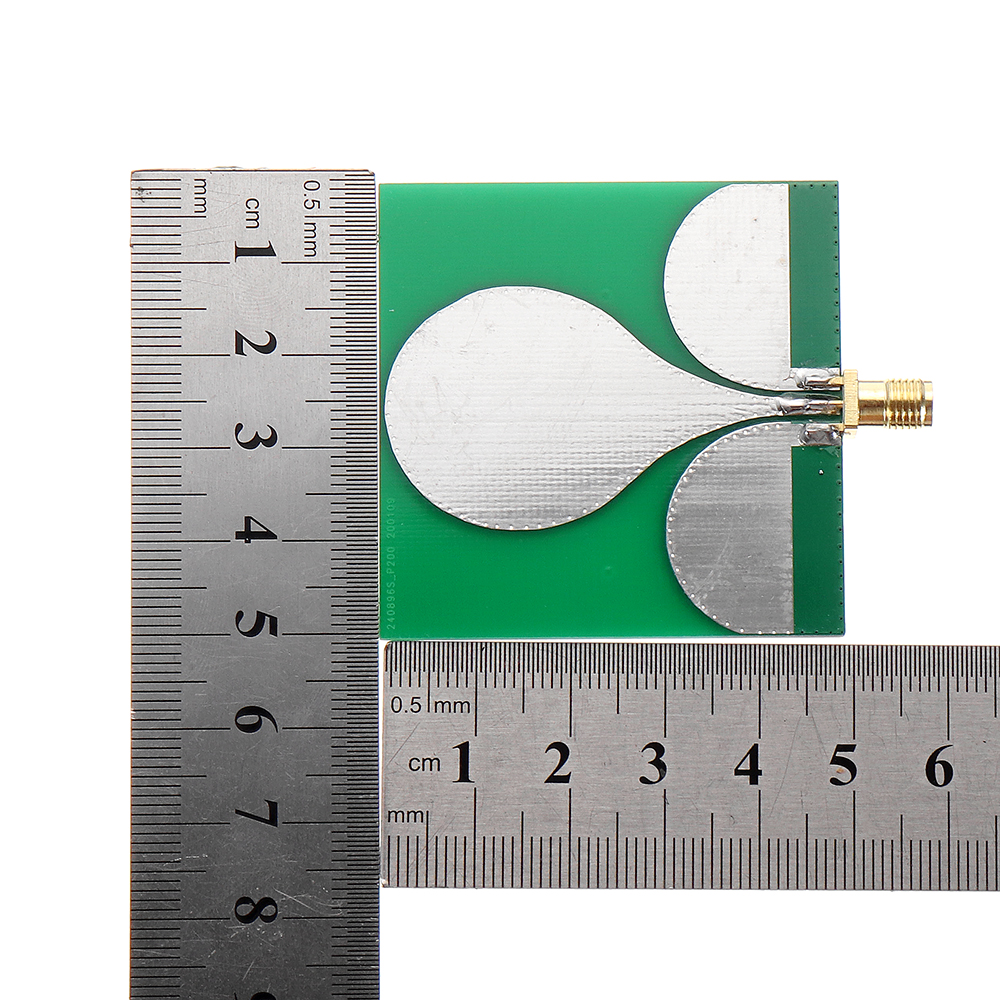

Dimensions: 50*50mm (excluding connectors)

Connector form: SMA female (outer screw inner hole)

Machine weight: 10g

1 x Antenna
