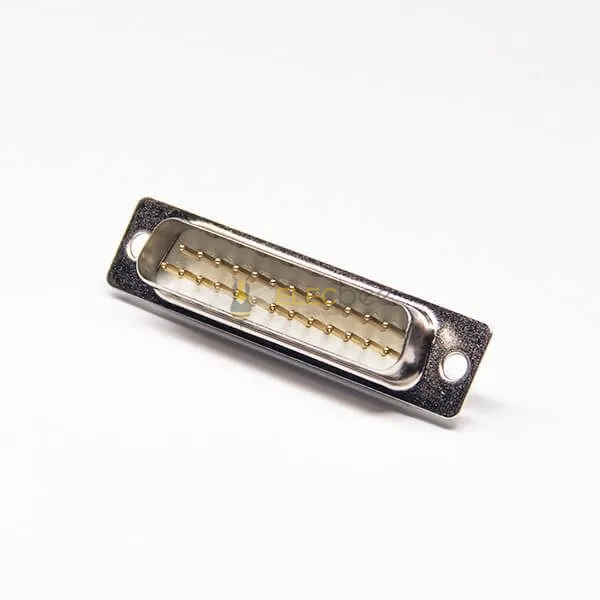

D sub 25 jae Standard Type Zinc Alloy D-sub 25 Pin Male Solder Type for Cable

$1.49 Price drop reminder
  • Brand: Elecbee
  • Product Code: EB-601-0064
  • Availability: In Stock

- +
Total $1.49

Ask a Question About This Product

Your Name*
Your Email*

product features.png


  • Standard D-sub,Plug,25 Pin,2 Rows,Single Port,Straight Type,Stamped Pin,Tin plated,Solder Cup,Cable,Unthreaded,IP20,Without Filtered
  • Industry standard interfacing RS232 and RS449 mating configurations per EIA standards;
  • Inserts are flame-retardant thermoplastic;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.


  • Business equipment
  • Electronic office systems
  • Data communications
  • Technology equipment
  • Mobile communications
  • Consumer electronics


Electrical Characteristics

  • Voltage Rating :250V AC/ rms 50Hz
  • Withstanding Voltage :1000V AC/ rms 50Hz for one minute
  • Insulation Resistance 1000MΩ at 500V DC
  • Contact Resistance 20 mΩ max.

Mechanical Characteristics

  • Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
  • Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.

Environmental Characteristics

  • Operating Temperature:-67°F (-55°C) to +257°F (125°C)


Part Material Finish
Body Steel -------
Center Contact Pin Brass Gold
Insulator Glass-filled thermoplastic


connector factory


Where is your products origin? Are they certificated?

Elecbee have long-term cooperation agreements with many OEM factory in China to reduce the intermediate channel cost and help you save money. Our products all made strictly according to the relative global standard, to ensure the products have good compatibility and excellent quality.


What forms of payment do you accept?

Our main payment method include Paypal, Credit Card, Bank Transfer and so on. You could choose anyone at your convenience


When will you arrange shipment?

After confirming receipt of your payment, we will arrange the shipment as soon as possible and upload the courier number to the website for your easy tracking.

Under normal circumstances, the product will be sent out within 48 hours, if the package cannot be send out timely due to special circumstanceswe will contact you in advance and inform the specific reasons.


How to exchange or return?

1. You can apply to return within 30 days after receipt of the goods. Please make sure the outside package is intact, and products is in original condition. We will arrange your refund according to the relevant provisions once package received.

2. Return process: You Apply for Return - Approve Return You Arrange Return - Receive Products and make Inspection - We arrange Refund;

3. We will bear the freight charges for returns caused by us, for instance the quality problem; As to returns caused by the client, customer should be responsible for the shipping fee;

Ask Question About Product

Note: HTML is not translated!
Installation method
Installation methodCable
Terminal type
Terminal typeSolder Cup
Installation characteristics
Installation characteristicsShell (Unthreaded)
Connector Type
Connector TypePlug
Number of Positions
Number of Positions25 pin
Continuous plating
Continuous platingstamped pin
Number of Rows
Number of Rows2
Port number
Port numberSingle
waterproof level
waterproof levelNot Waterproof
Continuous plating
Continuous platingGold
