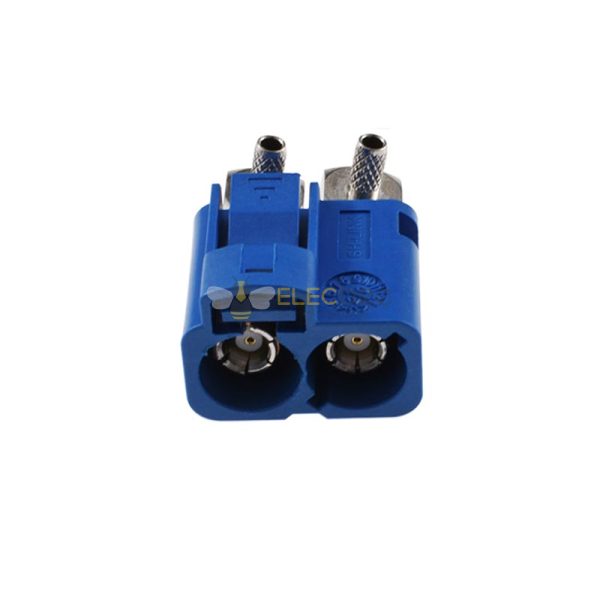

FAKRA SMB C Dual Female Jack Right Angle Short Body 15mm Vehicle Connector 50ohm RF Connector RG316 RG174
Features:
- RF Connector, Twin Connector, Dual Position, Fakra Connector,Female,Right Angle,50 Ohm,Solder,Crimp,for Cable,RG174,RG316,Brass,Nickel plating;
- FAKRA RF coax circular connector, designed for automotive industry With secondary locking structure;
- 14 different mechanical and color codes discrimination and misplaced structure to prevent mismatch;
- Safe and fully automatic assembly system to ensure the competitive price and high efficiency Achieve the ROHS standard;
- Widely used in car navigation systems, remote control systems, car TV, audio equipment, antenna and so on;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Appliance:
- WLAN
- GPS
- PC/LAN
- Automotive
- Base Station
- Head End Equipment
- Radios
- Wireless/ Networks Antenna
- Instrumentation
- Telecom
Contact Sales
Your Name* | |
Your Email* | |
Topic* | |
Qty | |
Message | |
SUBMIT |
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Cooper
-
Terminal type
Crimp Type / Solder Type
-
Installation characteristics
None
-
Gender
Female
-
Function
Other
-
direction
Right Angle
-
Polarity
Standard
-
Coating
Nickel Plating
-
Impedance
50 Ω
-
Coding
C
-
Port number
Dual
-
Installation method
Cable
-
Outer conductor connection
Without
- Description
Electrical Characteristics:
- Impedance:50 Ohm
- Frequency Range:0 to 6 GHz
- Voltage Rating:225 VRMS
- Dielectric Withstanding Voltage:1000 Volts
- Insulation Resistance:5000 MΩ min
Mechanical Characteristics:
- Engagement Force:20 N max.
- Disengagement Force:10 N min.
- Connector Durability:500 mating and unmating cycles min
Environmental Characteristics:
- Temperature Range:-65⁰C to +165⁰C
Material:
Part | Material | Finish |
Body | Brass | Nickel |
Center Contact Pin | Phosphor | Gold |
Insulator | TEFLON |
