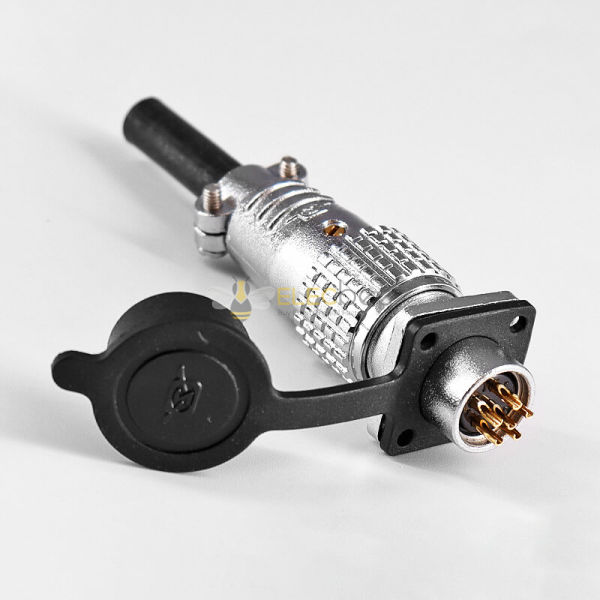

Elecbee TP12 6 Pin Aviation Connector Female Plug And Male Socket 4 Hole Flange With Rubber Dust Cap
SKU: EB-035-0024-H
Favorites
Key Features
Features:
- TP12 Series Aviation Connector, Straight, Solder Cup, Male and Female, 6 Pin
- Termination Type: Solder Type
- Shell Material: Zinc Alloy (Chromeplate)
- Contact Material: Copper Gold Plating
- Coupling: Threaded Connection
- Temperature range: -20 ℃ ~ +85 ℃
- Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male，Female Pin
Shell Finish
Tin Plated
Number of Positions
6 Pin
Operating Temperature
-20℃~+85℃
Rated Current
5A
Rated Voltage
125VAC
Features
With Cover
Connector Series
TP12
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PBT
Cable Diameter
8mm
Shell Size
12
Insulation Color
Black
Description
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
E****a
Perfect fit for my industrial project. The threaded connection is solid and the gold-plated contacts ensure great conductivity. Easy to solder too!
B****s
Good quality aviation connector. Zinc alloy shell feels durable and the rubber dust cap is a nice touch to keep debris out when not in use.
J****t
Used this for a custom robotics setup. The 6-pin solder cup design made wiring clean and secure. No signal issues so far.
A****r
Works as described, but took some time to solder neatly. The chrome-plated finish looks sharp, though I wish the included cap was more snug.
I****t
Reliable connection and well-built. The male and female pairing locks tightly thanks to the threaded coupling. Great for rugged environments.
