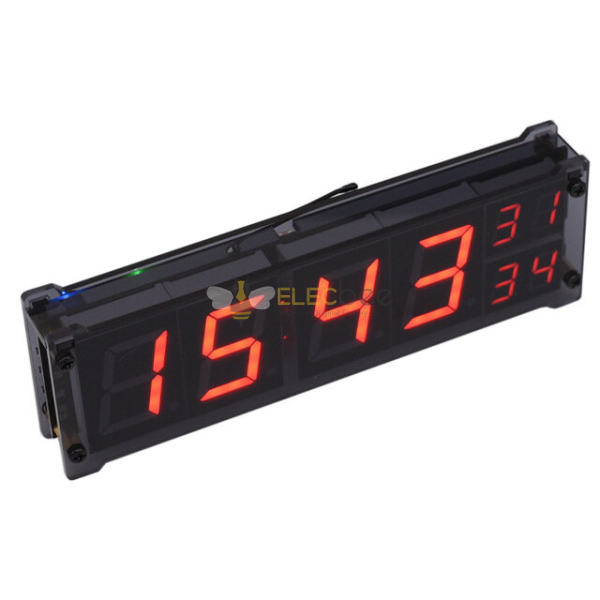

Elecbee 1.2 Inch Digital Tube with Temperature and Time Display Alarm Clocks Module Supports WIFI Network Automatic Time Synchronization 5V DC

SKU: EB0050133

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Wi-Fi + Cellular

Model

USB Support

USB

Show Similar Products >

Description

Overview:

Use 1.2 inch digital tube with room temperature display and second display. Translucent crystal case. Support 5V Android mobile phone charger for direct power supply. With buzzer, there are 3 practical alarm clocks. At the same time, it supports wifi network automatic time synchronization to ensure the accuracy of time. The electronic clock can only be connected to the 2.4G WIFI network.

Specifications:

Supply voltage: Micro-USB 5V

Power supply current: >200mA DC current

Size: 160*52*21mm

Automatic photosensitive control: In dark conditions, the digital tube will automatically dim, and the brightness of the digital tube will be automatically increased during the day.

Comes with a back battery, with time memory function, external power failure does not affect the travel time

Temperature measurement on the right side of the 2-digit digital tube display range -9 ℃ to 99 ℃.

Instructions for use:

1. Indicator light

(Blue) WIFI indicator is always on: successfully connected to WIFI

(Blue) WIFI indicator flashes: WIFI connection failed

(Green) Time synchronization indicator light is always on: time synchronization is successful

(Green) Time synchronization indicator light is off: time synchronization failed

2. The buttons on the left from top to bottom are: set, increase, decrease, alarm

-Setting key: press this key to enter the time/date/year setting. Press the plus and minus keys to adjust the value, and press the set key to save after adjustment.

-Add key: Press this key to switch between the four display states of {time}-{date}-{temperature}-{alternate cycle display}.

-Minus key: Press this key to enter custom parameter setting, press "plus and minus to change parameter value", the meaning of the code is as follows:

AC: Temperature error correction parameter

dd: Customize the display items in the loop display:

{dd:0} time+date+temperature

{dd:1} time + temperature

{dd:2} time + date

dF: Custom cycle display switching time interval, the unit is second, the adjustment range is 1-9.

LL: Display brightness level, the adjustment range is 1-9 (Note: When manually adjusting the brightness, it will take effect only when the AL option is AL:0, otherwise the brightness will be automatically controlled by the electronic clock)

AL: Automatic brightness control switch, AL:0 is off, AL:1 is on

BP: alarm switch, BP:0 is off, BP:1 is on.

-Alarm key: adjust the alarm time. This electronic clock has three sets of alarm clocks, A1/A2/A3 in the upper right corner represents three sets of alarm clocks (Reminder: If you only want to ring the alarm once a day, you can set all three sets of alarm clocks to the same value.)

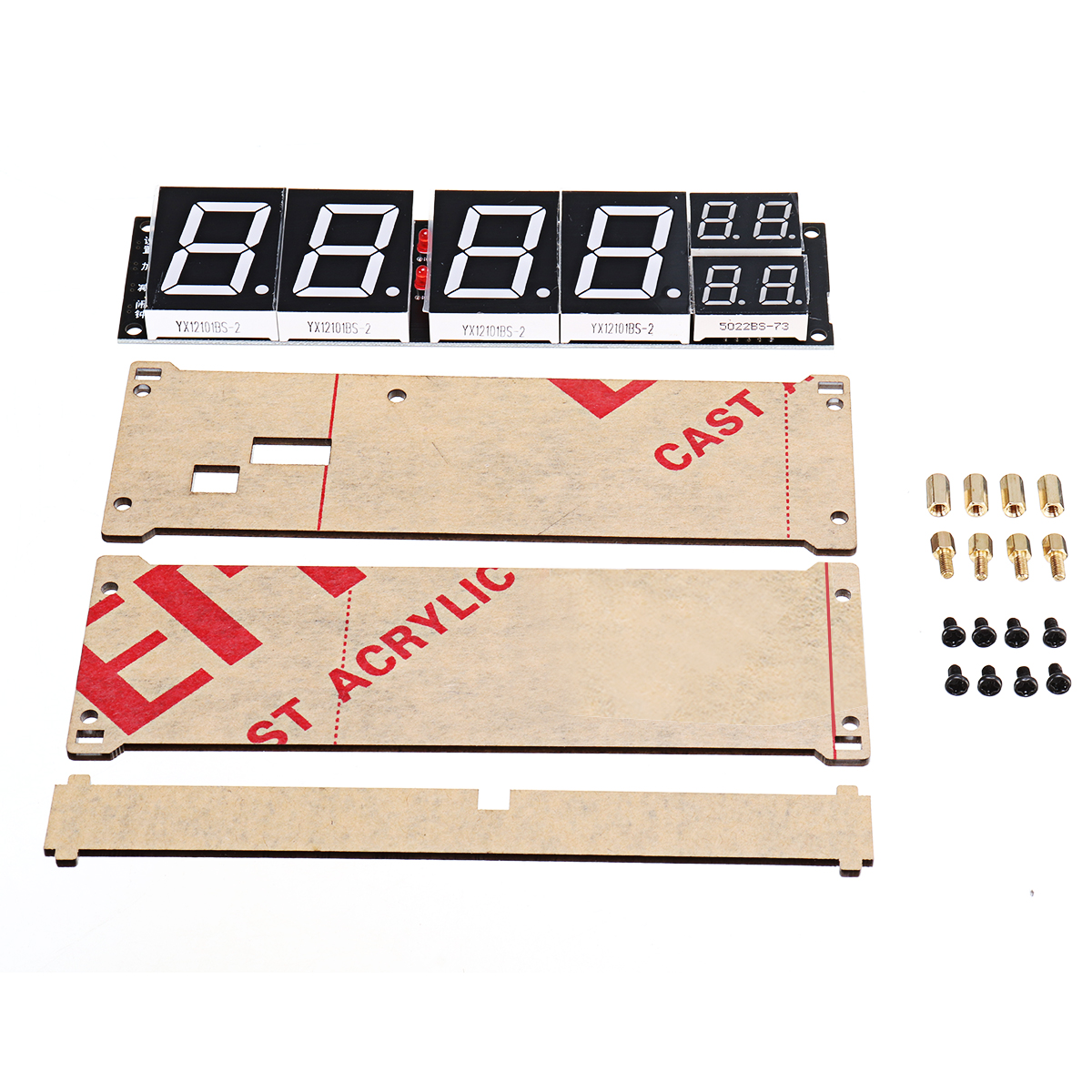

1 x 1.2 Inch Digital Tube with Temperature and Time Display Alarm Clocks Module
