Elecbee Programmable Full-color RGB LED Light Color Light Modulator PWM Speed Controller Panel

SKU: 1263925

Favorites

Key Features

xa0
LED panel default communication baud rate: 9600 BPS
The LED panel communication protocol
Data (1) - startup logo (the default is 0 x1f)
Data (2) - channel number (1: red, 2: green, 3: blue)
Data (3) - brightness value (0-100%)
Data (4) - check code (the sum of the top three data)
xa0
Example:
xa0
Set to auto lamp: 1 00 00 f 1 f
The red lamp 1% brightness: 1 f 01 01 21
The red lamp 50% brightness: 1 f 01 32 52
The red lamp 99% brightness: 1 f 01, 63, 83
Set the green light 1% brightness: 1 f 02 01 22
Set the green light 50% brightness: 1 f 02 32 53
Set the green light 99% brightness: 1 f 02 63 84
Set the blue light 1% brightness: 1 f 03 01 23
Set the blue light 50% brightness: 1 f 03 32, 54
Set the blue light 99% brightness: 1 f 03, 63, 85
xa0

Datasheet

1263925

Specifications

Show Similar Products >

Attribute

Value

MCU/SoC Model

Programmable Full-color RGB

CPU Architecture

TIONIMAGE0

Memory

Arduino IDE

Debug Interface

PWM

Show Similar Products >

Description

Description:

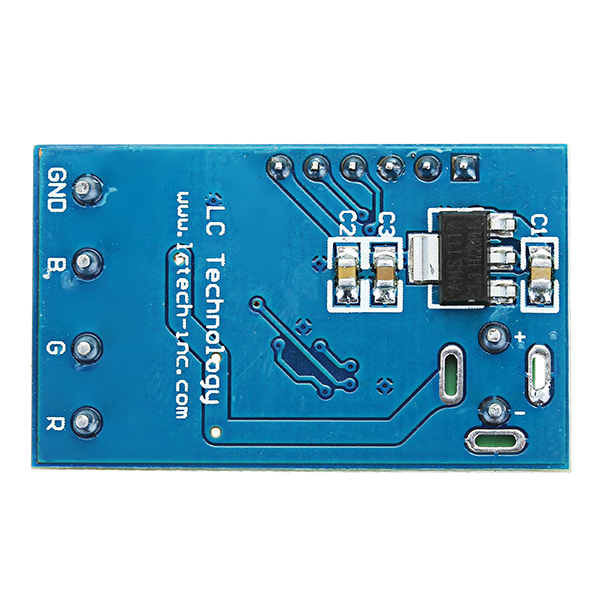

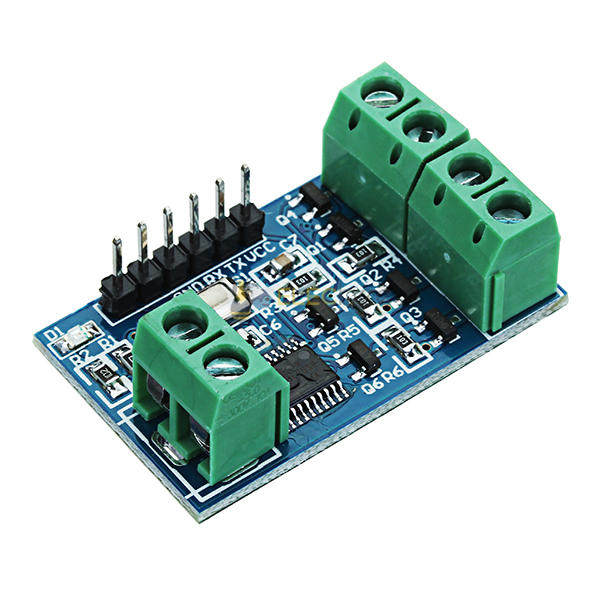

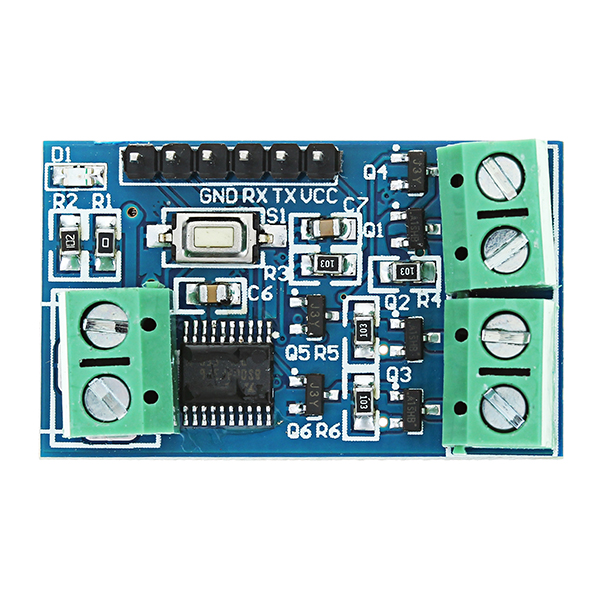

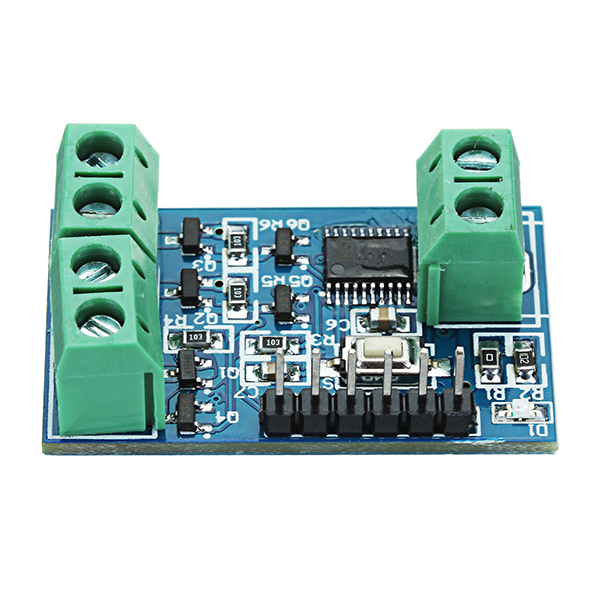

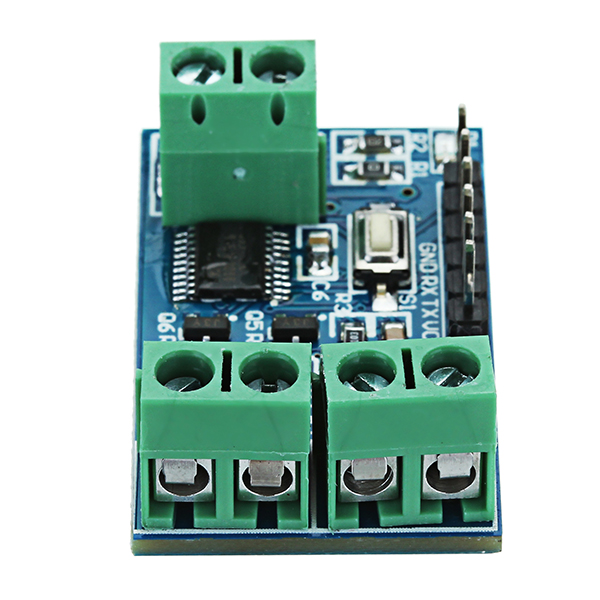

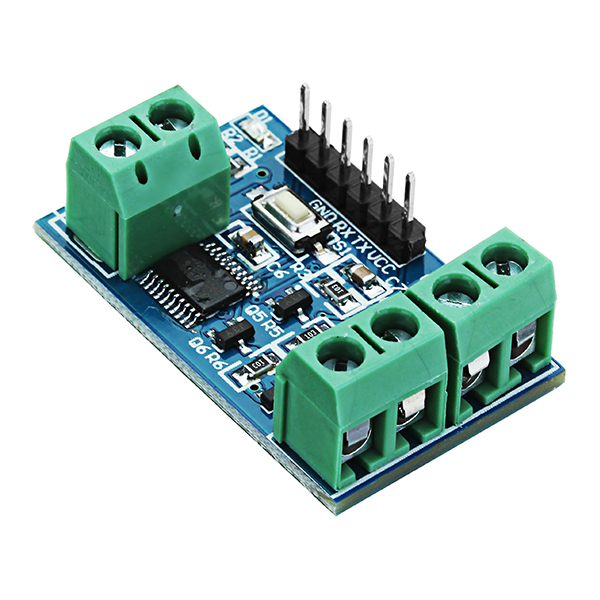

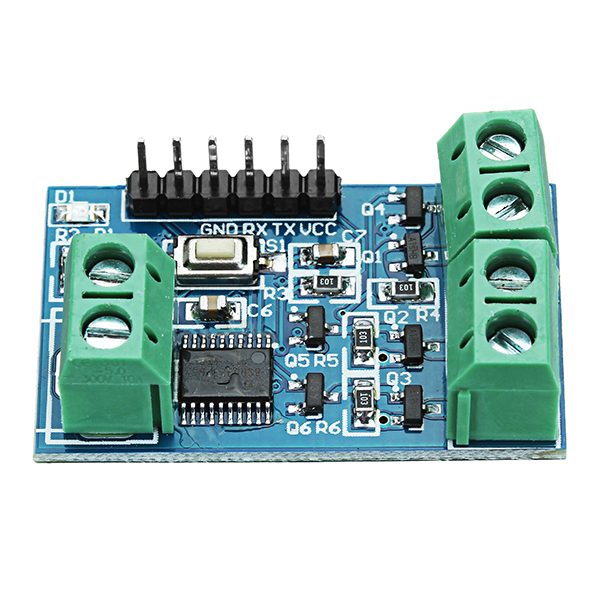

1.on-board high-performance microcontroller chips
2.on-board three way MOSFET tube, respectively control the RGB tricolor LED lights
3.on-board power LED lights and reset buttons
4.on-board the input and output power socket
5.on-board serial port communication interface
6.panel power supply voltage: 3.3-5.0 V
7.PCB size: 37.2 (mm) x22.5 (mm)
8.Information link: https://img.elecbee.com/ic/download/pdf/20180919020210RGBControllerV2.pdf

1 x Programmable Full-color RGB LED Control Panel

Programmable-Full-color-RGB-LED-Light-Color-Light-Modulator-PWM-Speed-Controller-Panel-1263925
