Elecbee LVDS to eDP Universal Driver Board LVDS to EDP Adapter Board eDP LCD Screen Signal Adapter Board DP_N173HGE_V6.1

SKU: 1751011

Favorites

Key Features

Feature:

Support 1/2/4 lane EDP-1366*768 / 1920*1080

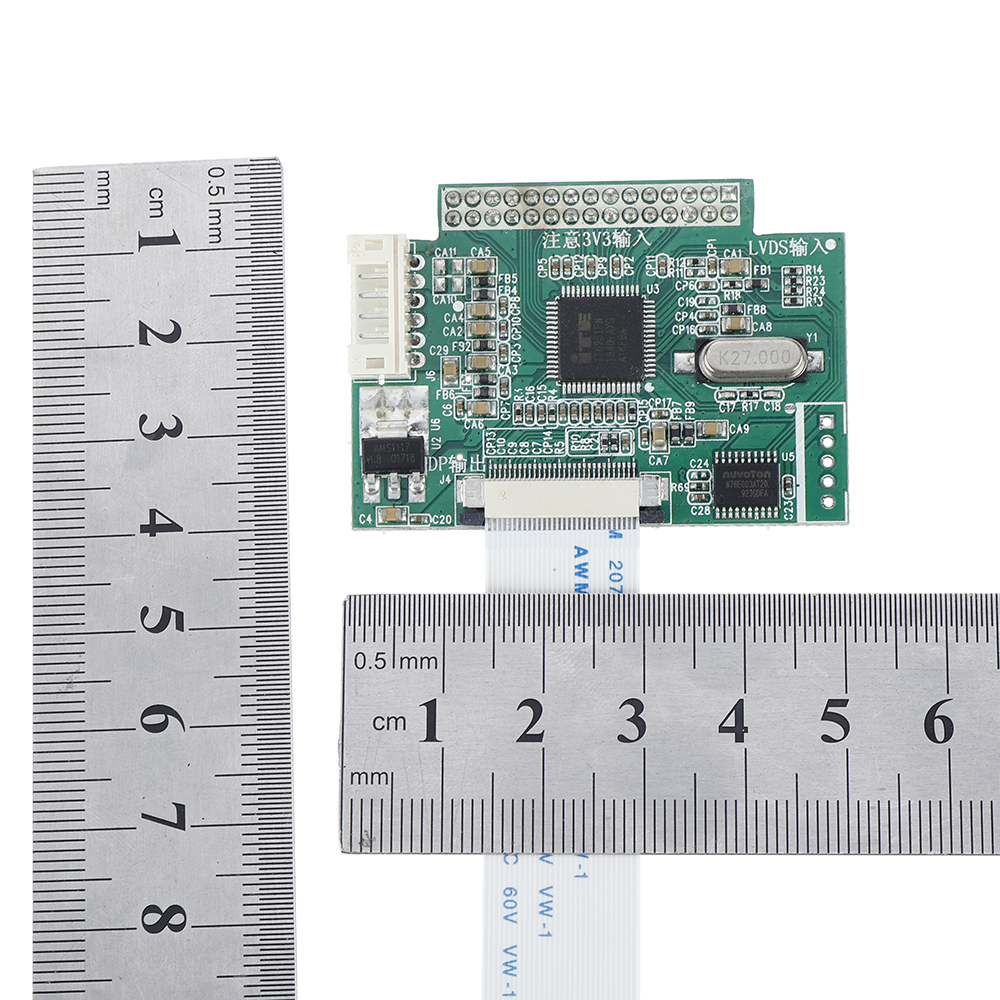

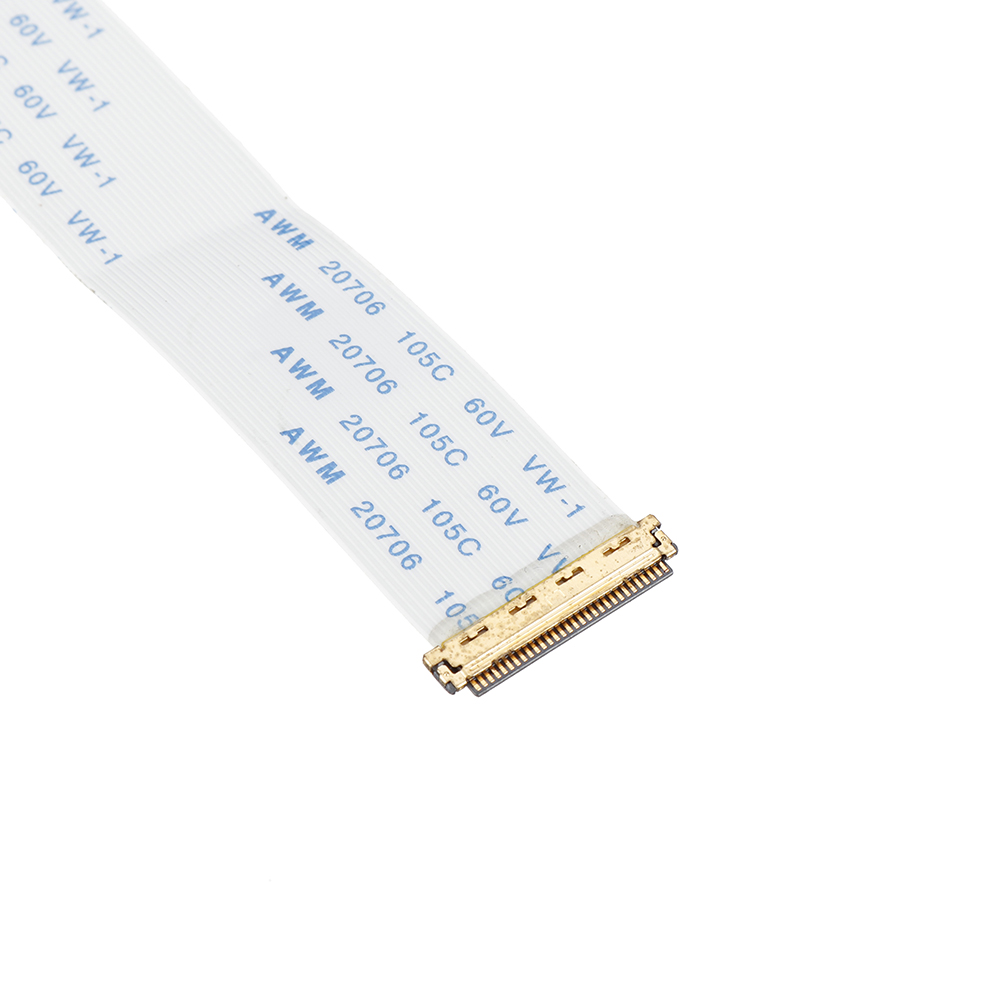

EDP signal output I-PEX 20455-30PIN

LVDS input: DuPont 30P 2.0 pitch

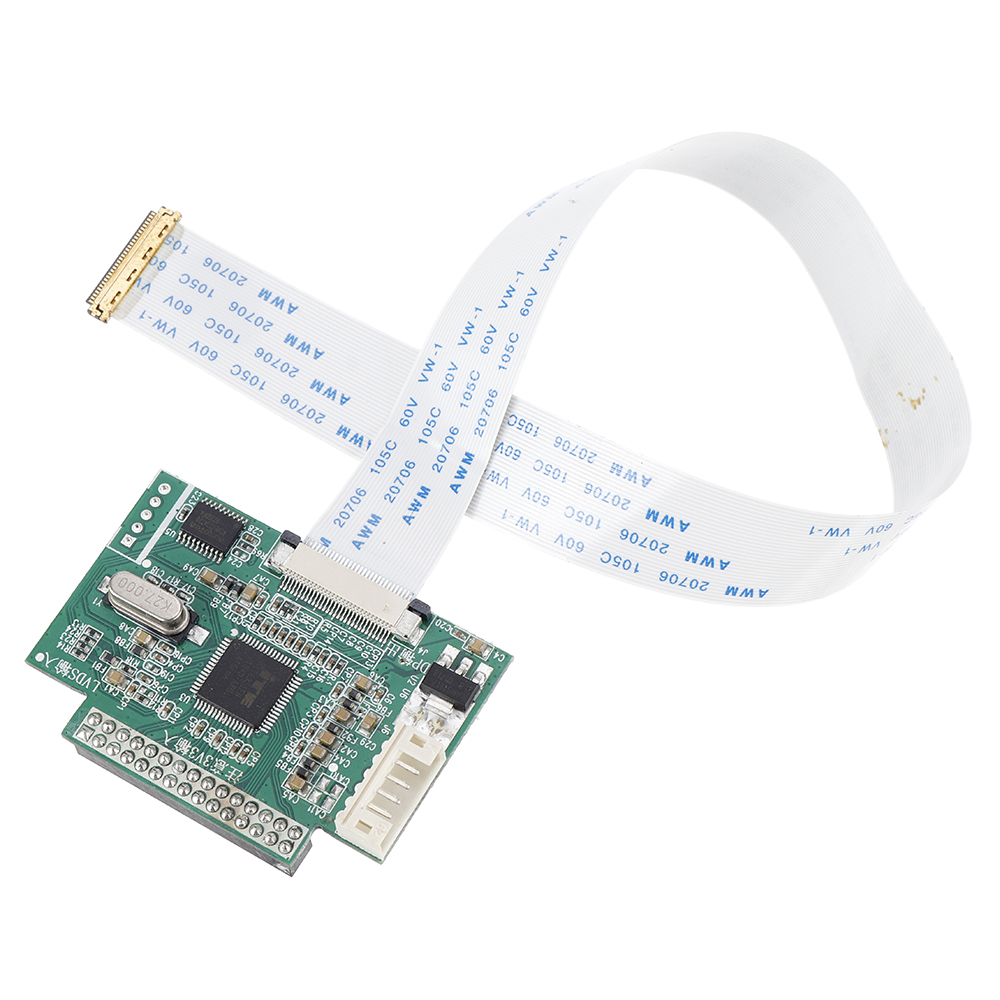

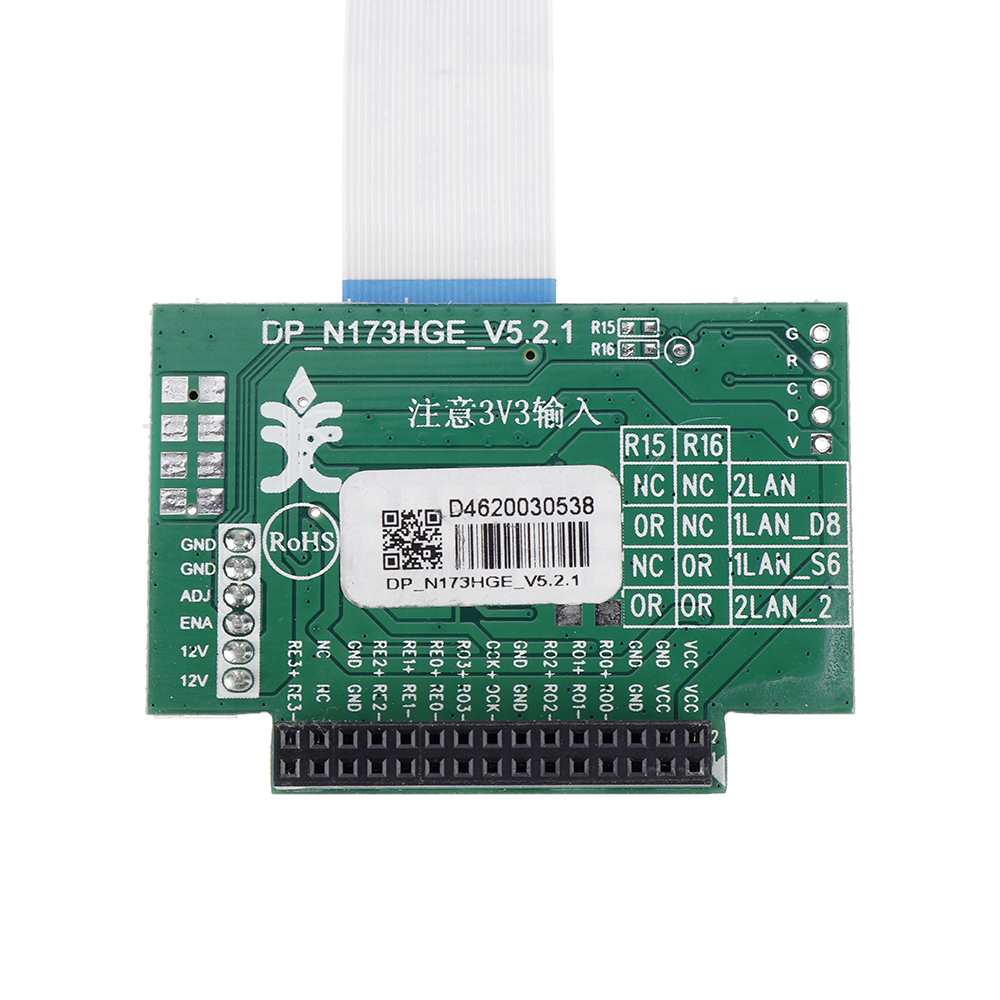

No short-circuit any pins, the default resolution is: 1920*1080, 1920*1200

With short-circuit R16 resistor is: 1366*768, 1280*800, 1440*900, 1680*1050, 1600*900

R15 short circuit is connected to 1 lane EDP LCD screen

R16 short circuit is connected to 4 lane EDP LCD screen

R15, R16 open circuit is connected to 2 lane EDP LCD screen

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

N173HGE

USB Support

USB

Show Similar Products >

Description

This item need to used with a driver board like: T.SK105A.03

Note:

The jumper on the LVDS driver board must jump to the 3.3V position to avoid burning the EDP adapter board

If the backlight is not bright, you can short the ADJ-ENA pin

Partially applicable EDP models (incomplete list)

1. B116XAN02.0_1LANE

2. B113HAN03_0_HW-1A

3. B140RW01 V2

4. B140XTN02.4(0A)_1LANE

5. B140XW01_V4

6. B156HAN01.1(0A)_2LANE

7. B173RTN01.1LANE

8. CLAA133UA03_CW

9. HN133WU1-100

10. HV121WX5-121

11. LP156WF1-TPB1

12. LP156WF4-SPB1

13. LTN141AT05 10A

14. N116HSE-EA1

15. N116HSG-WJ1

16. N133HSE-EA1

17. N140B6 D11

18. VV13F009G10

...

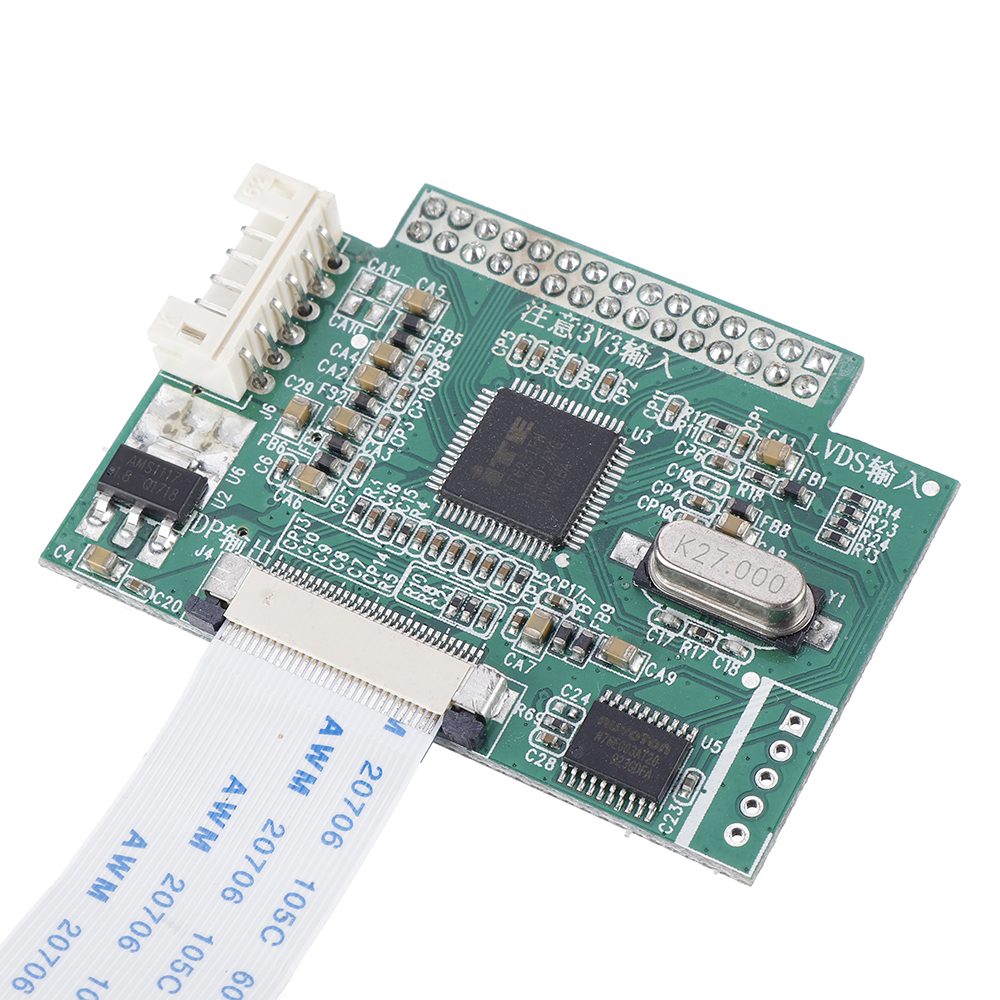

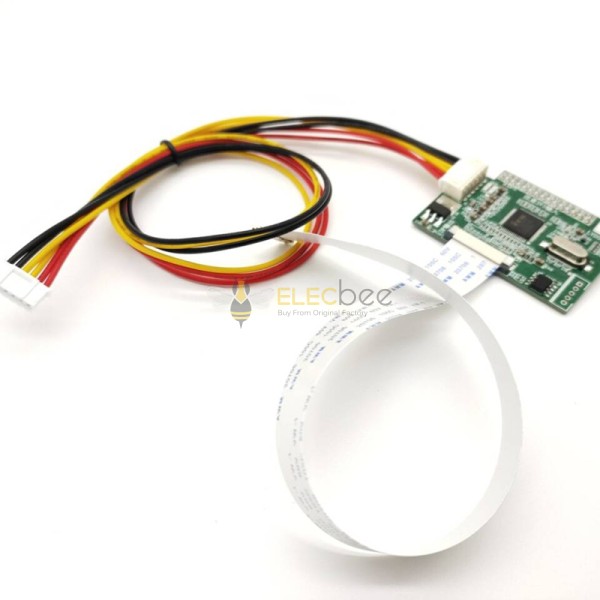

Package includes:

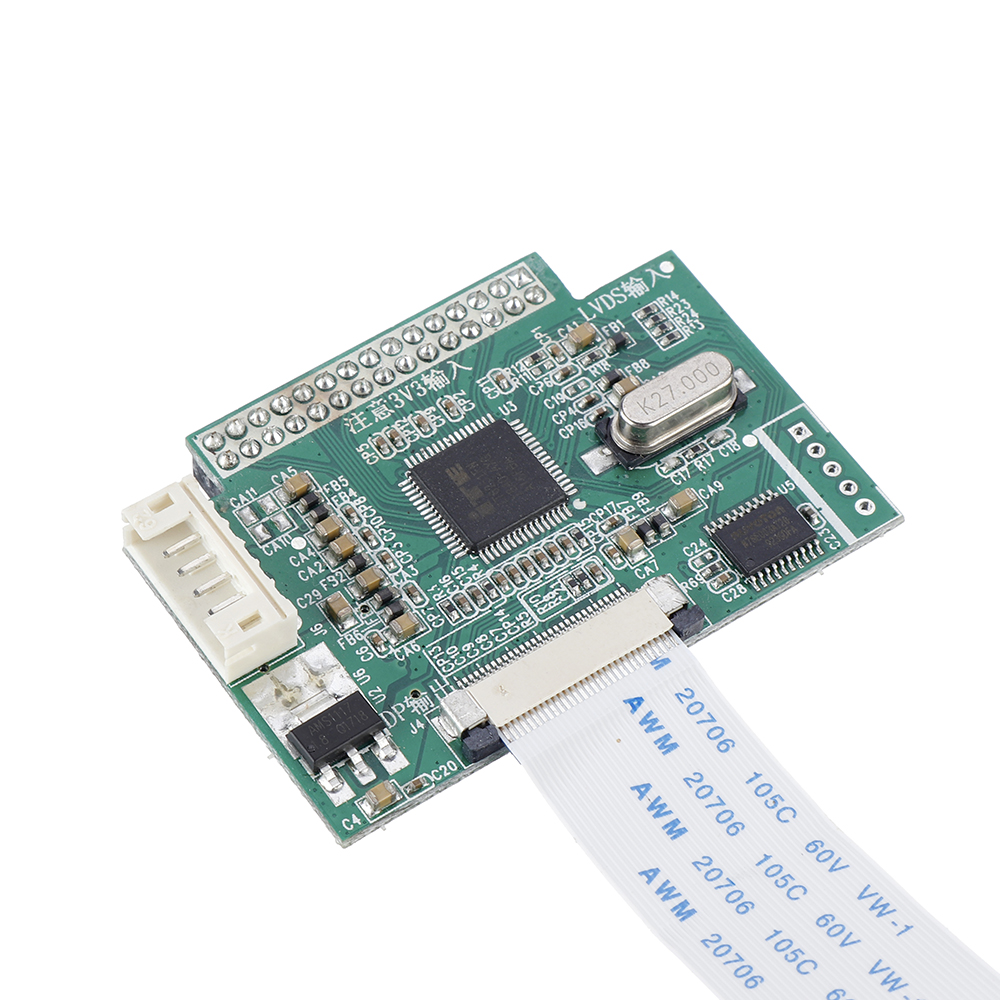

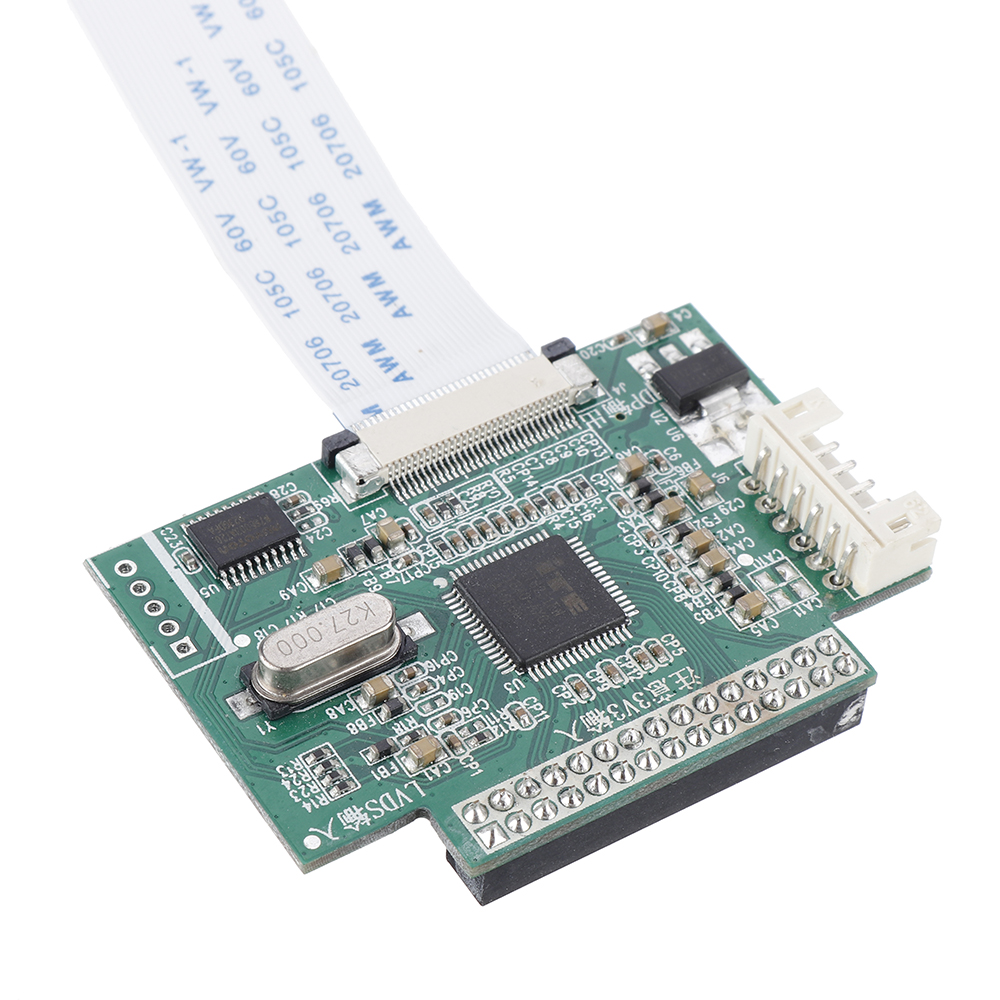

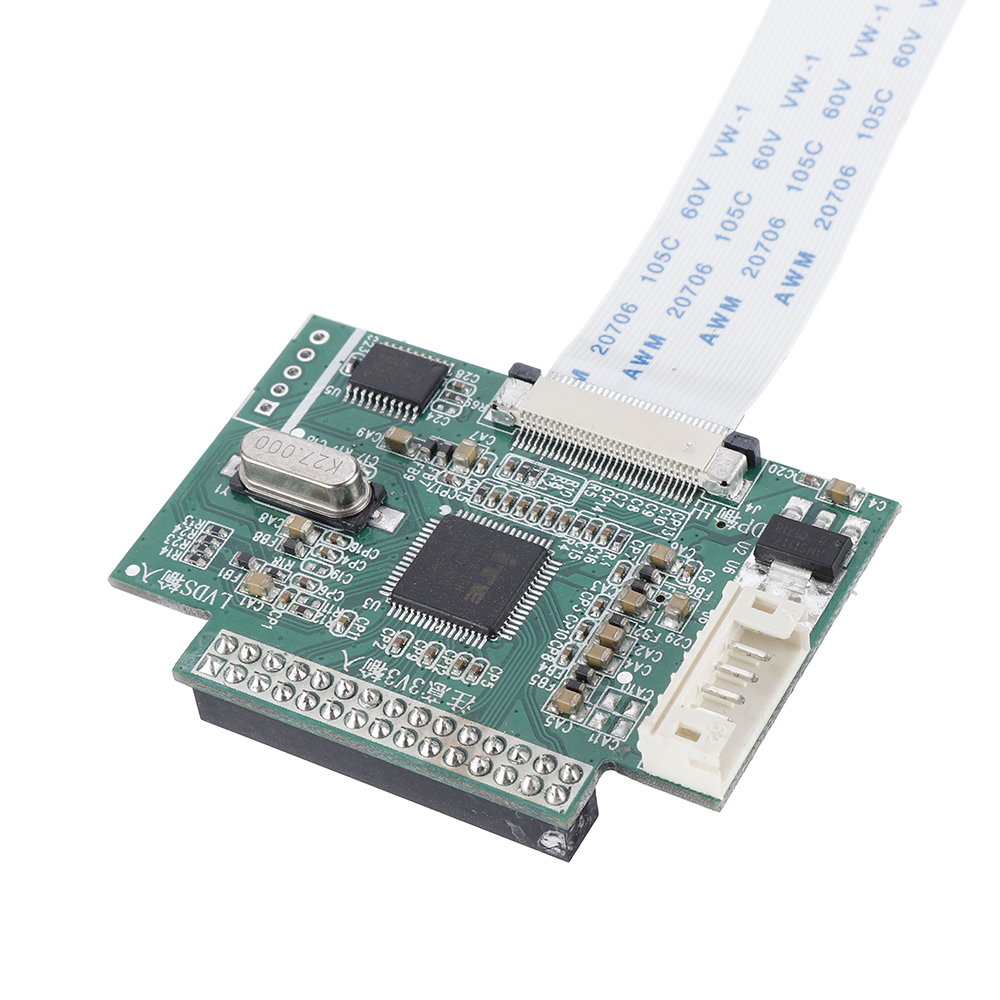

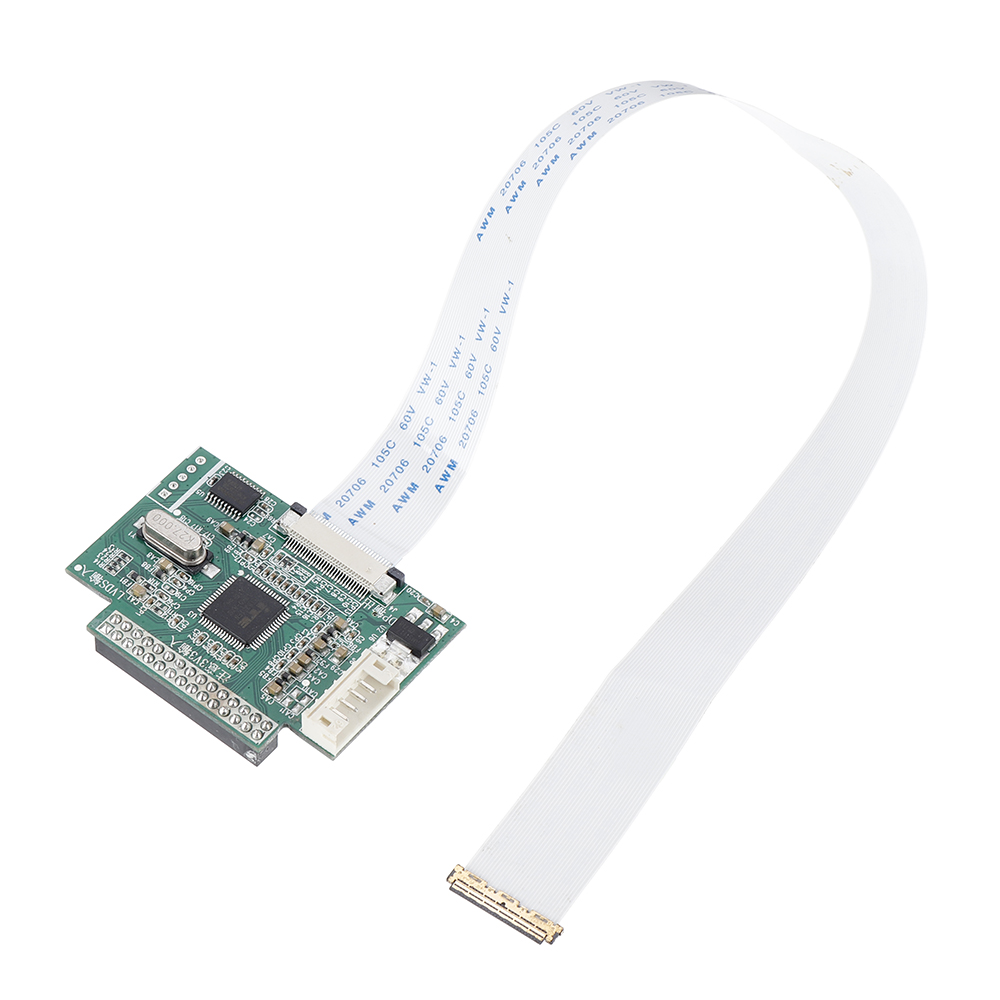

1 x Adapter Board

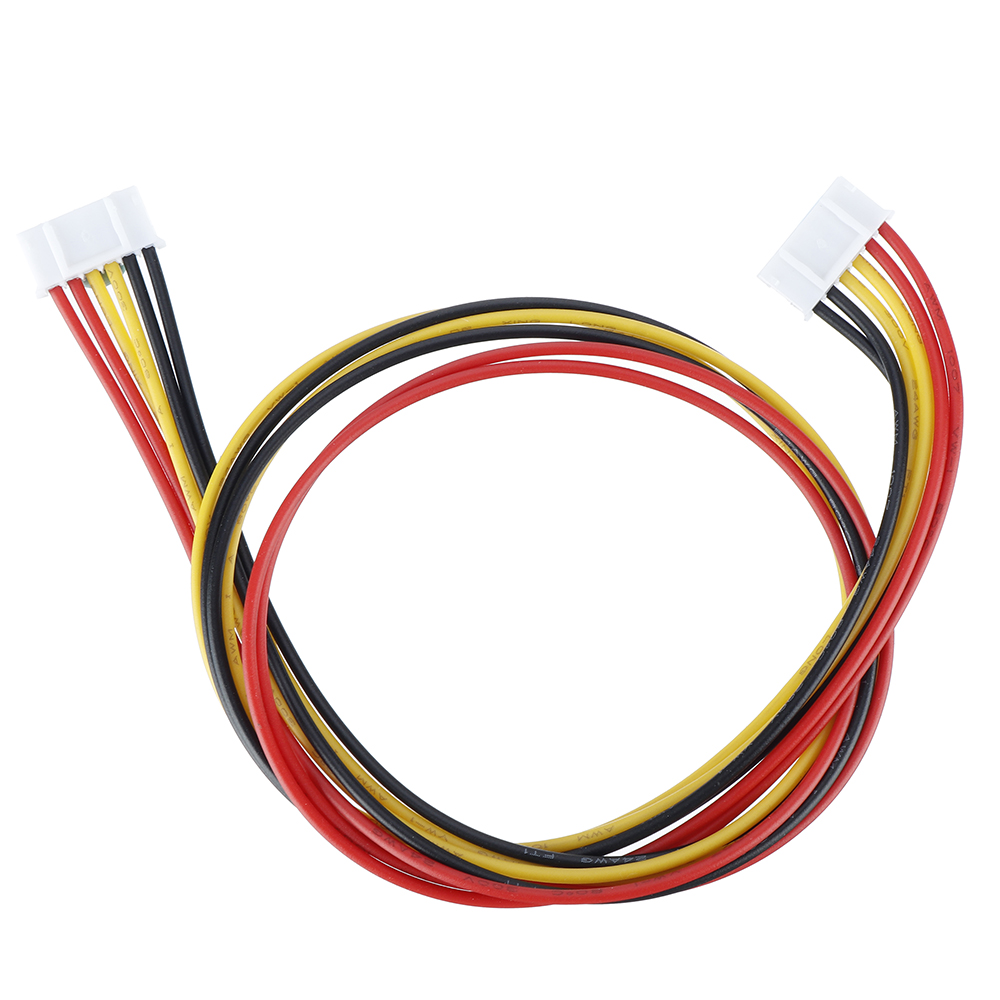

1 x Cable
