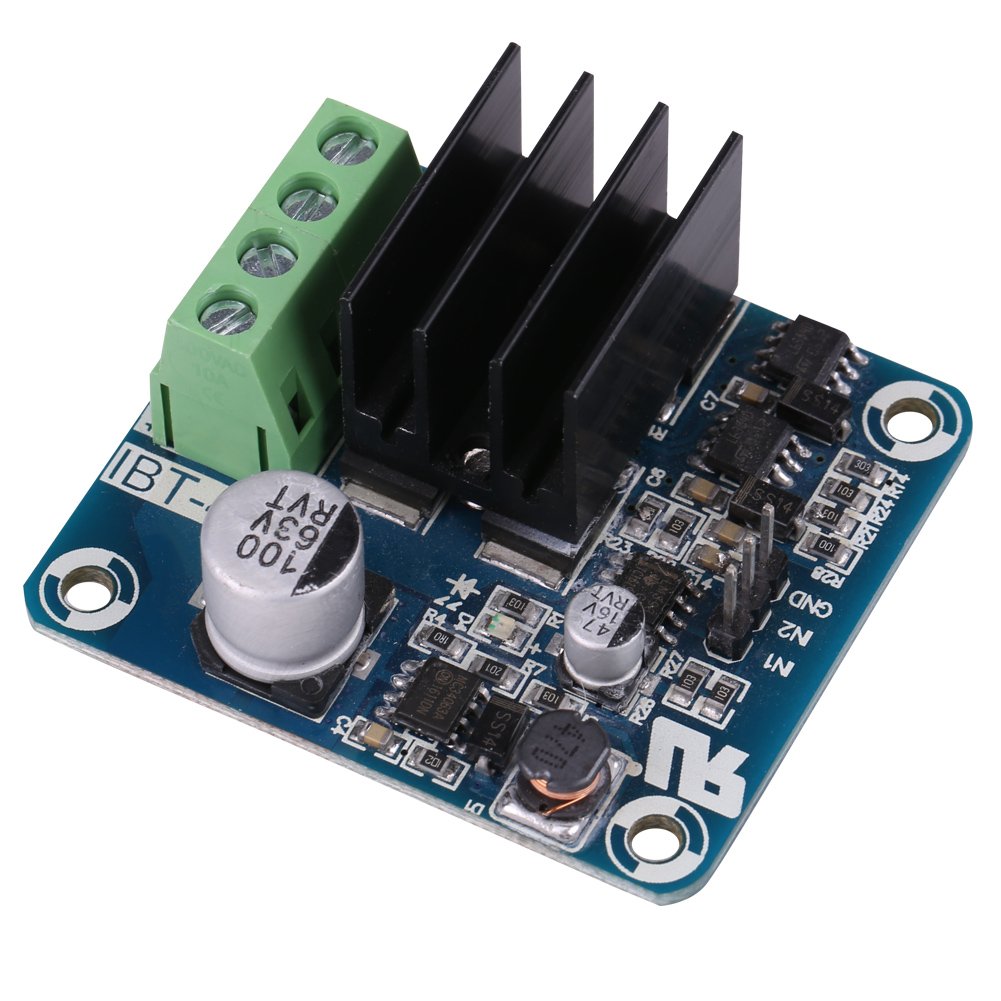

Elecbee Motor Controller, Large Current 50A H Bridge High Power Single Channel Motor Driver Module Working Voltage 5V to 15V

SKU: EB0048721

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

MCU/SoC Model

Motor Controller, Large

Memory

Arduino IDE

Debug Interface

PWM

Power Protection

5V/15V

Show Similar Products >

Description

Description:

The drive uses a full H-bridge driver module full-bridge MOSFET driver chip and composed with very low internal and high current. MOSFET H-bridge driver circuit, with strong drive and braking effect, isolation chip isolates motor drive effectively. 3.3V to 12V, PWM level is fully compatible. High current 50A.

Features:

This is a MOSFET high current (50A) H-bridge driver module.

With the microcontroller PWM isolation, effectively microcontroller. To achieve the motor forward and reverse rotation, two PWM input maximum 200kHz frequency. 3.3V to 12V power on average use, fully compatible. The power supply voltage 5V to 15V. Power indicator is schematically clear.

Specifications:

Working Voltage: 5V to 15V

Current: 50A

Circuit Structure: H Bridge

Size: 4.3*4.8*2cm/1.7*1.9*0.8in

Package Includes:

1 x Motor Driver
