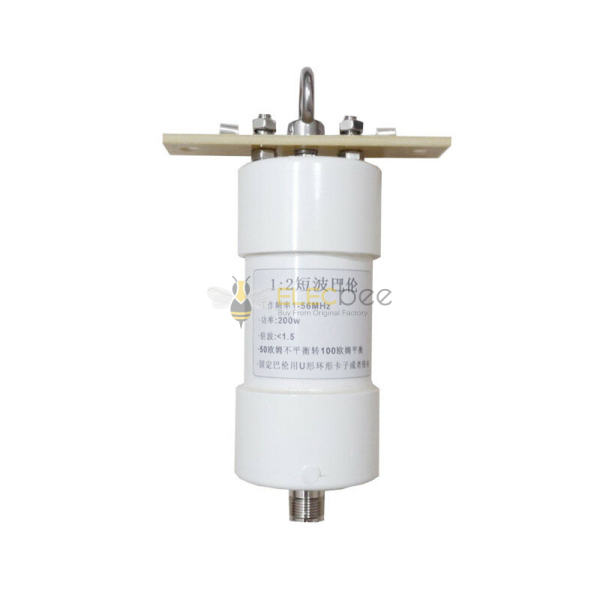

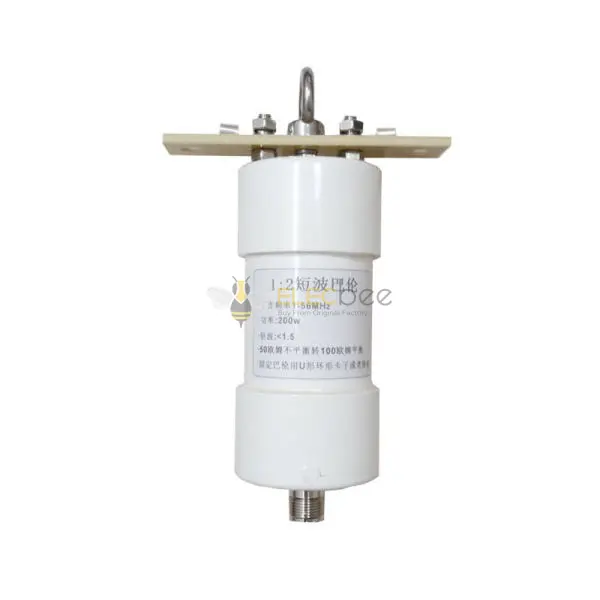

Elecbee 1:2 Balun 1-56MHz 200W for HAM Shortwave Antenna - 50 Ohm to 100 Ohm Unbalanced Balance
SKU: 1741737
Favorites
Key Features
Key Features:
- High-Efficiency Signal Conversion: This 1:2 balun transforms 50 ohm unbalanced signals to 100 ohm balanced signals, making it ideal for QUAD antennas and enhancing signal quality.
- Wide Frequency Range: Operates effectively between 1-56MHz, accommodating a variety of shortwave radio applications for versatile use.
- Robust Power Handling: With a power resistance of up to 500W, this balun is designed for high-power applications, ensuring reliable performance in demanding conditions.
- User-Friendly Design: The balun comes with an epoxy resin plate and a stainless steel lifting ring for easy installation, along with copper noses for secure equipment connections.
- Weather-Resistant Construction: Built to be waterproof, it only requires simple waterproofing at the M seat and cable connector, ensuring durability in outdoor conditions.
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth
Model
X130MM
Description
The main parameters:
1. The transformation ratio is 1:2
2. Input impedance: 50 ohms (unbalanced)
3. Output impedance: 100 ohms (balance) suitable for QUAD ANT antenna
4. Frequency range: 1-56MHz
5. Standing wave: less than 1.5
6. Power resistance: 500w
7. Dimensions: outer diameter 50x130mm
8. Weight: 350 grams
9. Comes with epoxy resin plate and 304 stainless steel lifting ring, with two copper noses for connecting the equipment, convenient for users.
10. Barron is already waterproof, and users only need to waterproof between the M seat and the cable connector.
Package Including:
1 x 1:2 Balun
