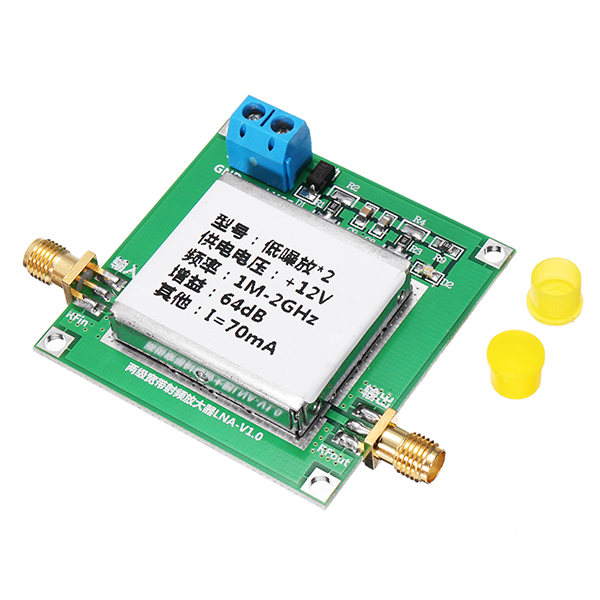

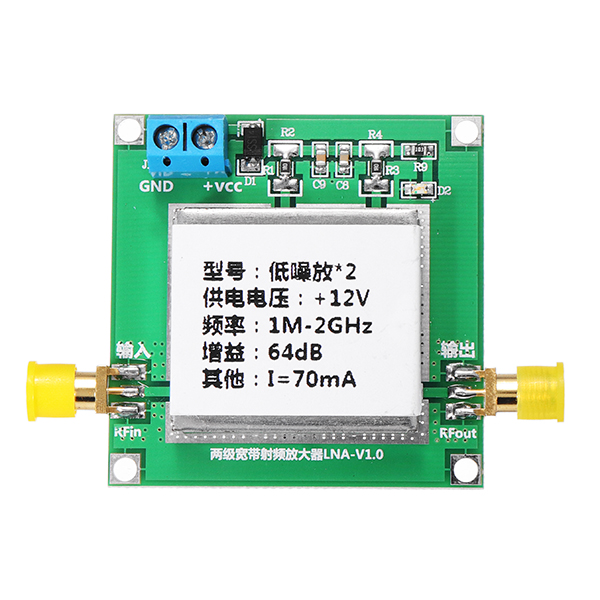

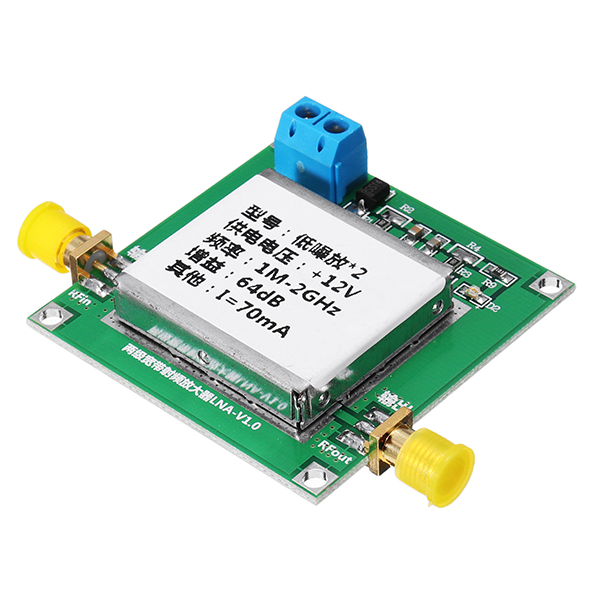

Elecbee 0.1-2GHz 64dB Gain RF Broadband Amplifier Board Low Noise Amplifier LNA

SKU: 1237028

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Cellular

Model

AMPLIFIERLNA2

Show Similar Products >

Description

Description:

low noise amplifierLNA2-2G-64DB

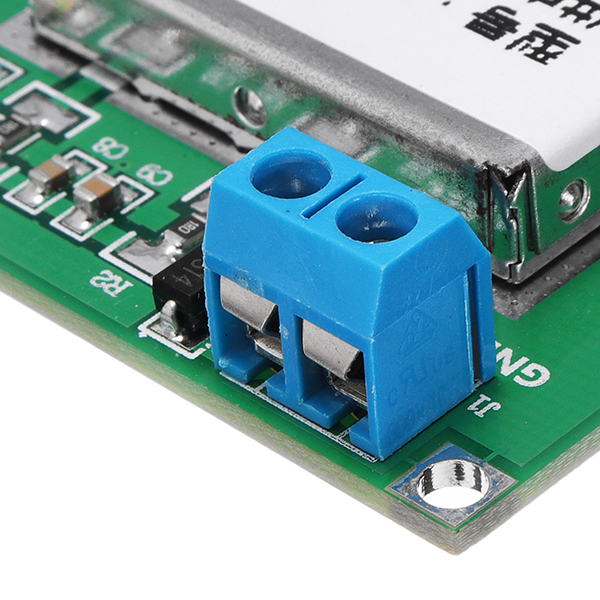

1. Power supply voltage:12VDirect(Current 70MA)Shielding enclosure

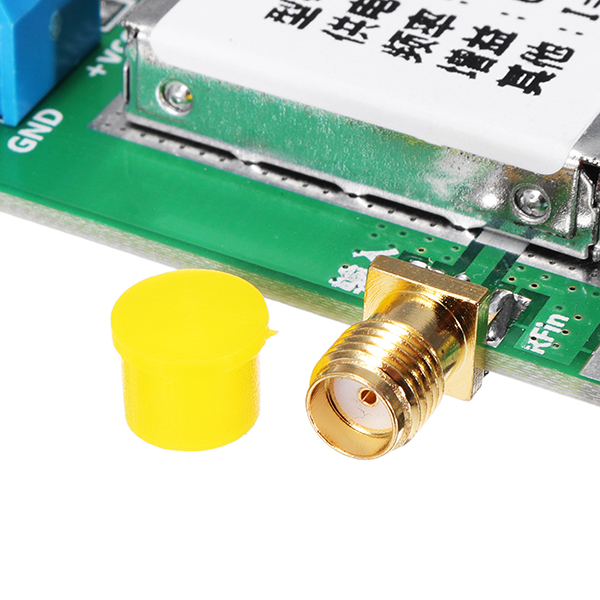

2. Gain:64DB input and output impedance: 50 ohm
3. Maximum output power:10dBm (2VPP50Under ohmic load)
4. Input signal:<=-54DBM(greater thanDBm -54Input output signal has been distorted)
5. Bandwidth, bandwidth:1MHzreach(2GHzDifferent frequency gain is different, specific please refer toS21Curve index)
6. Noise coefficient:2dB (0.5GHzCase measurement)
7. Other: the need for different gain values, you can reduce the supply voltage
8. Point frequency gain:GAIN=63.41 dB F=30.29MHZ
                   GAIN=66.43 dB F=310.2MHZ
                   GAIN=64.54dB F=620.2MHZ
                   GAIN=55.59 dB F=1.210GHZ
                   GAIN=48.18 dB F=1.590GHZ
                   GAIN=38.44 dB F=1.810GHZ
                   GAIN=39.58 dB F=2.000GHZ

Vector network analyzer measurement:

01-2GHz-64dB-Gain-RF-Broadband-Amplifier-Board-Low-Noise-Amplifier-LNA-1237028

01-2GHz-64dB-Gain-RF-Broadband-Amplifier-Board-Low-Noise-Amplifier-LNA-1237028

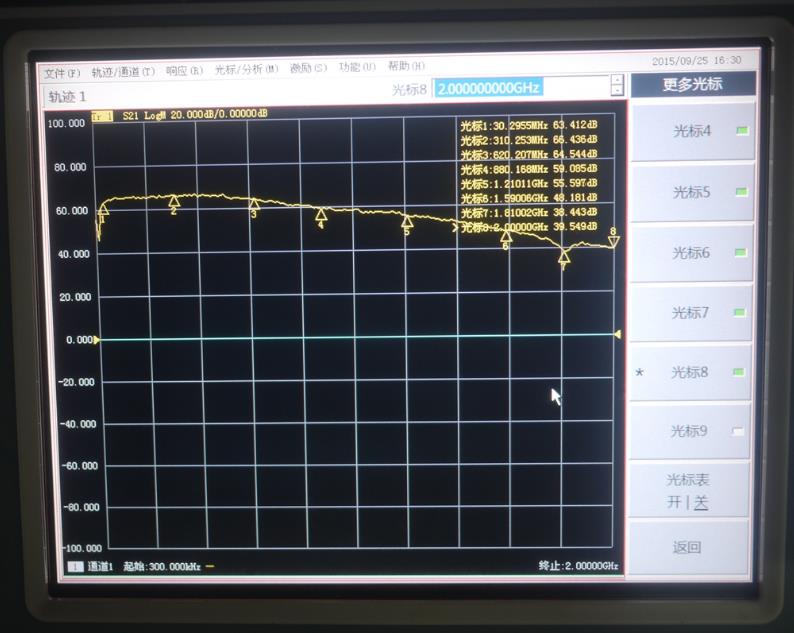

Figure 1:AV36580AMeasurement of vector network analyzer S21 value

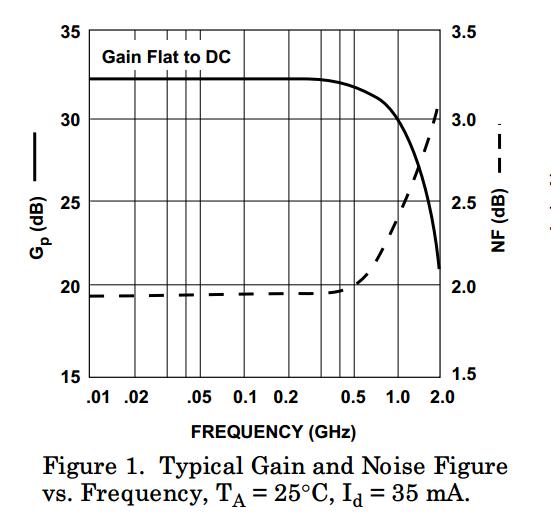

Chip S21 parameters:

01-2GHz-64dB-Gain-RF-Broadband-Amplifier-Board-Low-Noise-Amplifier-LNA-1237028

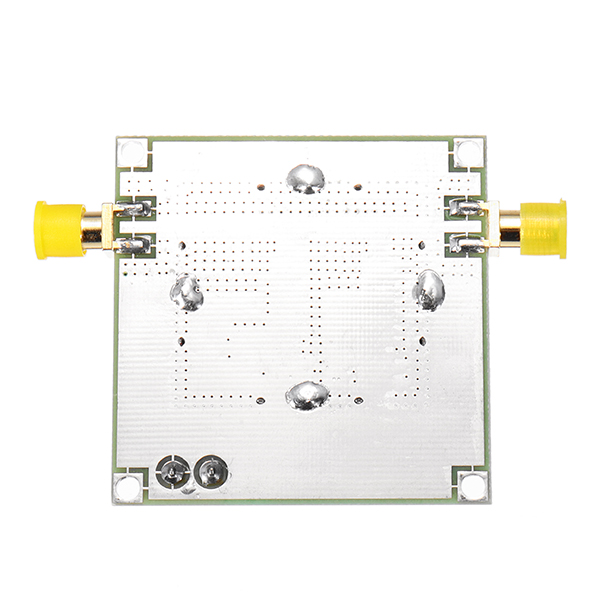

1 x 0.1-2GHz 64dB Gain RF Broadband Amplifier Board
