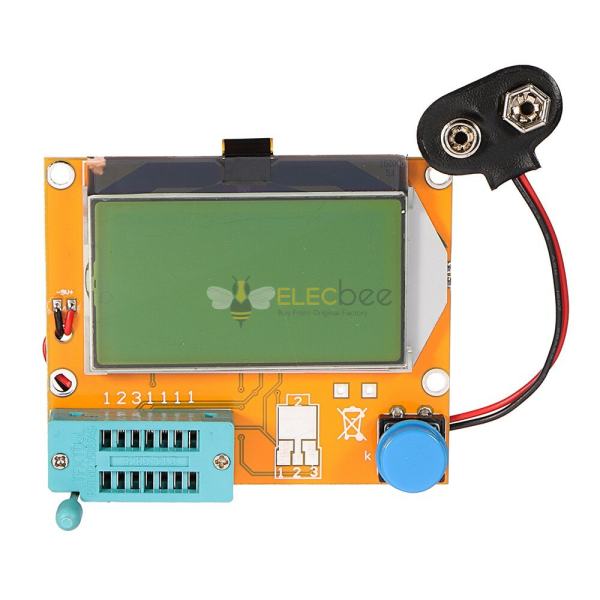

Elecbee LCR-T4 12864 LCD Graphical Transistor Tester - Component, ESR, Capacitance, SCR, Resistance Meter
SKU: EB0047325
Favorites
Key Features
Key Features:
- Auto-Component Detection: Instantly identifies NPN/PNP transistors, MOSFETs, diodes, SCRs, resistors & capacitors with pin configuration display
- Wide Measurement Ranges: 0.1Ω-50MΩ resistance | 25pF-100,000μF capacitance | 0.01mH-20H inductance testing
- 128x64 Graphical LCD: Clear visualization of parameters, amplification factors, and gate capacitance/threshold voltage
- Ultra-Efficient Operation: 0.02μA standby power with <20nA auto-shutdown mode extends battery life
- One-Button Testing: DC 9V powered | 2-second results for most components | Portable 11.1x2.6x8.5cm metal housing
Show More
Specifications
Attribute
Value
Search
Model
T4
Description
Specifications:
Resistor: 0.1ω-50MωCapacitor: 25pF-100000uF
Inductance: 0.01mH - 20H
Working power: DC-9V
Standby current: 0.02uA
Operating current: 25mA
Material: Metal+Plastic
Size: about 11.1cm/4.37"x2.6cm / 1.02"x8.5cm/3.34"
[Conversion: 1cm=0.3937 inch, 1inch=2.54 cm]
1. Support boot voltage detection function
2. Automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including dual diodes), thyristors, triodes, resistors, and capacitors. Automatically testing the component leads and displaying them on the LCD
3. The forward bias voltage of the emitter transistor can be determined by detecting the amplification factor and base number of a transistor, a MOSFET protection diode, and the like
4. Measure gate threshold voltage and gate capacitance MOSFET
5. The display uses 12864 lcd LCD (128 * 64 characters)
6. High test speed, valid component test: In 2 seconds (except in larger capacitors, large capacitance measurement also takes a long time, the measurement time in 1 minute is normal)
7. One-button operation, power-on test.
8. Power Consumption Shutdown Mode: Less than 20 nA
9. Automatic shutdown function can avoid unnecessary waste, save battery energy and improve battery life.
1 x LCR-T4 12864 LCD Graphical Transistor Tester
